Dear Customer,

Congratulations on your choice of a LAMONA domestic appliance.

The user manual will help you use your product quickly and safely.

• Please read this user manual before installing and using the product.

• Always follow the safety instructions.

• Keep this user manual within easy reach for future reference.

• Please read any other documents supplied with the product.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful tips about usage.

Warning for possible hazards to health and property.

Metal Surfaces of the Extractor and Condensation

When cooking with pans using a large water content, large quantities of vapour and steam

can be produced very quickly. This steam may condense onto the cold metallic surfaces of the

extractor and even the splash back area if tiled, glazed etc.

(This is not a fault with either the hob or extractor if correctly installed).

The amount of this condensation on any particular surface will depend on many factors including the

ambient temperature in the kitchen, the related ambient temperature of the metal surfaces, the

general ventilation within the kitchen, the type of food being cooked and the duration. Using lids on

pans can help reduce the amount of steam being released and subsequent condensation.

This appliance is marked according to the European Directive 2012/19/EU on Waste

Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of

correctly you will help prevent potiential negative consequences for the environment

and human health. The symbol on this product indicates that this product may not be

treated as household waste. Instead it should be handed over to the applicable

collection point for recycling or electrical and electronic equipment. Disposal must be

carried out in accordance with local environmental regulations for waste disposal. For

more detailed information please contact your local council household waste site.

arning possibility of electric shock.

By placing the marking on this product, we declare, on our own responsibility, compliance to all of

European safety, health and environmental requirements stated in the legislation for this product.

Energy Efficiency

In order to optimise efficiency of the product and reduce environmental impact we recommend

the following:

• Product is installed in ducted configuration, using maximum Ø of ducting advised in this manual,

ducting as straight and as short as possible.

• Any filters are cleaned/replaced when necessary to maintain good airflow and grease filter

efficiency.

• Switch on the hood at the minimum speed required to clear unwanted cooking odours.

• Switch off lighting when not in use or not required.

Page _ 03

Exclusive to Howdens Joinery.co

User manual LAM2851

Index

Before using the extractor

Safety

Fire safety

Ventilation

Inportant safety information

Electrical safety

General information & operation

Extractor contents

Control panel layout

Using your cooker hood

Speed selection

Light control

Remote controls

Battery

Connecting the remote control

Care and maintenance

General cleaning

Grease filters

Carbon filters

Replacing the lamps

Installation

Methods of extraction

Extraction via ducting

Extraction via recirculation

Before beginning installation

Installation fixing method outline

Installation

Building and fixinf the extractor

Electrical connections

Technical specifications

Trouble shooting

Your guarantee

17-18

Page _ 04 www.howdens.com

LAMONA Appliances

• Make sure that you have removed all packaging, wrappings, stickers and from the Extractor

• It is recommended that you clean the extractor’s surface before using for the time.

Before using the Extractor

Safety

Important!

Always switch off the electricity

supply at the mains during

installation, maintenance and

cleaning.

• This appliance can be used by

children aged from 8 years and

above and persons with reduced

physical, sensory or mental

capabilities or lack of experience

and knowledge if they have been

given supervision or instruction

concerning use of the appliance in

a safe way and understand the

hazards involved. Children shall

not play with the appliance.

Cleaning and user maintenance

shall not be made by children with-

out supervision.

• Caution: The appliance and its

accessible parts can become hot

during operation. Children younger

than 8 years old should stay away

unless they are under permanent

supervision.

• The cooker hood must be

installed in accordance with the

instructions and all measurements

followed.

• All installation work must be

carried out by a competent person

or qualified electrician.

• Please dispose of the packing

material carefully. Children are

vulnerable to it.

• Pay attention to the sharp edges

inside the cooker hood especially

during installation and cleaning.

•If the cooker hood is damaged, do

not attempt to use.

• If the supply cord is damaged, it

must be replaced by the

manufacturer, its service agent or

similarly qualified persons in order

to avoid a hazard.

• Cooker hood is for domestic use

only (see guarantee page for

definition).

• Use suitable and appropriate

fittings for mounting the hood.

Page _ 05

Exclusive to Howdens Joinery.co

User manual LAM2851

Fire Safety

Ventilation

Important Safety Information

• Do not leave frying pans

unattended during use because

overheated fats or oils might catch

fire.

• Never leave naked flames under

the cooker hood.

• There is a fire risk if cleaning is

not carried out in accordance with

the instructions.

• Do not flambé under the cooker

hood.

• Do not use the cooker hood

without the vv greasy!

• The minimum distance between

the pan supports on the hob and

the lowest part of the cooker hood.

(When the cooker hood is located

above a gas appliance) shall be a

minimum of 650mm.

(Coal or oil 750mm)

• When in extraction mode, air in

the room is being removed by the

cooker hood. Please make sure

that proper ventilation measures

are being observed. The cooker

hood removes odours from room

but not steam.

• The air must not be discharged

into a flue that is used for

exhausting fumes from appliances

burning gas or other fuels.

• Make sure the ducting has no

bends sharper than 90 degrees as

this will reduce the efficiency of the

cooker hood (max duct length 3m,

150mm Ø).

• Always put lids on pots and pans

when cooking.

• Large quantities of vapour and

steam can be produced very quickly.

This steam may condense onto the

cold metallic surfaces of the

extractor (This is not a fault with

either the hob or extractor if

correctly installed.) The amount of

this condensation on any particular

surface will depend on many factors

including the general ventilation

within the kitchen, the type of food

being cooked and the duration.

• There shall be adequate

ventilation of the room when the

cooker hood is used at the same

time as appliances burning gas or

other fuels.

Page _ 06 www.howdens.com

LAMONA Appliances

Electrical Safety

Important Safety Information

• Do not use high level grills or

BBQ type products under this

extractor.

• In case of any damage, switch

off the product and disconnect

it from the mains. To do this,

turn off the fuse at the fuse box.

Make sure that fuse rating is

compatible with the product.

Using lids on pans can help reduce

the amount of steam being released

and subsequent condensation.

Induction hobs offer a powerful,

more efficient heating process but

do not generate the higher levels of

ambient heat that would normally

help dissipate vapour and steam as

with older hob technology.

• The manufacturer refuses to

accept any responsibilty for damage

to or damages arising from failure

to observe this instructions.

• Ensure the ducting for cooker

hood has the same diameter all the

way through and at the outlet.

• If the cooker hood is installed for

use above a gas appliance then the

provision for ventilation must be in

accordance with the Gas Safety

Codes of Practice BS.6172,

BS.5440 & BS.6891 (Natural Gas)

and BS.5482 (LP Gas) 1994, the

Gas Safety (Installation & Use)

Regulations, the Building

Regulations issued by the

Department of the Environment, the

Building Standards (Scotland)

(Consolidated) Regulations issued

by the Scottish Development

Department.

Page _ 07

Exclusive to Howdens Joinery.co

User manual LAM2851

General Information & Operation

Control Panel Layout

Extractor Contents

Struts x 8

Reducer

Remote control

Ceiling plate

Chimney sections

Main body

Cable grid

Fixings

Page _ 08 www.howdens.com

LAMONA Appliances

Timer Light Display Speed On/Off

Speed Selection

Light Control

Remote Controls

Using Your Cooker Hood

Ideally

Caution - Accessible parts may become hot when used with cooking appliances.

you should turn on your hood ten minutes before you start to cook, or at the very least when you

begin cooking. You should also run your hood for ten minutes after you have cooking.

Make sure that

• If you press the selection button once, the motor will run at low speed.

• Press the speed selection button twice and the motor will run at medium speed.

• Press the speed selection button three times and the motor will run at high speed. Another press of

the button will return the motor to low speed.

• To turn off the hood, press the on/off button. The speed and power symbols will disappear.

• When you next press the on/off button, the cooker hood will continue working at the speed it last

selected set on.

• Touch the light on/off button once, to turn on the cooker hood lights and touch again to turn off.

Press the button once, the light activates, press the button again, the light will be turned off.

The lighting button is controlled separately and will not effect any other functions.

Turning On / Increasing Fan Speed:

1st Press, LOW speed, 2nd Press,

MEDIUM speed, 3rd Press, HIGH speed

Turning Off / Decreasing Fan Speed

Press the button and the motor begins to adjust to a lower setting and the

LCD screen displays the speed. If it is pressed again it will decrease to the

‘off’ setting.

Timer

Press the timer button, this turns the timer setting function on / off.

Timer function will run for a period of 9 minutes, at the end the cooker

hood will switch off.

it has been installed by a suitably person, as per the installation instructions.

Induction Hobs - Metal Surfaces of the Extractor and Condensation

Large quantities of vapour and steam can be produced very quickly. This steam may condense onto

the cold metallic surfaces of the extractor and even the splash back area if tiled, glazed etc. (This is not

a fault with either the hob or extractor if correctly installed).

The amount of this condensation on any particular surface will depend on many factors including the

general ventilation within the kitchen, the type of food being cooked and the duration. Using lids on pans

can help reduce the amount of steam being released and subsequent condensation. Induction hobs offer

a powerful, more efficient heating process but do not generate the higher levels of ambient heat that would

normally help dissipate vapour and steam as with older hob technology.

Page _ 09

Exclusive to Howdens Joinery.co

User manual LAM2851

Battery

Connecting The Remote Control

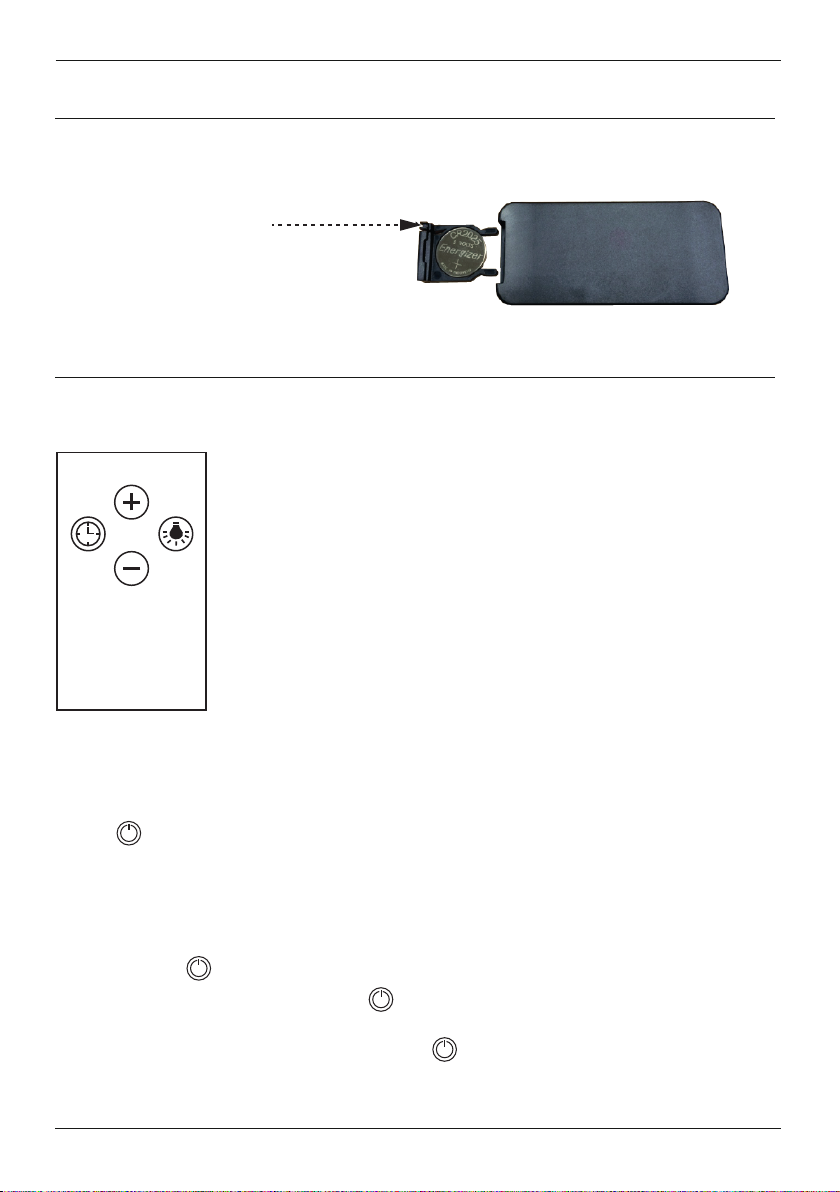

The remote control requires a CR2025 battery. The battery can be accessed fromthe bottom, as shown in

the below picture.

Carefully release the tab and

pull the battery tray out.

A new remote control has to estabish a connection to the cooker hood when used for the first time.

(One remote control could possibly control several cooker hoods at the same time).

Connection Process Between Remote Control And Cooker Hood:

1. Press any button on the LCD touch control panel on the cooker hood, the backlight display is lit and the

cooker hood is in stand-by mode.

2. Press for 10 seconds, the indicator lights begin flashing from one button to another:- the cooker hood

is in connection mode. The press any button on the remote control to confirm the connection. The connection

process is finished and the remote can be used for speed selection, lighting and timer setting.

3. If you want to connect again you will need to clear the code that has been

entered previously:

To clear: Press the for 10 seconds, the indicator lights begin flashing one button to another:- the

cookeris in connection mode. Then, press the for 10 seconds immediately again: the previous

connection code is cleared

To After the previous connection code is cleared. Press for 10 seconds:- the indicator lights begin

flashing from one button to another:- the cooker hood is in connection mode. Then press any button of the

remote control to confirm connection.

Page _ 10 www.howdens.com

LAMONA Appliances

Table des matières

Autres manuels Lamona hotte de ventilation

Lamona

Lamona LAM2377 Manuel utilisateur

Lamona

Lamona LAM2475 Mode d’emploi

Lamona

Lamona LAM2500 Manuel utilisateur

Lamona

Lamona LAM2803 Manuel utilisateur

Lamona

Lamona LAM2304 Manuel utilisateur

Lamona

Lamona LAM2203 Manuel utilisateur

Lamona

Lamona LAM2703 Mode d’emploi

Lamona

Lamona LAM2853 Manuel utilisateur

Lamona

Lamona HJA2500 Manuel utilisateur

Lamona

Lamona LAM2502 Guide de dépannage

Lamona

Lamona LAM2505 Mode d’emploi

Lamona

Lamona LAM2850 Mode d’emploi

Lamona

Lamona LAM2707 Manuel utilisateur

Lamona

Lamona HJA2450 Guide de dépannage

Lamona

Lamona HJA2339 Guide de dépannage

Lamona

Lamona LAM2301 Manuel utilisateur

Lamona

Lamona LAM2100 Manuel utilisateur

Lamona

Lamona LAM2404 Guide de dépannage

Lamona

Lamona LAM2410 Manuel utilisateur

Lamona

Lamona LAM2877 Manuel utilisateur

Lamona

Lamona LAM2600 Instructions de montage

Lamona

Lamona LAM2508 Manuel utilisateur

Lamona

Lamona HJA2540 Manuel utilisateur

Lamona

Lamona LAM2375 Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
