Table of Contents

Foreword 2

Precautions 4

1 Unpacking Your LaCie Drive 5

1.1 Minimum System Requirements 6

1.2 Stacking Your LaCie mini 7

2 Getting Connected 8

2.1 Connect the Power Supply and Switch On the Drive 11

2.2 Connect the inteface cable to Your LaCie mini and to Your Computer 12

2.3 Using your LaCie mini as a hub 13

3 Using Your LaCie Drive 14

3.1 Formatting and Partitioning Your LaCie mini 15

3.1.1 Mac Users 15

3.1.2 Windows Users 17

4 Helpful Information 19

4.1. Advice for Optimizing FireWire Connections 19

4.1.1 What Is FireWire/IEEE 1394? 19

4.1.2 Disconnecting FireWire Devices 20

4.2 Advice for Optimizing USB 2.0 Connections 20

4.2.1 What Is USB 2.0? 21

4.2.2 Disconnecting USB 2.0 Devices 22

4.2.3 Data Transfers 23

4.3 File System Formats 24

4.3.1 Mac Users 24

4.3.2 Windows Users 25

5 Troubleshooting 26

6 Contacting Customer Support 31

7 Warranty 33

user manual | page 2

Forward

transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior

written consent of LaCie.

Trademarks

Apple, Mac and Macintosh are registered trademarks of Apple Computer, Inc. Microsoft, Windows 98, Windows 98 SE,

Windows 2000, Windows Millennium Edition and Windows XP are registered trademarks of Microsoft Corporation. Other

trademarks mentioned in this manual are the property of their respective owners.

Changes

The material in this document is for information only and subject to change without notice. While reasonable efforts have

been made in the preparation of this document to assure its accuracy, LaCie assumes no liability resulting from errors or

omissions in this document, or from the use of the information contained herein. LaCie reserves the right to make changes

or revisions in the product design or the product manual without reservation and without obligation to notify any person of

such revisions and changes.

FCC Statement

WARNING: Modiﬁcations not authorized by the manufacturer may void the user’s authority to operate this device.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency en-

ergy and, if not installed and used in accordance with the instruction manual, may

cause harmful interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

LaCie mini HUB

Tested To Comply

With FCC standards

FOR HOME OR OFFICE USE

user manual | page 3

Forward

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Canada Compliance Statement

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Manufacturer’s Declaration for CE Certiﬁcation

We hereby certify that this device is in compliance with both the EMC Directive (89/336/EEC) and the Low Voltage Direc-

tive (73/23/EEC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms:

Class B EN60950, EN55022, EN50082-1, EN61000-3-2

With reference to the following conditions:

73/23/EEC Low Voltage Directive

89/336/EEC EMC Directive

This symbol on the product or on its packaging indicates that this product must not be disposed of with

your other household waste. Instead, it is your responsibility to dispose of your waste equipment by hand-

ing it over to a designed collection point for the recycling of waste electrical and electronic equipment.

The separate collection and recycling of your waste equipment at the time of disposal will help to conserve

natural resources and ensure that it is recycled in a manner that protects human health and the environ-

ment. For more information about where you can drop off your waste equipment for recycling, please

contact your local city ofﬁce, your household waste disposal service, or the shop where you purchased the

product.

user manual | page 4

Precautions

Health and Safety Precautions

Only qualiﬁed persons are authorized to carry out maintenance on this device.

• Read this User’s Guide carefully, and follow the correct procedure when setting up the device.

• Do not open your hard drive or attempt to disassemble or modify it. Never insert any metallic object into the drive to

avoid any risk of electrical shock, ﬁre, short-circuiting or dangerous emissions. Your hard drive contains no user-serviceable

parts. If it appears to be malfunctioning, have it inspected by a qualiﬁed LaCie Technical Support representative.

• Never expose your device to rain, or use it near water, or in damp or wet conditions. Never place objects containing

liquids on the drive, as they may spill into its openings. Doing so increases the risk of electrical shock, short-circuiting, ﬁre or

personal injury.

General Use Precautions:

• Do not expose the hard drive to temperatures outside the range of 5° C to 35° C (41° F to 95° F) in operating mode.

Doing so may damage the drive or disﬁgure its casing. Avoid placing your drive near a source of heat or exposing it to

sunlight (even through a window). Inversely, placing your drive in an environment that is too cold or humid may damage the

unit.

• Do not use the hard drive near other electrical appliances such as televisions, radios or speakers.

• Do not place the drive near sources of magnetic interference, such as computer displays, televisions or speakers. Magnetic

interference can affect the operation and stability of your hard drive.

• Do not place heavy objects on top of the drive or use excessive force on it.

• Never use excessive force on your drive. If you detect a problem, consult the Troubleshooting section in this manual.

• Protect your hard drive from excessive exposure to dust during use or storage. Dust can build up inside the device, in-

creasing the risk of damage or malfunction.

• Never use benzene, paint thinners, detergent or other chemical products to clean the outside of the drive. Such products

will disﬁgure and discolor the casing. Instead, use a soft, dry cloth to wipe the device.

WARNING: The drive’s warranty may be void as a result of the failure to respect the precautions listed above.

user manual | page 5

Unpacking Your LaCie Drive

1. Unpacking Your LaCie Drive

Your LaCie mini HUB is designed to upgrade the storage capacity of your Mac mini, conveniently stack-

ing under it. The LaCie mini also expands your digital options with USB hub connectivity, which allows

you to use the additional USB ports even when the drive is connected to your computer via FireWire.

The mini HUB also boasts extra FireWire ports for daisy-chaining. You can use your LaCie mini across

platforms. It is ideal for speed intensive applications, the LaCie mini handles your demanding data

needs. Secure and stable, the LaCie mini is an easy way to add storage space to your computer without

losing space on your desk.

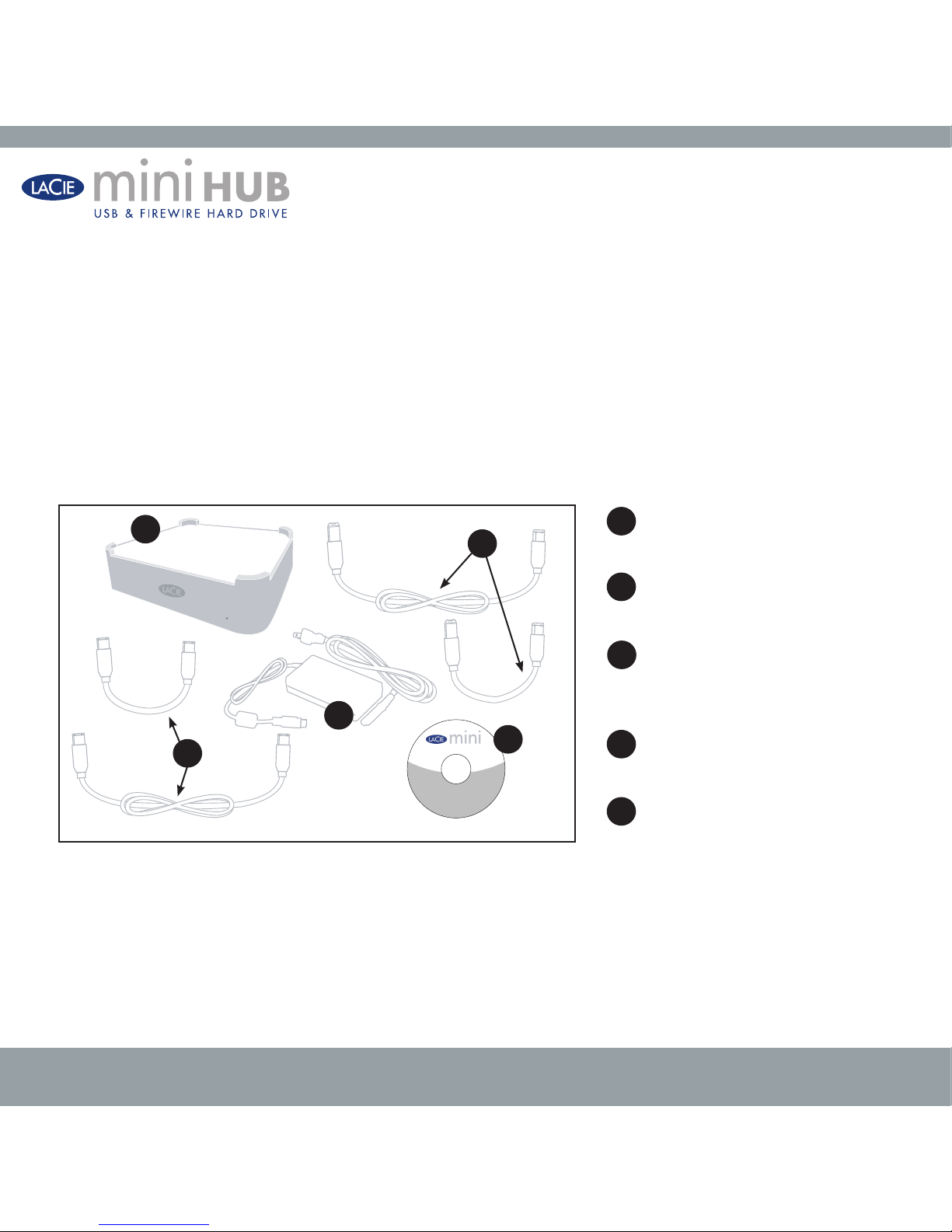

COMPANION HARD DRIVE

Windows® 2000/XP or Mac OS X & Higher

For Mac OS X & Higher: Silverkeeperv1.1.2

•

User’s Manual

LaCie mini HUB

Power supply and adapter cable

Long and short Hi-speed USB 2.0

certiﬁed cables

Long and short FireWire Cables

LaCie Storage Utilities CD-ROM

user manual | page 6

Unpacking Your LaCie Drive

1.1 Minimum System Requirements

System Requirements for FireWire 400:

• Mac OS 9.x (Apple FireWire support 2.3.3 and greater) and 10.1

• Windows 98 SE, Windows Me, Windows 2000 and Windows XP

Hardware Requirements for FireWire 400:

• Mac: G3 or greater, with FireWire 400/IEEE 1394a interface card

• PC: Pentium II or higher -compatible processor, with a FireWire/IEEE 1394/iLink interface card (SBP-

2 compatible) that supports mass storage devices.

• 64MB RAM or greater

IMPORTANT NOTE: Your LaCie mini is compatible with the Sony iLink and FireWire 800 interfaces. In or-

der to use your drive with these interfaces, you must use an appropriate LaCie certiﬁed interface cable (sold

separately). The iLink interface requires a 4-pin to 6-pin cable, and the FireWire 800 interface requires a

6-pin to 9-pin cable. Consult your LaCie reseller or LaCie Customer Service to ﬁnd the appropriate cable.

System Requirements for USB 2.0:

• Windows 98 SE, Windows 2000, Windows Me and Windows XP

• Mac OS 9.x (Apple USB support 1.3.5 and greater) and Mac OS 10.1, 10.2, 10.3, and 10.4

Hardware Requirements for USB 2.0:

• Mac: G3 processor or greater

• Computer with USB 2.0 or 1.1 interface*

• Intel Pentium 233MHz-compatible processor or greater

• Minimum 32MB RAM

TECH NOTE: *To achieve USB 2.0 speeds, your drive must be connected to a USB 2.0 host port. If it is con-

nected to a USB 1.1 port, your drive will operate at USB 1.1 speeds. For more details, see 4.1. Advice for

Optimizing USB 2.0 Connections.

user manual | page 7

Stacking Your LaCie mini

1.2 Stacking Your LaCie mini

Your LaCie mini is designed to stack under another LaCie mini or your Apple Mac mini. To allow for

proper cooling, always stack your LaCie mini under your Apple Mac Mini or another LaCie mini. DO

NOT turn over your drive or place your Lacie mini on top of the Apple Mac mini, as this will risk over-

heating.

user manual | page 8

Getting Connected

2. Getting Connected

Follow these steps to quickly get your LaCie mini powered on and connected to your computer. See the

following steps to get started:

2.1 Connect the Power Supply and Switch On the Drive

2.2 Connect the Interface cable to Your LaCie Drive and to Your Computer

2.3 Connect USB and FireWire devices with the lateral connector

Once you’ve gotten the drive powered on and connected to your computer, move on to section 3 Using

Your LaCie Drive for important information on how to format and utilize your drive.

Mac OS 9.x Users!

Windows 98 SE and Windows Me Users!

Before following these three steps, ﬁrst install this important software to help you conﬁgure and manage

your LaCie drive.

• Mac OS 9.x Users, see 3.1.1.

• Windows 98 SE and Windows Me Users, click see 3.1.2.

user manual | page 9

Getting Connected

Mac OS 9.x Users Only: Silverlining Pro Installation

Before connecting the power supply and interface cable to your drive, you will need to install Silverlin-

ing Pro, which will help you manage your drive. Follow the steps below to install the necessary drivers

and software to conﬁgure your drive. Then move on to the power supply and interface cable installa-

tion steps.

1) Insert the LaCie Storage Utilities CD-ROM in your computer’s

internal CD/DVD drive.

2) Open the CD icon and double-click the Silverlining Software

folder.

3) Double-click the Silverlining Installer icon (FIG.2.1).

4) The Silverlining Utilities screen appears. Click Continue.

5) The “Silverlining Read Me” screen appears. Read the following infor-

mation and click Continue.

6) The “License Agreement” screen appears. Click Agree.

7) The “Installation” screen appears. Choose either Easy Install, Cus-

tom Install, or Uninstall from the pull-down menu in the upper left-

hand side of the “Installation” screen. Once you’ve made your choice,

click Install.

8) A message appears to conﬁrm that the installation was successful.

Now move onto Step 1. FIG 2.1

user manual | page 10

Getting Connected

Windows 98 SE and Windows Me Users Only! Silverlining 98 Installation

Before connecting the power supply and interface cable cable to your drive, you will need to install Sil-

verlining 98, which will help you manage your drive. Follow the steps below to install the necessary

drivers and software to conﬁgure your drive. Then move on to the power supply and interface cable

installation steps.

1) Insert the LaCie Storage Utilities CD-ROM in your computer’s internal CD/DVD drive and open

the disc (Fig.2.2).

2) Double-click the Silverlining 98 folder.

3) Double-click the Silverlining98_Install.EXE icon.

4) Silverlining 98 will then initialize the install screen.

5) The “Welcome” screen will appear. Click Next.

6) The “Destination Location” screen will appear. To

alter the location where the software is installed on your

system, click the Browse button. If you do not want to

change the location, do not click on the Browse button,

and allow the software to be installed in its default loca-

tion. Click Next to continue.

7) Next is the “Start Installation” screen. Click Next.

8) The software installation will begin, and you will see the installation screens.

9) Finally, you will see the “Silverlining 98 has been installed correctly” screen. Click Finish to com-

plete the installation. Now move onto Section 2.1.

FIG 2.2

Autres manuels pour Ethernet Disk mini

Table des matières

Autres manuels LaCie Stockage

LaCie

LaCie hard disk MAX Manuel utilisateur

LaCie

LaCie hard disk MAX Manuel utilisateur

LaCie

LaCie Christofle Galet Manuel utilisateur

LaCie

LaCie LaCinema Rugged HD Manuel utilisateur

LaCie

LaCie D2 BLU-RAY XL Manuel utilisateur

LaCie

LaCie 5BIG NAS PRO Manuel utilisateur

LaCie

LaCie RUGGED MINI Guide de référence rapide

LaCie

LaCie 4BIG QUADRA USB 3.0 Manuel utilisateur

LaCie

LaCie 4BIG QUADRA USB 3.0 Manuel utilisateur

LaCie

LaCie d2 Quadra Manuel utilisateur

LaCie

LaCie Porsche Design Mobile Drive P'9221 Manuel utilisateur

LaCie

LaCie LaCinema Classic HD Manuel utilisateur

LaCie

LaCie Porsche Design Manuel utilisateur

LaCie

LaCie Starck Mobile USB 3.0 Manuel utilisateur

LaCie

LaCie Brick Manuel utilisateur

LaCie

LaCie 301385U Manuel utilisateur

LaCie

LaCie Little Disk Manuel utilisateur

LaCie

LaCie Big Disk Extreme Manuel utilisateur

LaCie

LaCie Extreme d2 Manuel utilisateur

LaCie

LaCie Porsche Design P'9223 Manuel utilisateur

LaCie

LaCie rikiki 301949 Manuel utilisateur

LaCie

LaCie 2big Spare Drive Manuel utilisateur

LaCie

LaCie CloudBox Manuel utilisateur

LaCie

LaCie 4big Spare Drive Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur

Dell

Dell PowerVault MD3600f Series Manuel utilisateur

CFI

CFI TERA STOR SATA RAID IV Manuel utilisateur

Quantum

Quantum PX506 Manuel utilisateur
