Labomed Luxeo 6z Manuel utilisateur

4146000-795 Luxeo 6z Issue 1.1

Printed on Sept.,2017

Luxeo 6z

Stereo Zoom Microscopy

User Manual

To ensure proper use of this instrument as well as to avoid injury while operating

Instrument, understanding this manual completely before use is highly recommended.

CONGRATULATIONS

4146000-795 Luxeo 6z

Luxeo 6z

Issue 1.1

Printed on Sept.,2017

Congratulations on purchasing a LABOMED Luxeo 6z- an excellent choice!

The outstanding features of this stereo microscope are its flexible design, its ease of use and

Absolutely maintenance-free performance. Sturdy and reliable, it is exceptionally well suited to

Manufacturing tasks, testings, quality control and other industrial applications.

In developing the LABOMED Luxeo 6z, we have placed great emphasis on simple, self-explanatory

operation. However, please take the time to read the user manual and the notes on operating safety to

learn about all the features and capabilities to use them to your best advantages.

Should you have any questions, please consult your local Labomed representative. We are gladly to be

at your service!

TABLE OF CONTENTS

1. INTRODUCTION 1

2. SAFETY INFORMATION 2-6

2.1 Symbols 2-3

2.2 Important notes 4

2.3 Care & Maintenance instructions 5-6

3. INITIAL SETUP 7

3.1 Unpacking your microscope 7

4. LUXEO 6z BINOCULAR MICROSCOPE 8

5. LUXEO 6z TRINOCULAR MICROSCOPE 9

6. DARK FIELD/BRIGHT FIELD (DF/BF) BASE (IF SUPPLIED) 10

7. MIRROR BASE LUXEO 6z BINOCULAR MICROSCOPE 11

8. MIRROR BASE LUXEO 6z TRINOCULAR MICROSCOPE 12

9. INSTALLATION 13-14

9.1 Microscope setup 13

9.2 Mounting of the Goose Neck LED assembly 13

9.3 Setting up the Dark field/Bright field attachment (if supplied) 14

10. OBSERVATION & USE OF MICROSCOPE 15-17

10.1 Power on the microscope 15

10.2 Diopter setting of eyepiece 15

10.3 IPD adjustment 16

10.4 Focusing of microscope 16

10.5 Focusing torque adjustment 16

10.6 Use of auxiliary objectives 17

11. OBSERVING EXTRA HEIGHT SPECIMEN 18

11.1 PL stand 18

11.2 Assembly PL stand luxeo 6z 18

12. MAGNIFICATION CHART 19

13. SPECIFICATIONS 20

14. ELECTRICAL S 21

15. SYSTEM DIAGRAM 22

16. SYSTEM OF OBSERVATION PROCEDURE 23

17. TROUBLESHOOTING GUIDE 24

Luxeo 6z

4146000-795 Luxeo 6z Issue 1.1

Printed on Sept.,2017

1. INTRODUCTION

Luxeo 6z

4146000-795 Luxeo 6z Issue 1.1

Printed on Sept.,2017

The Luxeo 6z is a stereoscopic zoom microscope reflecting a modern design as well as the latest in

optical and mechanical advancements.

Designed for professionals as well as students, this microscope offers many features and functions for a

diverse set of applications.

Extra clarity and contrast is provided through a Binocular body inclined at 45°.

The pressure die cast stand consists of Ball bearing ‘friction less’ sideways focusing to avoid any loss in

motion.

The sturdy new stylish design provides comfort as well as stability.

The lateral magnification changer allows comfortable and friction less movement for zoom magni-

fication.

Extra excursion range provides opportunity to inspect larger & high objects.

The LED Ring Light configuration is a cluster of 23 LED’s, switchable between arc illumination or full

circular illumination. The Luxeo is used with direct input power supply of 110V - 240V AC 50Hz/60Hz.

This ensures continuous operation even under fluctuating voltages.

Our LED on this instrument has an average life span of up to 50,000 hours.

2. SAFETY INFORMATION

Luxeo 6z

4146000-795 Luxeo 6z Issue 1.1

Printed on Sept.,2017

2.1 SYMBOLS

Warning / Caution Symbols Used in this Manual

Though Labomed Products are designed to provide you with the utmost safety during use,

incorrect usage or disregard of the instructions may cause personal injury or property damage.

For your own safety, read the instruction manual carefully and thoroughly before using the product.

Do not discard this manual. Always keep it near the product for easy reference. Inside this instruction

manual, safety instructions are indicated with the symbols shown below. Be sure to follow the

Instructions marked with these symbols for your safety.

WARNING Disregarding instructions marked with this symbol may lead

to death or serious injury.

CAUTION Disregarding instructions marked with this symbol may lead

to injury or instrument damage.

WARNING

1. Intended use of this product

This product is intended only for microscopy. Do not use it for any other purpose.

2. Do not disassemble

Disassembly may result on damage to the instrument. Never disassemble any part except as

described in this operation manual. Contact your LABOMED representative if you notice any

Malfunction of this instrument.

3. Check the input voltage

When using an illumination, check that the input voltage displayed on the power supply (supplied)

matches the operating voltage. Contact your LABOMED representative voltage. Use of an

improperly matched illuminator may result in damage to equipment.

4. Power Cord

Always turn the power switch off and plug the power cord when replacing the lamp of an illuminator

as failure to do so may result in electric shock or equipment damage.

5. Heat from the light source

When using an illuminator, do not place cloth or paper or highly flammable materials, such as gaso-

line, benzene, thinner or alcohol, near the lamp as there is danger of fire.

SAFETY INFORMATION (CONTINUED)

4146000-795 Luxeo 6z

Luxeo 6z

Issue 1.1

Printed on Sept.,2017

CAUTION

1. Place of use

Use the stereo microscope in closed, dust free rooms at +10°C to +40°C. Protect it from oil,

Chemicals and extreme humidity. Install electrical devices at least 10cm from the wall and

away from flammable substances.

In warm and warm-damp climate zones, the individual components require special care in

order to prevent the built-up of fungus.

2. Transport

If at all possible ,use the original packaging for shipping or transporting individual modules.

In order to prevent damage from vibrations, the customer should disassemble all moving parts

according to the user manual and pack them separately.

3. Integration in third-party products

When installing Labomed products into third-party products, the manufacturer of the complete

system or its dealer is responsible for following all applicable safety instructions, laws and

guidelines.

4. Disposal

Disposal must comply with locally applicable laws and regulations.

If the warning label is stained or peeled off, contact your LABOMED distributor.

SAFETY INFORMATION (CONTINUED)

Luxeo 6z

4146000-795 Luxeo 6z Issue 1.1

Printed on Sept.,2017

2.2 IMPORTANT NOTES

Before installing, operating or using the instrument, it is mandatory to read this user manual. In

particular, please observe all safety instructions.

User Manual

This User manual includes important instructions related to operating safety, maintenance and

Accessories.

•It is prohibited to reproduce or transmit this manual in part or whole without Labomed’s

expressed permission.

• The content of this manual are subject to change without notice.

• Although every effort had been made to ensure the accuracy of this manual, if you note any points

that are unclear or incorrect, contact your nearest Labomed representative.

• Some of the products described in this manual may not be included in the set you have purchased.

•If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

Legal Requirements

Adhere to general and local regulations relating to accident prevention and environmental

protection.

EC Declaration of Conformity

Electrically operated accessories are constructed based on the state of the art of technology and

are provided with an EC Declaration of Conformity.

SAFETY INFORMATION (CONTINUED)

2.3 CARE & MAINTENANCE INSTRUCTIONS

1. General Instructions

•Protect the stereo microscope from moisture, fumes and acids and from alkaline, caustic and

corrosive materials.

• Protect the stereo microscope from oil and grease. Never grease or oil mechanical parts or sliding

surfaces.

•Follow the instructions of the disinfectant manufacturer.

•We recommend concluding a service contract with Labomed.

2. Cleaning the lenses

To clean the lens surfaces, remove dust using a soft brush or gauze (compressed air dust cans are

ideal). For removing finger marks or grease, soft cotton cloth/ lens tissue or gauze lightly moistened

with cleaning solution ( 85% petroleum ether and 15% isopeopanol) should be used. For cleaning the

optics, use xylene. Observe sufficient caution in handling xylene.

Cleaning procedure

Place the eyepieces on the dust-free surface (e.g. fresh aluminum foil). All other optical components

to be cleaned should be as accessible as possible.

a. Blow all loose dust particles away with a dust blower.

b. Remove all water-soluble dirt with distilled water. If this is unsuccessful repeat using a solution of

diluted hand soap liquid. Remove any remaining residue with a dry cotton swab.

c. To remove oil, use a solution of diluted hand-soap liquid initially. If this does not produce a satisfac-

tory result, repeat the cleaning using a solvent (Optical Cleaning Solution 85% petroleum ether and

15% isopropanol).

d. Grease must always be removed using a solvent.

e. Cleaning is achieved by using a spiral motion from the center to the rim. Never wipe using zig-zag

movements as this will only spread the dirt. With larger optical surfaces (e.g. tube lenses) the spiral

motion starts initially at the rim before to the middle and is only then followed by a center to rim

cleaning motion. Normally several spiral wipes are recommended. We recommend pure, volatile

petroleum ether or Optical Cleaning Solution as explained in point 3 above.

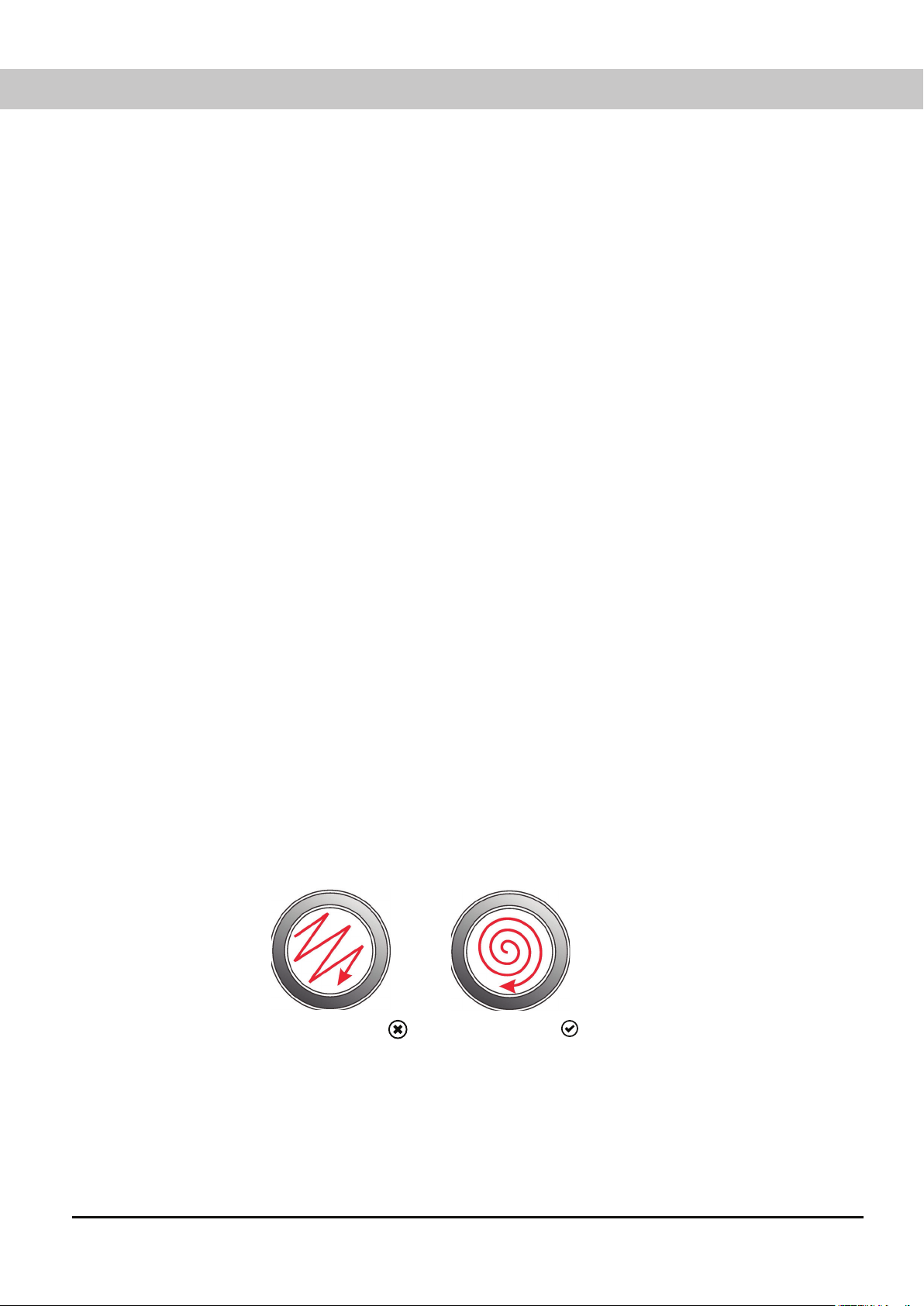

Zig-Zag motion Spiral motion

Wipe using a spiral movement. Do not use a zig-zag motion!

3. Cleaning of painted surfaces

Avoid the use of any organic solvent (e.g. thinner, xylene, ether, alcohol etc.) for cleaning of painted

surfaces of the instrument. Painted surfaces can be cleaned with a very lightly moistened micro fiber

cloth. Loose dust and dirt can be removed using a brush of soft hair used exclusively for this purpose.

Luxeo 6z

4146000-795 Luxeo 6z Issue 1.1

Printed on Sept.,2017

SAFETY INFORMATION (CONTINUED)

Luxeo 6z

4146000-795 Luxeo 6z Issue 1.1

Printed on Sept.,2017

4. Cleaning coated parts and plastic parts

•Dust and dirt particles should be removed with a soft brush or lint-free cotton cloth.

•Remove coarse debris with a moistened disposable cloth.

•Acetone, xylene or intro-containing thinners must not be used.

•Never use chemicals to clean colored surfaces or accessories with rubberized parts. This could

damage the surfaces, and specimens could be contaminated by abraded particles.

Caution

Do not use aggressive organic solvent such as acetone for cleaning painted surfaces and plastic

parts of the microscope.

5. Accessories, maintenance and repair

Accessories

Only the following accessories may be used with the stereo microscope:

•The Labomed accessories described in this user manual.

•Other accessories, provided that these have been expressly approved by Labomed as being

technically safe in this context.

Maintenance

•The labomed Luxeo 6z stereo microscope is basically maintenance-free. To ensure that it always

operates safety and reliably, we recommend that you take the precaution of contracting the

Responsible service organization.

You can arrange for periodic inspections or, if appropriate, conclude a maintenance contract with

them.

• We recommend concluding a service contract with Labomed.

•For maintenance and repair, only OEM spare parts may be used.

Repairs and service work

•Only original Labomed spare parts may be used.

•Before opening the instruments, switch off the power and unplug the power cable.

•Touching the live circuit can cause injury.

6. Never attempt to dismantle

Never attempt to dismantle the instrument so as to avoid the possibility of impairing its operational

efficiency and accuracy.

7. Periodical checking

To maintain the performance of the instrument, we recommend customers have their microscopes

serviced periodically by a factory authorized dealer/rep. For details, contact your nearest dealer or

LABOMED.

3. INITIAL SETUP

3.1 UNPACKING YOUR MICROSCOPE

LIST OF PARTS

1. Power Adapter (SD 165-24V-P5)

2. Power Cable

3. Thermocol box (Upper)

4. Luxeo 6z Microscope (bino / Trino)

5. Goose Neck LED Assembly (4147000-835)

6. Front Support

7. DF Base Compensator

8. DF Base (if ordered) 4147000-820

9. Thermocol box (Lower)

10. Specimen Plate (Black & White) (4147000-826)

11. Specimen Plate DF Base (if DF base

provided (4146100-827)

12. User manual (4146000-795)

13. Duct Cover (PKG-104) with yellow duster.

Luxeo 6z

4146000-795 Luxeo 6z Issue 1.1

Printed on Sept.,2017

Autres manuels pour Luxeo 6z

Table des matières

Autres manuels Labomed Microscope

Labomed

Labomed Luxeo 2S Manuel utilisateur

Labomed

Labomed CxL Manuel utilisateur

Labomed

Labomed Lx POL Manuel utilisateur

Labomed

Labomed Lx 500 Manuel utilisateur

Labomed

Labomed Lx 300 Manuel utilisateur

Labomed

Labomed Magna Manuel utilisateur

Labomed

Labomed Lx 400 Manuel utilisateur

Labomed

Labomed MET 400 Manuel utilisateur

Labomed

Labomed Luxeo 6i Manuel utilisateur

Labomed

Labomed TCM 400 Manuel utilisateur

Labomed

Labomed CxL Manuel utilisateur

Labomed

Labomed PRIMA ENT Manuel utilisateur

Labomed

Labomed Lx 400 Manuel utilisateur

Labomed

Labomed CxL Polarizing Kit Manuel utilisateur

Labomed

Labomed CxL Dark Field Kit Manuel utilisateur

Labomed

Labomed PRIMA Mm Manuel utilisateur

Labomed

Labomed Lx 100 Manuel utilisateur

Labomed

Labomed CZM6 Manuel utilisateur

Labomed

Labomed Luxeo 6z Manuel utilisateur

Labomed

Labomed Prima OPH Manuel utilisateur

Labomed

Labomed Lx 300 Manuel utilisateur

Labomed

Labomed TCM 400 FLR Manuel utilisateur

Labomed

Labomed PRIMA DNT Trainer Manuel utilisateur

Labomed

Labomed Sigma Manuel utilisateur

Manuels Microscope populaires d'autres marques

Thermo Scientific

Thermo Scientific Nicolet iN10 Mode d’emploi

National

National DC3-163 Manuel utilisateur

KERN Optics

KERN Optics OPE-1 Manuel utilisateur

OPTIKA MICROSCOPES

OPTIKA MICROSCOPES B-150D Manuel utilisateur

Prior

Prior Lux POL Manuel utilisateur

Opitec

Opitec Smartscoop 115615 Manuel utilisateur

KERN

KERN OPO-1 Manuel utilisateur

Topcon

Topcon SP-1P Manuel utilisateur

Motic

Motic PA43 Manuel utilisateur

Leica

Leica DVM5000 Guide de l'utilisateur

MshOt

MshOt MZ62 Manuel utilisateur

KERN Optics

KERN Optics OZR-5 Manuel utilisateur

VWR

VWR VisiScope 384 Series Manuel utilisateur

Nikon

Nikon ECLIPSE E200 POL Manuel utilisateur

Leica

Leica DI C800 Manuel

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manuel utilisateur

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manuel utilisateur

Olympus

Olympus SZ61 Manuel utilisateur
