User’s Manual

MASCOT ® FT

Wall-Mounted, Modulating

Gas, Condensing, Combination Boiler

Model MFTCW

140,000 BTU/hr

• Natural Gas (NG) - Factory Conguration

• Propane Gas (LP) - Field-Convertible

LAARS Heating Systems

Page 2

MASCOT ® FT

1. Familiarizing yourself to the Laars

CONTENTS Pgs -

1. Familiarizing yourself to the Laars Mascot FT .......2

2. Caring For Your Mascot FT ...................................2

3. Start Up and Shut Down. ......................................4

4. Control Setup and Operation ............................4-10

The Mascot FT is a highly efcient, wall

mounted, condensing and fully modulating,

residential boiler and boiler. This Users Manual

will guide you into the basics of operating your

Mascot FT

Please reference the Installation and Operation

Manual for complete details. Laars Doc# 1318

2. Caring For Your Mascot FT

Your Mascot FT will require very little

maintenance. However, as with any ne appliance

there are certain steps that should be taken to ensure

continuing optimum performance.

2.1 General Care

Keep the area around the Mascot FT clean and

free from combustible materials, gasoline and other

ammable liquids and vapors.

The Mascot FT must be completely isolated and

protected from any source of corrosive chemical fumes

such as trichlorethylene, perchlorethylene, chlorine,

etc.

Keep bottom and top openings on the boiler free

for proper ventilation of interior components.

Do not obstruct or block a free ow of air to the

boiler to ensure proper ventilation.

If desired, clean the jacket surfaces with a

damp cloth and mild detergent. Do not use ammable

cleaning materials.

If sidewall vented, keep the vent terminal clear

of obstructions — do not allow snow to cover the vent

terminal. Clean the intake screen often, and then

develop an appropriate maintenance schedule.

2.2 Annual Inspection of Flue and Vents

Visually inspect the vent pipe once a year. Should

any deterioration exist, have the affected parts replaced

by a qualied service person.

2.3 In the Event of a Power Failure

The Mascot FT can not be operated during an

electrical power outage. If there is an extended power

outage with danger from freezing, then the Mascot

FT (and all other water systems) should be drained

completely. When draining the boiler, turn off main

electrical disconnect switch. When placing back in

service, refer to Section 3 of this Manual for instruction.

All draining and lling must only be done by a qualied

service person.

2.4 Full Service Every Year

In addition to the annual visual inspections, a

qualied service agency should conduct a detailed

inspection of all ue product carrying areas of the boiler

and its venting system.

User’s Manual - Mascot FT Combination Boiler / Water Heater Page 3

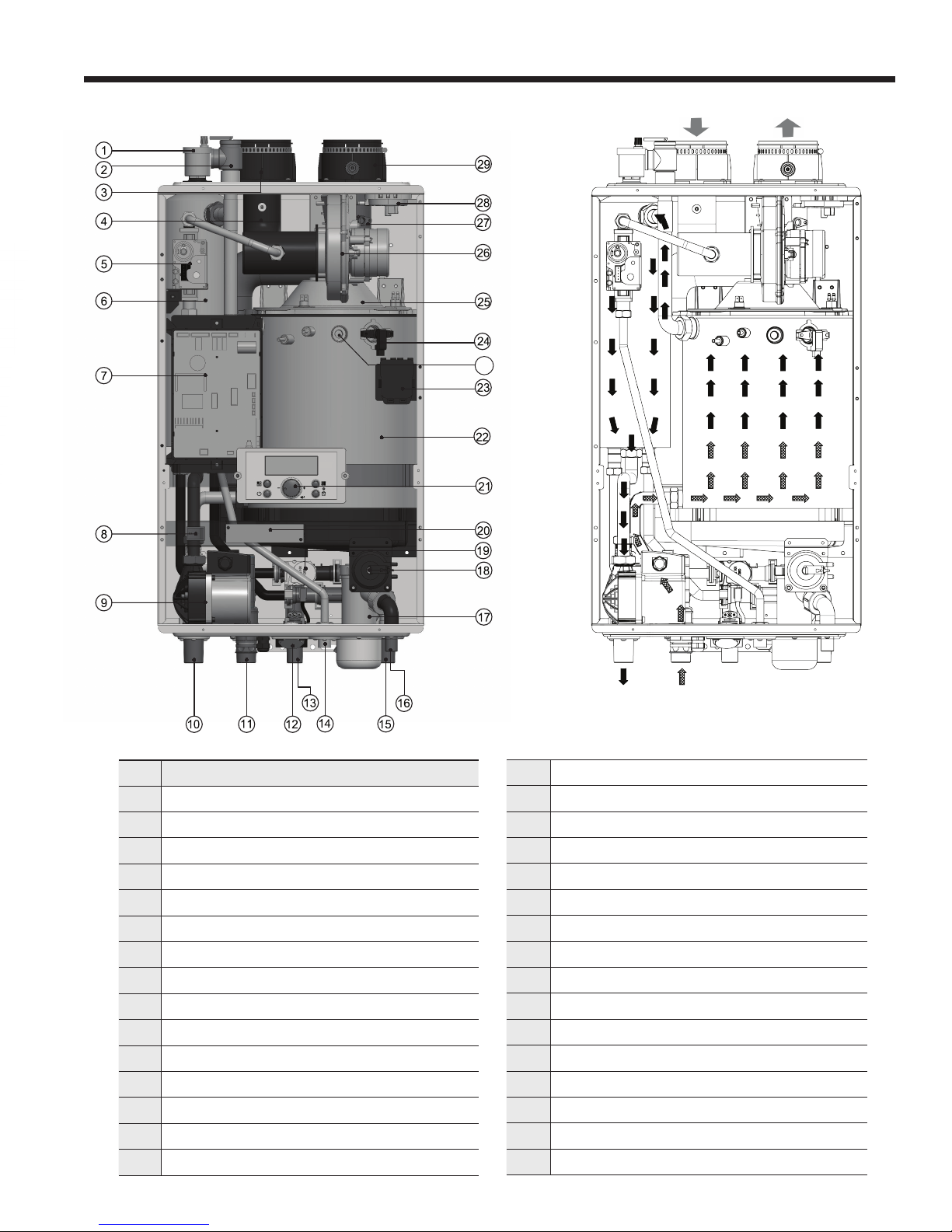

#Name of Component

Air Vent (air eliminator)

Pressure Relief Valve

Air Intake Collar

Air Gas Mixing Pipe

Gas Valve

DHW Water Tank

Main PCB

Manual Power Switch (ON / OFF)

Recirculation Pump DHW / CH Primary Pump

'CH' Supply Connection

'CH' Return Connection

CH Pressure Gauge

DHW Outlet Connection

Gas Inlet Connection

DHW Inlet Connection (lter and ow restrictor)

#Name of Component

Condensate Connection

Condensate Trap

Air Pressure Switch (condensate)

Mixing Valve

Terminal Block

Control Panel and Display

Heat Exchanger

Ignition Trans

Flame Detecting Sensor

Burner Case

BLDC Fan

Vent Pipe

Air Pressure Switch

Vent Pipe Collar

Sight Glass

Hydronic Supply Hydronic Return

LAARS Heating Systems

Page 4

3. Shut Down and Restart

3.1 To Start the Mascot FT

If drained, please refer to the Install and Operating

Manual to ensure that the complete ‘Setup’

procedure has been followed before starting this

boiler. A complete ‘Setup’ must be performed by a

qualied service person.

3.2 Shutting Down the Mascot FT

1. Turn off the main electrical disconnect switch.

2. Close all manual gas valves.

3. If freezing is anticipated, drain Mascot FT and be

sure to also protect building piping from freezing.

All water must be removed from heat exchanger

and condensate trap or else damage from

freezing may occur. Please refer to the Install

and Operating Manual.

This step to be performed by a qualied service person.

LAARS Heating Systems

Page 48

SECTION 5. Control Display and Operation 5.1 Control Dial and Buttons

• Temperature Speci cations

Operating ambient Temperature Range : -10 to 60°C.

Operating Relative Humidity up to: 90% at 40°C.

Shipping & Storage Temperature Range of : -20 to 80°C.

Buttons Functionality

PRESS (Tap) PRESS and HOLD (5 seconds)

Display Power

Turns Control Display ON / OFF

B Modes Tap to return to menu (If Display Power was On )

Status Display Mode

(If Display Power was Off )

Installer Mode

CHot Water

DHW Set-Point LOW Range

95 - 120°F (35 - 49°C)

DHW Set-Point HIGH Range

121 - 140°F (49.5 - 60°C)

DCentral Heat

CH set-point mode

(boiler only)

Toggle (°C / °F)

EScroll / Select Turn to scroll, tap to select

(clockwise or counterclockwise)

The Control Display has a Control Dial (E), 4 buttons (A, B, C, D), and a Liquid

Crystal Display (with 72 back-lit segments). This section of this manual gives

instruction on how to navigate into the many functions of the Mascot FT and to

change temperature set points, set system variables and controller parameters.

Status Light

(constant green

when operating

normally)

The Control Display

4. The Control Display and Operation
