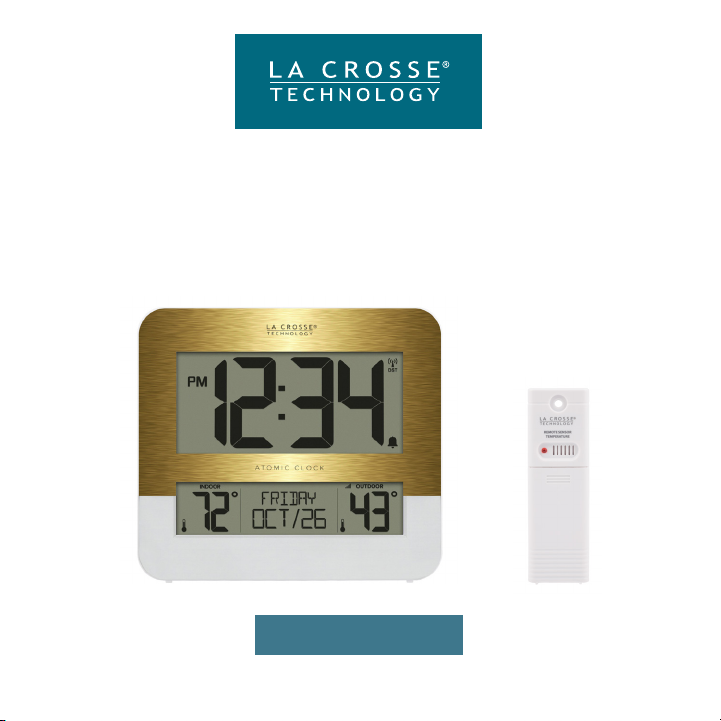

SET UP GUIDE

MODEL: L73859

ATOMIC DIGITAL WALL CLOCK

WITH INDOOR/OUTDOOR TEMPERATURE

1. Insert 2-AA batteries into your Outdoor Sensor.

2. Insert 2-AA batteries into your Atomic Clock.

3. Enter the Settings Menu to adjust your time and date.

4. Once the sensor is reading to your clock, place the senor outside in a

shaded location. View our sensor mounting video here:

bit.ly/th_sensor_mounting

POWER UP

ATOMIC TIME

Atomic Clock

L73859

Outdoor Sensor

TX141-Bv4

• The Atomic Time Indicator will ﬂash while searching, and remain solid

on screen when connected.

• From the normal time display, press the SET button to search for the

WWVB Atomic Time Signal.

SETTINGS MENU

1. Hold the SET button to enter the Settings Menu.

2. Use the +or -button to adjust, and SET to confirm.

3. Press the SNOOZE button at any time to exit.

Settings Menu Order:

• Language (English, Español, Francais)

• Beep ON/OFF

• Atomic ON/OFF

• DST ON/OFF

• Time Zone

• 12/24 Hour Format

• Hour

• Minutes

• Year

• Month

• Date

• Temperature Fahrenheit/Celsius

Note: When Español or Français are selected, the instructions will be in the

selected language.

Note: Weekday sets automatically when Year, Month and Date are set.

7 Time Zones:

ATLANTIC

EASTERN

CENTRAL

MOUNTAIN

PACIFIC

ALASKA

HAWAII

TIME ALARM

Set Alarm Time:

1. Hold the ALARM button to enter the Alarm Settings Menu.

2. Press the +or -button to adjust values.

3. Press the ALARM button to confirm and move to next item.

4. Press the SNOOZE button at any time to exit.

Activate/Deactivate Alarm:

• The alarm is active when set.

• Press and release the ALARM button to deactivate or activate the

alarm.

• The Alarm Icon will show when alarm is active.

Snooze:

• When the alarm sounds, press the SNOOZE button to silence

the alarm for 10 minutes.

• Snooze can be repeated as desired.

• Press any button other than Snooze to stop the alarm for 24 hours.

Note: The alarm will sound with increasing frequency for two minutes,

then shut off automatically if not silenced.

Timer Hour Timer Minutes Timer Countdown

• Pause/Play Timer: Press the MINUS (-) button to pause the timer. Press

MINUS (-) again to continue the current Timer.

• Start/Stop Timer: Press the TIMER button to start or stop the timer. When

stopped, Timer returns to last setting.

• Timer Sounds: When Timer reaches “0” you will hear 5 beeps every 15

seconds for up to 1 minute. If the TIMER button is not pressed, the timer

will begin counting up from “0”.

• Timer or Clock Display: When Timer is counting, press the PLUS (+)

button to display the Clock. Press again to view Timer.

TIMER

The Timer can be set from 1 minute (minimum) all the way up to 24 Hours

(maximum).

Set Timer:

1. Hold the TIMER button for 3 seconds. The hour will begin to ﬂash. Press

the +or -button to adjust the Timer hour.

2. Press the TIMER button to conﬁrm, the minutes will then begin to ﬂash.

Use the +or -button again to adjust Timer minutes.

3. Press the TIMER button to conﬁrm and begin Timer countdown.

TIMER INDICATORS

Timer Paused, no arrows

Timer countdown active

Timer count up active

SEARCH FOR OUTDOOR SENSOR

If you are seeing dashes for your outdoor readings, please try the

following steps:

1. Hold the PLUS (+) button to search for your outdoor sensor. The

Reception Indicator will begin to animate.

2. If after 3 minutes the sensor still isn’t connected, bring the sensor inside

next to the display and remove power from both the sensor and clock.

3. Press any button on the clock 20 times and leave the parts sit for a few

minutes with the power o.

4. Install a new set of alkaline batteries into the sensor, then into your clock.

For additional help visit: bit.ly/basic_restart

5. If your outdoor data is still not appearing after these steps, please

contact our support sta via the links below.

SENSOR WEATHER SHIELD

• The Sensor Weather Shield (sold separately) is designed to

protect your outdoor sensor from rain and snow.

• This shield will oer limited protection from the sun’s heat.

• Optional purchase at: bit.ly/925-1418

LOW BATTERY INDICATOR

Low Battery Icon by Outdoor Temperature, replace batteries in the

Outdoor Sensor.

Low Battery Icon by Indoor Temperature, replace batteries in the Clock.

Ask questions, watch setup videos, and provide feedback on our social

media outlets.

Follow La Crosse Technology on YouTube, Twitter, Facebook and

Instagram.

STAY IN TOUCH!

WE’RE HERE TO HELP

Still have questions? Use the links below to ﬁnd

additional resources or reach out to our sta directly.

Self-Help: bit.ly/l73859_support

Online Support: bit.ly/contact_techsupport

Phone: 608-782-1610

Our friendly support team based in La Crosse, WI

is available Mon-Fri, 9am-6pm CST.

WARRANTY & PATENTS

La Crosse Technology, Ltd. provides a 1-year limited time warranty (from

date of purchase) on this product relating to manufacturing defects in

materials & workmanship.

La Crosse Technology, Ltd,

2830 S. 26th St.

La Crosse, WI 54601

For Full Warranty Details, Visit:

www.lacrossetechnology.com/pages/warranty

Patents:

www.lacrossetechnology.com/pages/patent

SCAN HERE

Additional info.

and Support

Atomic Clock (L73859)

Temperature Range:

32°F to 122°F (0°C to 50°C)

Power Requirements:

2-AA, IEC, LR6 batteries (not included)

Battery Life:

Over 12 months

Dimensions: 8.54” L x 1.02” W x 7.77” H

(21.69cm L x 2.59cm W x 19.73cm H )

Outdoor Sensor (TX141-Bv4)

Temperature Range:

-40°F to 140°F (-40°C to 60°C)

Transmission Range:

Over 330 ft. open air

(100 meters) RF 433MHz

Update Interval:

About every 51 seconds

Power:

2-AA, IEC, LR6 batteries (not included)

Battery Life:

Over 12 months

Dimensions:

1.57” L x 0.79” W x 5.12” H

(4.0cm L x 2.0cm W x 13.0 H cm)

Designed in La Crosse, Wisconsin •Made in China •Printed in China •DC 080222

SPECIFICATIONS CARE AND MAINTENANCE

When batteries of dierent brand or type are used

together, or new and old batteries are used together,

some batteries may be over-discharged due to a

dierence of voltage or capacity. This can result

in venting, leakage, and rupture and may cause

personal injury.

•Do not mix Alkaline, Lithium, standard, or

rechargeable battteries.

•Always purchase the correct size and grade of

battery most suitable for the intended use.

•Always replace the whole set of batteries at one

time, taking care not to mix old and new ones, or

batteries of dierent types.

•Clean the battery contacts and also those of the

device prior to battery installation.

•Ensure the batteries are installed correctly with

regard to polarity (+ and -).

•Remove batteries from product during periods of

non-use. Battery leakage can cause corrosion and

damage to this product.

•Remove used batteries promptly.

•For recycling and disposal of batteries, and

to protect the environment, please check the

internet or your local phone directory for local

recycling centers and/or follow local government

regulations.

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation. This

equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However,

there is no guarantee that interference will not occur

in a particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning the

equipment o and on, the user is encouraged to try

to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment

and receiver.

Connect the equipment into an outlet on a

circuit dierent from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV

technician for help.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,

and

(2) This device must accept any interference

received, including interference that may cause

undesired operation.

Caution!

Any changes or modiﬁcations not expressly

approved by the party responsible for compliance

could void the user’s authority to operate the

equipment.

FCC STATEMENT CALIFORNIA RESIDENTS

This product can expose you to chemicals

including acrylonitrile, butadiene, and styrene,

which are known to the State of California

to cause cancer and birth defects or other

reproductive harm. For more information, go

to: www.P65Warnings.ca.gov

CA WARNING:

be reproduced in any form, even in part, or

duplicated or processed using electronic,

mechanical or chemical process without the

written permission of the publisher.

This booklet may contain errors or misprints.

The information it contains is regularly

checked and corrections are included

in subsequent editions. We disclaim any

responsibility for any technical error or printing

error, or their consequences.

All trademarks and patents are recognized.
