CS TIMECLOCK 2110 Manuel d'instructions

CS TIMECLOCK

2110

QUICK START MANUAL

TABLE OF CONTENTS

CLOCK INSTALLATION................................................................................................................... 3

Time Clock Connectors.....................................................................................................................................3

Installation Instructions ...................................................................................................................................4

1. Hardware Installation ................................................................................................................................ 4

2. Network Setup........................................................................................................................................... 4

CLOCK INSTALLATION

TIME CLOCK CONNECTORS

The connectors are located at the back of the clock

The connectors are described below from top to bottom

o1 –USB Ports

o2 –5 Volt Power Input Connector

o3 –Ethernet RJ45 Connector

INSTALLATION INSTRUCTIONS

1. HARDWARE INSTALLATION

Connect the 5 Volt power supply (supplied) to the TimeClock’s 5 Volt connecter

(connector 2) as indicated in the connector layout diagram.

The supplied power supply must be connected to the power main via a normal kettle or

PC type connector lead (not supplied)

Connect the network fly lead cable to the TimeClock’s RJ-45 connector (connector no 3

in the layout diagram)

2. NETWORK SETUP

The clocks are all shipped with a standard IP address 192.168.0.111. It is important NOT

to connect them all at the same time to your network, to avoid IP conflicts.

Device settings can only be adjusted via the CS TimeClock web interface.

Open your internet browser and type http://192.168.0.111 in the address bar.

Once you have typed in the IP address of your clock in the address bar of a web

browser, the following login screen will appear :

The default login is: 9970. The default password is: password. Type in the login and

password, and click Login

The following window appears :

Click on “Network”under the “Setup” menu.

Enter the new network settings:

oDHCP –DO NOT ENABLE! If enabled the clock will be assigned an IP address which

will be unknown to the user.

oIP –enter the IP address of the clock here

oSubnet mask –normally 255.255.255.0

oGateway (optional) - this must be set to enable access to / and from the clock to the

internet. Internet connectivity is necessary for firmware updates and automatic

updating of the clock’s time from internet time servers.

oBroadcast IP - is automatically filled, if and when there are more clocks on the

network. The clocks will find each other on the network automatically, and will act

as primary / secondary setup. This allows clocks on the same subnet mask (e.g. local

network within the company) to update directions automatically. For employees it

means that if there are more than 1 clock installed, they can clock IN on 1 clock, and

clock OUT on another one, without having to nominate on the clock if they are

coming or going. The directions will be automatically updated between the clocks.

oName Server 1 –4 (optional) - enter the IP’s of your Name Server(s) (DNS) here.

After the network settings are changed, click on “Save” and the clock will reboot.

Future access to the CS TimeClock web interface will now be from the new IP address

you’ve entered above.

Please reference the CS TimeClock Web Interface Manual with regards to the other menu

options.

Table des matières

Autres manuels CS TIMECLOCK Horloge de pointage

CS TIMECLOCK

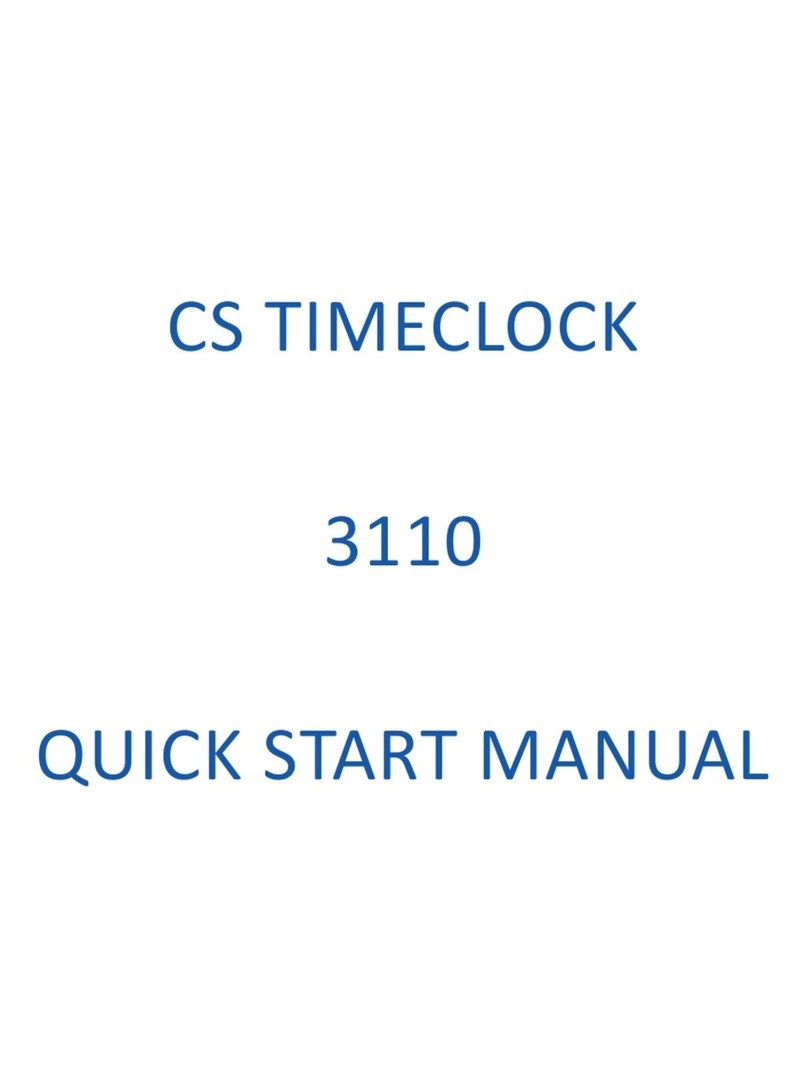

CS TIMECLOCK 3110 Manuel d'instructions
