La Crosse Technology WS-6003U Manuel utilisateur

WS-6003U

Atomic Clock

Instruction Manual

              

TABLE OF CONTENTS

Topic Page

Inventory of Contents/ Additional Equipment 3

About WWVB 3

Quick Set-Up Guide 3

Detailed Set-Up Guide

Battery Installation 4

Program Mode

Function Buttons 5

Time Zone Setting 6

DST (Daylight Saving Time) Setting 6

Language Selection 7

Time Setting 7

Calendar Setting 7-8

12/24-Hour Setting 8

Selecting °F or °C 8

Features & Operations

Displaying the Seconds 9

Mounting 9-10

Maintenance & Care 10

Troubleshooting 11

Specifications 12

Warranty Information 12

INVENTORY OF CONTENTS

1) WS-6003U

2) Instruction manual and warranty card.

ADDITIONAL EQUIPMENT (not included)

1) Two fresh 1.5V AA batteries.

2) Three wall-hanging screws.

3) Appropriate screwdriver for screws.

ABOUT WWVB (Radio Controlled Time)

The NIST (National Institute of Standards and Technology—Time and Frequency

Division) WWVB radio station is located in Ft. Collins, Colorado, and transmits the exact

time signal continuously throughout the United States at 60 kHz. The signal can be

received up to 2, 000 miles away through the internal antenna in the Atomic Clock.

However, due to the nature of the Earth’s Ionosphere, reception is very limited during

daylight hours. The Atomic Clock will search for a signal every night when reception is

best. The WWVB radio station derives its signal from the NIST Atomic clock in

Boulder, Colorado. A team of atomic physicists is continually measuring every second,

of every day, to an accuracy of ten billionths of a second per day. These physicists have

created an international standard, measuring a second as 9,192,631,770 vibrations of a

Cesium-133 atom in a vacuum. This Atomic Clock regulates the WWVB transmitter.

QUICK SET-UP GUIDE

1) Insert two AA batteries into the Atomic Clock.

2) Wait 15 minutes for WWVB reception.

3) If there is no WWVB reception, manually set the time and date (instructions

in the Program Mode).

4) Program the settings.

5) Mount the WS-6003U in a suitable location, where WWVB signals can be

received.

DETAILED SET-UP GUIDE

I) BATTERY INSTALLATION

Note: To avoid start-up

problems make sure that the

batteries do not spring free.

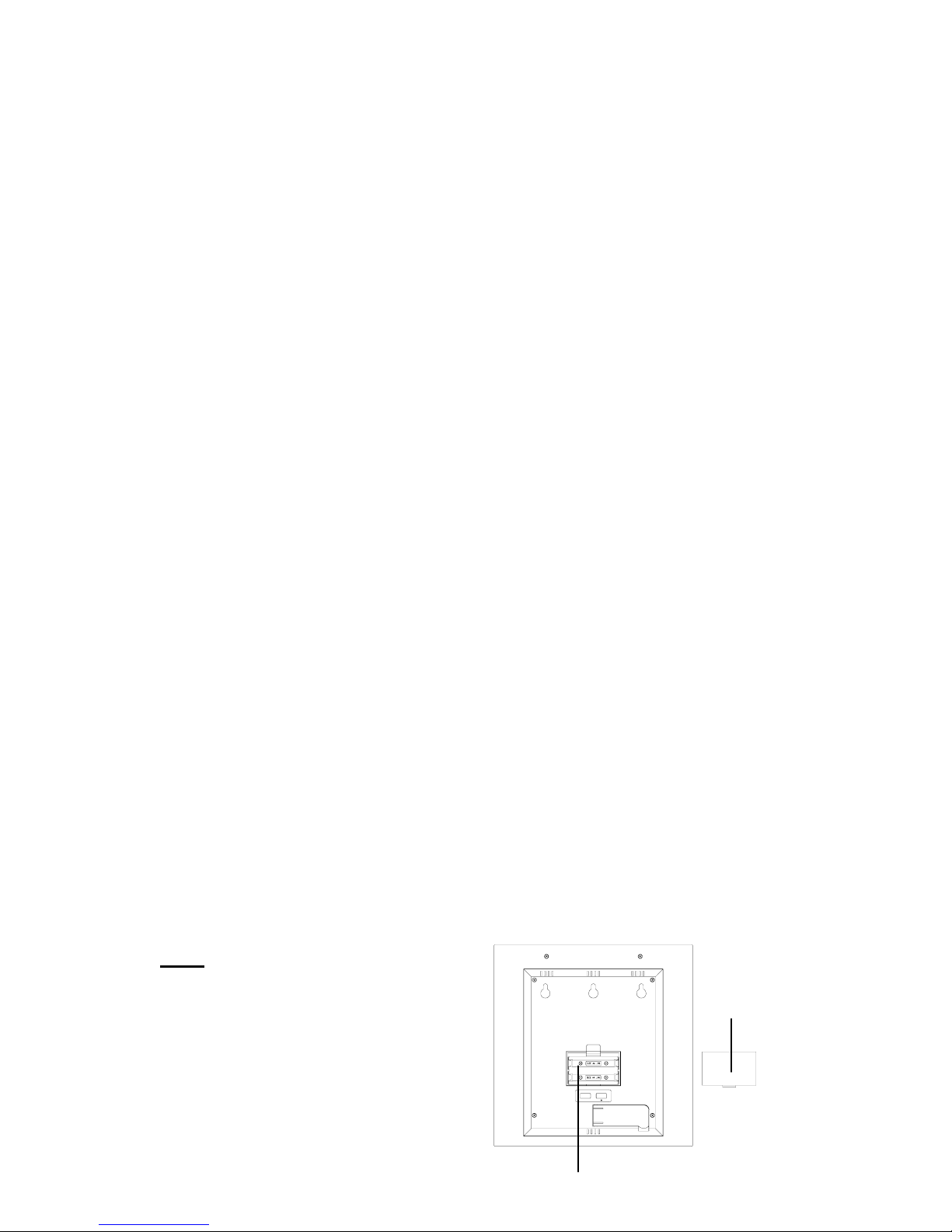

A) ATOMIC CLOCK

SET

Battery Compartment

Battery Cover

1) Remove the battery cover, located on the backside of the unit and directly

above the function buttons.

2) Observe the correct polarity, and install 2 AA batteries.

3) Replace the battery cover.

Note: After the batteries have been installed all the LCD’s (Liquid Crystal

Display) will briefly light up. Then the indoor temperature, the date as “1/

1” and the weekday as “MON” will be displayed. Also, the time will

appear as “-:--” for approximately 1 minute. Then the WWVB search is

automatically initiated, and a tower icon appears and flashes with the time

colon (no tower icon will appear if the WWVB is too weak to be detected).

While the WWVB search is being conducted various numbers will appear in

the time display. The numbers “0”, “1”, or “8” will appear in the hour

position and the seconds will appear in the minute display. The Atomic

Clock will either display the WWVB time, or discontinue the search after 10

minutes if the time is not found. When the search is cancelled “-:--”will

appear in the time LCD. The Atomic Clock will conduct a WWVB search

every hour until the first signal is found. Once the WWVB time is found, a

search is automatically conducted nightly at midnight. If the signal is found

at midnight, the tower icon will remain, if not, another search will take

place every hour (up to 6:00 am) until the signal is found successfully. If no

signal is found during this period, the tower icon will not appear and the

clock will search again at 12:00 am the next night.

PROGRAM MODE

To enter the Program Mode hold down the “SET” button for 2 seconds, until “-5EST”

flashes in the Date LCD. The Program Mode is laid out in a manner that allows you to

WWVB Tower

Indoor

Weekda

Month/Da

program each function separately, or you can follow the instructions entirely to program

the Atomic Clock. Complete programming is usually done for the initial set-up, and will

require you to skip step 1 of programming sections III through VIII. Wait approximately

15 seconds for the Atomic Clock to automatically return to normal operation.

I) FUNCTION BUTTONS

There are 2 function buttons located on the backside of the Atomic Clock. The

function buttons are labeled: SET and +.

II) TIME ZONE SETTING

1) Hold down the “SET” button for 2 seconds, the default setting “-5EST” will

flash in the Date LCD.

2) Press and release the “+” button to select the appropriate time zone. There

are 13 time zones to choose from:

-5EST Eastern Time (default setting)

-6CST Central Time

-7MST Mountain Time

-8PST Pacific Time

-9ALA Alaskan Time

-10HAW Hawaiian Time

-11

-12

GMT Greenwich Mean Time

-1

-2

-3

-4ATL Atlantic Time

3) Press and release the “SET” button to confirm the time zone setting, and to

advance to DST (Daylight saving time) setting.

III) DST (DAYLIGHT SAVING TIME) SETTING

Note: The DST default is “On”, meaning that the WWVB will automatically change

the time according to Daylight Saving Time in the spring and fall. For areas that do

not recognize DST changes (Arizona and parts of Indiana) turn the DST “OFF”.

1) Hold down the “SET” button for 2 seconds (the selected time zone will

flash), press the “SET” button once more until “On” flashes in the time

LCD and “DST” flashes where the Weekday normally appears.

2) Press and release the “+” button to turn the DST off, as will be indicated by

the display of “OFF” in the time LCD.

3) Press and release the “SET” button to confirm the DST setting, and to

advance to select the language for the weekday.

IV) LANGUAGE SELECTION FOR THE WEEKDAY

1) Hold down the “SET” button for 2 seconds (the selected time zone will

flash), press the “SET” button 2 more times, until the default language

“US” flashes in the time LCD.

2) Press and release the “+” button to toggle through and to select the desired

language. There are 3 languages to select from:

US English

F French

E Spanish

3) Press and release the “SET” button to confirm the language setting, and to

advance to manually set the time.

V) TIME SETTING

Note: When the WWVB signal is found, that time will over-ride the manually set

time.

1) Hold down the “SET” button for 2 seconds (the selected time zone will

flash), press the “SET” button 3 more times, until the hour “12:00” flashes

in the time LCD.

2) Press and release the “+” button to select the hour. Note: when setting the

hour, “PM” will appear to the left of the hour display, if it is AM nothing

will be displayed.

3) Press and release the “SET” button to confirm the hour setting, and to shift

to select the minutes.

4) Press and release the “+” button to select the minutes.

5) Press and release the “SET” button to confirm the time setting, and to

advance to manually set the calendar.

VI) CALENDAR SETTING

Note: When the WWVB signal is found, that date will over-ride the manually set

date.

1) Hold down the “SET” button for 2 seconds (the selected time zone will

flash), press the “SET” button 5 more times, until the default year “00”

flashes in the date LCD.

2) Press and release the “+” button to select the year.

3) Press and release the “SET” button to confirm the year, and to set the

month.

4) The default month “1” will flash. Press and release the “+” button to select

the appropriate month.

5) Press and release the “SET” button to confirm the month, and to set the

date.

6) The default date “1” will flash. Press and release the “+” button to select

the appropriate date.

7) Press and release the “SET” button to confirm the date, and to set the

weekday.

8) The default weekday “MON” (depends on selected language) will flash.

Press and release the “+” button to select the appropriate weekday.

9) Press and release the “SET” button to confirm the calendar settings, and to

advance to select either 12 or 24-hour time display.

VII) 12/24-HOUR SETTING

1) Hold down the “SET” button for 2 seconds (the selected time zone will

flash), press the “SET” button 9 more times, until the “12” hour time

display flashes in the time LCD.

2) Press and release the “+” button to toggle between 12 and 24 hour time.

3) Press and release the “SET” button to confirm the 12/24-hour time display,

and to advance to select either °F or °C.

Note: The “24 hour time” option is not recommended. The LCD display will

not show the first digit “2”.

VIII) SELECTING °F OR °C

1) Hold down the “SET” button for 2 seconds (the selected time zone will

flash), press the “SET” button 10 more times, until the default “°F” flashes

in the time LCD.

2) Press and release the “+” button to toggle between °F and °C.

3) Press and release the “SET” button to confirm the °F or °C selection, and

exit the Program Mode.

FEATURES & OPERATIONS

I) CHANGING DISPLAY MODE (DAY, SECONDS, AND TEMPERATURE)

There are three possible display modes to view the day, seconds, and temperature.

The month & date/ weekday/ indoor temperature is the default.

To change the display:

1) Press and release the “+” button. The display should now show the month &

date/ weekday/ seconds.

2) Press and release the “+” button a second time and the display will now show

the month & date/ seconds/ indoor temperature.

3) Press and release the “+” button a third time and the display will return to the

normal display.

II) INDOOR TEMPERATURE

The Indoor Temperature appears on the right side of the Date LCD. The temperature

is checked every 10 seconds, and updated whenever there is a change.

MOUNTING

There are two possible ways to mount the atomic clock:

•use of the foldout table stands, or

•wall mounting.

I) FOLDOUT TABLE STAND

The foldout table stand leg is located on the backside,

directly below the battery cover and function buttons.

The hinge is towards the center of the atomic clock, and

the end (with no hinge) needs to be folded in towards the

center. Once the foldout table stand is extended, place the atomic clock in an

appropriate location.

II) WALL MOUNTING

1) Using a straightedge, horizontally space at 3-15/16 of

an inch (100.58mm) three screw positions on a wall.

2) Install three mounting screws (not included) into a

wall within transmission range—leaving

approximately 3/16 of an inch (5mm) extended from

the wall.

SET

Hanging Holes

Foldout Table Stands

Function Buttons

Place the Atomic Clock onto the screws, using the hanging holes on the

backside. Gently pull the Atomic Clock down to lock the screws into place.

MAINTENANCE & CARE

•Extreme temperatures, vibrations, and shock should be avoided to prevent damage to

the units.

•Clean displays and units with a soft, damp cloth. Do not use solvents or scouring

agents—they may mark and damage the displays and casings.

•Do not submerge in water.

•Immediately remove all low powered batteries to avoid leakage and damage.

Replace with new batteries only, and of recommended size.

•Opening the casings invalidates the warranty. Do not try to repair the units. Contact

La Crosse Technology for Repairs.

TROUBLESHOOTING

Problem: The LCD is faint.

Solution: 1) Replace the batteries.

Problem: “OFL” appears in the LCD.

Solution: 1) Move unit to an area with warmer or cooler surrounding

temperature. Current surrounding temperatures are outside

measuring range.

Problem: No reception of WWVB signal.

Solution: 1) It may help reception to face the front of the Atomic Clock in

the general direction of Ft. Collins, Colorado.

2) Wait overnight for signal.

3) Be sure the Atomic Clock is at least 6 feet from any electrical

devices, i.e. TV sets, computers, or other radio controlled

clocks.

4) Remove batteries for five minutes, reinsert and leave the unit

alone overnight without pressing buttons.

5) If problems persist contact La Crosse Technology.

Problem: Hour is incorrect (minute and date are correct).

Solution: 1) Be sure correct time zone and daylight saving time are

selected.

Note: For any questions not answered, contact La Crosse Technology with the contact

information found at the end of this instructional manual.

SPECIFICATIONS

Temperature:

Measuring range: 32°F to 122°F with 0.2°F resolution

(0°C to 50°C with 0.1°C resolution)

Outside range: “OFL” will be displayed

Checking intervals: Every 10 seconds

Power source:

Battery type: 2 x AA, IEC LR6, 1.5V (Alkaline)

Battery life: Approximately 12 months

Dimensions (L x W x H): 8.3 x 1.2 x 8.4 in (211.8 x 30.5 x

214.4mm)

Autres manuels pour WS-6003U

Table des matières

Autres manuels La Crosse Technology Horloge

La Crosse Technology

La Crosse Technology 513-1419BLV3 Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1422 Dimensions

La Crosse Technology

La Crosse Technology 404-50447 Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1417AL Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3161WHx1 Manuel utilisateur

La Crosse Technology

La Crosse Technology 83247-BHG Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1918S Guide d'installation

La Crosse Technology

La Crosse Technology 513-1417v3 Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1311OT Manuel utilisateur

La Crosse Technology

La Crosse Technology 515-1419 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3161BKx1 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-8005U Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3181 Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1919 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3161BL Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1417CHv2 Manuel utilisateur

La Crosse Technology

La Crosse Technology Sagebrook 404-3015CC Manuel utilisateur

La Crosse Technology

La Crosse Technology BBB87740x1 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-6002U Manuel utilisateur

La Crosse Technology

La Crosse Technology 512-1422 Series Dimensions

La Crosse Technology

La Crosse Technology 404-3840FL Manuel utilisateur

La Crosse Technology

La Crosse Technology W86111V2 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3161BK Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3161WH Manuel utilisateur

Manuels Horloge populaires d'autres marques

Silicon Laboratories

Silicon Laboratories SI5324 Manuel utilisateur

Heathkit

Heathkit GC-1005 Manuel utilisateur

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manuel utilisateur

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuel utilisateur

ALGE-Timing

ALGE-Timing ASC3 Manuel utilisateur

Bodet

Bodet Profil 960 Manuel utilisateur

Nixie Clock

Nixie Clock Divergence Meter Manuel utilisateur

Mini Gadgets

Mini Gadgets MCPro Manuel utilisateur

Casio

Casio TMR-200 Manuel utilisateur

Progetti

Progetti ILTEMPOSTRINGE Manuel

BVItech

BVItech BV-101 Manuel utilisateur

Progetti

Progetti KALIMERO Manuel

Sharp

Sharp SPC900 Manuel utilisateur

Datexx

Datexx DF0063 Manuel utilisateur

LG LEC-005 Manuel utilisateur

IKEA

IKEA ROTBLÖTA Manuel utilisateur

U-Line

U-Line Н-2811 Manuel utilisateur

Digiview

Digiview RC305EL Manuel utilisateur
