L.B. White CP400AK Manuel

1-K

Kerosene

Congratulations!

You have purchased the finest kerosene portable forced air construction heater available.

Your new L.B. White heater incorporates the benefits from the most experienced

manufacturer of heating products using state-of-the-art technology.

We, at L.B. White, thank you for your confidence in our products and welcome any

suggestions or comments you may have...call us, toll-free, at (800) 345-7200.

Owner's Manual and Instructions

Tradesman Kerosene Heaters

ATTENTION ALL USERS

This heater has been tested and evaluated by C.S.A. International in accordance with

the requirements of Standard ANSI A10.10-1990, CAN/CSA B140.87 and CSA

B140.8 - 1967 and is listed and approved as a Kerosene forced-air construction

heater with application for the temporary heating of buildings under construction,

alteration, or repair. If you are considering using this product for any application

other than its intended use, then please contact the L.B. White Co., Inc.

MODELS OUTPUT (BTUH) FUEL

CP400AK 400,000

CP650AK 650,000

Certification by:

150-26904

WARNING

Fire and Explosion Hazard

■Not for home or recreational vehicle use.

■Installation of this heater in a home or recreational

vehicle may result in a fire or explosion.

■Fire or explosions can cause property damage or loss

of life.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

WARNING

Fire and Explosion Hazard

■Keep solid combustibles a safe distance away from

the heater.

■Solid combustibles include wood, paper, or plastic

products, building materials and dust.

■Do not use the heater in spaces which contain or may

contain volatile or airborne combustibles.

■Volatile or airborne combustibles include gasoline,

solvents, paint thinner, dust particles or unknown

chemicals.

■Failure to follow these instructions may result in a fire

or explosion.

■Fire or explosions can lead to property damage,

personal injury or loss of life.

GENERAL HAZARD WARNING

■Failure to comply with the precautions and instructions provided with this heater, can result in:

— Death

— Serious bodily injury or burns

— Property damage or loss from fire or explosion

— Asphyxiation due to lack of adequate air supply or carbon monoxide poisoning

— Electrical shock

■Read this Owner’s Manual before installing or using this product.

■Only properly-trained service people should repair or install this heater.

■Save this Owner’s Manual for future use and reference.

■Owner’s Manuals and replacement labels are available at no charge. For assistance, contact L.B. White at 800-

345-7200.

SECTION PAGE

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Heater Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Information

Hazard Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Installation & Assembly

Heater Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Operation

Overview of Heater Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

The Safety System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Fuel Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Fueling Your Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

To Start Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

To Shutdown Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

To Restart Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Longterm Storage of Your Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Maintenance

Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Air Input Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Air Output /Lint Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Fan Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Spark Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Photocell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Fuel Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Pump Pressure Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Replace Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Parts Identification

Parts Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Table of Contents

General Information

This Owner's Manual includes all options and accessories

commonly used on this heater.

When calling for technical service assistance, or for other

specific information, always have model number,

configuration number and serial number available. This

information is contained on the dataplate.

This manual will instruct you in the operation and care of

your unit. Have your qualified installer review this manual

with you so that you fully understand the heater and how it

functions.

The installation, repair, and servicing of the heater

requires continuing expert training and knowledge of

kerosene heaters and should not be attempted by anyone

who is not so qualified.

Contact your local L.B. White distributor or the L.B. White

Co., Inc. for assistance, or if you have any questions about

the use of the equipment or its application.

The L.B. White Co., Inc. has a policy of continuous product

improvement. It reserves the right to change

specifications and design without notice.

Model

Heater Specifications

Fuel Type 1-K, Kerosene

Max Input (BTUH) 400,000 650,000

Ventilation Air Required

to Support Combustion 1400 CFM 3600 CFM

Pump Pressure (psig) 125 110

Fuel Consumption per Hour (gal) 3.0 4.9

Ball Bearing

1/2 HP, 1710 RPM 3/4 HP, 1680 RPM

Electrical Supply (Voltz/Hz/Phase) 120/60/1

4.4 7.1

Dimensions (Inches) Length x width x height 52.5” x 32” x 34” 69.2” x 30.7” x 48.7”

TOP 4 ft.

SIDES 4 ft.

BACK 4 ft.

BLOWER OUTLET 8 ft.

BULK FUEL STORAGE CONTAINER 25 ft.

Net Weight (Lbs.) 141 276

Shipping Weight (Lbs.) 155 298

Minimum Ambient Temperature

in Which Heater May Be Used

SPECIFICATIONS CP400AK CP650AK

Motor Characteristics

Minumum Safe

Distances From

Nearest

Combustible

Materials

Amp Draw

-20oF

CONTINUOUS

OPERATION

Safety Information

HAZARD DEFINITIONS

DANGER

Indicates an imminently hazardous situation which, if not

avoided WILL result in death or serious injury.

WARNING

Indicates a potentially hazardous situation which, if not

avoided, COULD result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not

avoided, MAY result in minor or moderate injury.

WARNING

Before using this heater, please read this USER’S

MANUAL very carefully. This USER’S MANUAL has been

designed to instruct you as to the proper manner in which

to assemble, maintain, store, and most importantly, how

to operate the heater in a safe and efficient manner.

WARNING

Never leave the heater unattended while burning!

DANGER

Improper use of this heater can result in serious injury or

death from burns, fire, explosion, electrical shock, and/or

carbon monoxide poisoning.

GENERAL SAFETY INFORMATION

■Use this heater only in well ventilation areas. Provide proper

ventilation. See heater specifications (page 4).

■Never use this heater in living or sleeping areas.

■Carbon Monoxide Poisoning: Early signs of carbon

monoxide poisoning resemble flu-like symptoms such as

headaches, dizziness, and/or nausea. If you have these

symptoms, your heater may not be working properly.

■Get fresh air at once! Have the heater serviced.

■People with breathing problems should consult a physician

before using the heater.

■Some people are more affected by carbon monoxide than

others. These include pregnant women, those with heart or

lung problems, anemia, or those under the influence of

alcohol, or at high altitudes.

■Keep all combustible materials away from this heater.

Minimum Clearances

Outlet 8 feet (250 cm)

Sides, Top and Rear 4 feet (125 cm)

■NEVER use fuels such as gasoline, benzene, paint thinners,

or other oil compounds in this heater

(RISK OF FIRE OR EXPLOSION).

■NEVER use this heater where flammable vapors may be

present.

■NEVER refill the heater’s fuel tank while heater is operating

or still hot. This heater is EXTREMELY HOT while in

operation.

■NEVER block air inlet (rear) or air outlet (front) of heater.

■NEVER use duct work in front or at rear of heater.

■NEVER move or handle heater while still hot.

■NEVER transport heater with fuel in

its tank.

■The heater is equipped with a thermostat, the heater may

start at any time.

■ALWAYS locate heater on a stable and level surface.

■Use 1-K kerosene in this heater. #1 fuel oil is a suitable

substitute.

■Bulk fuel storage should be a minimum of 25 ft. from

heaters, torches, portable generators, or other sources of

ignition. All fuel storage should be in accordance with federal,

state, or local authorities having jurisdiction.

WARNING

Risk of Electric Shock!

WARNING

Risk of CO Poisoning!

WARNING

Risk of Burns/Fire/Explosion!

GENERAL SAFETY INFORMATION (cont.)

■Use only the electrical power (voltage and frequency)

specified on the model plate of the heater. Use only a

threeprong, grounded outlet and extension cord.

■ALWAYS install the heater so that it is not directly

exposed to water spray, rain, dripping water, or wind.

■ALWAYS unplug the heater when not in use.

CALIFORNIA RESIDENTS: This heater produces carbon

monoxide, which is listed by the State of California as a

reproductive toxin under Proposition 65.

MASSACHUSETTS RESIDENTS:Massachusetts state law

prohibits the use of this heater in any building which is used

in whole or in part for human habitation. Use of this heating

device in Massachusetts requires local fire dept. permit

(M.E.L.C. 148, Section 10A).

CANADIAN RESIDENTS: Use of this heater shall be in

accordance with authorities having jurisdiction and CSA

Standard B139.

For CP400AK only.

NEW YORK CITY RESIDENTS: For use only at construction

sites in accordance with applicable NYC codes under NYCFD

certificate of approval #5037

Installation and Assembly Instructions

HEATER SPECIFICATIONS

Introduction

Please read this USER’S MANUAL carefully. It will show you how to

assemble, maintain and operate this heater safely and efficiently to

obtain the full benefits of its many features.

Consumer: Retain these instructions for future reference.

Unpacking

1. Remove all packing items applied to heater for

shipment.

2. Remove all items from carton.

3. Check all items for shipping damage.

If heater is damaged, promptly inform dealer where you

purchased heater.

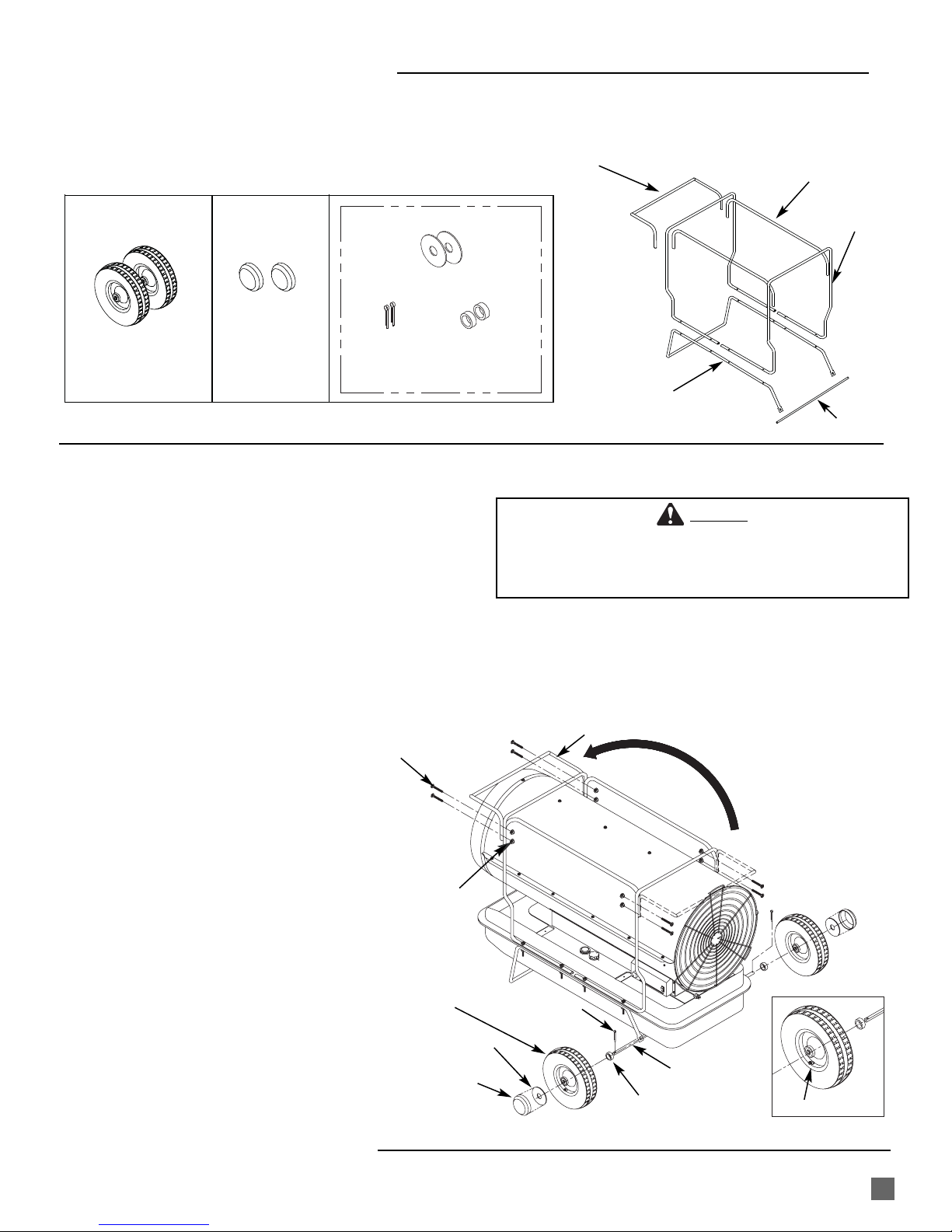

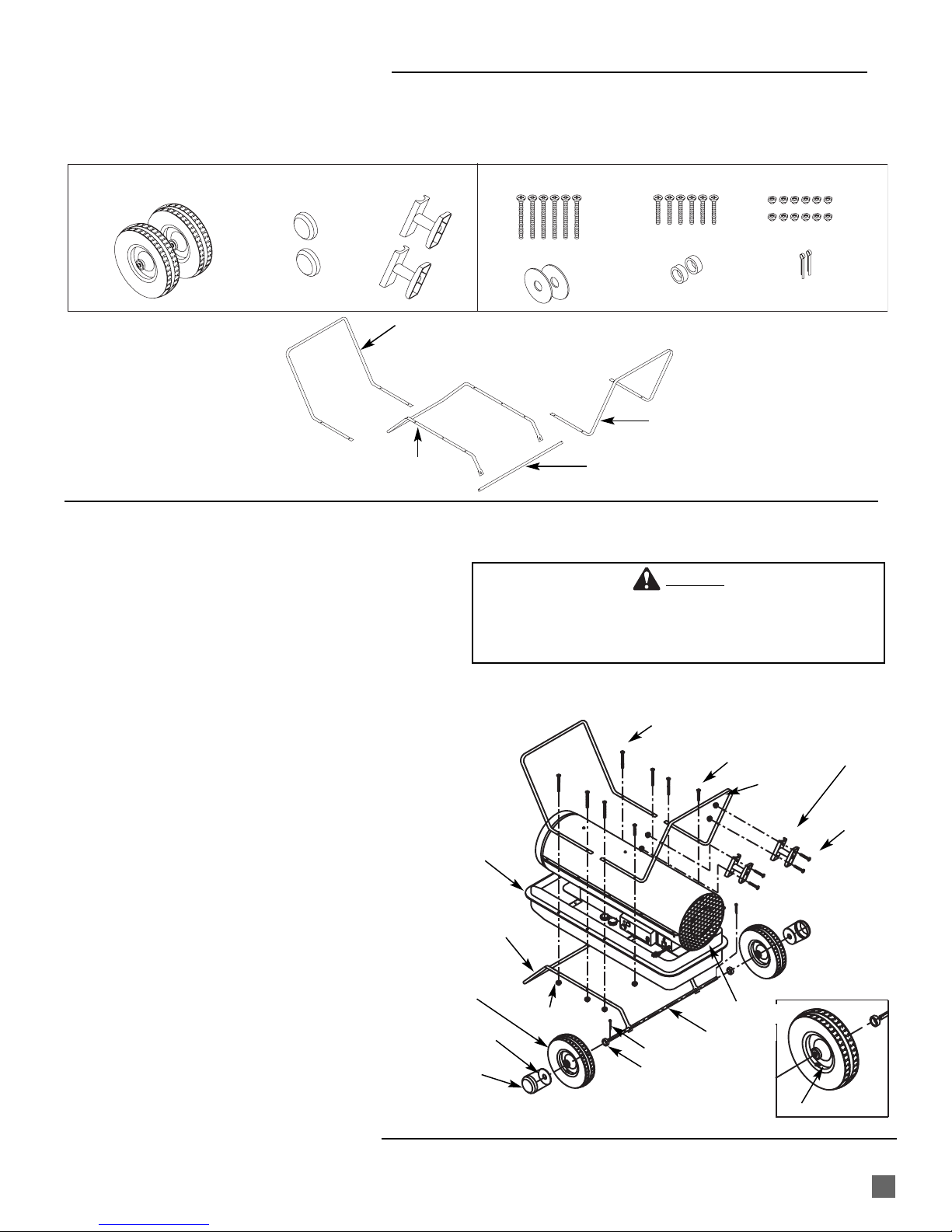

DIMENSIONS & ASSEMBLY INSTRUCTIONS -CP400AK

PRODUCT FEATURES

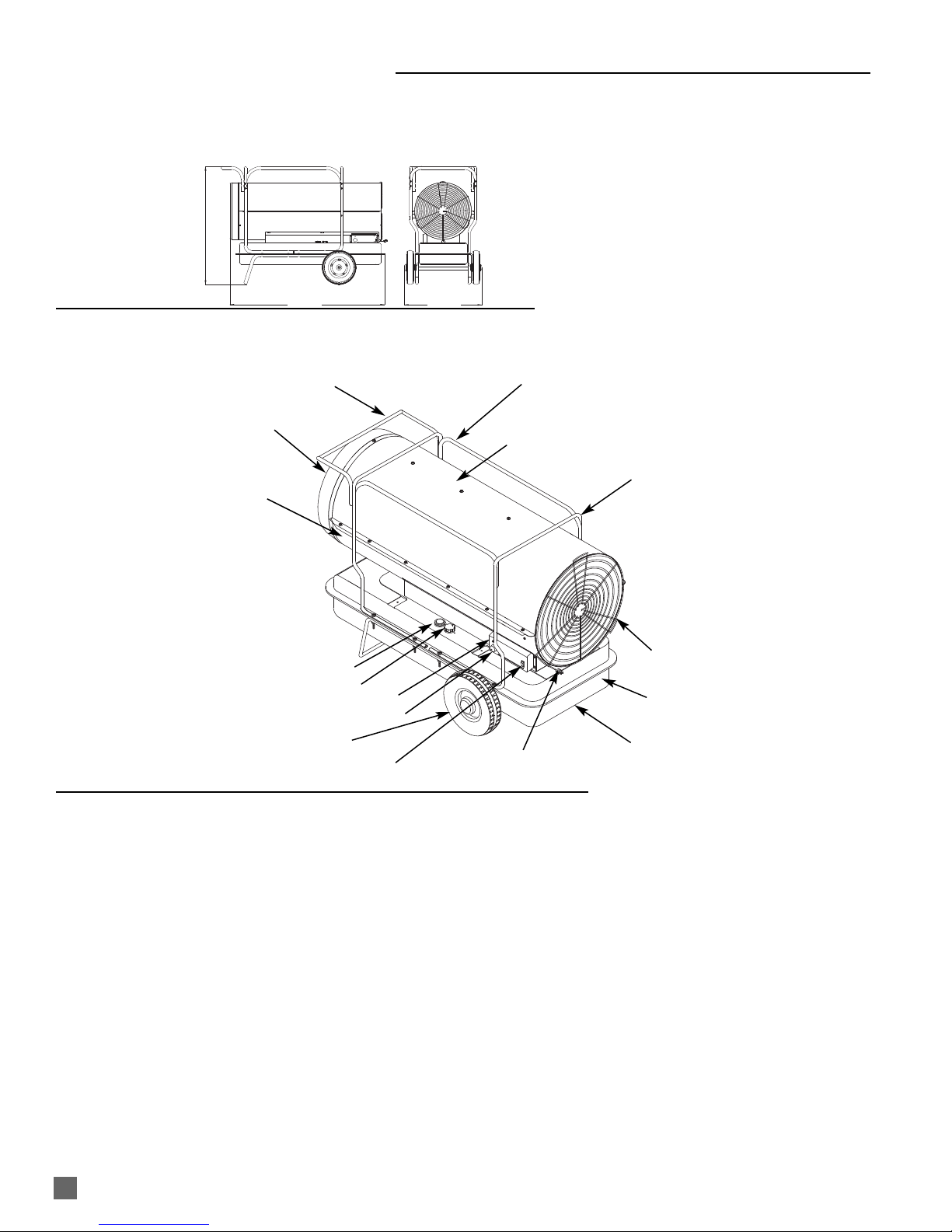

Figure 1 – Heater Dimensions

Figure 2 – Model CP400AK Features

Front Handle

Hot Air Outlet

Lower Shell

Fuel Gauge

Fuel Cap

Lamp

Thermostat Knob

Power / Reset Switch Power Cord

Extra Electric Outlet

Fuel Tank

Fan Guard

Upper Shell

Rear Handle

Room Temp. Display

Cord Wrap

Drain Plug

34”

52.5” 32”

Front Handle

Rear Handle

Wheel Bar

Wheel Support Frame

Wheels (Semi-Pneumatic) Wheel Caps Cord Wraps Screw (L) Screw (S)

Bushings Cotter Pins

Washers

Nut

Figure 3 – Components

DIMENSIONS & ASSEMBLY (cont.)

ASSEMBLY FOR CP400AK

TOOLS REQUIRED

• Medium Phillips screwdriver

• 3/8” open or adjustable wrench,

use US (Inch) screws nuts

• Long nose pliers

ASSEMBLING WHEEL & HANDLE

1. Slide axle through wheel support frame. Install

wheel bushings and wheel on axle.

NOTE: When installing wheels, tube valve should

face out from support frame (Figure 4).

2. Place flat washers and cotter pins on axle ends

and bend cotter pins with long nose pliers to

secure.

3. Place wheel cap on flat washers and put wheel

cap in flat washers end.

4. Place heater on wheel support frame. Make

sure air inlet end (rear) of heater is over wheels.

Align the holes on fuel tank flange. Insert screws

through handles (front and rear), fuel tank

flange, and wheel support frame as shown in

Figure 4 and attach nut finger tight after each

screw is inserted.

5. After all screws are inserted, tighten nuts firmly.

6. Align the hole on the rear handle with the

mounting hole on the cord wrap.

7. Insert screws through cord wrap, rear handle as

shown in Figure 4 and attach nut finger tight

after each screw is inserted.

8. After all screws are inserted, tighten nuts firmly.

CAUTION

Risk of fire or explosion

■Do not operate heater without support frame fully

assembled to tank.

Figure 4 – Wheel and Handle Assembly

Screw (L)

Fuel Tank Flange

Wheel Support Frame

Wheel

(Semi-Pneumatic)

Nut

Flat Washer

Wheel Cap

Axle

Wheel Tube Valve

Cotter Pin

Bushing

Air Inlet

Screw (S)

Cord Wrap

Nut

DIMENSIONS ASSEMBLY INSTRUCTIONS -

CP650AK

PRODUCT FEATURES

DIMENSIONS & ASSEMBLY (cont.)

Figure 5 – Heater Dimensions

48.7”

69.2” 30.7”

Figure 6 – Model CP650AK Features

Handle Supporter

Hot Air Outlet

Lower Shell

Fuel Gauge

Fuel Cap Lamp

Thermostat Knob

Power / Reset Switch

Power Cord Drain Plug

Fan Guard

Upper Shell

Handle Support

Front Handle

Fuel Tank

Wheel (Solid Type)

Figure 7 – Component Identification

Flat Washer

Cotter Pin Bushing

Wheels

(Solid Type) Wheel Caps

Hardware Kit

Front Handle

Handle

Frame

Wheel Axle

Wheel Support Frame

Handle Supporter

ASSEMBLY FOR CP650AK

TOOLS REQUIRED

Long nose pliers

ASSEMBLING WHEEL & HANDLE

1. Slide axle through wheel support frame. Install wheel bushings

and wheel on axle.

NOTE: When installing wheels, tube valve should face out from

support frame (Figure 8).

2. Place flat washers and cotter pins on axle ends and bend cotter

pins with long nose pliers to secure.

3. Place wheel cap on flat washers and put wheel cap

in flat washers end.

4. Loosen 4 screws on the front handle in order to

remove handle front.

5. Move the removed handle front to the handle on

the front side as Figure 8, and then tighten 4

screws after matching handle and handle front.

DIMENSIONS & ASSEMBLY (cont.)

CAUTION

Risk of fire or explosion

■Do not operate heater without support frame fully

assembled to tank.

Figure 8– Wheel and Handle Assembly

410

Wheel

Flat Washer

Wheel Cap

Wheel Axle

Bushing

Nut

User Assembly

Screw MOVE

Wheel Tube Valve

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels L.B. White Chauffage

L.B. White

L.B. White Guardian 2.0 Manuel

L.B. White

L.B. White Tradesman K70 Manuel utilisateur

L.B. White

L.B. White Journeyman Manuel utilisateur

L.B. White

L.B. White I17 Manuel

L.B. White

L.B. White Premier 350DF 2.0 Manuel

L.B. White

L.B. White CP125CK Manuel utilisateur

L.B. White

L.B. White Premier 40 Series Manuel

L.B. White

L.B. White Workman CV100N Manuel

L.B. White

L.B. White Premier TS350 Manuel

L.B. White

L.B. White GUARDIAN Smart Sense AD250 Manuel

L.B. White

L.B. White Tradesman CP400 Manuel

L.B. White

L.B. White Tradesman 170 Manuel

L.B. White

L.B. White 320 Manuel

L.B. White

L.B. White Premier 350 Manuel

L.B. White

L.B. White Oval 90 v.2 Manuel

L.B. White

L.B. White Tradesman CP170 Manuel

L.B. White

L.B. White I17 Manuel d'instructions

L.B. White

L.B. White Foreman CI230 Manuel

L.B. White

L.B. White AW230 Manuel

L.B. White

L.B. White Premier TS080 Manuel

L.B. White

L.B. White AD060 Manuel

L.B. White

L.B. White Foreman CI500 Manuel

L.B. White

L.B. White I17 Manuel

L.B. White

L.B. White Foreman CI500 Manuel

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
