L.B. White Foreman CI230 Manuel

Attention

This heater has been tested

and evaluated by OMNI Test

Laboratories in accordance

with the requirements of CSA

B140.8-1967(R2015) and

UL 733-2019 and is listed and

approved as a ductable indirect

oil-red forced-air construc-

tion heater with application

for the temporary heating of

buildings under construction,

alteration, or repair. CHECK

WITH YOUR LOCAL FIRE

SAFETY AUTHORITY, YOUR

FUEL GAS SUPPLIER, OR

THE L.B. WHITE COMPANY

IF YOU HAVE QUESTIONS

REGARDING APPLICATIONS

OR INSTALLATION.

www.lbwhite.com

SCAN THIS

with your smartphone or

visit http://goo.gl/nvneR

to view maintenance

videos for L.B.White heaters.*

WORLD PROVIDER - INNOVATIVE HEATING SOLUTIONS

411 Mason Street, Onalaska, WI 54650 • 800-345-7200 • 608-783-5691 • 608-783-6115 (fax) • www.lbwhite.com

Congratulations!

You have purchased the nest Indirect-red construction heater

available. Your new L.B. White heater incorporates the benets

from the most experienced manufacturer of heating products

using state-of-the-art technology.

We, at L.B. White, thank you for your condence in our products

and welcome any suggestions or comments you may have...

customerservice@lbwhite.com.

#1 / #2 Fuel Oil

Foreman

Ductable Indirect-

Fired Oil Heater

CI230 230,000 Btuh / 67.4 kW

CI500 500,000 Btuh / 146.54 kW

CI750 750,000 Btuh / 219.8 kW

Owner’s Manual and Instructions

View this manual online at www.lbwhite.com

* Requires an app like QR Droid

for Android or for iPhone

SEE ASSEMBLY

INSTRUCTIONS

INSIDE

Please refer to important

elevation information on

inside cover.

Report No: 0545HH002S

Foreman Ductable Oil Indirect-Fired Heater

www.lbwhite.com

Owner’s Manual • Foreman

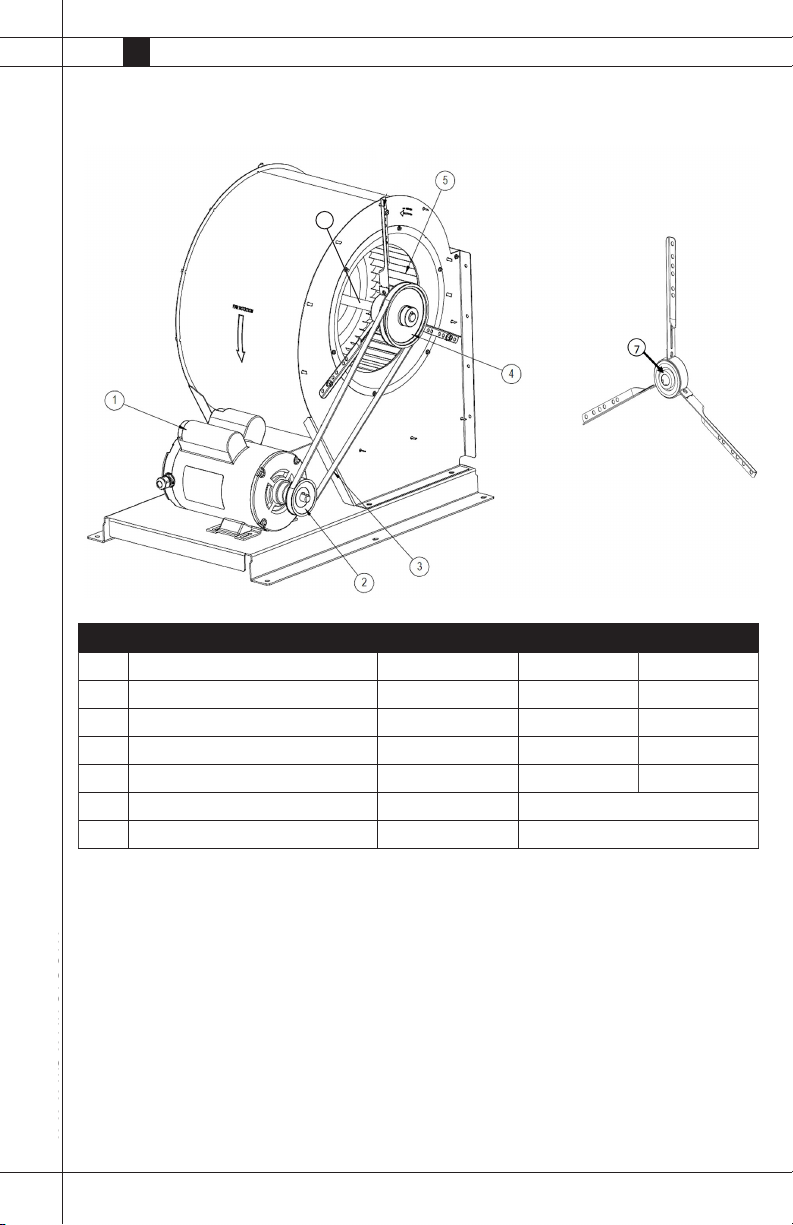

Parts List - Blower Motor / Fan Wheel

CI500 / CI750 Blower Conguration Shown

Item Description CI230 CI500 CI750

1Motor 574120 573565 573686

2 Pulley, Motor -- 573569 573683

3 Belt, Power Twist, A/13/4L. 64 Links -- 573552 574164

4 Pulley -- 573573 573684

5Wheel, Fan 574123 573581 573694

6 Shaft, Fan Assembly -- 573572

7Bearing, Rubber Cartridge -- 573696

Foreman Ductable Oil Indirect-Fired Heater

Owner’s Manual • Foreman

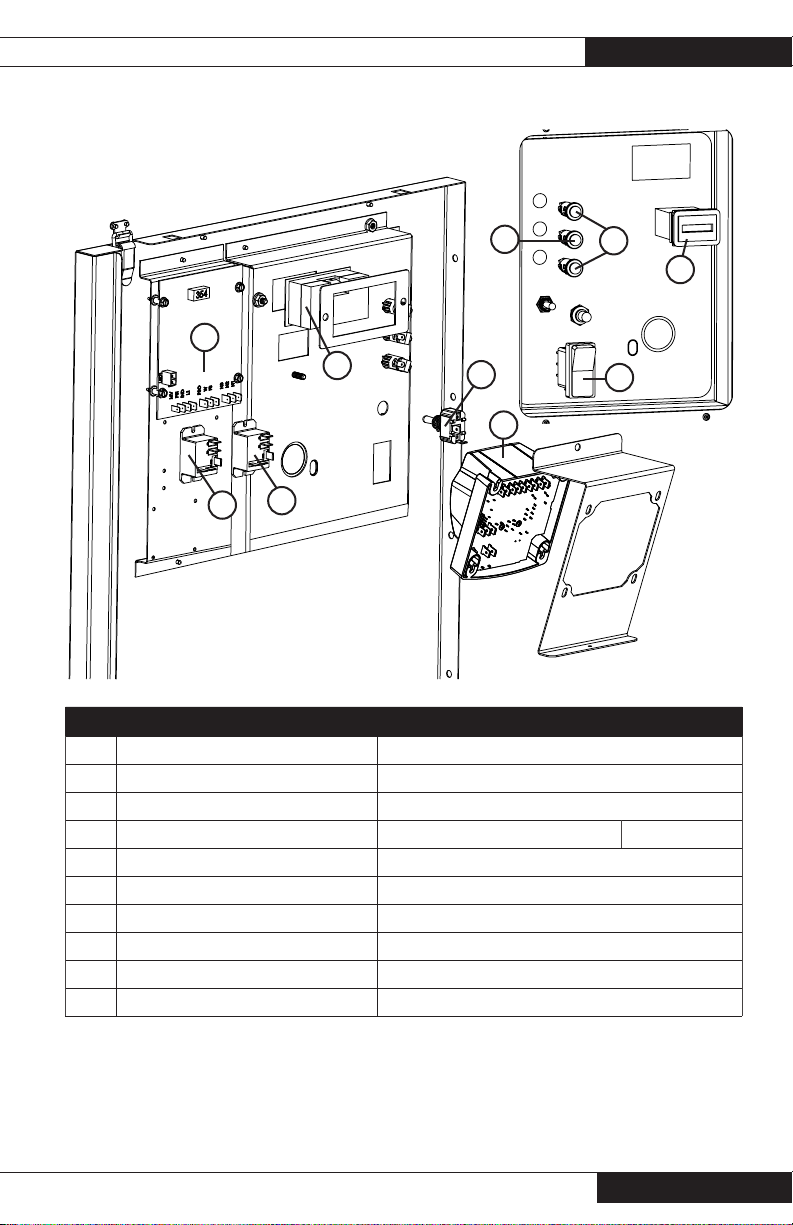

Parts List - Control Box

10 14

Item Description CI230 CI500 CI750

8Controller, Burner GeniSys 7575 573649

9 Toggle, Switch with boot 571907

10 Voltmeter 573947

11 Relay, 120VAC Coil 574253 570221

12 Control, Construction 573553

13 Hourmeter 574121

14 Switch, Rocker, DPDT 574122

15 LED, Snap-in, Green, 120V, Flush Lens 573770

16 LED, Snap-In, Red, 120V 573564

17 Relay,120VAC Coil 574253

Foreman Ductable Oil Indirect-Fired Heater

www.lbwhite.com

Owner’s Manual • Foreman

Parts List - Burner Components

Item Description CI230 CI500 CI750

18 Fuel Pump 574134 573645

19 Fuel Line 574137 573646

20 Oil Solenoid Valve -- 573647

21 CAD cell (not shown) 573658

22 Ignition Transformer 574135 573648

23 Spark Plug Igniter 573650 574185

24 Tube, Fuel Assembly with Nozzle -- 573651 573714

25 Nozzle 574179 574060 573752

26 Head Assembly -- 573652

27 Motor, Burner 574131 573653

28 Wheel, Fan 574132 573654

29 Coupling, Pump 574136 573655

28 27

CI500 / CI750 Burner Shown

Foreman Ductable Oil Indirect-Fired Heater

Owner’s Manual • Foreman

Item Description CI230 CI500 CI750

30 Receptacle, NEMA, AC female, snap-in 573570

31 Inlet, Flanged, Straight-Blade, Electrical 574125 574126 574127

32 Cover, Electrical Outlet 574138

33 Wheel 573991 573581

34 Handle, lifting, rear 574140 573560

35 Switch, limit, burner, auto reset 573575 573660

36 Switch, high limit, manual, 250°F 571671

37 Handle, lifting bale 574139 573561

38 Filter, fuel 573662

39 Remote Oil Hook-Up 500-131261* 573747

40 Thermostat w/ 25 FT. cord* (Not Shown) 500-30125*

Parts List - Chassis Components

*Accessory - must be ordered separately
