Kyocera KD 200-60 F Manuel utilisateur

HIGH EFFICIENCY MULTICRYSTAL PHOTOVOLTAIC MODULE

KD 200-60 F Series

KD 200-60 Series

Cutting Edge Technology

As a pioneer with 35

years in solar, Kyocera demonstrates leadership in the

development of solar energy products. Kyocera’s

Kaizen

Philosophy, commitment to continuous improvement, is

shown by repeatedly achieving world record cell efﬁciencies.

Quality Built In

• UV stabilized, aesthetically pleasing black anodized frame

• Supported by major mounting structure manufacturers

• Easily accessible grounding points on all four

corners for fast installation

• Proven junction box technology with PV wire to

work with transformerless inverters

• Quality locking plug-in connectors to provide safe &

quick connections

New Process Improvements

• All solar cells are fabricated with a new proprietary

etching and coating process which translates into

a ‘smoother’ appearance while maintaining the

same gridline and bus-bar design.

• All modules have added crossbars on the back side

of the module for greater support and stability in

harsh conditions, including high wind and snow

load regions.

Reliable

• Superior built-in quality

• Proven superior field performance

• Tight power tolerance

Warranty

• Kyocera standard 20 year power output warranty

and 5 year workmanship warranty applies in USA

• Extended warranties available per project

requirements

• Kyocera standard 20 year power output warranty

and 2 year workmanship warranty applies

outside of USA

• Refer to Kyocera warranty policy for details

NEC 2008 Compliant UL 1703, ISO 9001 and ISO 14001

Certiﬁed and Registered Class C

Also available:

UL Listing

QIGU.E173074

QUALIFIED FOR “BUY AMERICAN”

Manufactured in San Diego, California

Standard Test Conditions

KD230GX-LFB KD235GX-LFB KD240GX-LFB

Pmp

2230 235 240 W

Vmp 29.8 29.8 29.8 V

Imp 7.72 7.89 8.06 A

Voc 36.9 36.9 36.9 V

Isc 8.36 8.55 8.59 A

Ptolerance +5/-3 +5/-3 +5/-3 %

ELECTRICAL SPECIFICATIONS

Nominal Operating Cell

Temperature Conditions (NOCT)

TNOCT 45.0 45.0 45.0 OC

Pmax 165 169 172 W

Vmp 26.8 26.8 26.7 V

Imp 6.18 6.31 6.45 A

Voc 33.7 33.7 33.7 V

Isc 6.77 6.92 6.95 A

Temperature Coefﬁcients

Pmax -1.04 -1.07 -1.10 W/oC

Voc -0.133 -0.133 -0.133 V/oC

Isc 0.00502 0.00513 0.00515 A/oC

Operating

Temp -40~90 -40~90 -40~90 OC

System Design

Series Fuse Rating 15 A

Maximum DC System Voltage (UL) 600 V

Kyocera reserves the right to modify these specifications without notice.

All specification at 25°C. cell temperature, 1.5 AM and 1000W/m2.

NEC 2008 Compliant

UL 1703 Listed

KYOCERA SOLAR, INC. 800-223-9580 toll-free 800-523-2329 fax www.kyocerasolar.com

111810

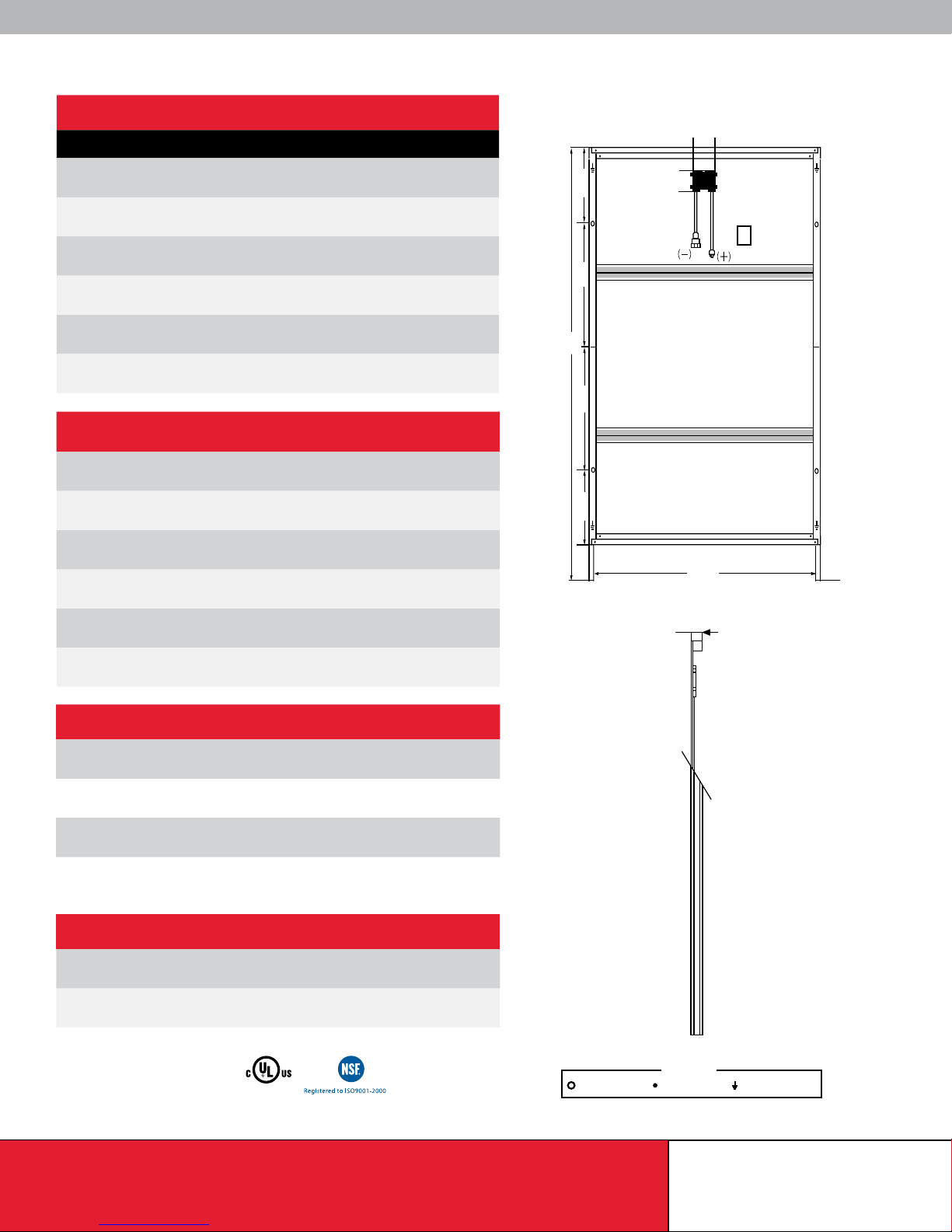

MECHANICAL SPECIFICATIONS

MOUNtINg HOLEs gROUNDINg HOLEs

DRAINAgE HOLEs

Legend

AUTHORIZED DISTRIBUTOR

1.8in

46mm

stABILIzER BAR

LABEL

CABLE w/

CONNECtOR

JUNCtION

BOx

4.25in

108mm

4.13in

105mm

40.55in/1030mm

32.68in/830mm

.49in

12.5mm

37.99(±0.1)in

965±2.5mm

Weight: 46.3lbs (21.0kg)

11.06in

281mm

11.06in

281mm

21.65in

550mm

21.65in

550mm

65.43in

1662mm

stABILIzER BAR

KD 200-60 F Series
