Cutting Edge Technology

As a pioneer with 35 years in solar, Kyocera demonstrates leadership in

the development of solar energy products. Kyocera’s

Kaizen

Philosophy,

commitment to continuous improvement, is shown by repeatedly achieving

world record cell efficiencies.

Quality Built In

- UV stabilized, aesthetically pleasing black anodized frame

- Supported by major mounting structure manufacturers

- Easily accessible grounding points on all four corners for

fast installation

- Proven junction box technology with PV wire to work with

transformerless inverters

- Quality locking plug-in connectors to provide safe & quick connections

Support bars added for improved stability

Fully Integrated Manufacturing

Kyocera manufactures and assembles solar cells and modules at its own

worldwide production sites using a true vertical integration process. This

superior approach gives Kyocera complete control over every step of the

manufacturing process, producing modules with promising high quality

and efficiency.

Reliable

- Superior built-in quality

- Proven superior field performance

Warranty

- Kyocera standard 20 year power output warranty and 5 year

workmanship warranty applies in USA

- Extended warranties available per project requirements

- Kyocera standard 20 year power output warranty and 2 year

workmanship warranty applies outside of USA

- Refer to Kyocera warranty policy for details

Compatibility

- Compatible with Enphase Energy microinverters

NEC 2008 Compliant

UL 1703, ISO 9001

and ISO 14001

Certied and Registered

Class C IEC 61215

HIGH EFFICIENCY MULTICRYSTAL

PHOTOVOLTAIC MODULE

KD235GX-LPB

235 WATT

New Release

0410

*New length on PV wire may require additional module interconnect for landscape installation with non-PV wire module.

ISO 9001 and ISO 14001 Certiﬁed and Registered

Kyocera reserves the right to modify these speciﬁcations without notice.

www.kyocerasolar.com

800-223-9580 toll free 800-523-2329 fax

Unidad : mm (pulg.)

pecifications

Electrical Performance under Standard Test Conditions (*STC)

Maximum Power (Pmax) 235W (+5% / -3%)

Maximum Power Voltage (Vmpp) 29.8V

Maximum Power Current (Impp)

Open Circuit Voltage (Voc)

7.89A

36.9V

Short Circuit Current (Isc) 8.55A

Max System Voltage 600V

*STC : Irradiance 1000W/m

, AM1.5 spectrum, cell temperature 25°C

Module Characteristics

Junction Box Characteristics

Others

Length × Width × Depth

IP Code

*Operating Temperature

Maximum Fuse

Weight

Cable

Cells

Number per Module 60

21.0kg (46.3 lbs)

IP65

-40 °C ~ 90 °C

15A

105mm(4.1in) x 108mm(4.3in) x 20mm(0.8in)

(+) 750mm(37.4in), (-) 750mm(29.5in)

1662mm (65.4 in) x 990mm (39.0 in) x 46mm (1.8 in)

*This Temperature is based on cell

KD205GX-LP

Temperature Coefficient of Voc

Temperature Coefficient of Isc

-1.33x10 V/C

5.13x10 A/C

Electrical Performance at 800W/m2, *NOCT, AM1.5

Maximum Power (Pmax) 166W

Maximum Power Voltage (Vmpp) 26.4V

Maximum Power Current (Impp)

Open Circuit Voltage (Voc)

6.31A

33.3V

Short Circuit Current (Isc) 6.93A

*NOCT (Nominal Operating Cell temperature): 47.9°C

KD235GX-LPB

1662 (65.43in.)

990 (38.98in.)

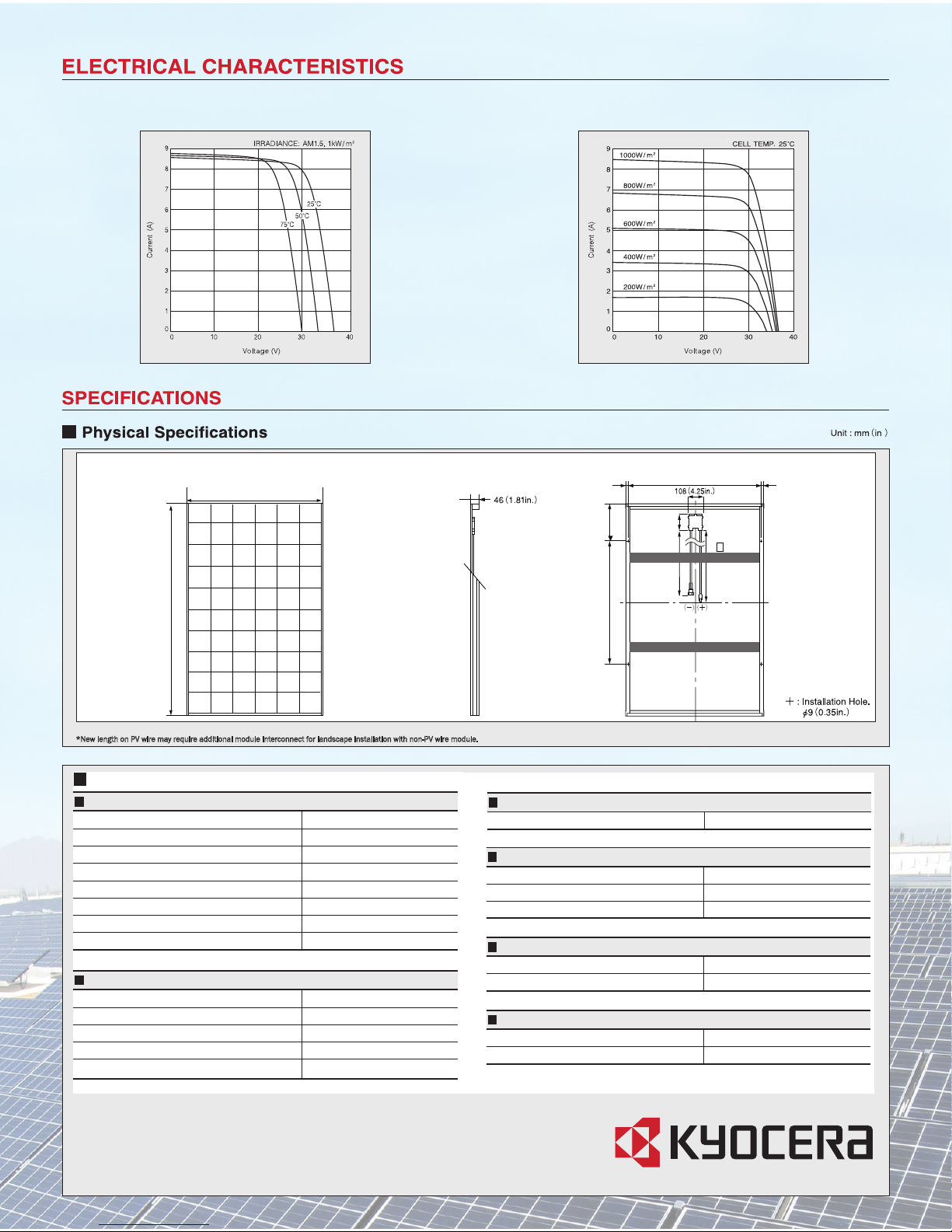

Current-Voltage characteristics of Photovoltaic

Module KD235GX-LPB at various cell temperatures

Current-Voltage characteristics of Photovoltaic

Module KD235GX-LPB at various irradiance levels

1100 (43.31in.)

281

(11.06in.)

12.5 (0.49in.) 12.5 (0.49in.)

965 (37.99in.)

830

(32.68 in.)

1030

(40.55in.)

105

(4.13 in.)

(+)1030mm (40.55in),(-)830mm (32.68in)

1662mm (65.43in) x 900mm (38.98in) x 46mm (1.81in)

105mm (4.13in) x 108mm (4.25in) x 20mm (0.79in)
