Kyocera MA2000w Manuel

Installation Environment

Kyocera Recommends selecting the Location for the printer

as follows:

Avoid the following locations when selecting a site for the

machine. Adverse environmental conditions may affect the

image quality.

+Avoid locations near a window or with exposure to

direct sunlight.

+Avoid locations with vibrations.

+Avoid locations with rapid temperature fluctuations.

+Avoid locations with direct exposure to hot or cold air.

+Avoid poorly ventilated locations.

recommended installation space

Step1 Setting up the machine

1. Open the Box. Remove the Packing material, cushioning,

plastic bag, the power cord, Toner Cartridge, etc.

2. Hold the machine by grasping both sides.

3. Remove the Tape ①as shown. ②Open the Top Cover.

4. Remove the tape and packing ③. Grab the Drum Unit D ④

as shown and lift it from the MFP.⑤Place it on a sheet of

paper on a flat surface.

Note: The drum unit is sensitive to light. Never expose the

drum unit to light for more than five minutes.

5. Open the front Paper Feeder ⑥and remove the packing

sheet that protects the drum ⑦.

6. Reinstall the Drum Unit D as shown ⑧and push to lock it in

place.

7. Remove the toner cartridge from the bag ⑨, shake it 5

times to loosen toner, ⑩Unsnap the protective cover on

both sides and remove the cover as shown.

910

200

(8") 200

(8")

250 mm

(10")

400 mm

(15.75")

2021.10 3V2YW5611001

MA2000w/MA2000 Setup

1. Room Temperature range: 50 to 90.5°F (10°C to 32.5°C)

2. Humidity Level: 10 to 80%

3. Power:

A dedicated 120VAC 60Hz 15A outlet

A dedicated 200-240VAC 50/60Hz 15A outlet

120 V Specification Model:

230 V Specification Model:

8. Set the toner cartridge to its position, aligning the

guides at both ends with the slots in the machine. Press

the levers on both ends of the Unit until they click in

place.

Step2 Loading Paper

1. Open the Front Cover.

2. When using paper other than A5 (Landscape), remove

the stopper from the paper length guide. Keep the

removed Stopper for future use.

3. Adjust the position of the width guides located on the

left and right sides of the cassette.

4. Adjust the paper length guide to the paper size required.

5. After removing paper from the packaging, fan through

the sheets to separate them prior to loading.

6. Load the paper all the way in the cassette until the

paper touches the far inner side. Ensure the side to be

printed is facing up and the paper is not folded, curled,

or damaged.

Step3 Power up the machine

1. Connect the power cord to the rear of the machine ①and

the other end to the power outlet.②Turn the power switch

ON at the front of the printer.

Step4 Print a Status Page

Print a Status page.

・Press and hold the Mode Select key for 3 seconds.

・The attention light will start flashing and status page

will be printed.

Step5 Installing the software

Access the following URL and select your model and OS.

Download Center: https://kyocera.info/

Videos on machine setup, software installation, etc. are also

available on this site.

For Windows

Download and run the Web Installer and follow the on-

screen instructions to install the driver and software.

For macOS

Download and run the driver and follow the on-screen

instructions to install.

2 3

5 6

1 2

Press and hold

MA2000w/MA2000 Setup

Autres manuels pour MA2000w

Ce manuel convient aux modèles suivants

Autres manuels Kyocera Imprimante

Kyocera

Kyocera KM-8530 Manuel utilisateur

Kyocera

Kyocera ECOSYS FS-3040MFP+ Manuel utilisateur

Kyocera

Kyocera TASKalfa 3051ci Manuel utilisateur

Kyocera

Kyocera ECOSYS FS-C8650DN Manuel d'installation et d'exploitation

Kyocera

Kyocera ECOSYS P3260dn Manuel utilisateur

Kyocera

Kyocera DISCOVER FS-3830N Manuel utilisateur

Kyocera

Kyocera FS-600 Manuel utilisateur

Kyocera

Kyocera ECOSYS P3060dn Manuel utilisateur

Kyocera

Kyocera ECOSYS FS-C5150DN Manuel utilisateur

Kyocera

Kyocera ECOSYS FS-1370DN Manuel utilisateur

Kyocera

Kyocera ECOSYS P6035cdn Manuel utilisateur

Kyocera

Kyocera ECOSYS FS-C8650DN Manuel utilisateur

Kyocera

Kyocera ECOSYS FS-6525MFP Manuel utilisateur

Kyocera

Kyocera ECOSYS P6130cdn Manuel utilisateur

Kyocera

Kyocera ECOSYS M4132idn Manuel utilisateur

Kyocera

Kyocera ECOSYS PA2100cwx Manuel utilisateur

Kyocera

Kyocera FS-3750 - B/W Laser Printer Manuel utilisateur

Kyocera

Kyocera ECOSYS M2135dn Manuel utilisateur

Kyocera

Kyocera FS-C5100DN Manuel utilisateur

Kyocera

Kyocera FS-1040 Manuel utilisateur

Kyocera

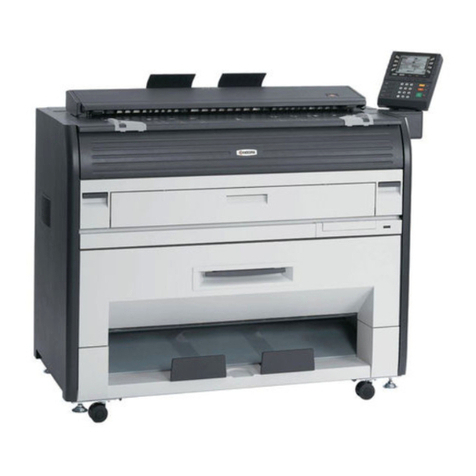

Kyocera KM-3650W Manuel utilisateur
