Names and Locations

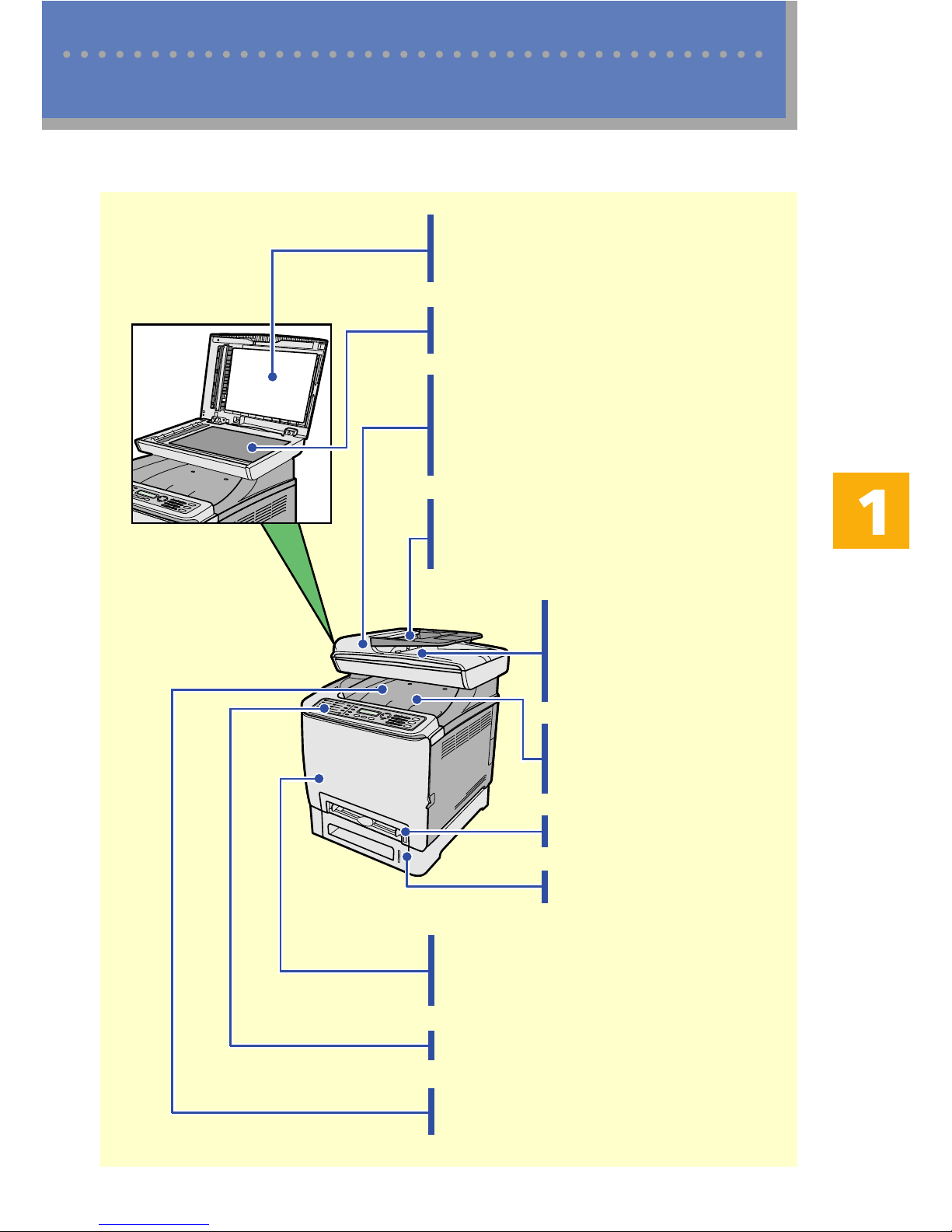

Exposure Glass Cover

Open this cover to place originals on the

exposure glass.

Tray 2 (option)

Exposure Glass

Place originals here sheet by sheet.

Top Cover

Open this cover to replace the

print cartridges.

Tray 1

Front Cover

Open this cover to replace the waste toner

bottle or remove jammed paper.

Control Panel

Output Tray

Printed paper is output here.

Output Tray for the

ADF

Originals scanned with the

ADF are output here.

Input Tray for the ADF

Place stacks of originals here. They will feed

in automatically.

ADF (Auto document feeder)

Cover

Open this cover to remove originals jammed

in the ADF.

Exterior

Names and Locations

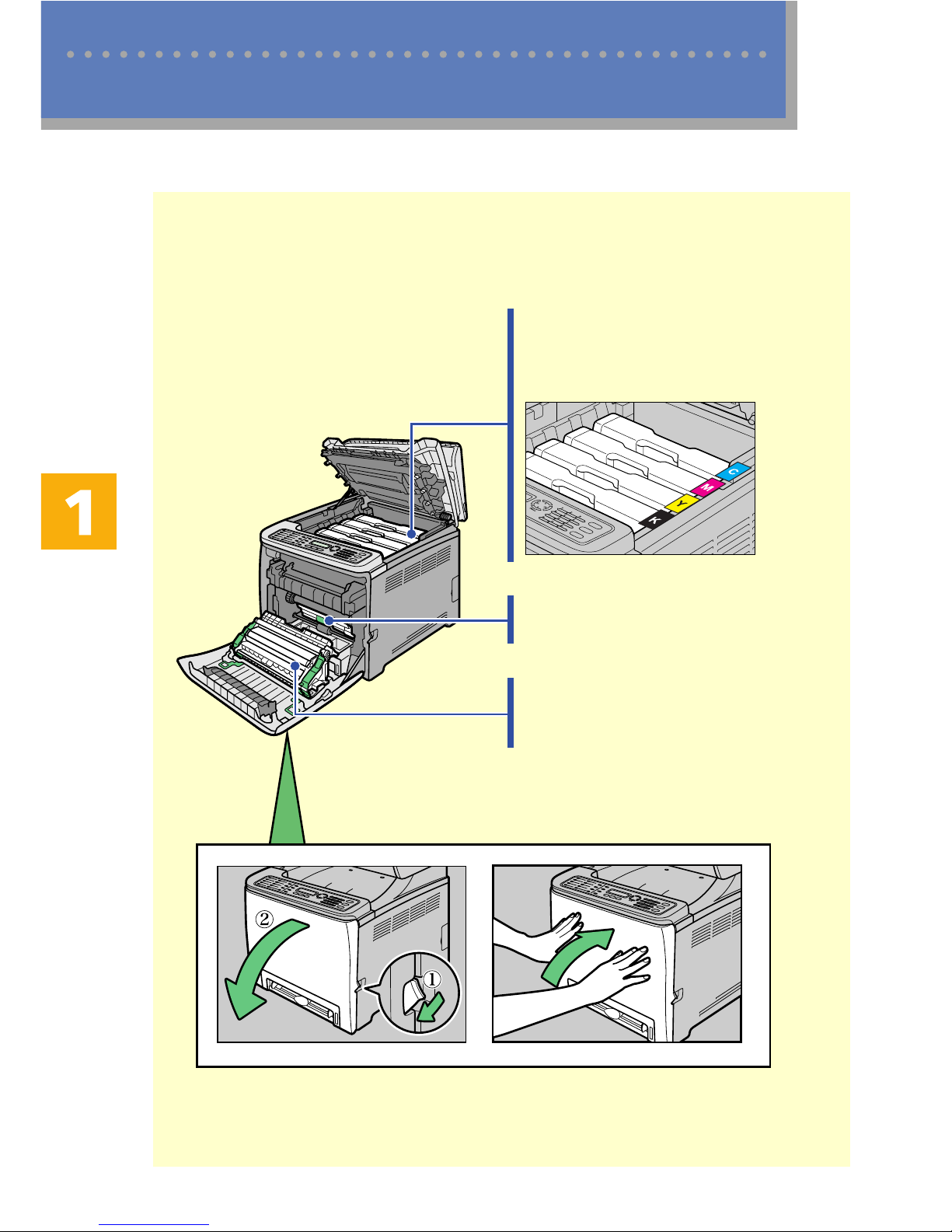

Print Cartridges

Load from the machine rear, in the

order of cyan (C), magenta (M), yellow

(Y), and black (K).

Transfer Unit

Remove this unit when replacing the

waste toner bottle.

BPC214S

BPC215S

Interior

Waste Toner Bottle

Collects excess toner during printing.

BPC213S

Names and Locations

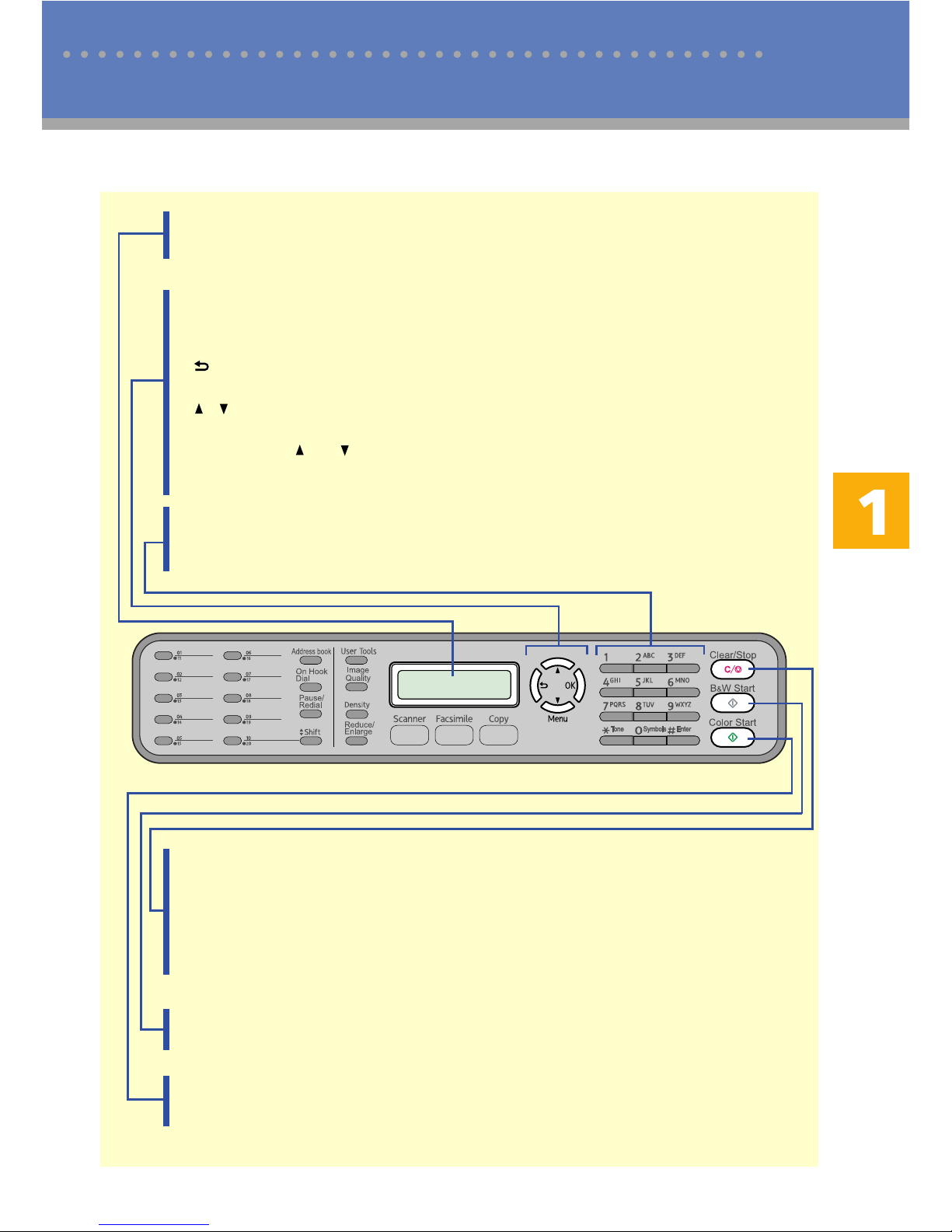

Screen

Displays current status and messages.

Menu keys

Press any of these four keys to display the menu for configuring the settings of the

machine’s current operation mode (copier, scanner, or fax).

• [ ] key

Press to exit to the previous level of the menu tree.

• [ ] [ ] keys

Press to scroll through the current level of the menu tree. When entering charac-

ters, press the [ ] or [ ] key to move the cursor left or right, respectively.

• [OK] key

Press to confirm settings or enter the next level of the menu tree.

Number keys

Use to enter numerical values when specifying settings such as fax numbers and

copy quantities, or enter letters when specifying names.

[B&W Start] key

Press to scan or copy in black and white, or start sending a fax.

[Color Start] key

Press to scan or copy in color.

[Clear/Stop] key

• While the machine is processing a job: press to cancel the current job.

• While configuring the machine: press to cancel the current setting and return to

standby mode.

• While in standby mode: press to cancel temporary settings such as the image

density or resolution.

Control Panel

Names and Locations

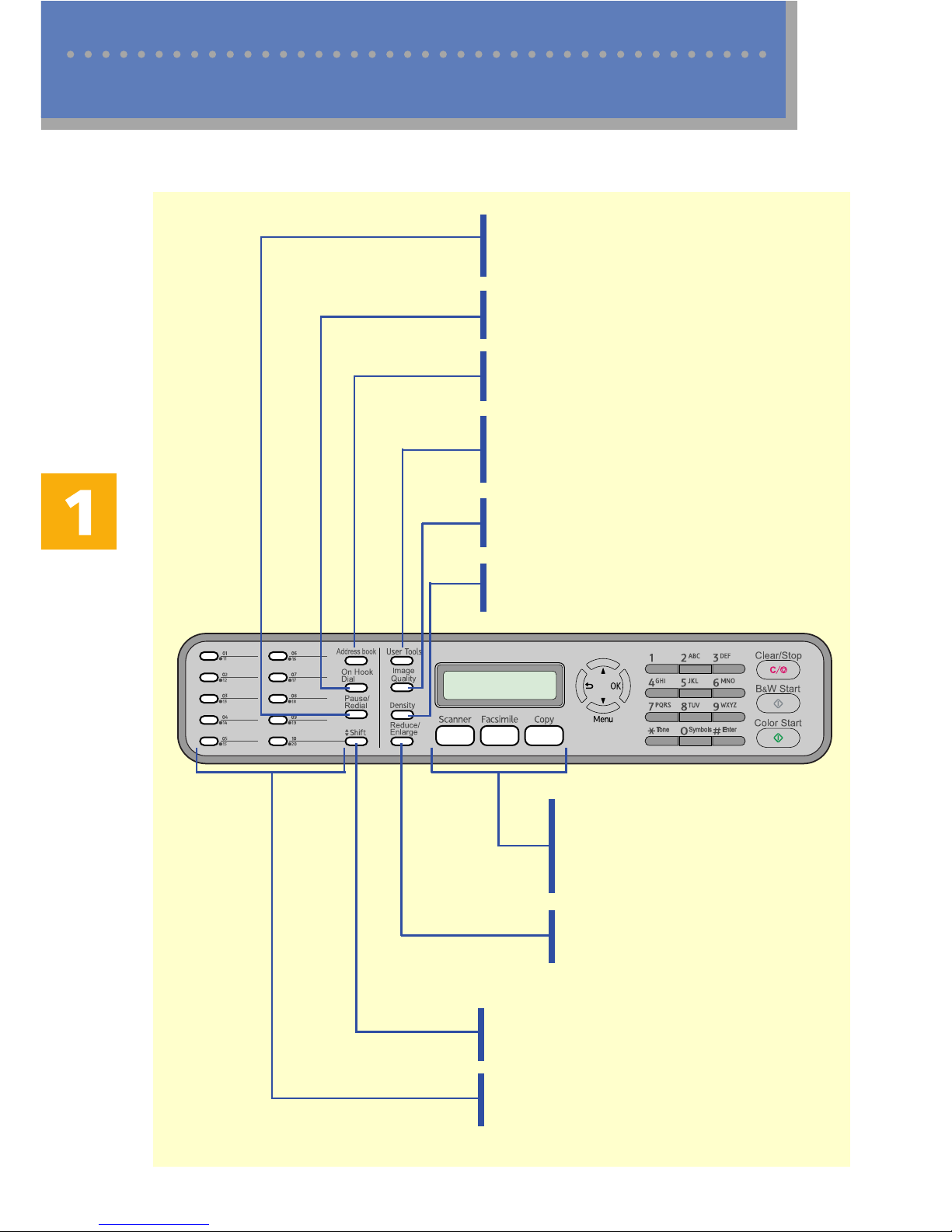

[Pause/Redial] key

•

Pause: (fax mode)

•

Redial: (scanner mode/fax mode)

[On Hook Dial] key

(fax mode)

[Address book] key

(scanner mode/fax mode)

[User Tools] key

Press to display the menu for configuring

the machine’s system settings.

[Image Quality] key

(copier mode/scanner mode/fax mode)

[Density] key

(copier mode/scanner mode/fax mode)

[Scanner]/[Facsimile]/

[Copy] key

Press to switch the machine’s

operation mode.

[Reduce/Enlarge] key

(copier mode/scanner mode)

[Shift] key

(scanner mode/fax mode)

One Touch buttons

(scanner mode/fax mode)

Control Panel

Using the Copier Function

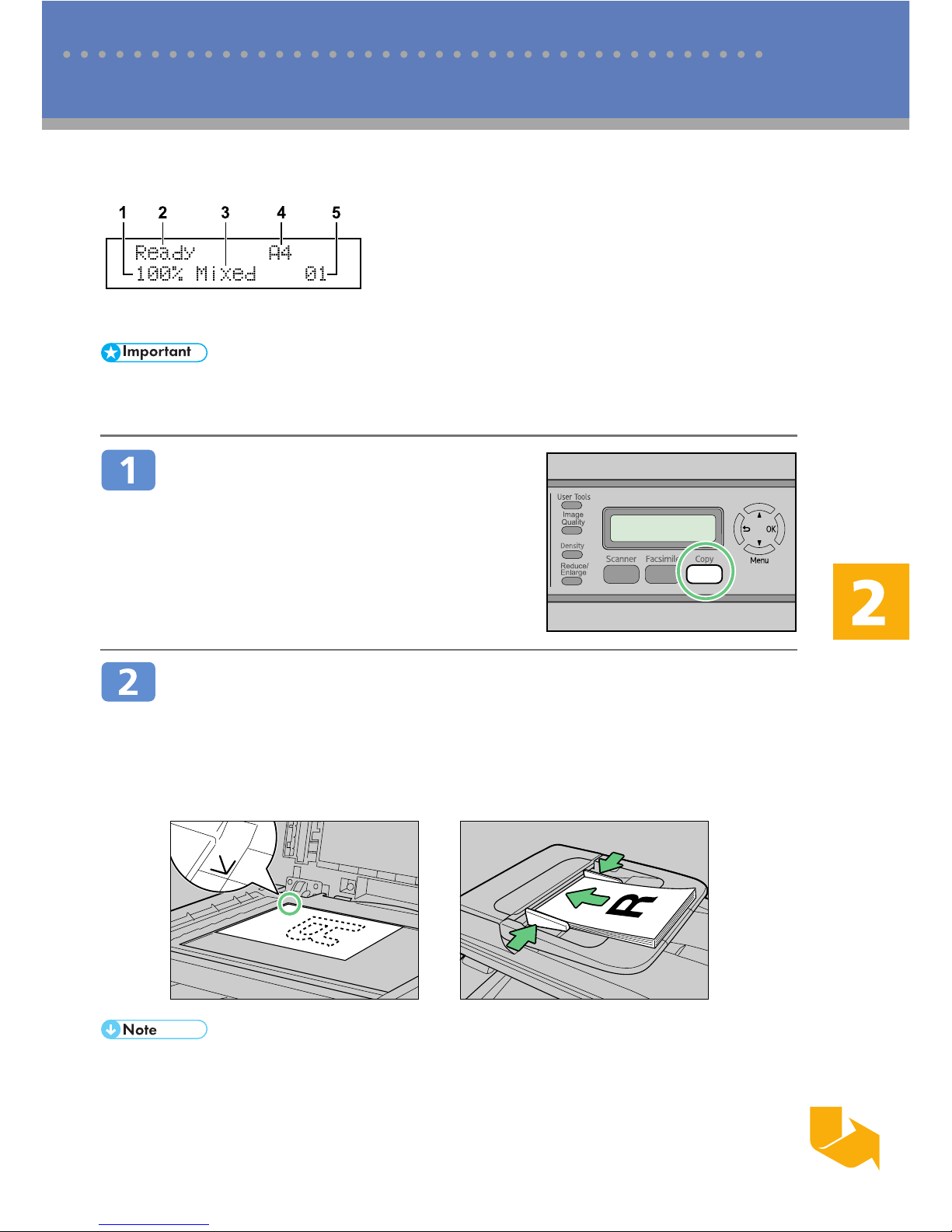

The following is the initial screen in copier mode.

1. Reproduction ratio

2. Status of the machine

3. Copy quality

4. Paper size

5. Copy quantity

• The original in the ADF takes precedence over the original on the exposure glass if you place

originals both in the ADF and on the exposure glass.

Press the [Copy] key.

Place the original face down on the exposure glass or face up in

the ADF.

Lift the ADF carefully without holding the input tray. Otherwise, the ADF

might be damaged.

Exposure Glass ADF

• If necessary, configure advanced photocopy settings. For more details, see "Advanced Photo-

copy Settings" on page 9.

Initial Screen and Basic Operation

BAA357S BAA353S

BAA350S

BPC202S

Using the Copier Function

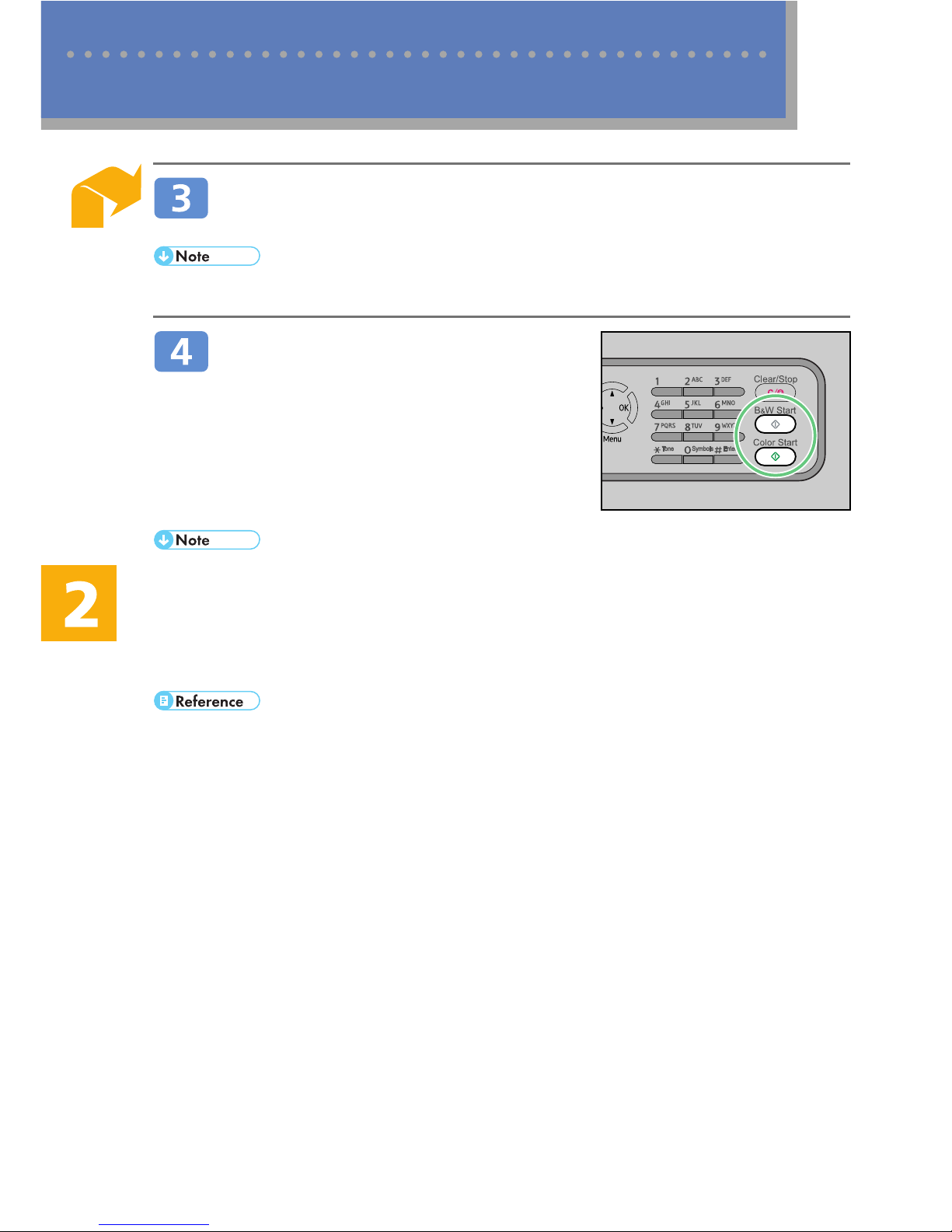

To make multiple copies, enter the number of copies using the

number keys.

• The maximum number of copies is 99.

Press the [B&W Start] or [Color Start]

key.

• To cancel photocopying, press the [Copy] key, and then press the [Clear/Stop] key.

• If a paper jam occurs, printing stops after the current page has been printed out. After the

jammed paper is removed, printing restarts from the jammed page automatically.

• If a scanning jam occurs in the ADF, copying is canceled immediately. In this case, copy the

originals again starting from the jammed page.

• For information about originals, see "Getting Started",

User Guide

in the CD-ROM.

BPC201S

Initial Screen and Basic Operation

Using the Copier Function

❖Making Enlarged or Reduced Copies

You can specify the reduction or enlargement ratio for the current job. There are two ways

to set the scaling ratio: using a preset ratio or manually specifying a custom ratio.

1. Press the [Reduce/Enlarge] key.

2. Press the [Reduce/Enlarge] key or [ ][ ] keys to select the desired ratio, and then

press the [OK] key.

3. If [Custom 25-400%] has been selected, specify the desired ratio using the number keys,

and then press the [OK] key.

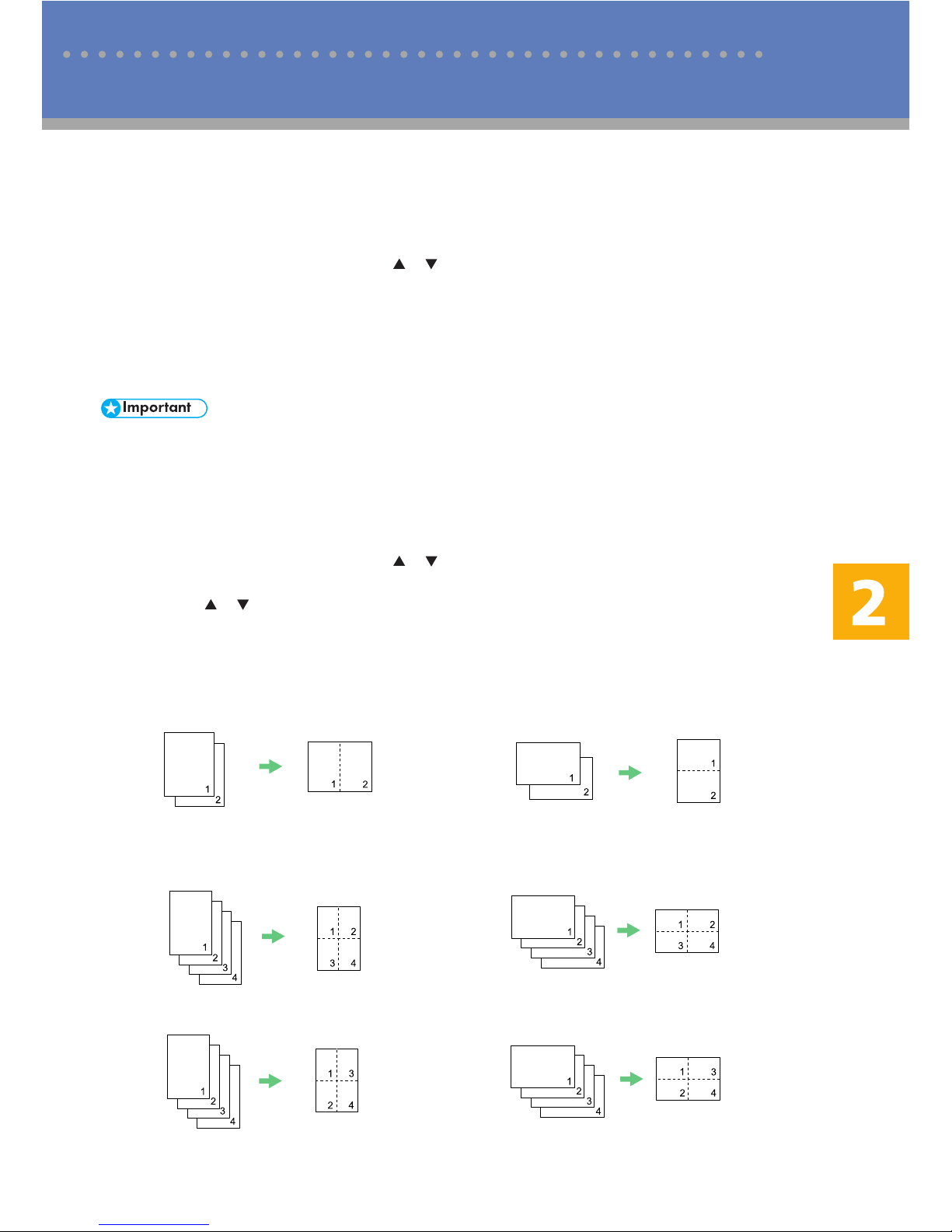

❖Copying Multiple Pages onto One Sheet

•This function is only available when the original is set in the ADF, not when it is set on the

exposure glass.

•To use this function, the paper size used for printing copies must be set to A4, Letter, or Legal.

You can set 2-in-1/4-in-1 copy mode for the current job.

1. Press the [Reduce/Enlarge] key.

2. Press the [Reduce/Enlarge] key or [ ][ ] keys to select [2in1] or [4in1], and then press

the [OK] key.

3. Press the [ ][ ] keys to select the desired printout format, and then press the [OK]

key.

The following types of printout format can be selected depending on your preference.

Printout formats for 2-in-1 copying

[Portrait] [Landscape]

Printout formats for 4-in-1 copying

[Portrait Row] [Landscape Row]

[Portrait Column] [Landscape Column]

BPC225S BPC226S

BPC227S

BPC229S

BPC228S

BPC230S

Advanced Photocopy Settings

Using the Copier Function

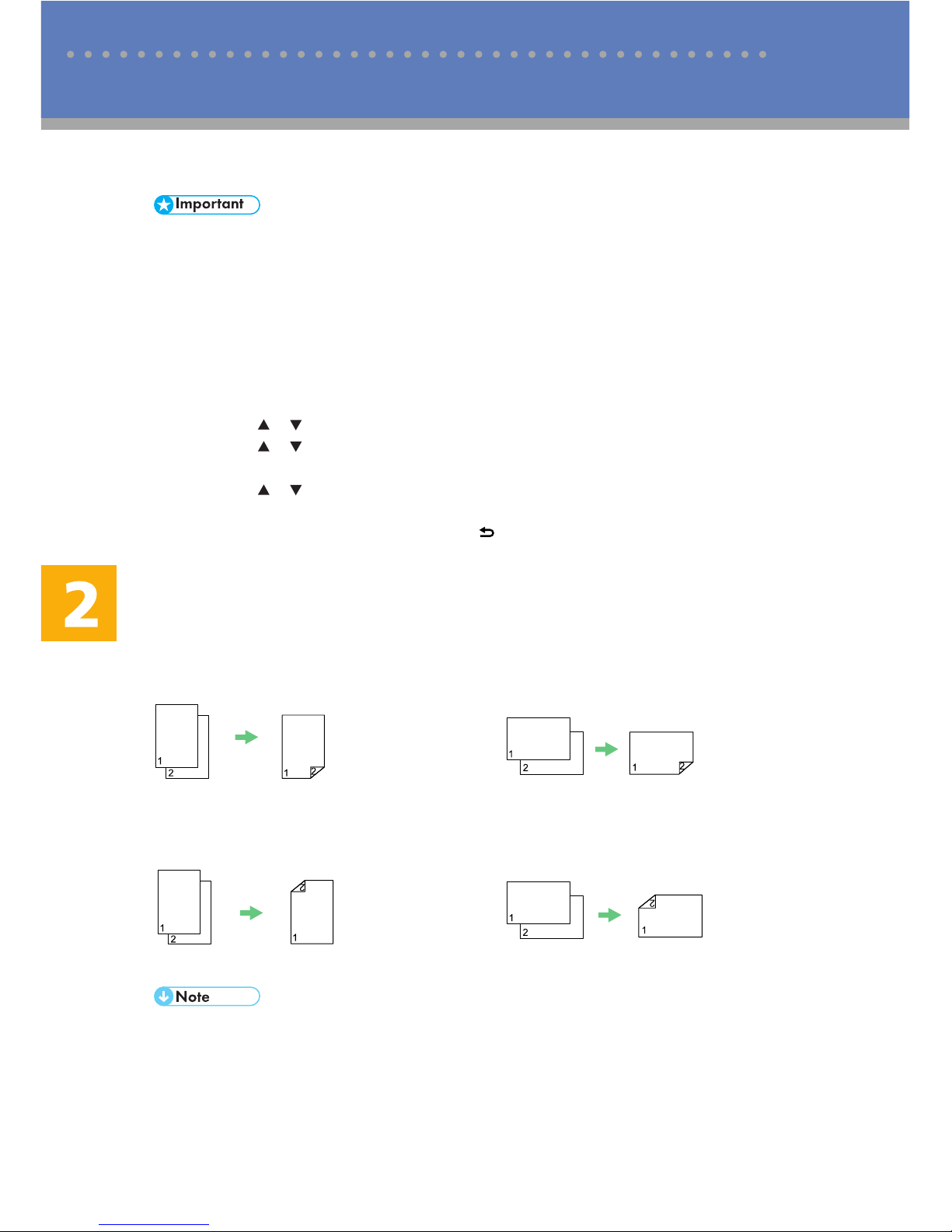

❖Making 2-sided Copies

•This function is only available when the original is set in the ADF, not when it is set on the

exposure glass.

•Paper must be fed from tray 1 or tray 2, not from the bypass tray. In addition, paper size

must be A4, B5, Letter, Legal, or Executive, and paper type must be thin, plain, recycled,

color, preprinted or prepunched.

You can set the machine to copy in duplex copy mode.

1. Press the [Copy] key.

2. Press any menu key.

3. Press the [ ][ ] keys to select [Duplex Copy], and then press the [OK] key.

4. Press the [ ][ ] keys to select copy orientation from [Top to Top] or [Top to Bottom],

and then press the [OK] key.

5. Press the [ ][ ] keys to select original orientation from [Portrait] or [Landscape], and

then press the [OK] key.

6. Confirm the setting, and then press the [ ] key.

7. Press the [Clear/Stop] key to return to the initial screen.

"Duplex" appears on the display, indicating that the machine is now in duplex copy

mode.

The following types of printout format can be selected depending on your preference.

Printout formats for Top-to-Top copying

[Portrait] [Landscape]

BPC232S

BPC233S

Printout formats for Top-to-Bottom copying

[Portrait] [Landscape]

BPC234S

BPC235S

•After this function is set, all subsequent copies will be 2-sided, unless you cancel the

setting by selecting [Off] for [Duplex Copy].

Advanced Photocopy Settings
