Kyocera FS-6025MFP Manuel utilisateur

B/W-MULTIFUNCTIONAL SYSTEM FOR PAPERSIZE UP TO A3

FS-6025MFP/ FS-6030MFP

Mdl

TPM

6030MFP

e name:

TPM

6030MFP

KYOCERA ACADEMY

Author: U. Kunter

Creation: 03/11

Version: 1.0

Note:

All the contents of this document have been carefully researched. However, we cannot assume

liability for the information provided being accurate, complete and up to date.

Note for studentsNote for students

This training manual contains information, topics for discussion, exercises

concerning your course, and is organized into individual “lessons”. The aim of

organizing it in this way is to gain practical knowledge by following specific,

carefully structured (learning) steps as presented in our Learning Units (LU ).

In order to make the training material simpler and clearer, we have marked the

most important learning points with symbols.

This symbol indicates Learning Objectives.

Learning objectives help you keep your focus on the subject matter and enable

you to check your success at the end of the training.

This symbol indicates Exercises.

These exercises give you the opportunity to apply your knowledge hands-on.

This s

mbol indicates a K

uizZ.

Quizzes enable students to test their knowledge by answering review

questions.

This symbol indicates a Summary.

The contents of the preceding chapter are presented in an overview.

We hope this manual is a valuable tool for you to find your own personal way

of learning.

We wish you success and hope you enjoy reading, studying and “using” this

documentation!

Your KYOCERA ACADE MY

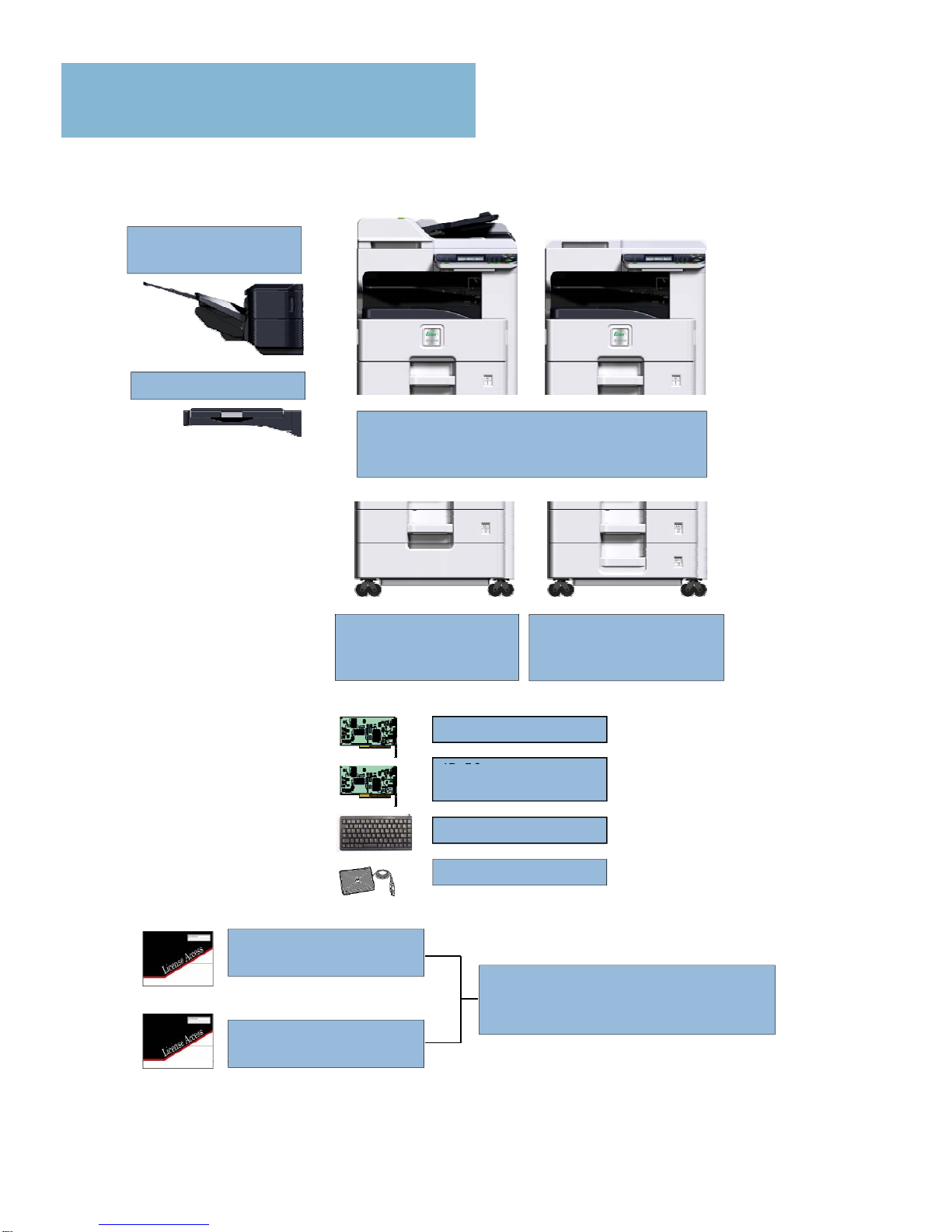

LE 01 OverviewLE 01 Overview

look

DF-470

500 Sheet Finisher

look

AK-470 Bridge unit

FS-6030MFP

FS-6025MFP

6020/ B (without Document Processor)

6020/

(without

Document

Processor)

PF-471

500 sheet x 2 Cassette

paper feeder

PF-470

500 sheet x 1 cassette

paper feeder + cabinet

FAX System (U)

USB Keyboard

Gigabit Ethernet

Card Reader Holder

UG-33

Thin Print Activation kit

Card Authentication

Kit(B)

These Options will be activated

by the registration on the

Kyocera Mita Homepage

LE 01 OverviewLE 01 Overview

Options in

detail

Options

detail

Original size: A5 –A3

Paper weight:

Simplex: 45 – 160 g/m²

Duplex: 50 – 120 g/m²

.50

sheet

(50

–

80 g/m

)

sheet

(50

g/m )

PF-470

1 x 500 sheet magazine (80 g/m²)

60-163 g/m², A3, A4, A5, Ledger, Legal,

Folio, Oficio II, Letter

DF-471

2 x 500 sheet magazine (80g/m²)

60-163 g/m², A3, A4, A5, Ledger, Legal,

Folio, Oficio II, Letter

470 wooden

470

wooden

CB-472 metal

Cabinet base

CB-471 wooden

473

Socket for height increase

Only in combination with

PF-470/ PF-471

DF-470

500 sheet Finisher

With

stapler

for

different staple

positions

With

stapler

for

different

staple

positions

52-256 g/m², A3, A4, A5, customized (98

x 148 bis 297 x 432 mm),

Staple capacity max. 50 Blatt A4

(25 Blatt A3)

AK-470

Bridge Unit

Bridge

Unit

necessary for DF-470

LE 01 OverviewLE 01 Overview

Options in

detail

Fax System (U)

ITU-T Super G3

Modem: max. 33,6 Kbit/s

Data transferrate max. 3 Sekunden (with JBIG)

Scan resolution: normal, fine, superfine, ultrafine

Operating sytem:

Networkfax

: Windows 2000/XP/Vista/7/Server 2003/Server

Options

detail

Networkfax

Windows

2000/XP/Vista/7/Server

2003/Server

2008

Original size: up to A3

Compressions approach:

JBIG, MMR, MR, MH

Fax properties: Fax, Networkfax, Duplex-receipt/-sending,

encrypted receipt/-sending, fax polling.

USB Card Reader

In combination with Card

uthentication Kit

Also usable memory:

MDDR2-256/512/1024

Other options:

PCL Barcode Flash Modul 3.0 (Typ B/C)

KYOmulticode 1.0 (B/C)

Interfaces:

1 x Gb Lan, 1 x USB Printport, 2 x USB Host,

2 x eKUIO Port (1 = IB-50; 2 = Fax System-U)

1 x CF-Card (behind the lower eKUIO cover) 1

LE 01 OverviewtLE 01 Overviewt

The touch panel is a new LCD panel with the simple

handling in Kyocera typical style.

A lot of functions are controlled by big icons, which

makes the handling easier

Touch panel

makes

the

handling

easier

Function keys

For direct selection of:• copy mode• scan mode• fax

Status ke

current job status• changing the job priority• job

cancelling• journal

Document box•

Fax box• USB-Stick memory administration• scan-

to-USB

System menu key•

System settings• reports (also menu

map

)• counter

System

settings•

reports

(also

map

)•

counter

report• accounting system

• service settings

LED Job Separator

Indicates paper in the job separator tray

Keyboard with

Start-, Stop- and Reset key.

Clear-, Quick No.- and Enter key.

Interrupt-, Logout-, Energy saver- and soft Power

switch.

3 LED’s indicating if the machine send’s, receive’s,

buffers, or has a problem.

Hint

With

i t d U201 it’ ibl t

With

enance mo

U201

it’

s poss

ibl

initialize the touch panel.

LE 02 InstallationLE 02 Installation

Installation

The initial installation should be carried out by technical staff. The following reasons support this advice:

• Although initial installation is documented ("Quick Installation Guide"), instructions are

seldom read.

• Transport safety devices are sometimes not recognized or removed.

• Damage from transportation can be identified beforehand.

• Brief introduction according to customer needs (e g tips about toner replacement)

•

Brief

introduction

according

customer

needs

tips

about

toner

replacement)

• Adjustment of basic settings as per customer requirements.

• Connection to the network or PC.

• Effective customer support.

Remove all tape‘s and the carton in the exit area and the

protective foil on the scanner glas.

Open

the

upper

cover

the

470

and

remove

the

Open

the

upper

cover

the

470

and

remove

the

secure pad from the separation roller.

After

shaking

insert

the

toner

box

After

shaking

insert

the

toner

box

The yield of the installation toner is 3000

pages (in accordance with ISO/IEC 19798)

Install the job separator tray.

LE 02 InstallationLE 02 Installation

Itllti

The scanner locking is needed for the transport of the

machine.

If you didn’t unlock, the display shows call service (C3100). In

this case, switch off the machine unlock the lever and switch

on the machine.

By every transport you have to use this

securing device

on (continuation)

every

transport

you

have

use

this

securing

device

In maintenance mode U002 the scanner move’s to the

transport position and you can lock the scanner.

The lever is also protected. For transport securing push the

small hook and then insert the lever.

After switching on the machine the developers fill up mode start’s

automatically for round about 5 minutes.

In this time you can make the most important machine settings

via the install wizard.

After setting the language you can set date and time, also the

network settings and the settings for the optional fax system.

After installing the DF-470 it‘s not possible to insert

Memor

card‘s.

LE 03 ConstructionLE 03 Construction

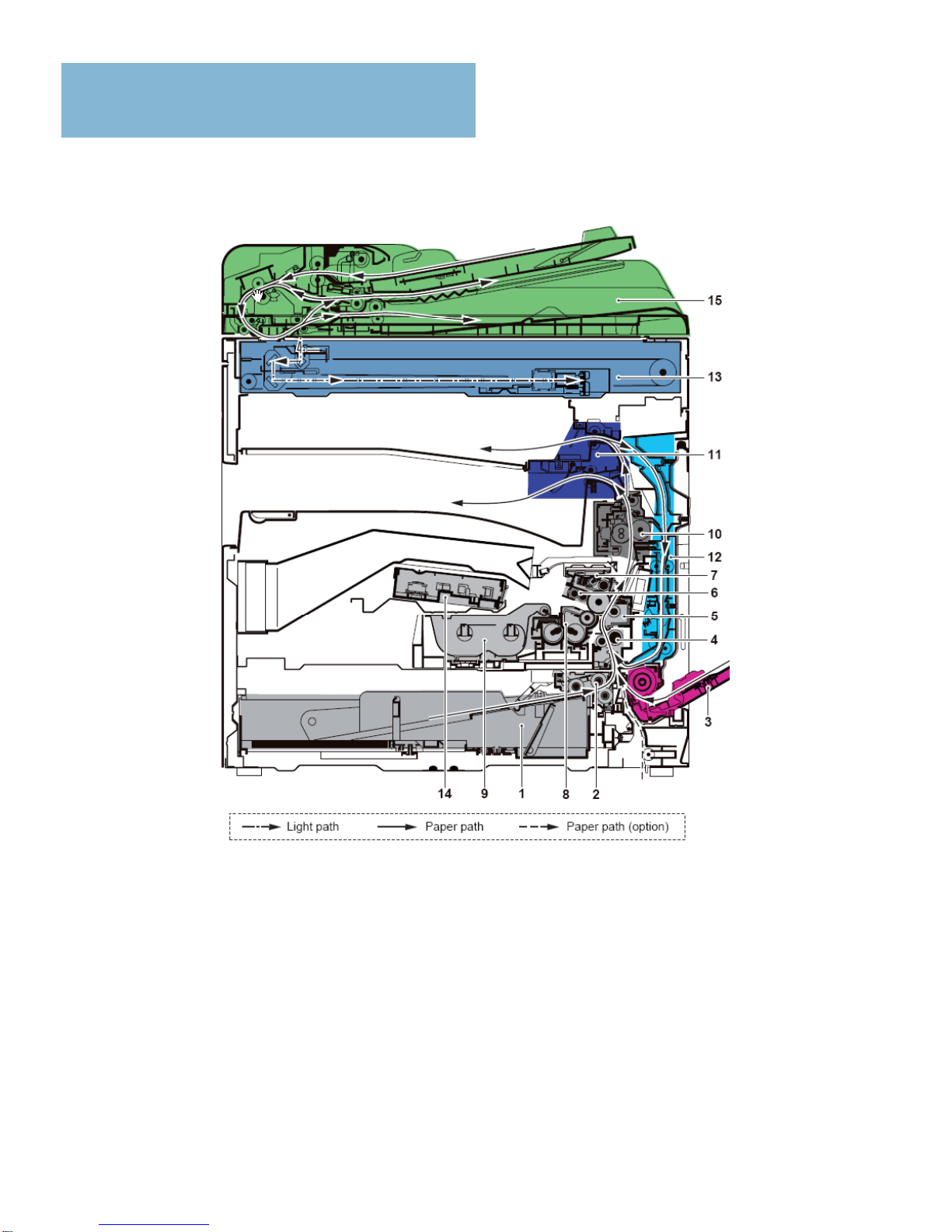

1. Cassette

2. Cassette paper feed section

3 MP tray paper feed section

tray

paper

feed

section

4. Conveying section

5. Transfer/Separation section

6. Charger roller unit

7. Drum unit

8. Developer unit

9. Toner container

10. Fuser unit

11. Eject section

12. Duplex/conveyning section

13. Image scanner unit (ISU)

14. Laser scanner unit (LSU)

15. Document processor (DP) * 3

*3 : Model with Document Processor as standard
