1. GENERAL INFORMATION

1-0

Bet &Win 2 50

__________________________________________________________________________________

GENERAL INFORMATION

__________________________________________________________________________________

ENGINE SERIAL NUMBER--------------------------------------------- 1-1

SPECIFICATION---------------------------------------------------------- 1-2

SERVICE PRECAUTIONS----------------------------------------------- 1-3

TORQUE VALUES ------------------------------------------------------- 1-7

TOOLS --------------------------------------------------------------------- 1-8

LUBRICATION POINTS------------------------------------------------- 1-9

CABLE &HARNESS ROUTING-----------------------------------------1-11

WIRING DIAGRAM-------------------------------------------------------------------1-16

TROUBLESHOOTING --------------------------------------------------1-17

www.PlanDeGraissage.org

1. GENERAL INFORMATION

1-1

Bet &Win 2 50

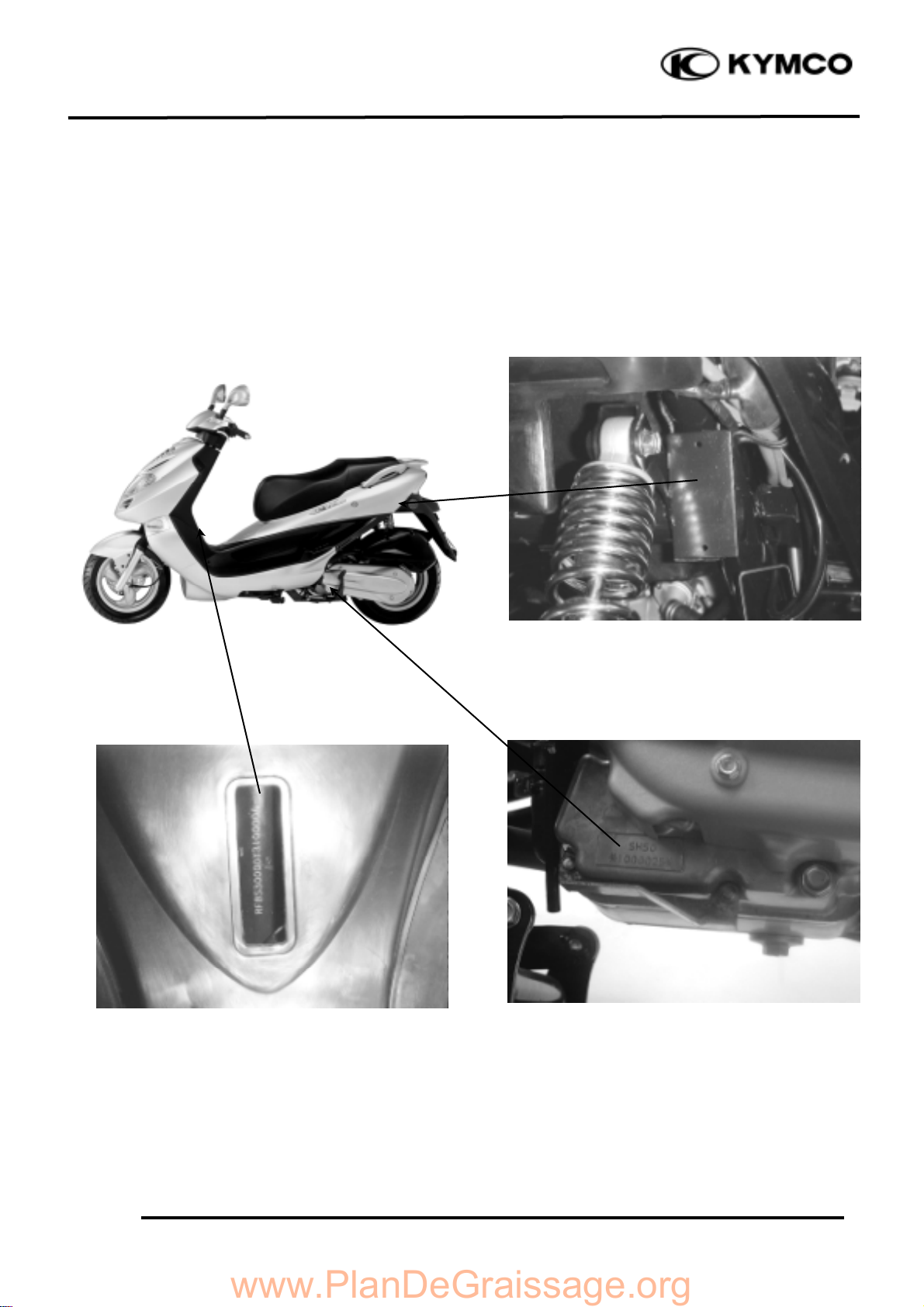

SERIAL NUMBER

Location of Engine Serial Number

Location of Frame Serial Number

Vehicle Identification Serial Number

www.PlanDeGraissage.org

1. GENERAL INFORMATION

1-2

Bet &Win 2 50

SPECIFICATIONS

Name & Model No.

SH50CA

Motorcycle Name & Type

B&W250

Overall length

2000mm

Overall width

750mm

Overall height

1140mm

Wheel base

1435mm

Engine type

Water cooled 4-stroke,

OHC engine

Displacement

249.1cc

Fuel Used

92# nonleaded gasoline

Front wheel

Net weight (kg)

Rear wheel

Total

158

Front wheel

Gross weight(kg)

Rear wheel

127

Total

213

Front wheel

120/70-12 58P

Rear wheel

140/70-12 65P

Ground clearance

135mm

Perform

Braking distance (m)

4m/30km/hr

ance

Min. turning radius

2350mm

Starting system

Starting motor

Type

Gasoline, 4-stroke

Cylinder arrangement

Single cylinder

Combustion chamber type

Semi-sphere

Valve arrangement

O.H.C.

Bore x stroke (mm)

72.7 x 60

Compression ratio

10.3:1

Compression pressure

(kg/cm_-rpm)

16.5±2

Max. output (kw/rpm)

13.82/7000

Max. torque (N.m/rpm)

21.75/5500

BTDC

8°

Port

Intake

ABDC

42°

timin

BBDC

33°

Exhaust

ATDC

1°

Valve

Intake

0.1

clearance (cold)

Exhaust

0.1

Idle speed (rpm)

1450±50rpm

Lubrication type

Forced pressure &

wet sump

Oil pump type

Inner/outer rotor

type

Oil filter type

Full-flow filtration

Oil capacity

1.1 liters

Cooling Type

Water cooling

Air cleaner type & No

Paper element, wet

Fuel capacity

10.5 liters

Type

CVK

Piston dia.

Venturi dia.

30 equivalent

Throttle type

Butterfly type

Type

CDI

Ignition timing

repeatedly

Contact breaker

Non-contact point

type

Spark plug

NGK

DPR7EA-9

Spark plug gap

0.9mm

Battery

Capacity

12V10AH

Clutch

Type

Dry multi-disc clutch

Type

Non-stage transmission

Operation

Automatic

centrifugal

Type

Two-stage reduction

Reduction

1st

0.83~2.2

ratio

2nd

6.98

Front

Caster angle

Axle

Connecting rod

Tire pressure

Front

2.00

(kg/cm_)

Rear

2.25

Turning

Left

45°

angle

Right

45°

Brake system

Front

Disk brake

type

Rear

Disk brake

Suspension

Front

Telescope

type

Rear

Double swing

Shock absorber

Front

Telescope

type

Rear

Double swing

Frame type

Under bone

Tires

Engine

System

Fuel System

Carburetor

Electrical

Ignition System

Power Drive System

Transmis-

sion Gear Reduction

Gear

Moving Device Damping

Device

www.PlanDeGraissage.org

1. GENERAL INFORMATION

1-3

Bet &Win 2 50

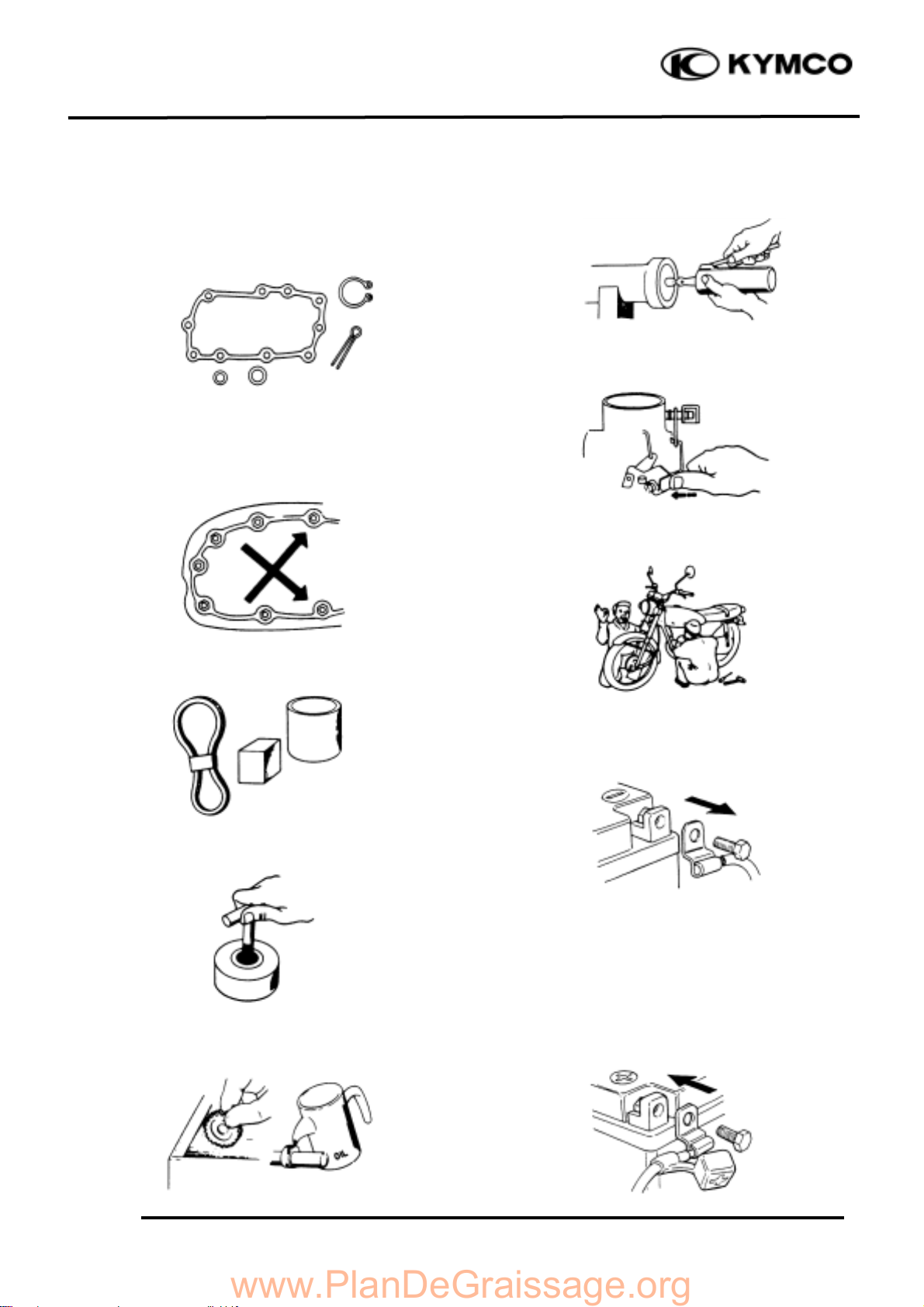

SERVICE PRECAUTIONS

nMake sure to install new gaskets, O-rings,

circlips, cotter pins, etc. when

reassembling.

nWhen tightening bolts or nuts, begin with

larger-diameter to smaller ones at several

times, and tighten to the specified torque

diagonally.

nUse genuine parts and lubricants.

nWhen servicing the motorcycle, be sure to

use special tools for removal and

installation.

nAfter disassembly, clean removed parts.

Lubricate sliding surfaces with engine oil

before reassembly.

nApply or add designated greases and

lubricants to the specified lubrication

points.

nAfter reassembly, check all parts for

proper tightening and operation.

nWhen two persons work together, pay

attention to the mutual working safety.

nDisconnect the battery negative (-) terminal

before operation.

nWhen using a spanner or other tools, make

sure not to damage the motorcycle surface.

nAfter operation, check all connecting

points, fasteners, and lines for proper

connection and installation.

nWhen connecting the battery, the positive

(+) terminal must be connected first.

nAfter connection, apply grease to the

battery terminals.

nTerminal caps shall be installed securely.

www.PlanDeGraissage.org

1. GENERAL INFORMATION

1-4

Bet &Win 2 50

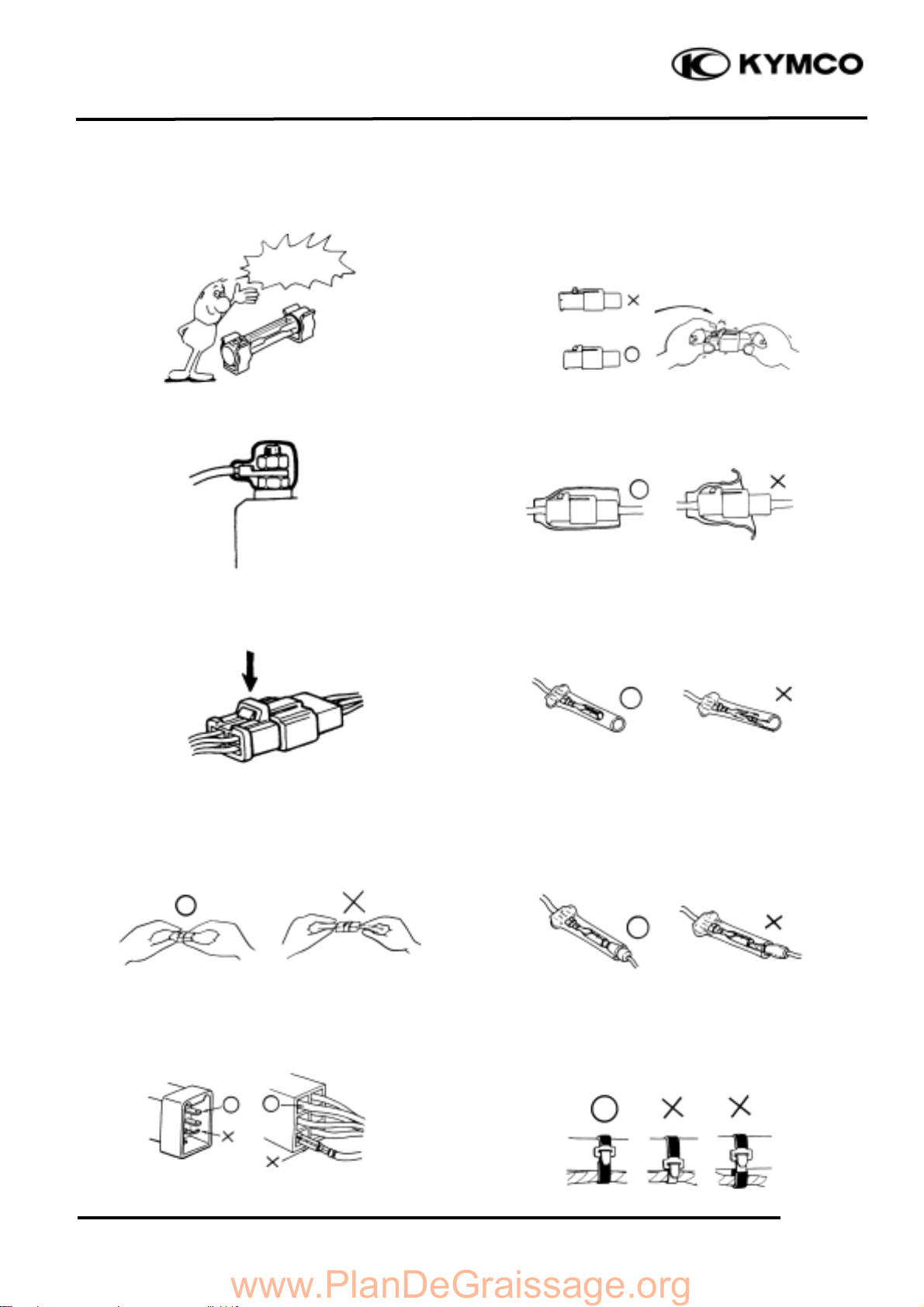

nIf the fuse is burned out, find the cause and

repair it. Replace it with a new one

according to the specified capacity.

nAfter operation, terminal caps shall be

installed securely.

nWhen taking out the connector, the lock on

the connector shall be released before

operation.

nHold the connector body when connecting

or disconnecting it.

nDo not pull the connector wire.

nCheck if any connector terminal is bending,

protruding or loose.

nThe connector shall be inserted

completely.

nIf the double connector has a lock, lock

it at the correct position.

nCheck if there is any loose wire.

nBefore connecting a terminal, check for

damaged terminal cover or loose negative

terminal.

nCheck the double connector cover for

proper coverage and installation.

nInsert the terminal completely.

nCheck the terminal cover for proper

coverage.

nDo not make the terminal cover opening

face up.

nSecure wire harnesses to the frame with

their respective wire bands at the

designated locations.

Tighten the bands so that only the

insulated surfaces contact the wire

harnesses.

Confirm

Capacity

www.PlanDeGraissage.org

1. GENERAL INFORMATION

1-5

Bet &Win 2 50

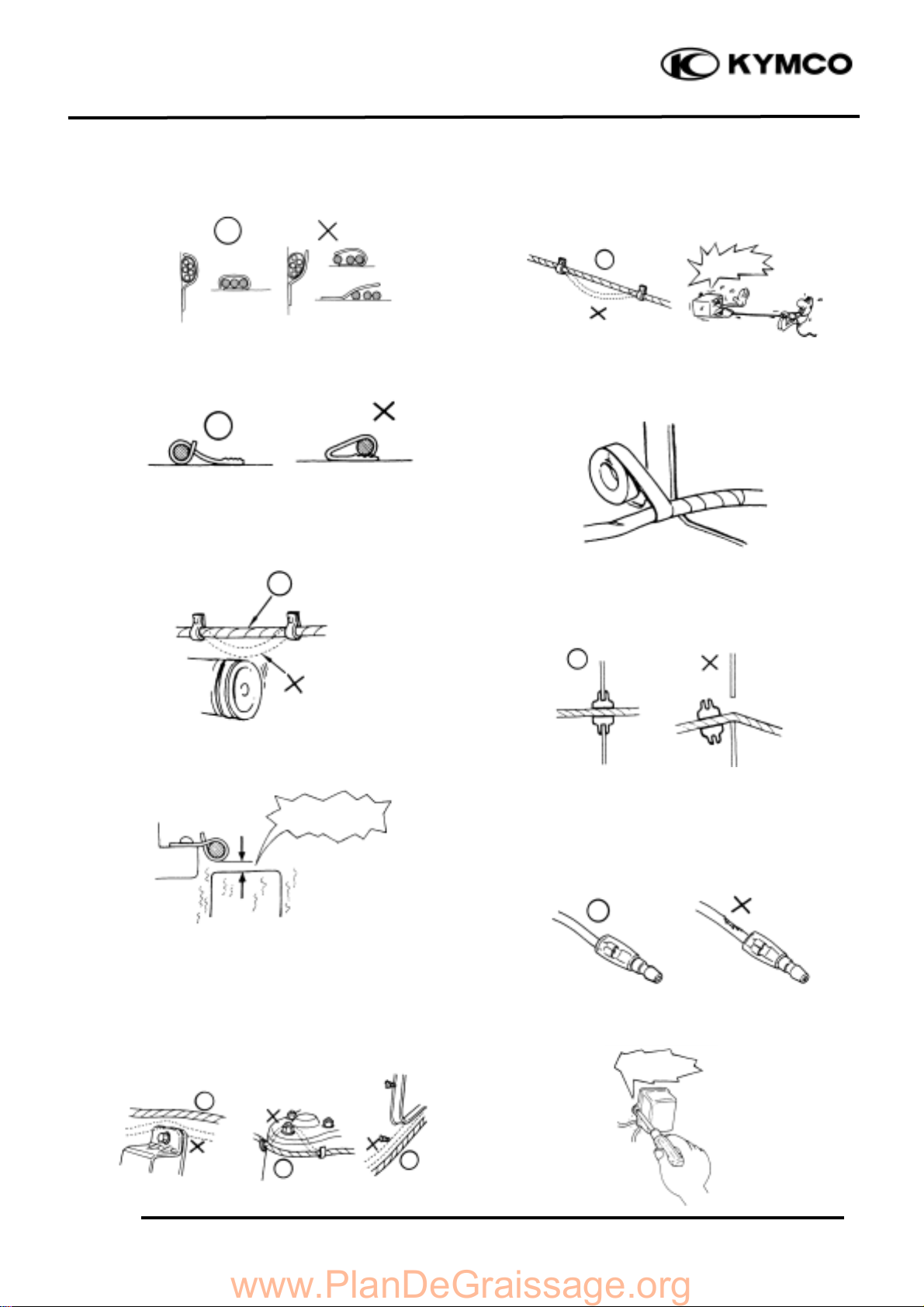

nAfter clamping, check each wire to make

sure it is secure.

nDo not squeeze wires against the weld or

its clamp.

nAfter clamping, check each harness to make

sure that it is not interfering with any

moving or sliding parts.

nWhen fixing the wire harnesses, do not

make it contact the parts which will

generate high heat.

nRoute wire harnesses to avoid sharp edges

or corners. Avoid the projected ends of

bolts and screws.

nRoute wire harnesses passing through the

side of bolts and screws. Avoid the

projected ends of bolts and screws.

nRoute harnesses so they are neither

pulled tight nor have excessive slack.

nProtect wires and harnesses with electrical

tape or tube if they contact a sharp edge or

corner.

nWhen rubber protecting cover is used to

protect the wire harnesses, it shall be

installed securely.

nDo not break the sheath of wire.

nIf a wire or harness is with a broken sheath,

repair by wrapping it with protective tape

or replace it.

nWhen installing other parts, do not press or

squeeze the wires.

Do not pull

too tightð

No Contact

Do not press

or squeeze the

wire

www.PlanDeGraissage.org

1. GENERAL INFORMATION

1-6

Bet &Win 2 50

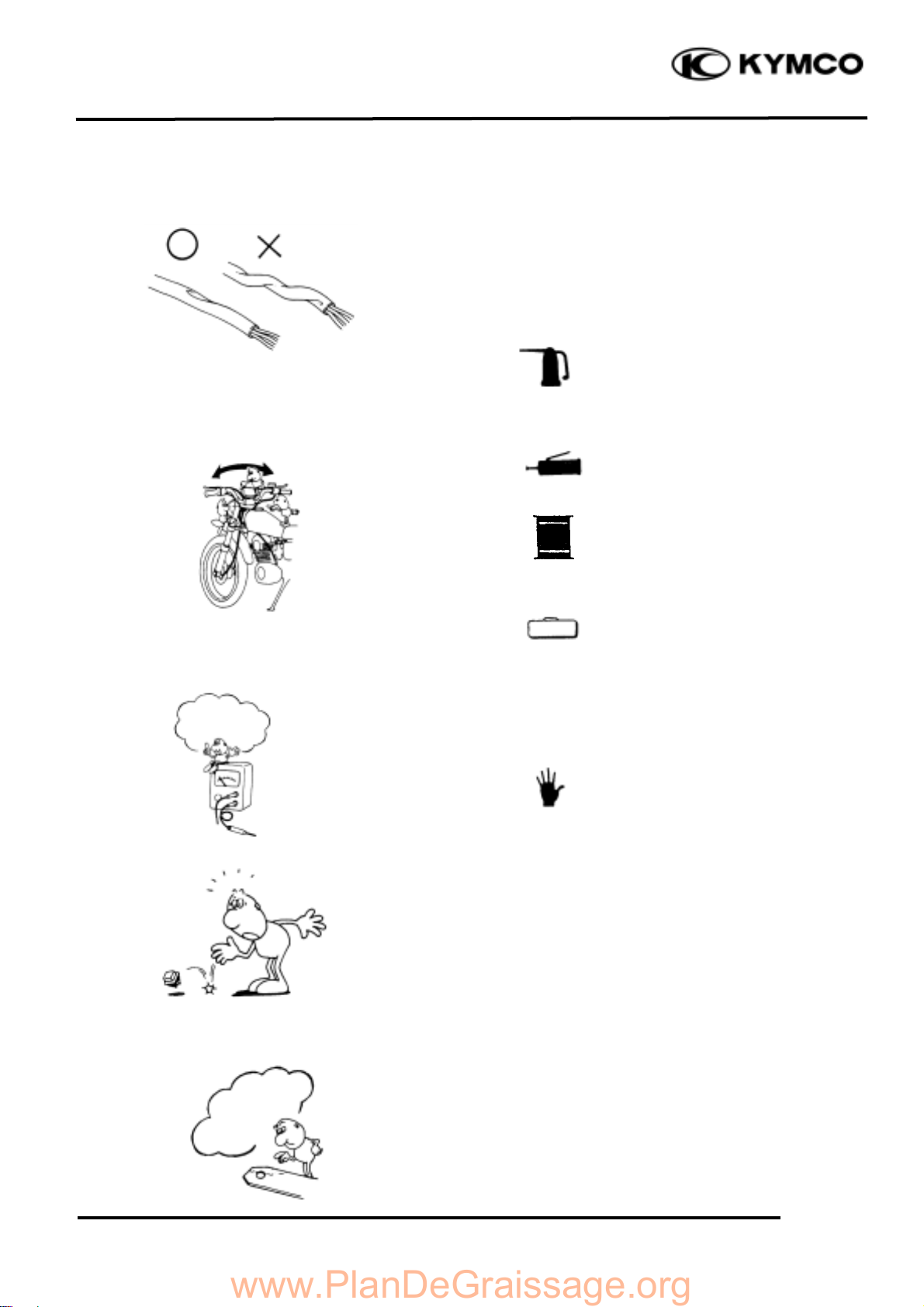

nAfter routing, check that the wire harnesses

are not twisted or kinked.

nWire harnesses routed along with handlebar

should not be pulled tight, have excessive

slack or interfere with adjacent or

surrounding parts in all steering positions.

nWhen a testing device is used, make sure to

understand the operating methods

thoroughly and operate according to the

operating instructions.

nBe careful not to drop any parts.

nWhen rust is found on a terminal, remove

the rust with sand paper or equivalent

before connecting.

nSymbols:

The following symbols represent the

servicing methods and cautions included in

this service manual.

:Apply engine oil to the

specified points. (Use

designated engine oil for

lubrication.)

:Apply grease for lubrication.

:Transmission Gear Oil (90#)

:Use special tool.

: Caution

:Warning

Special

Engine Oil

Grease

Gear Oil

＊

Do you

understand the

instrument？

Remove

Rustð

www.PlanDeGraissage.org

1. GENERAL INFORMATION

1-7

Bet &Win 2 50

TORQUE VALUES

STANDARD TORQUE VALUES

Item

Torque (N-m)

Item

Torque (N-m)

5mm bolt, nut

6mm bolt, nut

8mm bolt, nut

10mm bolt, nut

12mm bolt, nut

4.9

9.8

21.6

34.3

53.9

5mm screw

6mm screw, SH bolt

6mm flange bolt, nut

8mm flange bolt, nut

10mm flange bolt, nut

3.9

8.8

11.8

26.5

39.2

Torque specifications listed below are for important fasteners.

ENGINE

Item

Q‘ty

Thread dia.(mm)

Torque (N-m)

Remarks

Cylinder head bolt A

Cylinder head bolt B

Oil filter screen cap

Exhaust muffler joint lock nut

Cylinder head cap nut

Valve adjusting lock nut

Cam chain tensioner slipper bolt

Oil bolt

Clutch outer nut

Clutch drive plate nut

Flywheel nut

Oil pump bolt

Cylinder head cover bolt

Spark plug

Cam chain tensioner bolt

Water pump impeller

8.9

14.7

8.8

24.5

8.8

12.7

53.9

58.8

3.9

11.8

17.2

11.8

Double end bolt

Apply oil to

threads

Left hand threads

FRAME

Item

Q‘ty

Thread dia.(mm)

Torque (N-m)

Remarks

Steering stem lock nut

Front axle nut

Rear axle nut

Rear shock absorber upper bolt

Rear shock absorber lower bolt

Front shock absorber lock bolt

Engine hanger bolt

44.1

68.6

127.4

29.4

24.5

53.9

U-nut

www.PlanDeGraissage.org

1. GENERAL INFORMATION

1-8

Bet &Win 2 50

SPECIAL TOOLS

Tool Name

Tool No.

Remarks

Ref. Page

Valve guide driver

Valve guide removal/installation

Valve guide reamer

Valve guide grinding

Valve spring compressor

Valve removal

Lock nut wrench, 39mm

E027

Clutch disassembly

Bearing driver

Bearing removal

Bearing remover, 12mm

E020

Bearing removal

Remover shaft

Bearing removal

Remover weight

Bearing removal

Bearing remover, 15mm

E018

Bearing removal

Bearing driver

Bearing removal

Clutch spring compressor

E027

Clutch disassembly

Ball race remover extension

Ball race removal

Ball race remover

Ball race removal

Spring compressor

Spring removal

Mechanical seal driver

E014

Water pump mechanical seal

removal/installation

Kick starter spring remover

Kick starter spring removal

Gear remover

Starter gear removal

Valve adjuster

E012

Tapper adjustment

Float level gauge

Carburetor fuel level check

Valve seat cutter 45°

Valve seat refacing

Valve seat cutter 32°

Valve seat refacing

Valve seat cutter 60°

Valve seat refacing

Cutter clip, 5mm

Universal holder

E017

Holding clutch for removal

Bearing driver (32x35mm)

E014

Bearing installation

Pilot, 12mm

E014

Bearing installation

Pilot, 15mm

E014

Bearing installation

Pilot, 17mm

E014

Bearing installation

Flywheel puller

E003

A.C. generator flywheel removal

Rear shock absorber compressor

F004

Rear shock absorber disassembly

Steering head bearing remover

F005

Steering head bearing removal

Flywheel holder

E021

A.C. generator flywheel holding

Reamer clip

Fuel unit wrench

Fuel unit removal

www.PlanDeGraissage.org

1. GENERAL INFORMATION

1-9

Bet &Win 2 50

LUBRICATION POINTS

ENGINE

Lubrication Points

Lubricant

Valve guide/valve stem movable part

Camshaft protruding surface

Valve rocker arm friction surface

Camshaft drive chain

Cylinder lock bolt and nut

Piston surroundings and piston ring grooves

Piston pin surroundings

Cylinder inside wall

Connecting rod/piston pin hole

Connecting rod big end

Crankshaft

Cranksahft one-way clutch movable part

Oil pump drive chain

Starter reduction gear engaging part

Countershaft gear engaging part

Final gear engaging part

Bearing movable part

O-ring face

Oil seal lip

•Genuine KYMCO Engine Oil (SAE15W-40)

•API SE, SF or SG Egnine Oil

Starter idle gear

Friction springmovable part/shaft movable part

Shaft movable grooved part

Starter spindle movable part

High-temperature resistant grease

Starter one-way clutch threads

Thread locking agent

A.C. generator connector

Transmission case breather tubee

Adhesive

www.PlanDeGraissage.org

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels KYMCO Scooter

KYMCO

KYMCO LIKE 150i Manuel utilisateur

KYMCO

KYMCO SCOOTER MOD DJ Manuel utilisateur

KYMCO

KYMCO MYROAD 700i Manuel utilisateur

KYMCO

KYMCO Downtown 200i Manuel utilisateur

KYMCO

KYMCO GRAND DINK 250 Manuel utilisateur

KYMCO

KYMCO Like 200i Manuel utilisateur

KYMCO

KYMCO SUPER 8 Manuel utilisateur

KYMCO

KYMCO 125 DINK - Manuel utilisateur

KYMCO

KYMCO People GT 200i Manuel utilisateur

KYMCO

KYMCO Aglity 50 Manuel utilisateur

KYMCO

KYMCO People S 250 Manuel utilisateur

KYMCO

KYMCO 100 SENTO Manuel utilisateur

KYMCO

KYMCO XCITING 500Ri ABS Manuel utilisateur

KYMCO

KYMCO Many 110 EV Series Manuel utilisateur

KYMCO

KYMCO K-Lite FE Manuel utilisateur

KYMCO

KYMCO 250 PEOPLE S INJECTION Manuel utilisateur

KYMCO

KYMCO Downtown 200i Manuel utilisateur

KYMCO

KYMCO Agility Manuel utilisateur

KYMCO

KYMCO PeopleS 250 Manuel utilisateur

KYMCO

KYMCO PEOPLE S 125 Manuel utilisateur

KYMCO

KYMCO 50 AGILITY MMC 4T Manuel utilisateur

KYMCO

KYMCO ZX 50 Manuel utilisateur

KYMCO

KYMCO 50 SENTO 4T Manuel utilisateur

KYMCO

KYMCO 50 LIKE 4T Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
