KYLAND KIEN1026 Instructions de montage

KIEN1026 Industrial Ethernet Switch

Hardware Installation Manual

Publication Data: Dec. 2013

Version: V1.1

No.: 1.12.02.1052-0

KIEN1026 Industrial Ethernet Switch

Hardware Installation Manual

Disclaimer:

Kyland Technology Co., Ltd. tries to keep the content

of this manual as accurate and as updated as possible. This

document is not guaranteed to be error-free, and we reserve the

right to amend it without notice to users.

No part of this documentation may be excerpted, reproduced,

translated, annotated or duplicated, in any form or by any means

without the prior written permission of KYLAND Corporation.

Notice for Safety Operation

The product performs reliably as long as it is used accord-

ing to the guidance. Artificial damage or destruction of the

device should be avoided. Before using the device, read

this notice carefully for personal and equipment safety.

Please keep the manual for further reference. Kyland is

not liable to any personal or equipment damage caused

by violation of this notice.

●Do not place the device near water sources or damp areas. Keep

the ambient relative humidity within the range from 5% to 95%

(non-condensing).

●Do not place the device in an environment with high magnetic field,

strong shock, or high temperature. Keep the working and storage

temperatures within the allowed range.

●Install and place the device securely and firmly.

●Please keep the device clean; if necessary, wipe it with a soft cotton

cloth.

●Do not place any irrelevant materials on the device or cables. Ensure

adequate heat dissipation and tidy cable layout without knots.

●Wear antistatic gloves or take other protective measures when

operating the device.

●Avoid any exposed metal wires because they may be oxidized

or electrified.

●Install the device in accordance with related national and local

regulations.

●Before power-on, make sure the power supply is within the allowed

range of the device. High voltage may damage the device.

●Power connectors and other connectors should be firmly interconnected.

●Do not plug in or out the power supply with wet hands. When the device

is powered on, do not touch the device or any parts with wet hands.

●Before operating a device connected to a power cable, remove all

jewelry (such as rings, bracelets, watches, and necklaces) or any

other metal objects, because they may cause electric shock or burns.

●Do not operate the device or connect or disconnect cables during

an electrical storm.

●Use compatible connectors and cables. If you are not sure, contact

our sales or technical support personnel for confirmation.

●Do not disassemble the device by yourself. When an anomaly

occurs, contact our sales or technical support personnel.

●If any part is lost, contact our sales or technical support personnel

to purchase the substitute. Do not purchase parts from other channels.

●Dispose of the device in accordance with relevant national provisions,

preventing environmental pollution.

In the following cases, please immediately shut down

your power supply and contact your Kyland represen-

tative:

●Water gets into the equipment.

●Equipment damage or shell damage.

●Equipment operation or performance has abnormally changed.

●The equipment emits odor, smoke or abnormal noise.

1 Product OverviewĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ1

2 Structure and InterfaceĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ2

2.1 Front PanelĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ2

2.2 Rear PanelĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ3

3 Mounting

ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ

3.1 Dimension Drawing

ĂĂĂĂĂĂĂĂĂĂĂĂĂĂ Ă Ă

3.2 Mounting Modes and Steps

ĂĂĂĂĂĂĂĂĂĂĂĂĂ

4 Connection

ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ

4.1 10/100Base-T(X) Ethernet Port

Ă Ă Ă ĂĂĂĂĂĂ Ă Ă

4.2 100Base-FX Ethernet Port

ĂĂĂĂĂĂĂĂĂĂĂĂĂ

4.3 Grounding

ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ

4.4 Power Terminal Block

ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ

5 LEDs

ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ

6 Basic Features and Specifications

ĂĂĂĂĂĂĂĂĂĂĂĂĂ

Contents

Product Overview

1 Product Overview

KIEN1026 includes a series of high-performance industrial Ethernet

switches developed by Kyland particularly for industrial applications.

KIEN1026 is applicable to harsh and hazardous industrial environ-

ments due to its high-performance switching engine, solid closed

housing, fanless but heat dissipation-capable single-rib shaped chassis,

overcurrent, overvoltage, and EMC protection for power input, and

sound EMC protection of RJ45 ports.

KIEN1026 supports 19 inch 1U rack mounting. It provides up to

twenty-four 10/100Base-T(X) Ethernet ports and two 100Base-FX

Ethernet ports. For details, see the following table.

Table 1 KIEN1026 Models

KIEN1026-2S/M

KIEN1026-24T

KIEN1026-16T

Structure and Interface

2 Structure and Interface

Figure 1 Front Panel

Table 2 Description of the Front Panel

2.1 Front Panel

Caution:

It is recommended to purchase the port dustproof shield

(optional) to keep ports clean and ensure switch performance.

(1)(4)

(2)(3) (6)

(5)

Structure and Interface

Figure 2 Rear Panel

Table 3 Description of the Rear Panel

2.2 Rear Panel

(7) (8)

(2)(1) (3) (4) (5) (6)

PWR1

+/L -/N -/N +/L

PWR2

Mounting

482.6

465

440

31.8

245

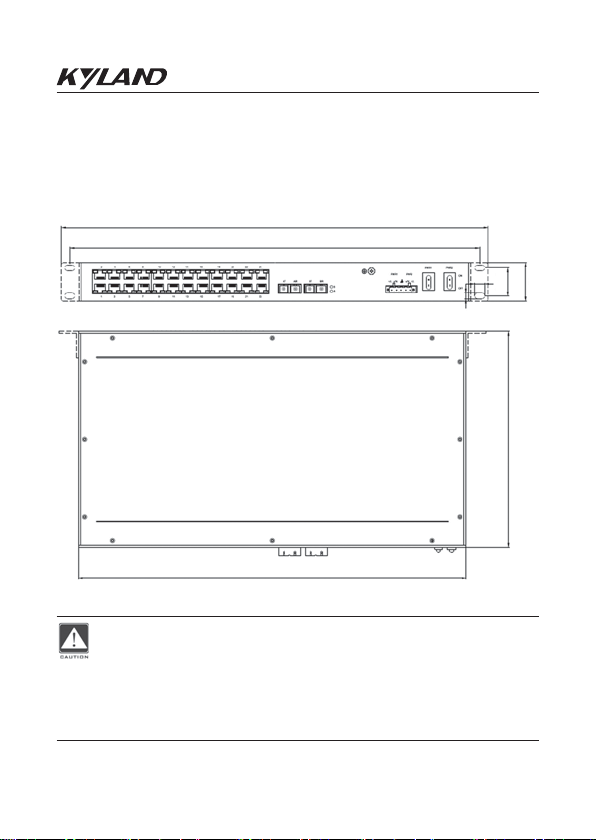

Figure 3 Dimension Drawing (unit: mm)

3 Mounting

3.1 Dimension Drawing

Caution:

ƽAs part of the heat dissipation system, the switch housing

becomes hot during operation. Please use caution when

coming in contact and avoid covering the switch housing

when the switch is running.

ƽThe figures in this manual are only for reference.

Mounting

3.2 Mounting Modes and Steps

Figure 4 Mounting Bracket

The series switches support rack mounting by the front/rear panel.

The following uses mounting by front panel as an example to

describe mounting steps. The steps for mounting by rear panel are

similar to those for mounting by front panel. Before installation, make

sure that the following requirements are met.

1) Environment: temperature (-40°C to 85°C), ambient relative

humidity (5% to 95%, non-condensing)

2) Power requirement: The power input is within the voltage range of

the switch.

3) Grounding resistance: <5

4) No direct sunlight, distant from heat source and areas with strong

electromagnetic interference.

Screw holes for securing

themounting bracket to a

switch Screw holes for securing

the mounting bracket to a

rack post

ƽInstalling Mounting Brackets
