Kwikset 69925-001 Manuel utilisateur

Backset •

69925001 Rev 01

Installation Guide

*Passage knobs only: Call

Kwikset to order a service kit

for 21/4" (57 mm) thick doors.

23/8" (60 mm)

23/4" (70 mm)

13/8"–13/4"*

35 mm–44 mm*

21/8"

54 mm

25 mm

Hold the latch in front of the door hole, with

the latch face lush against the door edge.

If the latch holes are centered in the door hole,

no adjustment is required. Proceed to step 3.

If the latch holes are NOT centered, adjust

latch. See “Latch Adjustment” (step 2C).

Latch Adjustment (only if needed)

Move the pin to

extend the latch.

not centered

centered

23/8" (60 mm)

23/4" (70 mm)

Centerline

13/8" (35 mm)

13/4" (44 mm)

21/4" (57 mm)

Edge of the door

Fold

Drilling Template

Instructions continue on reverse

Template is only needed if a new hole must be drilled in the door.

Face of the door

wood block

door frame

Privacy

Knobs

Passage

Knobs Optional

Optional

Emergency Unlock Tool

(privacy locks only)

Parts in the BoxRequired Tools

Latch

Strike

Screws

Not required for

all applications

Additional Tools

(if needed)

wood block Allen wrench

Door edge NOT

chiseled

Door edge chiseled

slant of latch bolt faces door frame

Remove plates.

Install drive-

in collar.

C (x2)

Prepare door and check dimensions

Adjust the backset of the latch (if needed)

Install latch

Do not use harsh chemicals or

solvents to clean your lock.

Mechanical lock

Use a damp cloth to wipe away

any excess dirt or debris.

Electronic lock

Use a damp cloth on the lock’s exterior to wipe

away any excess dirt or debris. Use a dry cloth

to clean interior components.

C (x2)

align

Save the bedroom/bathroom emergency

unlock tool (E) for future use.

Privacy locks only

clockwise

Press latch bolt to

install exterior knob.

If knob won’t sit lush,

rotate turnbutton to align.

Insert screws and

tighten by hand.

Install interior knob base.

Push up on knob base while tightening screws

to keep latch horizontal and centered.

Install knob.

Tighten the pre-installed set screw.

Remove knob.

Loosen the pre-installed set screw.

counterclockwise

Close door and test latch operation. If latch is

loose in the strike, adjust strike tab so it grips

the latch bolt better when the door is closed.

IMPORTANT: If installing a passage

lock on an entry door, make sure

the knob with the screw holes is

on the interior side of the door.

exterior

Align round edges.

tab

Tip: Pull knob slightly

away from door to see

where screws insert.

J2/N2/L2/Q2

J1/N1/L1/Q1

D (x2)

J2/N2/L2/Q2

H/M/K/P

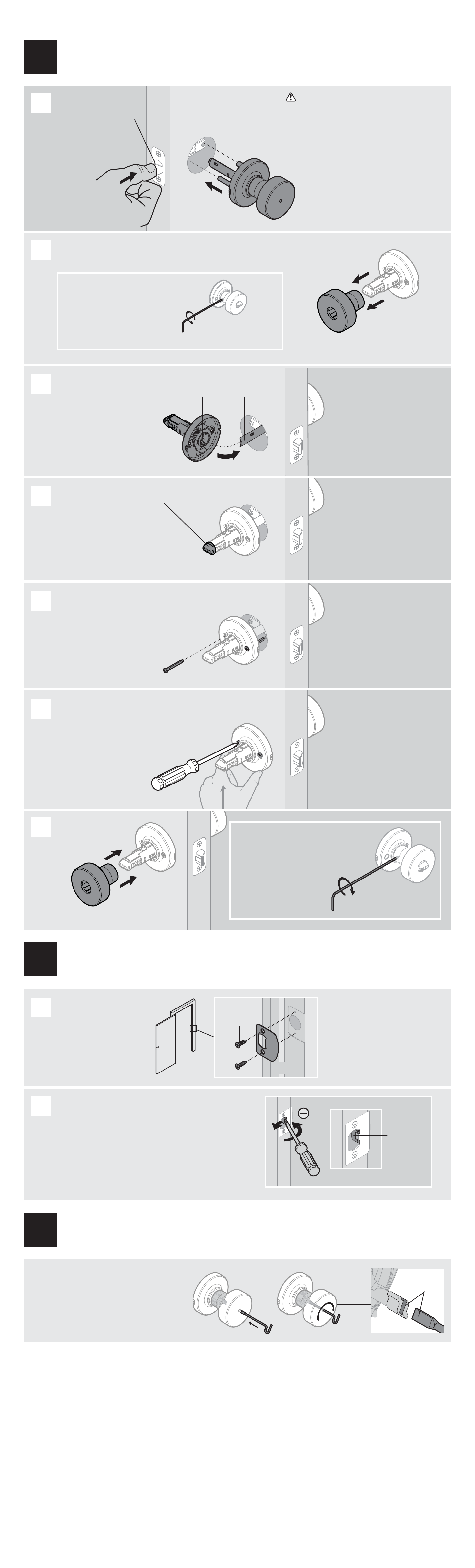

Install knobs

Install strike on door frame
