Kummert PushBuddy Manuel utilisateur
INSTRUCTION MANUAL
PushBuddy®EN
PPushush
BBuddyuddy
DEDE 27
English
Edition / Version: 1/2019
Creation date: 2018
© Kummert GmbH
Albert-Einstein-Str. 8
D - 97447 Gerolzhofen
This manual and all information, photos and drawings
contained herein are subject to intellectual property rights by
Kummert GmbH.
Their use is permitted while utilizing the devices. Any use
beyond that is prohibited without the manufacturer‘s written
approval.
All named products and descriptions are trademarks and/or
registered trademarks of the respective manufacturers
Keep the manual for future reference!
EN
DEDE28
CONTENT
Introduction............................................................................................................................ 29
About the manual ..................................................................................................................................29
Explanation of symbols .........................................................................................................................29
Preparation............................................................................................................................. 31
Delivery .....................................................................................................................................................31
Packaging .................................................................................................................................................31
Storage......................................................................................................................................................31
Transport ..................................................................................................................................................31
Product description............................................................................................................... 32
Brief descripton of PushBuddy® .........................................................................................................32
Specifi cations ..........................................................................................................................................32
Components ............................................................................................................................................33
PushBuddy® .............................................................................................................................................34
Carrier .......................................................................................................................................................35
Extension ..................................................................................................................................................35
Work praparation .................................................................................................................. 36
Transport to place of operation .........................................................................................................36
Inserting and removing the battery ...................................................................................................37
Setting the handle ..................................................................................................................................38
Installing an extension ..........................................................................................................................39
Removing an extension ........................................................................................................................40
Connecting PushBuddy® with a base unit ........................................................................................40
Setting the pipe diameter ....................................................................................................................41
Inserting the rod into the PushBuddy® ............................................................................................42
Removing the rod from the PushBuddy®.........................................................................................43
Clamping PushBuddy® at the beginning of a pipe .........................................................................44
Adjusting the inspection speed ..........................................................................................................45
Working with PushBuddy®.................................................................................................... 46
End of Work ............................................................................................................................ 46
Cleaning .................................................................................................................................. 46
Troubleshooting..................................................................................................................... 48
Maintenance........................................................................................................................... 49
Disposal................................................................................................................................... 50
Notes ....................................................................................................................................... 51
DEDE 29
INTRODUCTION
About the manual
The manual ensures the safe operation of the devices and must be kept in the devices‘ close
proximity, immediately accessible for any personnel.
All personnel are to carefully read and understand this manual before taking up work. As a
precondition for safe operation, all safety instructions and operational procedures given in
this manual must be observed.
Furthermore, the local accident prevention regulations and general safety provisions
applicable for the devices‘ range of use are to be heeded.
Explanation of symbols
Safety instructions in this manual are indicated by means of symbols. The safety instructions
express the extent of the hazard.
WARNING
This combination of symbol and signal word identifi es a possibly dangerous situation,
which may cause death or severe injuries if not avoided.
CAUTION
This combination of symbol and signal word identifi es a possibly dangerous situation,
which may cause minor or slight injuries if not avoided.
NOTE
This combination of symbol and signal word identifi es a possibly dangerous situation,
which may cause damage to property and environment if not avoided.
TIP This symbol highlights useful tips and information for an effi cient and trouble-free
operation of the device.
30 ENEN
WARNING
Risk of injury!
When unwinding and rewinding the rod, injuries can be caused by the turning reel and
unintended unwinding of the rod.
• Never reach into the reel basket during operation.
• Always lock the reel if the rod is not in use.
CAUTION
Cable safety!
Cables pose a tripping hazard.
• Lay cables in such a way that nobody can trip over them or place a sign indicating
a tripping hazard.
WARNING
Risk of injury due to rough surface!
The clamping device is coated with granulate for a better grip, which can cause skin
injuries.
• Always wear suitable protective gloves when handling the clamping device.
WARNING
Risk of injury by crushing or clamping!
The device has moving components. When adjusting these components, there is a risk
of jamming or crushing parts of the body.
• Follow the instructions in this manual carefully.
• Never reach into the area where the components are moving when adjusting the
components.
NOTE
Risk of damage to property!
When clamping the PushBuddy®, there will be strong forces applied.
• Before use, check that the pipe can withstand these forces.
31
ENEN 31
PREPARATION
Delivery
TIP Claims for damage can only be submitted within the applicable complaint periods,
so please inform us of any defects as soon as possible.
The delivery is to be inspected for completeness and possible transport damage immediately
upon receipt. Report transport damages to the carrier immediately.
The standard scope of delivery of the PushBuddy® includes:
• PushBuddy®
• Carrier for transportation and securing the PushBuddy® onto a Profi 3+ or a Profi HD
• 2x Extension 1,0 m
• Extension 0,5 m
• Torque wrench
• Holding tool
• Instruction manual
Packaging
TIP Keep the packaging for possible shipping and storage
Packaging may also comprise materials added to the packages for the protection against
moisture or frost (e.g. silica gel bags, anti-freezing agents).
Storage
The devices and the accessories must always be stored under the following conditions:
• Do not store outdoors
• Store in a dry and dust-free place
Transport
When transporting the device in vehicles, always comply with the local safety loads regula-
tions. In addition, make sure that the PushBuddy® and its accessories are protected against
external forces.
A carrier can be used to transport the PushBuddy® and its accessories to the place of opera-
tion. See chapter „Transport to place of operation“.
32 ENEN
PRODUCT DESCRIPTION
Brief descripton of PushBuddy®
The device is designed for pushing forward HD generation rods (except K-28 HD). It is
wirelessly connected to the base unit Profi 3+ (requires additional accessories) or Profi HD.
The rod goes through the device and it is driven by two motors forwards or backwards. The
PushBuddy® is clamped at the beginning of the pipe with a hoist motor. Meter counting is
done by the PushBuddy® instead of the reel. It is operated by a replaceable rechargeable
Bosch battery, so it works independently of the main supply.
Specifi cations
Range of use DN100 - DN300
Dimensions (without extensions) 330 mm x 600 mm x 165 mm
Weight PushBuddy® (incl. battery) 7,5 kg
Clamping motor DC linear actuator
Drive motor 2 EC motors
Data transfer Wifi
Max. Speed 50 cm/s
Light LED
Software compatibility Record, can3D®
Protection class handle (without battery) IP 23
Protection class extension IP 23
Protection class PushBuddy (without handle
and battery)
IP 68
33
ENEN 33
Components
1 PushBuddy®
2 Battery
3 Extension 1,0 m
4 Extension 0,5 m
5 Carrier
3
4
5
1
2
34 ENEN
a
b
c
d
e
f
g
h
i
j
l
l
m
k

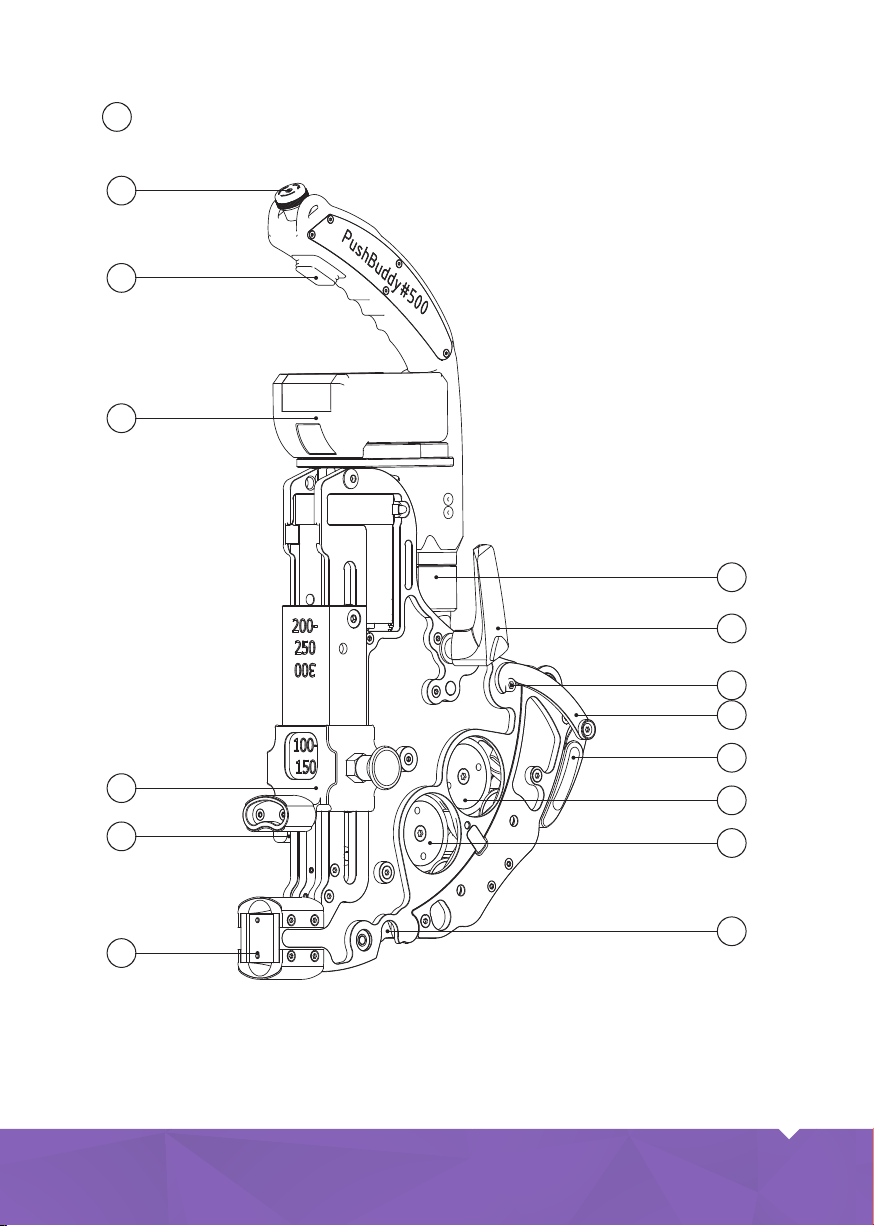

PushBuddy®
1
a Emergency stop switch
b Rocker switch
c Battery
d Clamping mechanism
e LED
f Rod output
g Connector
h Rotary handle
i Pivot
j Clamping hook
k Lever
l Drive wheel
m Transport mounting slots
35
ENEN 35
b
a
c
d
e
f
a Base unit recess
b Carrying handle
c PushBuddy® slot
d Lock pin
e Axis
f Standfoot
g Extension recess
h Camera tray
a
g
h
d
c
b
Extension
Carrier
3
5
4
a Lock pin
b Knob
c Lock pin slot
d Anti-twist protection
