KTM 2015 125 SX EU Manuel

SETUP INSTRUCTIONS 2015

125 SX EU

125 SX US

150 SX EU

150 SX US

250 SX EU

250 SX US

250 XC EU/US

300 XC EU/US

Art. no. 3213192en

INTRODUCTION 1

INTRODUCTION

The work described in these setup instructions must be performed before the vehicle is delivered to the customer.

Read the setup instructions in their entirety before beginning work.

Print out the current PDI form found on the KTM DEALER.NET.

These setup instructions were written to correspond to the latest state of this series. We reserve the right to make changes in the inter-

est of technical advancement without at the same time updating this manual.

We shall not provide a description of general workshop methods. Likewise, safety rules that apply in a workshop are not specified here.

It is assumed that the work will be performed by a fully trained mechanic.

All specifications are non-binding. KTM Sportmotorcycle AG specifically reserves the right to modify or delete technical specifica-

tions, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt

these to local conditions, as well as to stop production of a particular model without prior notice. KTM accepts no liability for delivery

options, deviations from illustrations and descriptions, misprints, and other errors. The models portrayed partly contain special equip-

ment that does not belong to the regular scope of supply.

Reproduction, even in part, as well as copying of all kinds, is permitted only with the express written permission of the copyright

owner.

ISO 9001(12 100 6061)

According to the international quality management standard ISO 9001, KTM uses quality assurance processes that lead

to the maximum possible quality of the products.

Issued by: TÜV Management Service

KTM-Sportmotorcycle AG

5230 Mattighofen, Austria

1 MEANS OF REPRESENTATION 2

1.1 Symbols used

The meaning of specific symbols is described below.

Indicates an expected reaction (e.g. of a work step or a function).

Indicates an unexpected reaction (e.g. of a work step or a function).

Indicates a page reference (more information is provided on the specified page).

Indicates information with more details or tips.

Indicates the result of a testing step.

Denotes a voltage measurement.

Denotes a current measurement.

Denotes a resistance measurement.

1.2 Formats used

The typographical formats used in this document are explained below.

Proprietary name Identifies a proprietary name.

Name®Identifies a protected name.

Brand™ Identifies a trademark.

2 SETUP 3

2.1 Unpacking and setting up the vehicle

B02176-10

Packaging 2

–Remove the box and the plastic packaging.

Info

To avoid damaging the motorcycle during the setup, leave the protective

film on the vehicle until you have finished.

–Remove the separate enclosure and unpack it. Check that the scope of supply

is complete on the basis of the enclosed packing list.

–Have a lift stand available.

Lift stand (54829055000)

–Carefully loosen and remove the tension belt of the footrest mount.

Info

An assistant prevents the motorcycle from falling over.

402050-01

–Together with an assistant, take the vehicle off the palette.

–Position the vehicle on a lift stand.

–Check the vehicle for transport damage.

B02008-10

Package 12

–Remove the box and the plastic packaging.

Info

An assistant prevents the motorcycle from falling over.

To avoid damaging the motorcycle during the setup, leave the protective

film on the vehicle until you have finished.

–Remove the separate enclosure and unpack it. Check that the scope of supply

is complete on the basis of the enclosed packing list.

–Have a lift stand available.

Lift stand (54829055000)

–Together with an assistant, take the vehicle off the palette.

402051-01

–Position the vehicle on a lift stand.

–Check the vehicle for transport damage.

B02098-12

–Remove the cardboard from around the shock absorber.

–Position the angle lever and linkage lever.

–Mount and tighten screw cap .

Guideline

Nut, frame to linkage

lever

M14x1.5 80 Nm

(59 lbf ft)

Loctite®2701™

–Mount and tighten screw .

Guideline

Screw, bottom shock

absorber

M10 60 Nm

(44.3 lbf ft)

Loctite®2701™

2 SETUP 4

B02177-01

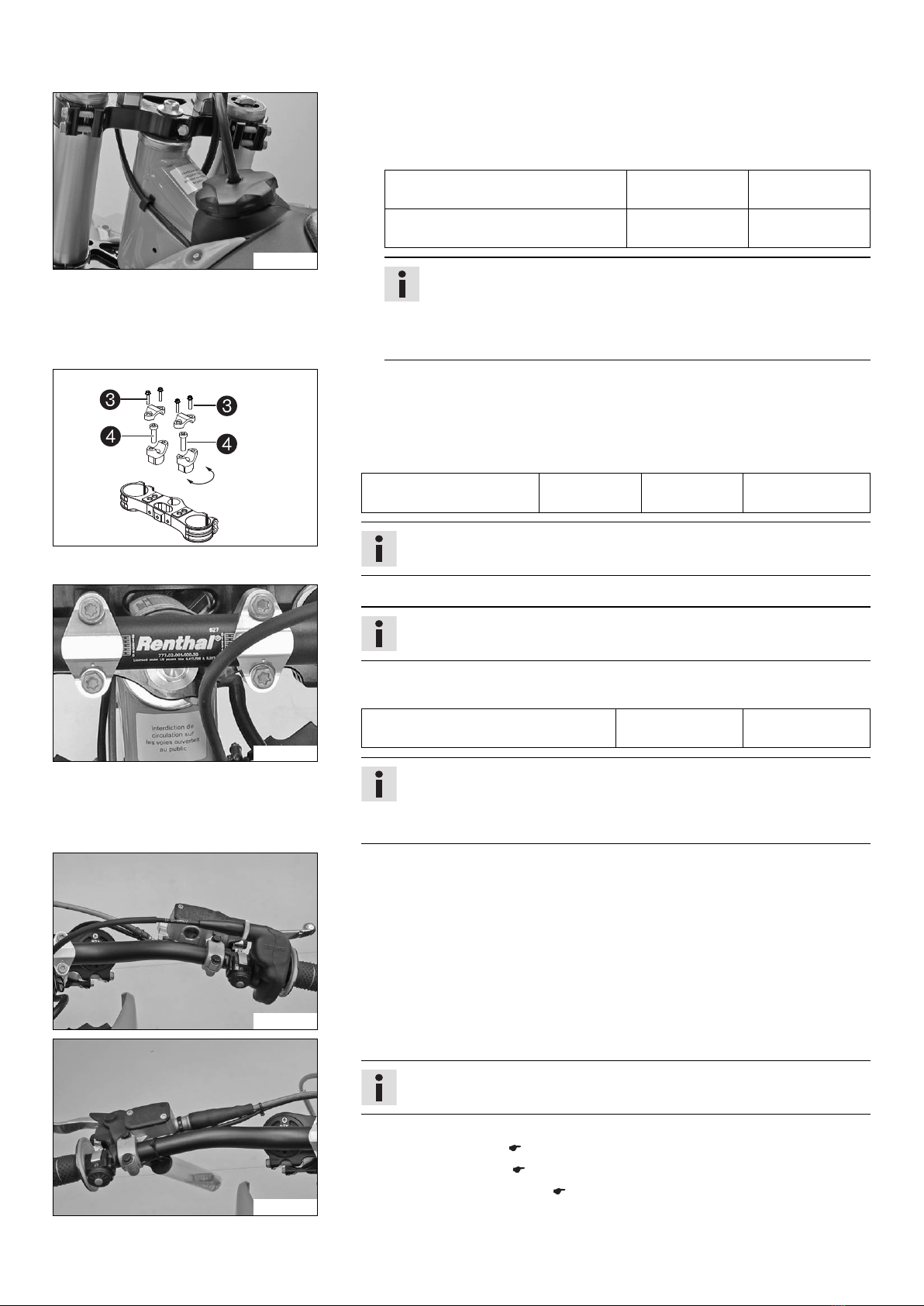

–Route the clutch line with the clutch master cylinder toward the front between

the upper and lower triple clamps.

–Position the fork legs and tighten the screws of the triple clamp.

Guideline

Screw, top triple clamp M8 17 Nm

(12.5 lbf ft)

Screw, bottom triple clamp M8 12 Nm

(8.9 lbf ft)

Info

Grooves are milled into the side of the top end of the fork legs. The sec-

ond milled groove (from the top) in the fork leg must be flush with the

upper edge of the upper triple clamp.

Position the bleeder screws toward the front.

B00375-13

–Remove screws . Take off the handlebar clamps.

–Remove screws . Remove the handlebar holders.

–Place the handlebar holders in the required position. Mount and tighten

screws .

Guideline

Screw, handlebar support M10 40 Nm

(29.5 lbf ft)

Loctite®243™

Info

Position the left and right handlebar holders evenly.

B02178-01

–Position the handlebar.

Info

Make sure the cables and wiring are positioned correctly.

–Position the handlebar clamps. Mount and tighten the screws evenly.

Guideline

Screw, handlebar clamp M8 20 Nm

(14.8 lbf ft)

Info

The markings on the handlebar should be at the center of the handlebar

clamps.

Keep the gap widths equal when tightening.

B02179-01

–Position the controls on the right half of the handlebar.

B02180-01

–Position the controls on the left half of the handlebar.

Info

The routing of the cables is shown in the figure.

–Correctly mount the fuel tank breather.

–Install the front wheel. ( p. 6)

–Install the front fender. ( p. 7)

–Install the start number plate. ( p. 7)

2 SETUP 5

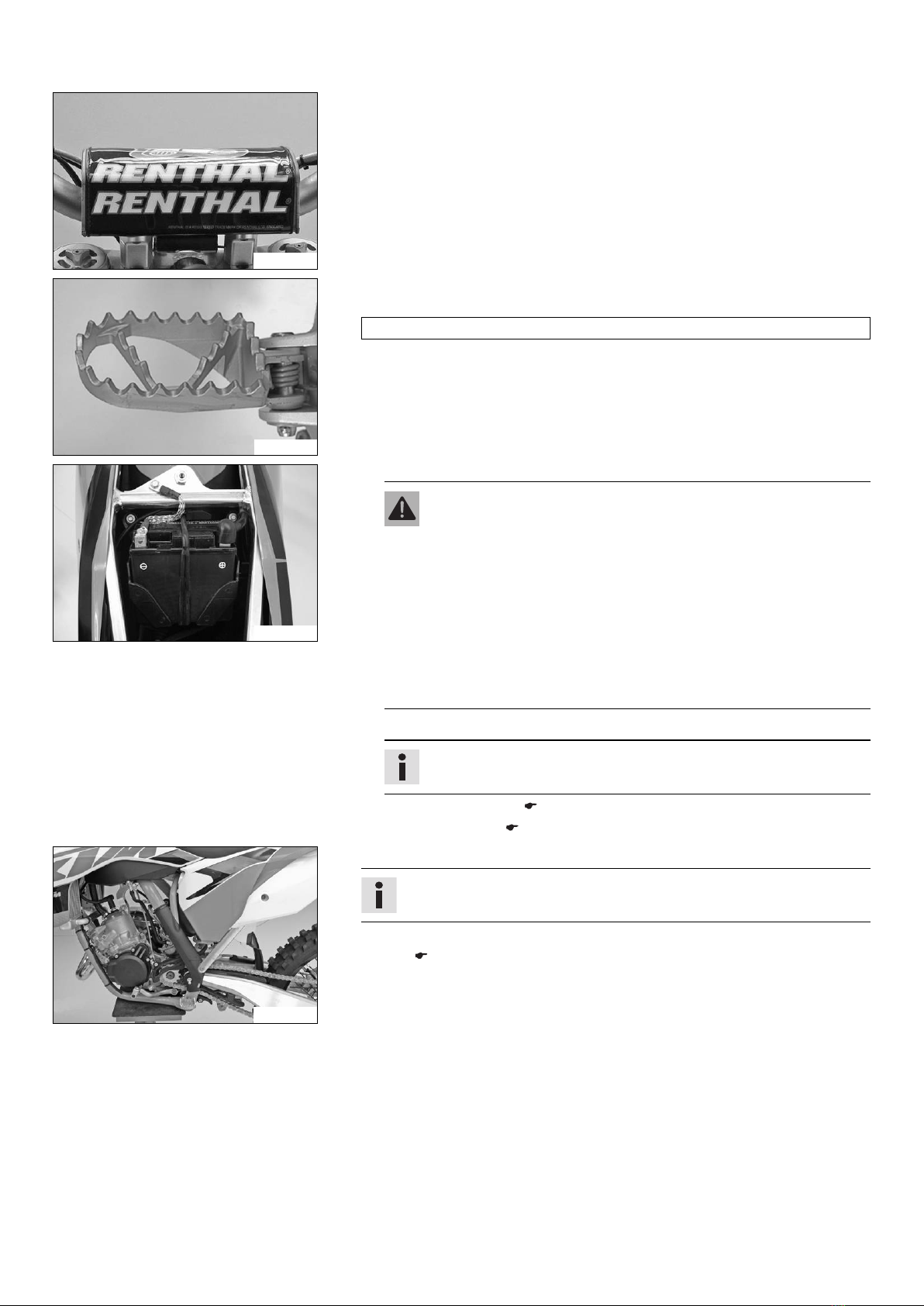

B00910-01

–Mount the handlebar cushion.

800042-10

–Mount the footrests with the springs and pins. Secure the pins using the washers

and cotter pins.

Pliers for footrest spring (58429083000)

800035-10

(All XC models)

Warning

Risk of injury Battery acid and battery gases cause serious chemical

burns.

–Keep batteries out of the reach of children.

–Wear suitable protective clothing and goggles.

–Avoid contact with battery acid and battery gases.

–Keep sparks and open flames away from the battery. Only charge in

well-ventilated rooms.

–In the event of skin contact, rinse with large amounts of water. If

battery acid gets in the eyes, rinse with water for at least 15 minutes

and contact a physician.

–Fill the battery.

Info

Read the notes in the battery package.

–Recharge the battery. ( p. 8)

–Install the battery. ( p. 9)

B02182-01

–Unpack and mount the KTM PowerParts included in the delivery (optional).

Info

Read the accompanying KTM PowerParts fitting instructions.

–Apply the label included in the delivery (optional).

–Refuel. ( p. 11)

–Position all controls in their exact positions on the handlebar. Tighten all screws.

–Print out the current PDI form found on KTM DEALER.NET and perform the delivery

inspection.

3 WORK 6

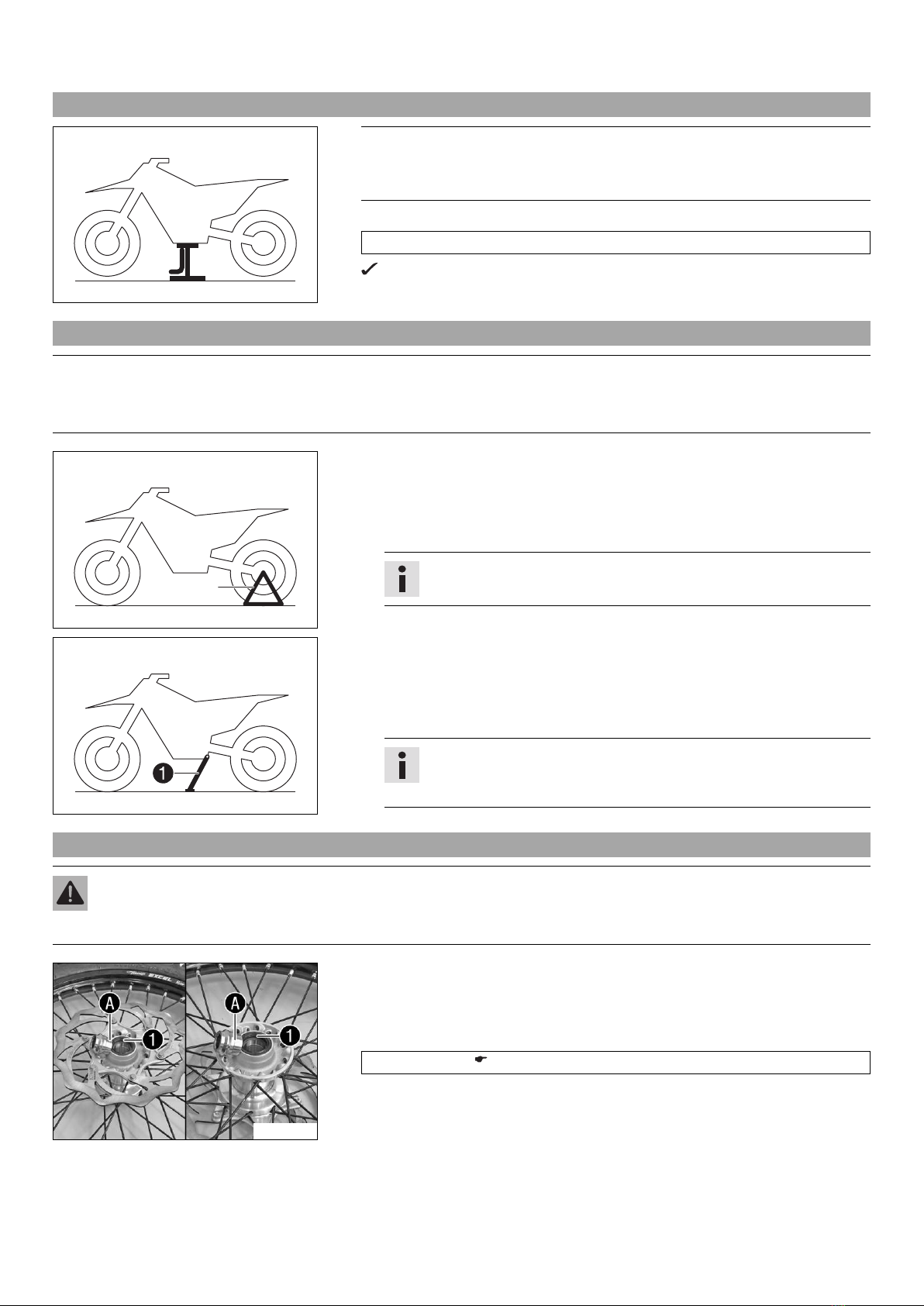

3.1 Raising the motorcycle with the lift stand

401942-01

Note

Danger of damage The parked vehicle may roll away or fall over.

–Always place the vehicle on a firm and even surface.

–Raise the motorcycle at the frame underneath the engine.

Lift stand (54829055000)

The wheels must no longer touch the ground.

–Secure the motorcycle against falling over.

3.2 Removing the motorcycle from the lift stand

Note

Danger of damage The parked vehicle may roll away or fall over.

–Always place the vehicle on a firm and even surface.

402001-10

(All SX models)

–Remove the motorcycle from the lift stand.

–Remove the lift stand.

–To park the motorcycle, insert plug-in stand into the left side of the wheel

spindle.

Info

Remove the plug-in stand before riding.

401943-10

(All XC models)

–Remove the motorcycle from the lift stand.

–Remove the lift stand.

–To park the motorcycle, press side stand to the ground with your foot and

lean the motorcycle on it.

Info

When you are riding, the side stand must be folded up and secured with

the rubber band.

3.3 Installing the front wheel

Warning

Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.

–Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.

B02118-11

–Check the wheel bearing for damage and wear.

» If the wheel bearing is damaged or worn:

–Change the wheel bearing.

–Clean and grease shaft seal rings and bearing surface of the spacers.

Long-life grease ( p. 14)

–Insert the spacers.

3 WORK 7

B02116-11

–Lift the front wheel into the fork, position it, and insert the wheel spindle.

The brake linings are correctly positioned.

–Mount and tighten screw .

Guideline

Screw, front wheel spindle M20x1.5 35 Nm

(25.8 lbf ft)

–Operate the hand brake lever several times until the brake linings are lying correctly

against the brake disc.

–Remove the motorcycle from the lift stand. ( p. 6)

–Pull the front wheel brake and push down hard on the fork several times to align

the fork legs.

–Tighten screws .

Guideline

Screw, fork stub M8 15 Nm

(11.1 lbf ft)

3.4 Installing the front fender

B02097-10

Main work

–Position the front fender. Mount and tighten screws and .

Guideline

Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

Finishing work

–Install the start number plate. ( p. 7)

3.5 Installing the start number plate

L00948-10

–Position the start number plate. Mount and tighten screw .

Guideline

Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

Info

Ensure that the holding lugs engage in the fender.

–Position the brake line. Position the clamp and mount and tighten screw .

3 WORK 8

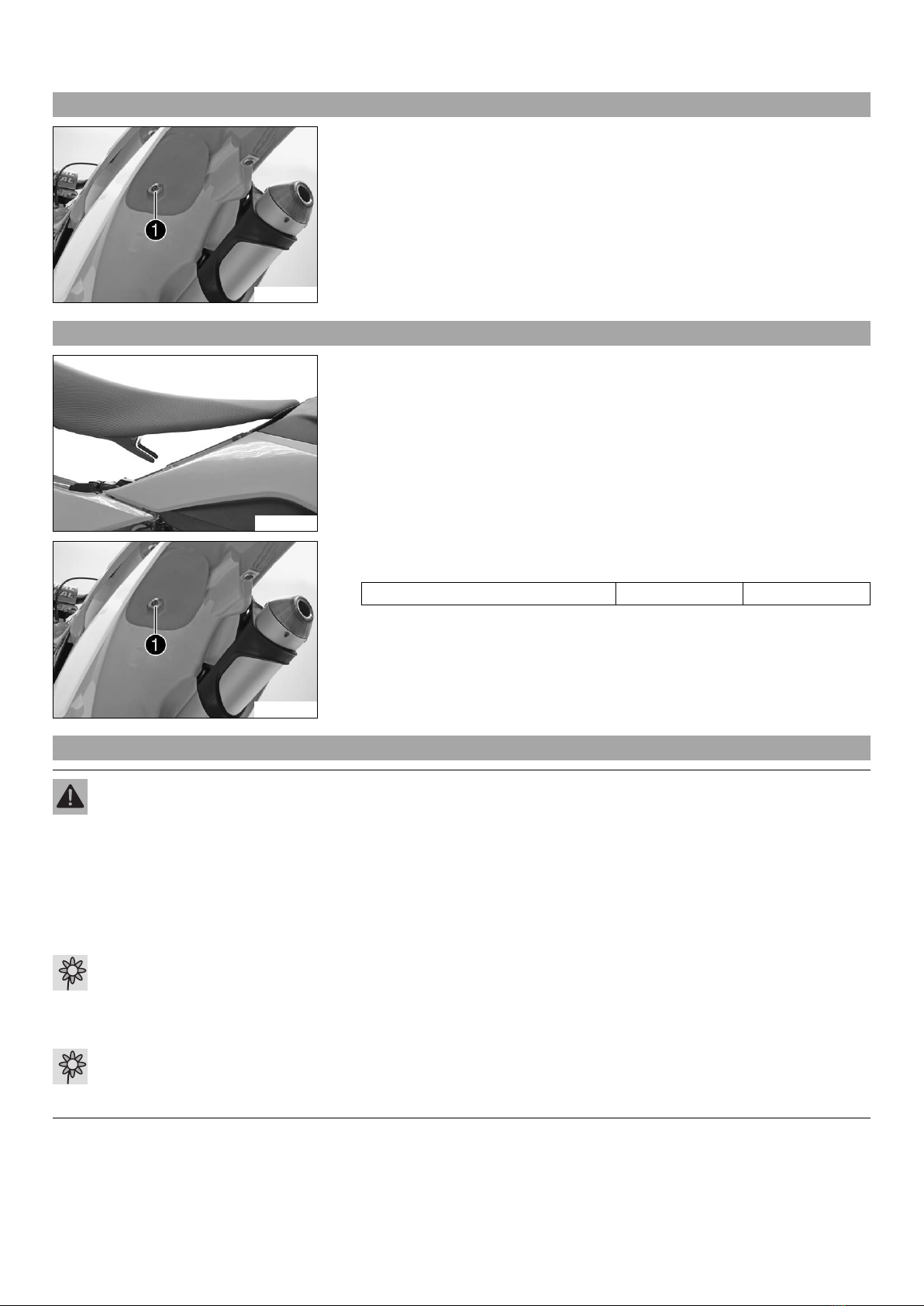

3.6 Removing the seat

101683-10

–Remove screw . Lift up the seat at the rear, pull it back and then remove from

above.

3.7 Mounting the seat

L00950-01

–Hook in the front of the seat at the collar bushing of the fuel tank, lower at the rear

and simultaneously push forward.

–Make sure that the seat is correctly locked in.

101683-10

–Mount and tighten screw of the seat fixation.

Guideline

Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

3.8 Recharging the battery (All XC models)

Warning

Risk of injury Battery acid and battery gases cause serious chemical burns.

–Keep batteries out of the reach of children.

–Wear suitable protective clothing and goggles.

–Avoid contact with battery acid and battery gases.

–Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms.

–In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least

15 minutes and contact a physician.

Warning

Environmental hazard The battery contains elements that are harmful to the environment.

–Do not discard batteries with the household waste. Dispose of faulty batteries in an environmentally compatible manner.

Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries.

Warning

Environmental hazard Hazardous substances cause environmental damage.

–Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels KTM Moto

KTM

KTM 450 EXC EU Manuel utilisateur

KTM

KTM 390 Duke Series 2018 Manuel

KTM

KTM 690 SMC R 2017 Manuel utilisateur

KTM

KTM 350 EXC-F 2021 Manuel utilisateur

KTM

KTM 2010 1190 RC8 Manuel utilisateur

KTM

KTM 125 SX Guide de l'utilisateur

KTM

KTM 390 ADVENTURE 2022 Manuel

KTM

KTM 2014 1190 Adventure Manuel utilisateur

KTM

KTM 350 SX-F 2023 Manuel utilisateur

KTM

KTM 450 SX-F 2019 Manuel utilisateur

KTM

KTM 250 SX-F EU Manuel

KTM

KTM 85 SX 2021 Manuel

KTM

KTM 250 EXC Manuel utilisateur

KTM

KTM 620 2001 Guide de l'utilisateur

KTM

KTM 400 SX RACING 2000 Guide de l'utilisateur

KTM

KTM 150 EXC TPI 2021 Manuel utilisateur

KTM

KTM 2015 450 SX-F EU Manuel utilisateur

KTM

KTM 350 EXC-F USA 2013 Manuel

KTM

KTM 400 EXC RACING Manuel utilisateur

KTM

KTM 1290 Super Duke GT 2019 Manuel

KTM

KTM 85 SX 19/16 2013 Manuel

KTM

KTM 660 RALLY 2004 Manuel utilisateur

KTM

KTM 85 SX 2019 Manuel utilisateur

KTM

KTM 990 SUPERMOTO 2008 Manuel utilisateur

Manuels Moto populaires d'autres marques

OHVALE

OHVALE GP-0 Manuel de la liste des pièces

Yamaha

Yamaha Star XV19CTSZ 2009 Manuel utilisateur

HYOSUNG

HYOSUNG ST7 Manuel utilisateur

Husqvarna

Husqvarna FC 250 2016 Manuel utilisateur

Ducati

Ducati SCRAMBLER 800 Manuel d'instructions

MOTO GUZZI

MOTO GUZZI QUOTA 1100 ES Manuel utilisateur

APRILIA

APRILIA ETV MILLE CAPONORD - PART1 02-2001 Manuel utilisateur

Yamaha

Yamaha 2006 YZF-R1V Manuel utilisateur

Fantic

Fantic Enduro 125 Manuel utilisateur

Ducati

Ducati Supersport 750 desmodue Manuel utilisateur

MV Agusta

MV Agusta 2008 F4 312RR 1078 Manuel d'instructions

Yamaha

Yamaha XVS650A Manuel utilisateur

Yamaha

Yamaha YZF-R6T(C) Manuel

Ducati

Ducati 748 monoposto strada Manuel utilisateur

ATK

ATK 1988 250 Manuel utilisateur

Excelsior-HENDERSON

Excelsior-HENDERSON 1999 HCX Manuel utilisateur

Triumph

Triumph Thunderbird Manuel utilisateur

Yamaha

Yamaha 2006 FJR1300A Manuel utilisateur
