KTI Networks KS-324F Manuel utilisateur

Installation Guide

24-port 10/100 Fast Ethernet Switch

with 1 Fiber Connection

Model Name: KS-324F

We make no warranties with respect to this documentation and disclaim any implied warranties of

merchantability, quality, or fitness for any particular purpose. The information in this document is subject to

change without notice. We reserve the right to make revisions to this publication without obligation to notify any

person or entity of any such changes.

Trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective

companies.

Contents

1. Introduction

1.1 Package Contents

2. Where to Place the 24port Switch

3. Configure The Network Connection

3.1 Connecting Devices to the 24port Switch

3.2 Connecting to Another Ethernet Switch/Hub

3.3 Application

4. For 100BaseFX Connection

4.1 Adding 100BaseFX Module

5. LED Conditions Definition

5.1 LEDs Defined

6. Configure from Console

6.1 Hardware Setting for console

6.2 Operation in Console

Appendix A -Product Specifications

Appendix B -Cable Specifications

Appendix C -Electro-magnetic and Safety Compliances

Appendix D -Warranty

P/N: 17000084

1. Introduction

This 24port Switch is a 24-port 10/100Mbps Fast Ethernet switch. This switch

supports the advanced features for current switch design. This switch can auto

detect the 10/100Mbps speed, full/half duplex mode and MDI/MDI-X

connection. These features provide user the simplest way to complete the

network connection.

There is a console port on the switch. You can configure the switch from the

console for VLAN setting, port setting and priority setting. Port 24 could be a

TP port or FX port and a FX module port is reserved for 100BaseFX expansion.

This 24port Switch also supports CoS function for advanced network

application. This switch supports 2 priority transmit queues per port and long

Ethernet packet up to 1536 bytes for tagged packets.

1.1 Package Contents

lOne 24port Smart Switch

lOne AC power cord

lOne console cable

lTwo rack-mount kits and screws

lThis user's guide

19X7X 15X3X 13X

14X

2X 16X

17X

18X4X

6X 20X

21X

10X

11X

22X12X

TX RX

100BaseFX

RXTX

24X

23X

19X7X 15X3X 13X

14X

2X 16X

17X

18X4X

6X 20X

21X

10X

11X

22X12X TX RX

100BaseFX

24X

23X

Module Not Added

Module Added (TX Port 24 will be disabled)

2. Where To Place the 24port Switch

This 24port Switch can be placed on a flat surface (your desk, shelf or table).

Place the 24port Switch at a location with these connection considerations in

mind:

lThe switch configuration does not break the rules as specified in Section 3.

lThe switch is accessible and cables can be connected easily to it.

lThe cables connected to the switch are away from sources of electrical

interference such as radio, computer monitor, and light fixtures.

lThere is sufficient space surrounding the switch to allow for proper

ventilation (the switch may not function according to specifications beyond

the temperature range of 0 to 50 degrees C).

You can also install this 24port switch on a 19" rack with the rack-mount kits

as the picture.

3. Configure the Network Connection

3.1 Connecting Devices to the 24port Switch

[ Connection Guidelines: ]

lUse Category 3 or 5 twisted-pair Ethernet cable when connecting 10BaseT

devices to the switch (cable pin assignments defined in Appendix A)

lUse Category 5 (straight-through) twisted-pair Ethernet cable when

connecting 100BaseTX devices to the switch (cable specifications are defined

in Appendix B)

lAlways limit the cable distance to 100 meters (328 ft) as defined by IEEE

specification

lIf your switch has a FX port, you can connect long distance fiber optic cable

to the switch.

lBecause this switch supports Auto MDI/MDI-Xdetection, you can use normal

straight through cable for both workstation connection and hub/switch

cascading.

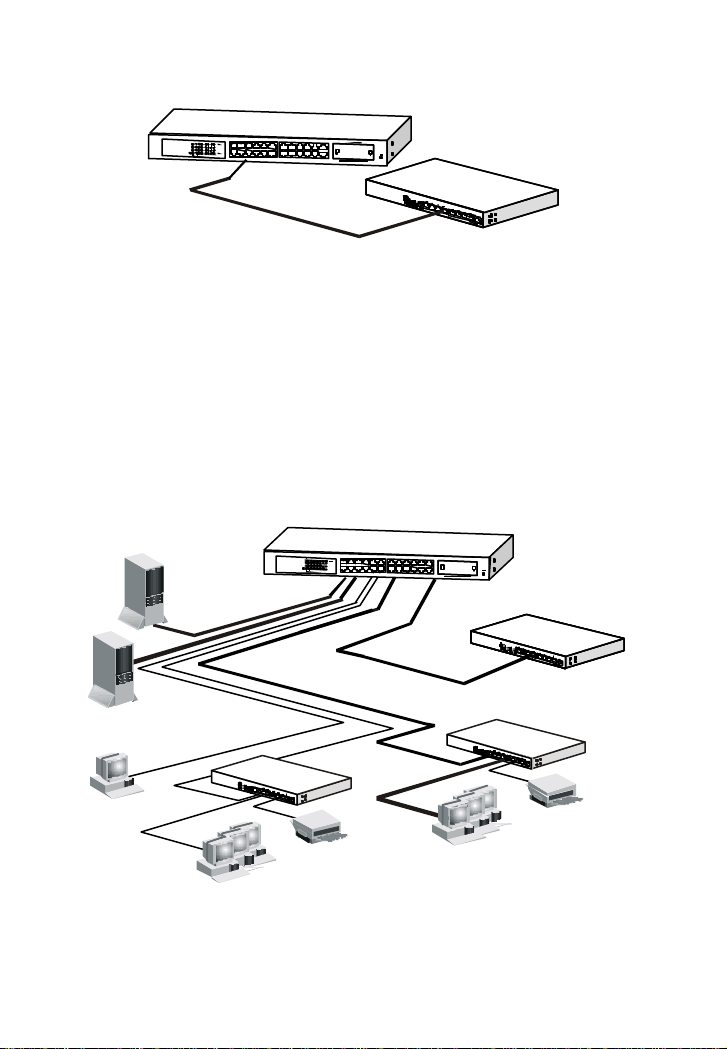

3.2 Connecting to Another Ethernet Switch/Hub

This 24port Switch can be connected to existing 10 Mbps or 100 Mbps

hubs/switches. Because all the TP ports on the 24port Switch are Auto

MDI/MDI-X, you can connect from any TP port of the 24port Switch to the

MDI or MDI-X port of another hub/switch with Straight Through or crossover

cables.

100BASETX:

Cat-5 Twisted-pair cable

Max. 100m (328) 10BASET:

Cat-3,4,5 Twisted-pair cable

Max. 100m (328) PC

FS feet)

feet)

3.3 Application

A switch can be used to overcome the hub to hub connectivity limitations as

well as improve overall network performance. Switches make intelligent

decisions about where to send network traffic based on the destination address of

the packet. As a result, the switch can significantly reduce unnecessary traffic.

The example below demonstrates the switch ability to segment the network.

The number of nodes on each segment is reduced thereby minimizing network

contention (collisions) and boosting the available bandwidth per port.

TO:MDI or MDI-X port

Max. 100m (328

)feet)

Workgroup

Power User

Workgroup

FS Hub/Switch

Hub/Switch

Another Ethernet

Switch

4. For 100BaseFX Connection

4.1 Adding 100BaseFX Module

This 24port switch has a module port for 100BaseFX connection extension.

You can add a 100BaseFX module to the switch and this switch gets a

100BaseFX port for long distance fiber optic cable connection. But when this

module is added, the 24th TP port will be disable and this FX port become the

24th port.

Please follow the steps to add the module to the switch.

1. Turn off the switch.

2. Loosen the screws of the blank cover and remove the cover from the module

port of the switch.

3. Slide in the module into the module port.

4. Tighten the screws of the module to the switch.

5. Connect the fiber optic cable to the FX port of the module.

6. Power on the switch.

7. Refer to Section 6 to configure Port 24 to [Auto-Disable, 100Mbps, Full

Duplex] for 100BaseFX connection from console.

Module Port

5. LEDs Conditions Definition

5.1 LEDs Defined

The LEDs provide useful information about the switch and the status of all

individual ports.

LED STATUS CONDITION

Power ON Switch is receiving power.

ON Port has established a valid link.

Flashing Data packets being received or sent.

Green The connection speed is 100Mbps.

Link / Act

Yellow The connection speed is 10Mbps.

ON The connection is Full Duplex.

FDX / Col

Flashing Packet collisions occurring. A low level of

collision is a part of normal Ethernet Operation.
