KRUG+PRIESTER EBA 4855 Manuel utilisateur
EN Operating Instructions
Guillotines
www.eba.de

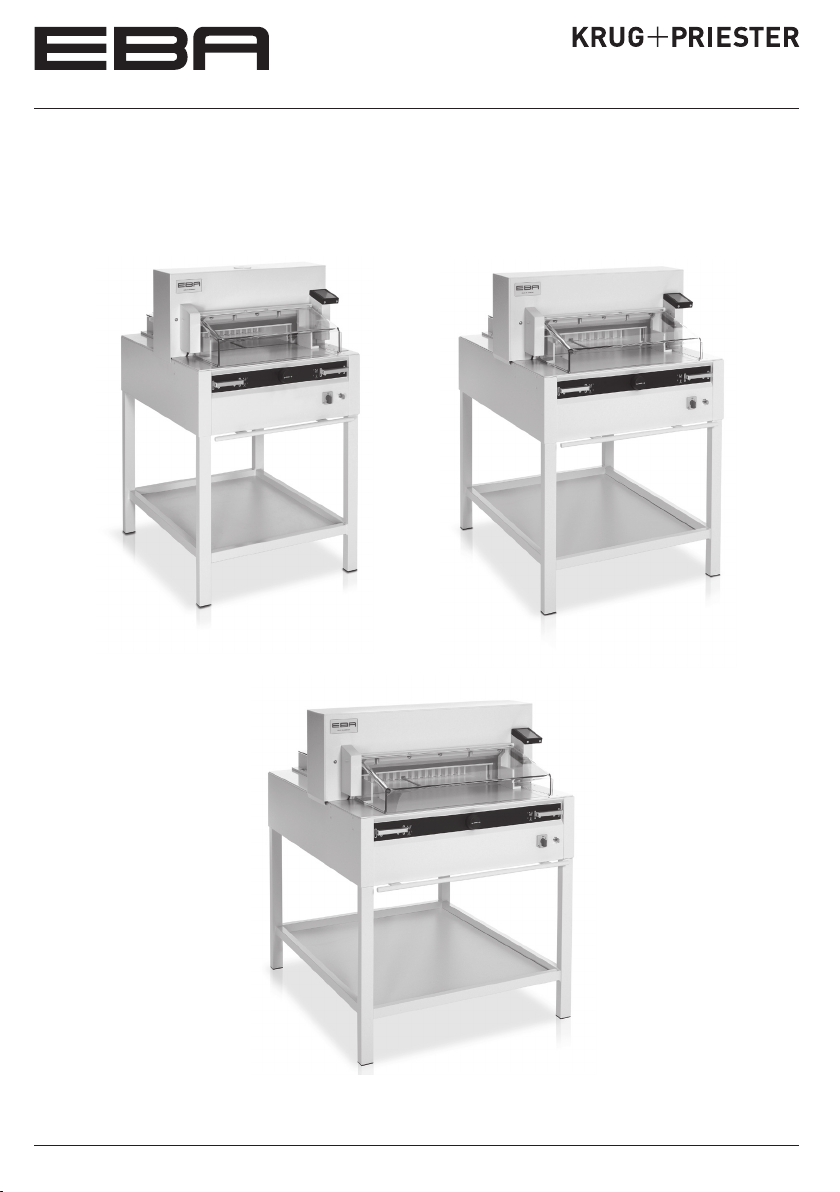

EBA 4855 EBA 5255
EBA 6655
- 2 -
Table of Contents
Safety precautions 3
Intended use 4
Operating elements 5
Installation 10
Startup 12
Operation 15
Blade and cutting stick replacement 26
Maintenance and cleaning 35
Annual inspection / Safety test 36
Possible malfunctions 37
Accessories 42
Technical data 43
EC-declaration of conformity 46
- 3 -

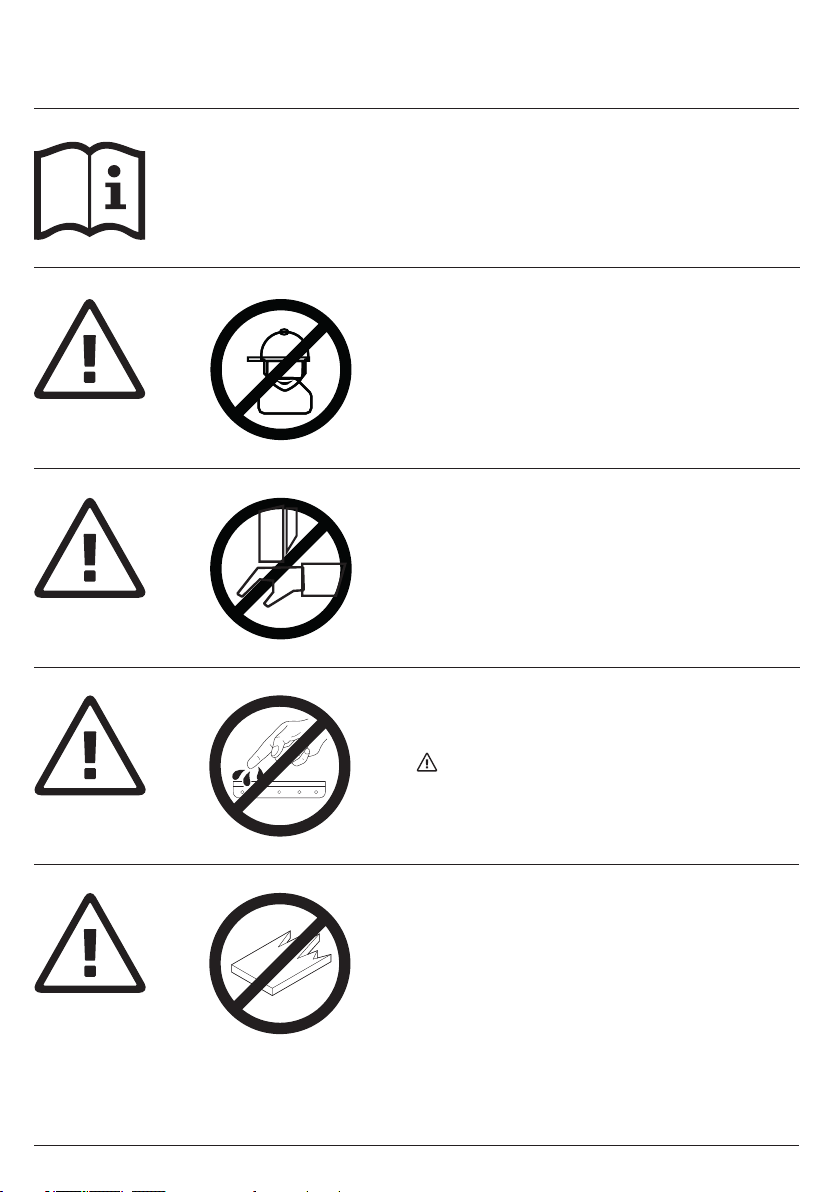

Safety precautions
Please read these operating instructions before putting the machine into
operation and observe the safety precautions.
The operating instructions must always be available.
Children must not operate the machine!
Do not reach beneath the blade!
Never leave the blade unattended!
Do not extract or transport the blade without
protection! (See page 29 and 31).
Danger! Risk of injury!
Do not cut hard materials or materials which
may splinter!
- 4 -
Intended use
The machine is designed for cutting stacks of
paper to a specied size.
This machine is constructed for "one-man
operation" only!
Warning! Clips or similar damage the
cutting blade.
Safety precautions / Intended use

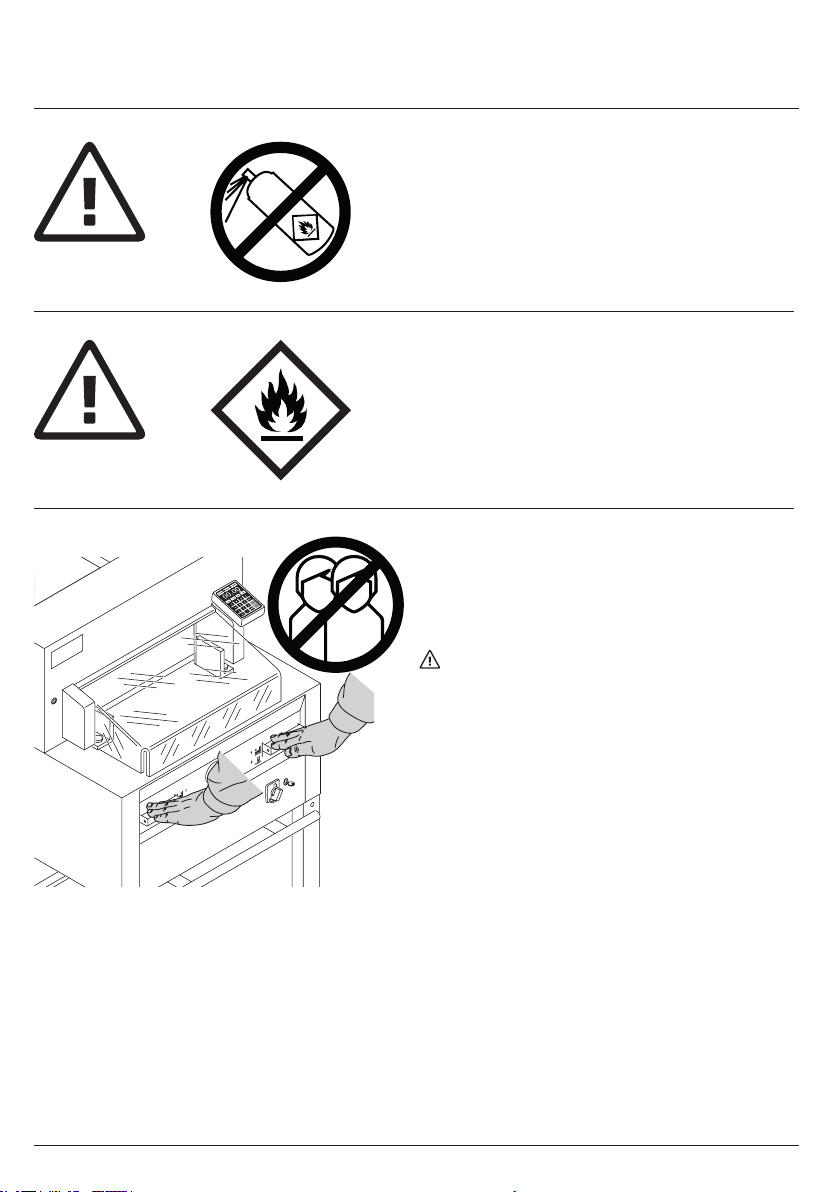

Do not use any spray cans with flammable
content near to the cutting machine!
Do not use any flammable cleaning agents.
- 5 -
1
6
4
5
7
2
1
3
9
8
8
Disconnect from the mains before starting any
service work or before removing the panels!
Replacement of blade and cutting stick may
be performed only when the main switch is
switched off!
Operating elements
ASafety two-handed control system
Pre-clamping and cutting
BOverload switch (blade drive/clamp drive/
backgauge drive)
CBackgauge control
DMain switch
EHand-wheel for backgauge setting
FKey switch
GBackgauge
HSide lay left and right
IFront safety guard
Safety precautions / Operating elements
- 6 -
AA
A
C
C
A
B

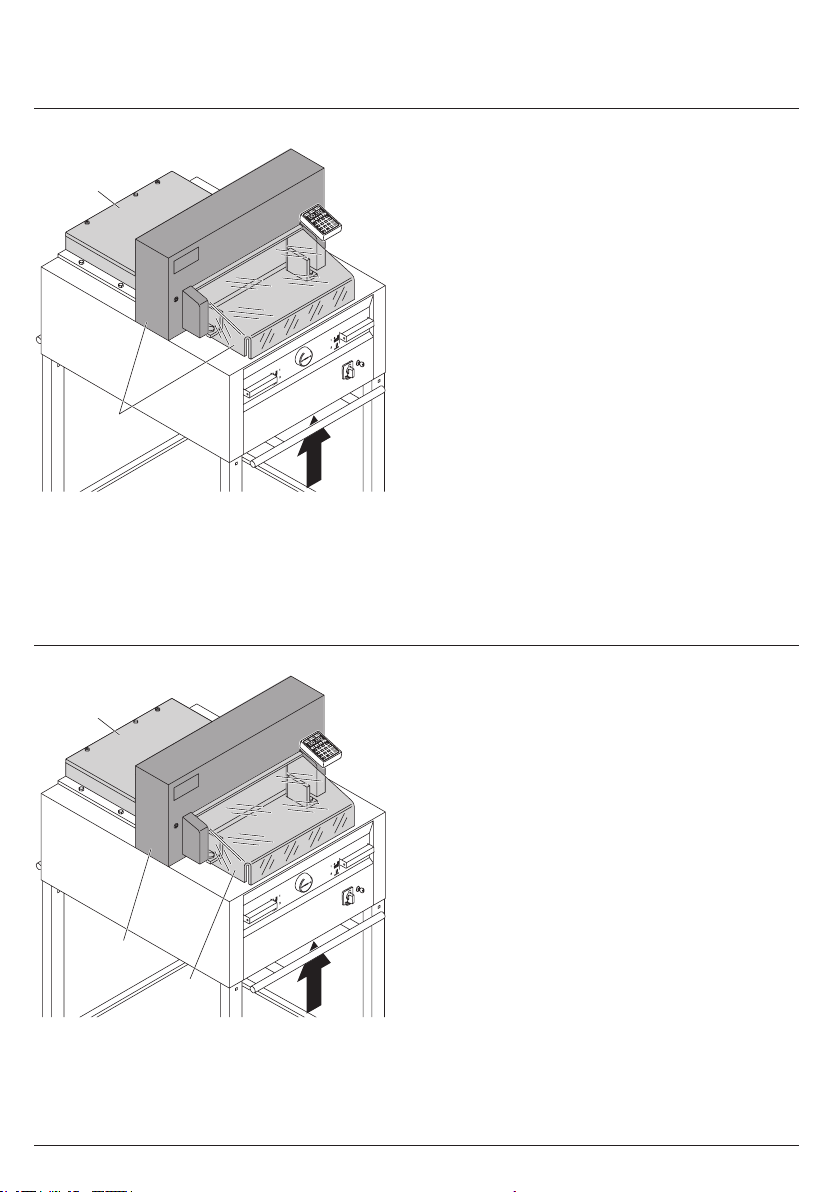

All components which could endanger the
operator are covered by a guard!
Operating the machine without safety device is
forbidden!
(Front safety guard (A), rear screwed safety
guard (B) and panel (C).
Safety precautions
- 7 -
AB
A
C
B

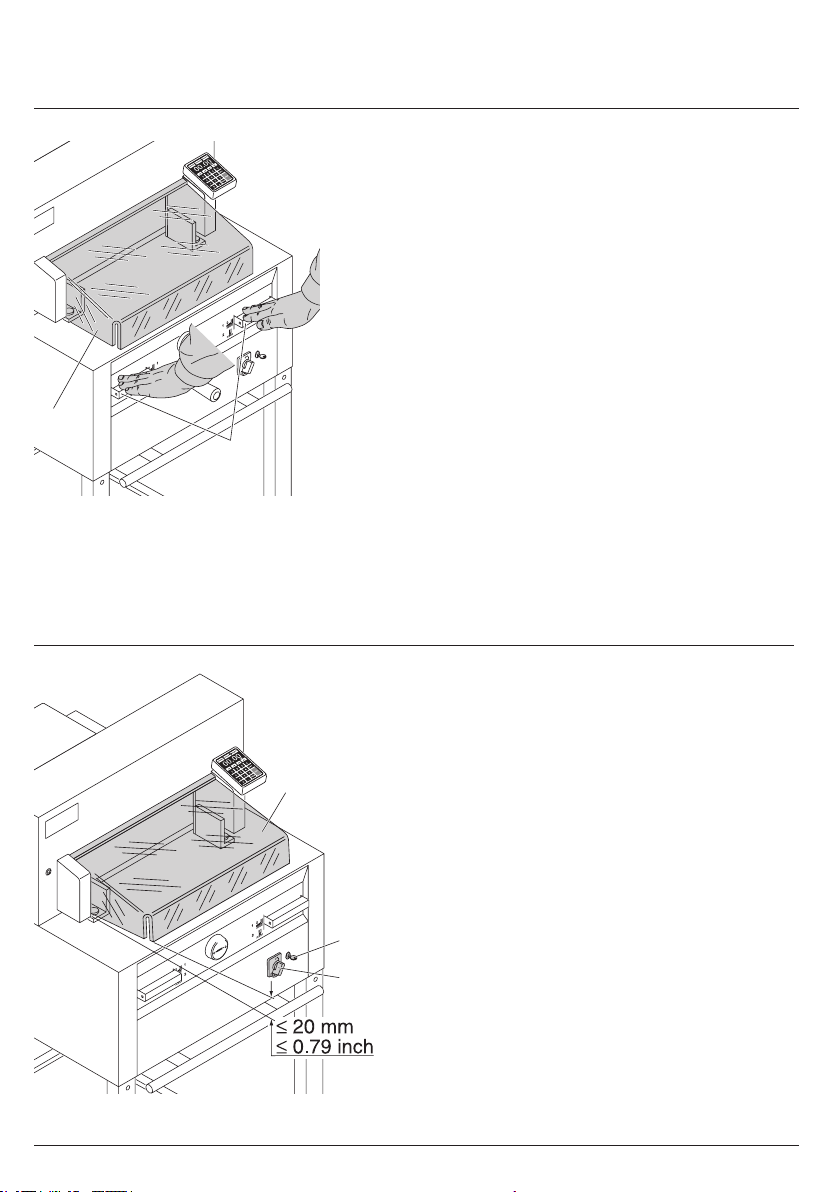

The dangerous cutting movement is
safeguarded by a movable guard (A) and a
safety two-handed control system! (B)
Before working with the machine and after
every blade replacement the automatic cut-off
function of safety guard (A),(correct if distance
between cover and table is < 20 mm) main
switch (B) and control panel (C) must be
checked.
Safety precautions
- 8 -

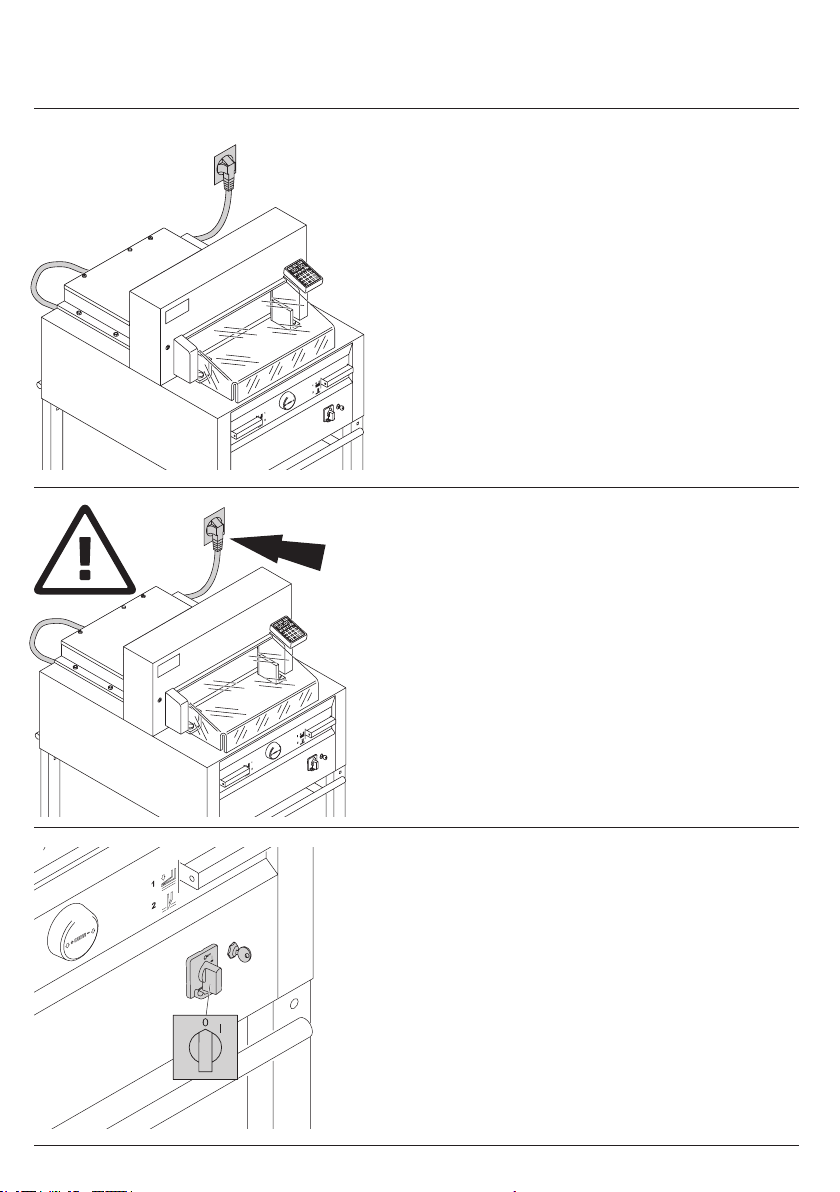

230V / 10A min
115V / 15A min
Connect the power cord to a single phase
socket.
Ensure free access to mains!
When not in use for a longer period switch off.
(Main switch to "0").
Safety precautions
- 9 -

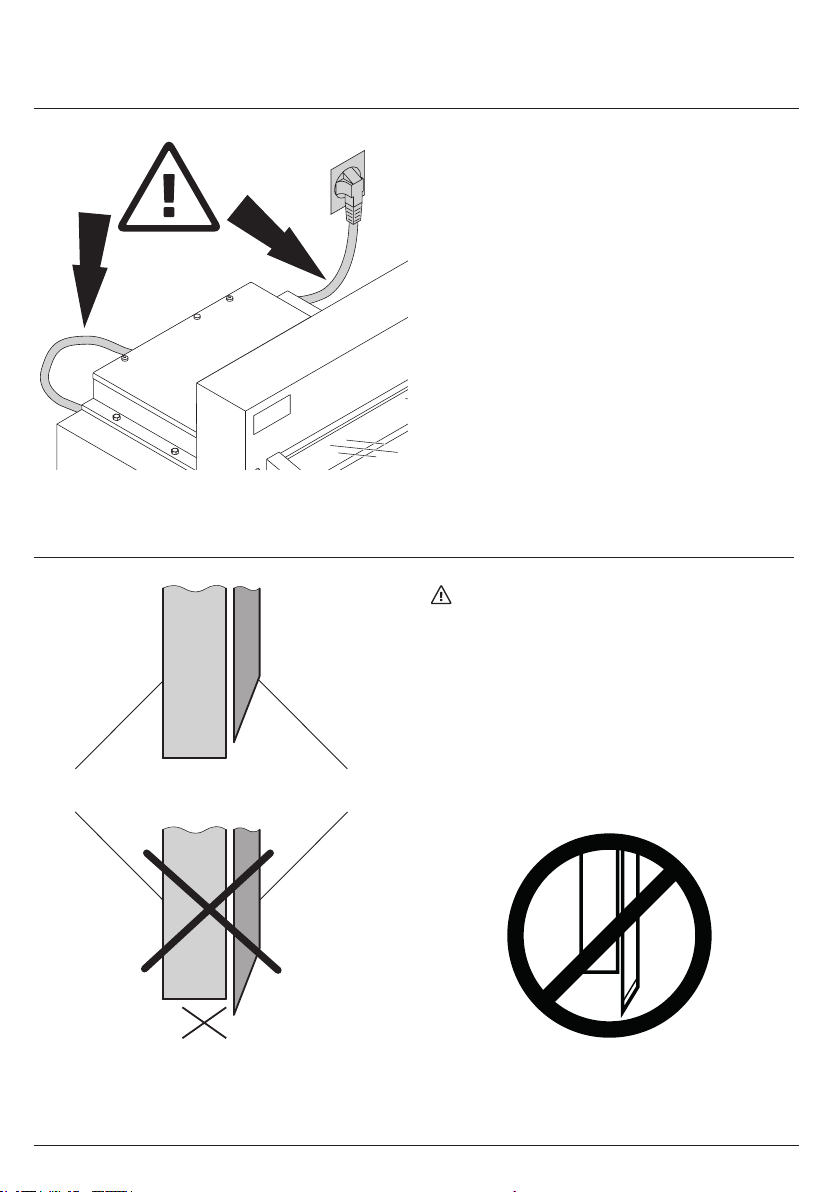

Danger!
Blade must always be covered by the
pressing bar.
Protect mains cable against heat, oil and
sharp edges!
Clamping Blade
OK
OK
Safety precautions
- 10 -

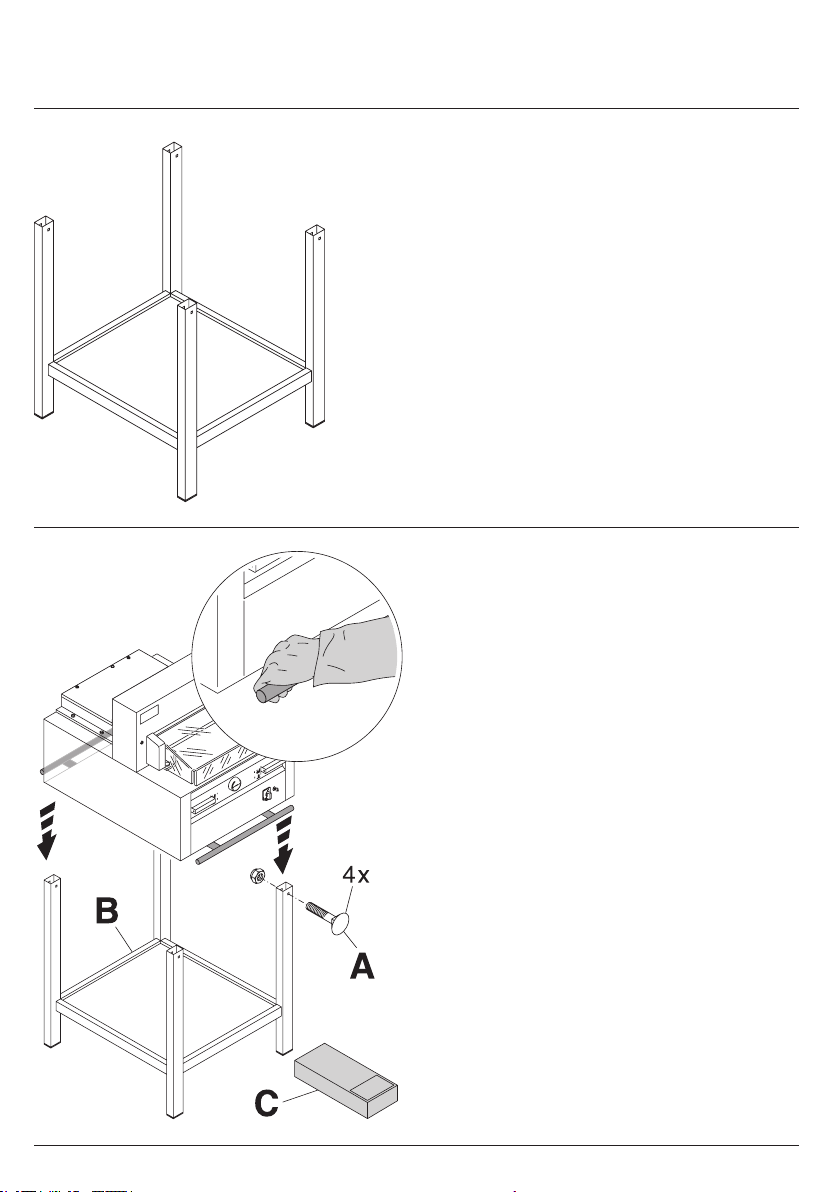

Remove the stand from the wooden pallet.
4 strong people are required to lift the machine
from the pallet and place it on the stand.
Secure with 4 screws (A). Put the shelf (B) on
the stand. (Parts and tools are in the tool set
(C).
Installation
