KROHNE OPTIBAR PSM 1010 Manuel utilisateur

Quick Start

For initial set up, we strongly recommend that you also refer to the relevant manual!

02/2021 – 4008249202 - QS OPTIBAR PSM 1010/2010 R02 en

Connections acc. to DIN 3852

OPTIBAR PSM 1010 / 2010

Electronic pressure switch

Installation, assembly, start-up and maintenance may only be performed by appropriately trained

personnel.

This instrument complies with the requirements of Pressure Equipment Directive. Please refer to the

nameplate for operating condition limits. Instruments must not be pressurised before reading instructions

described in the manual.

This instrument complies with requirements of Low Voltage Directive. Instruments must not be connected

to power supply before reading instructions described in the manual.

The responsibility as to the suitability, intended use and corrosion resistance of the used materials against

the measured fluid of this device rests solely with the operator.

For complete documentation (manuals, supplementary manuals, data sheets and certificates) please refer

to www.krohne.com/Downloads.

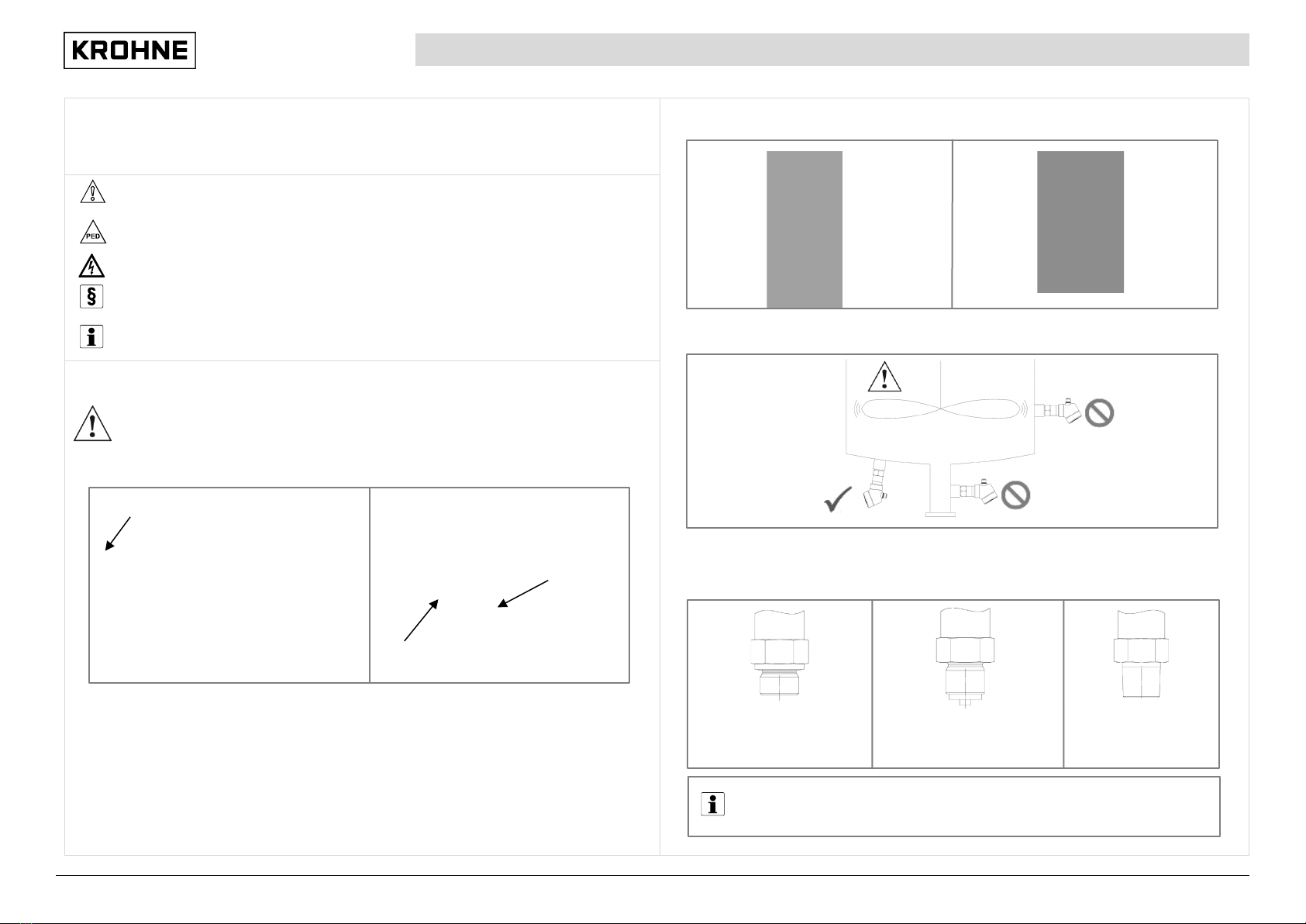

1 Installation

Steam vertical

Steam horizontal

Liquid

Gas

Level

Keep distance

Process Connections

G1/4”: ~ 5 Nm

G1/2”: ~ 10 Nm

G1/4”: ~ 20 Nm

G1/2”: ~ 50 Nm

1/4” NPT: ~ 30 Nm

1/2” NPT: ~ 70 Nm

min. 5°

max. 85°

min. 20°

NOTE!

For hygienic process connections, please refer to corresponding standard and

supplementary manual!

Connections acc. to EN 837

NPT connections

WARNING!

Install the device only when depressurized and without power!

02/2021 – 4008249202 - QS OPTIBAR PSM 1010/2010 R02 en

2 Electrical connection

Elektrical connection

Description

M12x1 (4-pin)

Supply +

Supply -

Signal 1

IO-Link / PNP / NPN

switchable (SIO)

Signal 2

PNP / NPN / 4…20 mA /

0…10 V switchable

Shielding

Pressure-port

3. Quick Setup

Key

Description

Function

▲Short press Skip through menu 1-5

Long press Count up parameter values quickly

◀

Short press

Select option within one menu

Long press

Save adjusted value and jump

pack to current menu

▲+ ◀

Press both

simultaneously Jump back to indication

Meas.

▲

Menu A

◀

Menu B

Adjustment

SP1 I FH1

Switch-on point 1 (SP1)

Upper pressure threshold 1 (FH1)

rP1 I FL1

Switch-off point 1 (rP1)

Lower pressure threshold 1 (FL1)

SP2 I FH2

Switch-on point 2 (SP2)

Upper pressure threshold 2 (FH2)

rP2 I FL2

Switch-off point 2 (rP2)

Lower pressure threshold 2 (FL2)

ASt2 I AEn2

Analog output 2:

Zero (+/- 5%) and Span (90-100%)

ou1

Switch-output 1: Select function

ou2

Switch-output 2: Select function

Uni

Select pressure unit

Contact

To view all KROHNE locations and contact details visit:

www.krohne.com

Then “Select your country“ from the drop down list at the

top left of the page

The following table shows an extract of the adjustment possibilities. For further options, please

refer to the manual.

Gefahr!

Die Arbeit am elektrischen Anschluss darf nur bei getrennter Spannungsversorgung

durchgeführt werden.

Beachten Sie die Angaben zur Versorgungsspannung auf dem Typenschild.

Beachten sie die national gültigen Richtlinien für elektrische Installationen.

Supply -

Signal 2

IO-Link Master

Supply +

IO-Link Master

3-wire system / Configuration switch output

Signal 1: IO-Link or switch output

Signal 2: Switch ouput

3-wire-system / Configuration analog output

Signal 1: IO-Link or switch output

Signal 2: Analog output

A/V

Signal 1
