KROHNE Optisonic 6300 P Manuel utilisateur
For initial set up, we strongly recommend that you also refer to the relevant manual!
System Configuration
Diameter range and rail versions 100…240 VAC (Vnom), 50...60 Hz
12 VDC, 2.33 A, Pmax 28 W
A - B
1 2 Sensor cable connections
3I/O connections
Small
Medium
4
Mains supply connection
Medium
Large
12/2021 - 4009151901 - OPTISONIC 6300 P R01 en 1 2
before every use
DN200…2000 / 8…80"
DN50…250 / 2…10"
DN200...4000 / 8...160"
DN15…50 / 0.5…2"
W-mode
V-mode Z-mode
V-mode
1 rail
2 rails
Channel (A-B) 1 / 2 path measurement
General
Ta = -10…+45°C / +14…+113°F
Maximum ambient and process temperatures
are depending on version (e.g liner material,
size), temperature and protection class
and maximum surface temperature of sensor.
Check the device nameplate to ensure that the device is
delivered according to your order.
The responsibility as to the suitability, intended use and corrosion resistance of the used materials against the
measured fluid of this device rests solely with the operator.
1 Electrical connection
This device cannot be used in Hazardous Locations or Explosive Gas Atmospheres! All work on the electrical connections may only be carried out with the power disconnected. Take note of
the voltage data on the nameplate! Observe the national regulations for electrical installations!
Observe without fail the local occupational health and safety regulations. Any work done on the electrical
components of the measuring device may only be carried out by properly trained specialists.
Charge the battery of the signal converter completely before using.
Check for damage
Quick Start
Quick Start
OPTISONIC 6300 P General Device nameplate
Portable ultrasonic clamp-on flowmeter for liquids
Installation, assembly, start-up and maintenance may only be performed by appropriately trained personnel.
Check the nameplate for correct operating conditions.
This instrument complies with requirements of Low Voltage Directive. Instruments must not be connected to
power supply before reading instructions described in the manual.
Tp = -40...+120°C / -40...+248°F
12V DC Power adaptor (charger), mains
supply data:
Electrical connections signal converter
120 °
12/2021 - 4009151901 - OPTISONIC 6300 P R01 en 3 4
Choose the applicable measuring mode
Choose sensor size
Check the manual for more details on installation options (e.g. Large version installation)
Change the position of the transducer
43
5Complete the settings using the Installation wizard.
1 2
Check the manual for more details on installation options
Installation position
Pump, control valve - open feed / discharge

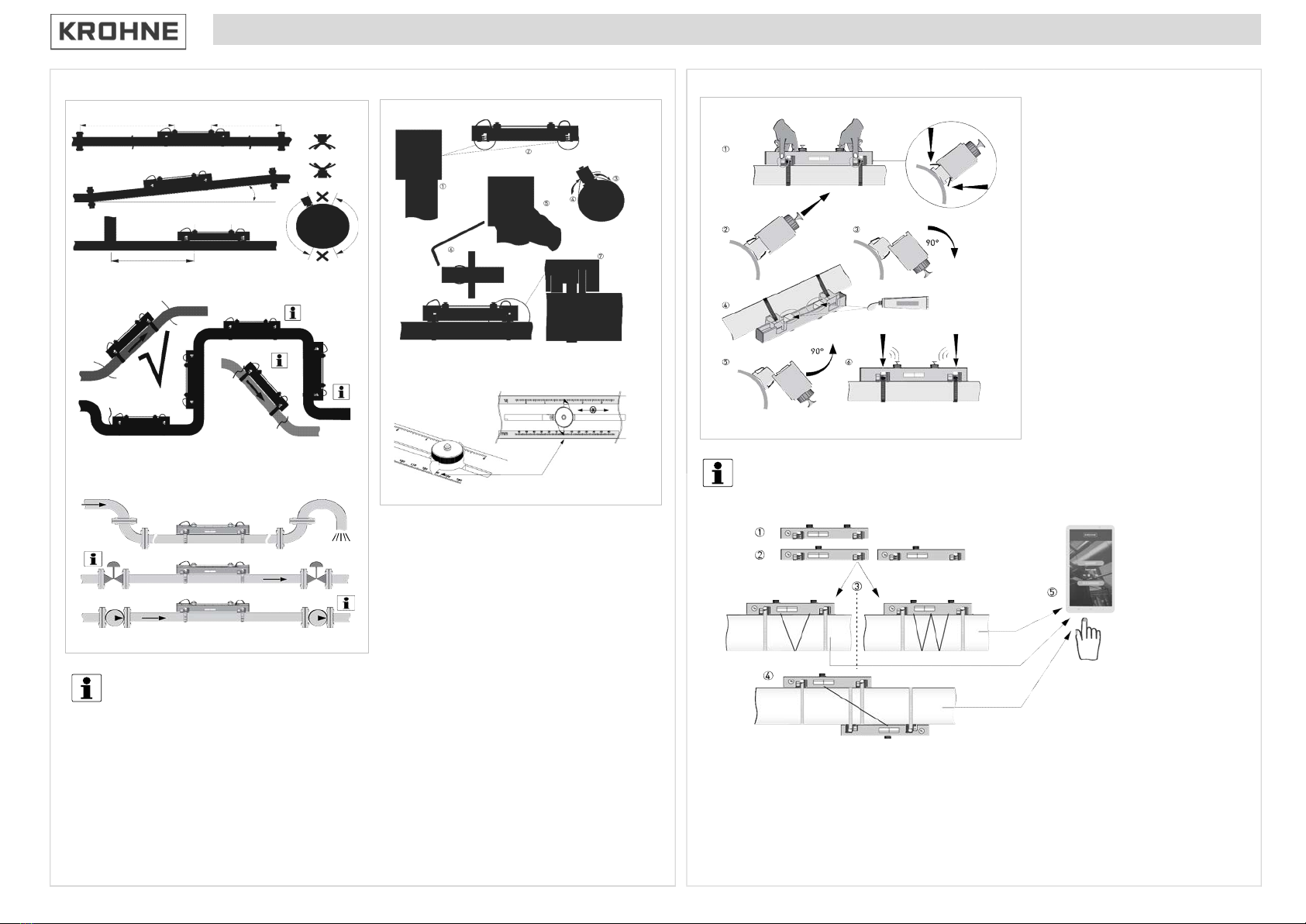

2 Installation General installation of the rails Greasing the transducer surfaces
12/2021 - 4009151901 - OPTISONIC 6300 P R01 en 5 6
Charge the battery of the signal converter before first use and download and install the mobile application that is
necessary to configure your measuring application.
After downloading the application, make sure to adjust and set the following parameters on your mobile device:
● go to "Settings" / Wireless and networking / Tethering
● switch on Bluetooth Tethering
● set mobile connections to “Bluetooth”
Press the "On/Off button of the UFC 300 P converter for approximately 3 seconds to initialise the converter and
establish connection with your device.
3 Quick Setup
Charging indication and battery status
Indication of data exchange and connection
On/Off button and status LED
● choose "Go to dashboard"
to select logging features or a
previous saved log-file
● For more information and options go to
"Dashboard"
● select "Measurements"
to set or display measurement
Download and install the mobile application on your device.
In case Bluetooth operation is not used, you can choose for the wired USB connection.
Connect the I/O cable with USB to the Android mobile or tablet to maintain communication.
each
choose "Installation wizard"
and follow up with the spe
screen
Observe connection polarity
Pulse/frequency output passive Pp (basic I/O)
www.krohne.com
12/2021 - 4009151901 - OPTISONIC 6300 P R01 en 7 8
Temperature sensor 2
Screw terminal pin Standard I/O box I/O box with heat energy option
Status output X-
Current output C+
Current output C
Current output C-
10
11
12
13
14
15
Frequency / pulse output D
Current output C+
Current output C
Frequency / pulse output D-
Status output X
Status output X-
Current output active Ia (basic I/O)
Current input A+
Current input A-
Current input B+ Temperature sensor 1
Not connected
Not connected
Status output/limit switch passive Sp (basic I/O)
Current output C-
Download documents/software
Contact
Scan the code on the nameplate or scan the
following code and enter the serial number.
Select your country from the region / language selector to view
your local KROHNE contact details on:
Pulse/frequency output active Pa (modular I/O)
Current output passive Ip (basic I/O) Current input active IIna
1
2
3
4
5
6
7
8
9
Frequency / pulse output D
Frequency / pulse output D-
Status output X
Current input B-
Not connected
Not connected
Connection diagram Installation for energy measurement
