KROHNE OPTIMASS 3400 Manuel utilisateur

For initial set up, we strongly recommend that you also refer to the relevant manual!

Quick Start

Installation, assembly, start-up and maintenance may only be performed by appropriately

trained personnel. Check the nameplate for correct operating conditions.

For use in hazardous areas, special codes and regulations are applicable. Instruments must

not be connected to power supply before reading instructions described in the supplementary

manual.

This instrument complies with the requirements of the Pressure Equipment Directive. Please

refer to the nameplate for operating condition limits. Instruments must not be pressurised

before reading instructions described in the manual.

This instrument complies with the requirements of the Low Voltage Directive. Instruments must

not be connected to the power supply before reading the instructions described in the manual.

For devices used in SIL applications, additional safety notes apply. For detailed information

refer to the “Safety Manual”.

The responsibility as to the suitability, intended use and corrosion resistance of the used

materials against the measured ﬂuid of this device rests solely with the operator.

For complete documentation (manuals, supplementary manuals, data sheets and certiﬁcates)

please refer to www.krohne.com/Downloads.

1 Installation

Quick Start

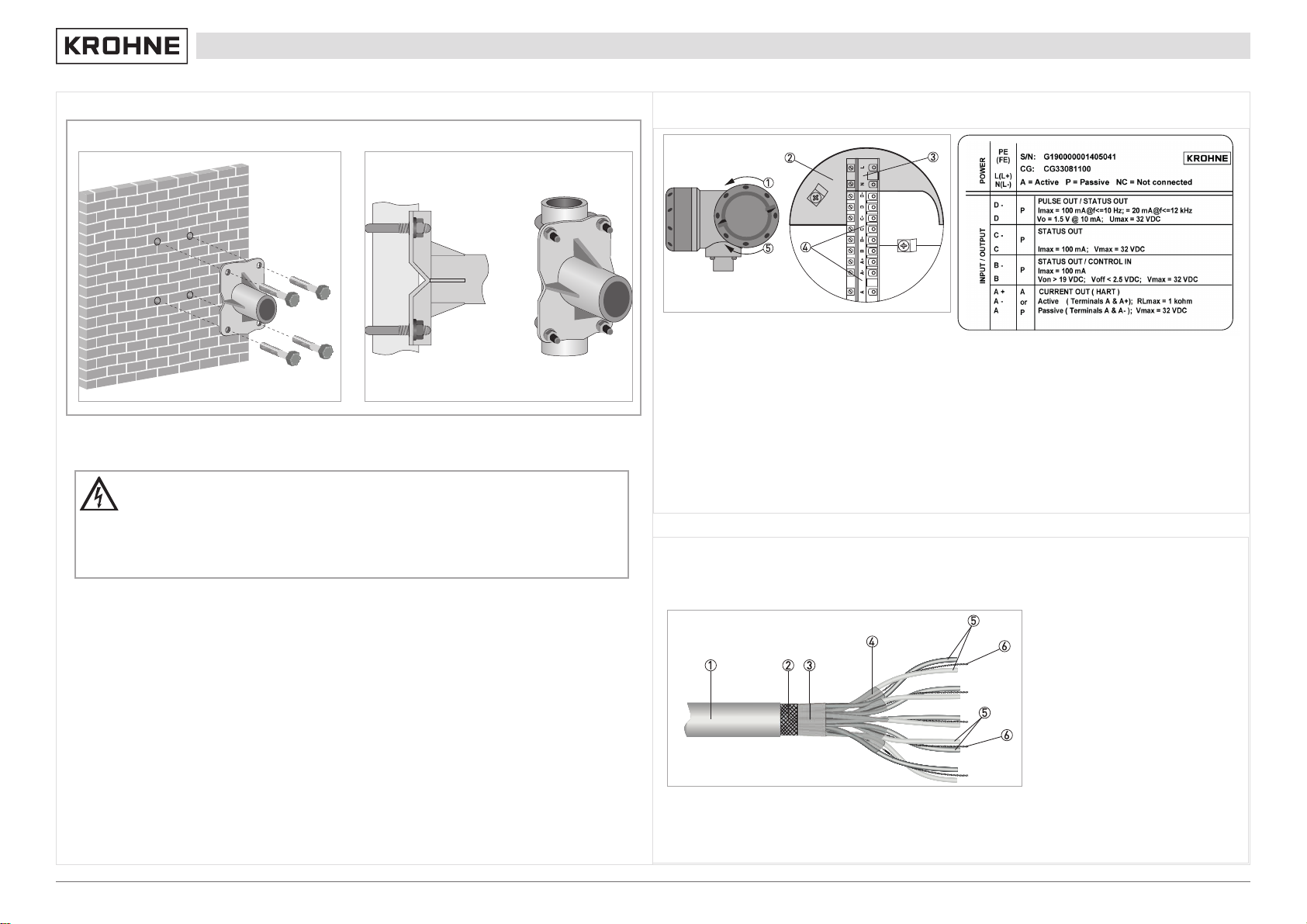

Four hole mounting Two hole mounting

All connections

Handling the meter

Supporting the meter

Mounting positions

Self draining

Special conditions of use to be observed

• The OPTIMASS measuring system and MFC converter must be included in the equipoten-

tial bonding system of any hazardous area installation.

• Allow the electronics to de-energise before opening the electronics enclosure inside a

hazardous area. The time needed to de-energise is 35 minutes for temp. class T6 and 10

minutes for Temp. class T5. There is no waiting time for Temp. class T1

• Use certiﬁed cable glands on cable entries. Use a certiﬁed plug to seal unused cable

entries.

• Install connecting cables as ﬁxed wiring so that they are protected against damage.

Connecting cables must not exceed the parameters speciﬁed in the Supplementary

Instructions for Hazardous Areas.

• For details on the relationship between: maximum permissible ambient temperature, maxi-

mum medium temperature, maximum surface temperature and the relevant temperature

class for each individual meter, please refer to the tables provided in the relevant meter

Handbook and/or the Supplementary Instructions for Hazardous Areas.

If the meter needs to be self draining, mount the

meter vertically and at the correct angle of rotation.

Please refer to the table below for the required angle.

Meter size 01 03 04

Angle of rotation 7° 13° 13°

17°of clockwise rotation

213°of clockwise rotation

03/2020 - 4008139501 - QS-OPTIMASS-3400-R01-fr

OPTIMASS 3400

Single, Z-tube mass ﬂowmeter

Danger:

• Turn oﬀthe power supply before working on electrical connections.

• Check the voltage data on the nameplate

• Observe national regulations for electrical installations

• The device MUST be grounded in accordance with regulations to protect personnel

against electric shock

2 Electrical connections

Compact

Procedure

1. Unscrew the housing cover 1

2. Open the touch guard 2

3. Put the electrical cable through the related

cable gland

4. Connect the electrical wires 3

5. Close the touch guard 2

6. Put the signal cable/s through the related cable

gland/s

7. Connect the signal cables 4

8. Replace the housing cover and tighten it with

your hand 5.

Remote

The label (above) on the inside of the terminal

compartment lid, gives information about out-

put connections.

Signal cable preparation

The signal cable is made up of ﬁve (twisted) pairs of cables. Each pair also has a drain wire and the

three wires are covered in a foil wrap. The ﬁve cable pairs are covered in an outer foil wrap and a braided

screen. The complete cable is protected by a PVC outer sheath

1Outer Sheath

2Braided screen

3Outer foil wrap

4Foil wrap

5Cable pairs

6Drain wires

Strip back all the foil wraps and discard them. Unwrap the braided screen so that it can be twisted to form

a connection underneath the earth clamp. Bend all ﬁve drain wires back and twist them together with the

braided screen.

It is important that ALL ﬁve drain wiresAND the braided screen form part of the shielding.

MFC 400 Remote

Wall mount Field mount

03/2020 - 4008139501 - QS-OPTIMASS-3400-R01-fr

Cable connections (sensor and converter)

Procedure

1 Unscrew the housing cover 1

2 Put the electrical cable/s through the related

cable gland/s 4

3 Connect the conductors 2

4 Run the twisted sink wires and the braided

screen under the earth clamp 3

5 Fix the clamp in place using the two screws

6 Tighten the cable gland/s 4

7 Replace the housing cover and tighten it with

your hand 5

1Signal converter

2Flow sensor

3Cable shielding

Shielding

Display

Converter keys

3 Quick setup

1Display (ER1.0.x shown)

2Optical operating keys

Procedure:

Touch the glass directly in front of the optical operating keys to access menus.

If the optical keys are not used for a period of 5 minutes, the display will return to the measuring

mode.

Zero calibration

ER 1.0.x ER 2.x.x

The menus shown below are only for the quick setup of the meter. For a complete list of menus please

refer to the relevant converter Handbook.

The quick setup menus shown here are for electronic revision (ER)1.x and electronic revision (ER) 2.x.x

If you are not sure which electronics revision is installed on the converter, please check the nameplate.

Details of standard HART menus are shown in the converter Handbook. For information regarding

menu structures for additional communication protocols, please refer to the relevant Supplementary

Instructions.

Key Measuring mode Menu mode Submenu or function mode Parameter and data mode

Switch from measuring mode to menu

mode. Press Optical key for 2.5s display

shows “A0.0.0.0 Quick Setup”

Access to display menu, and

then 1st submenu is displayed. Access to displayed submenu

or function For numerical values, move

cursor (highlighted in blue) one

position to the right

Reset display. "Quick Access" functionReturn to measuring mode Press 1 to 3 times, return to

menu mode, data saved Return to submenu or function,

data saved

Switch between display pages: measured

value 1 + 2, trend page and status page Select menu Select submenu or function Use cursor to change number,

unit, property and to move the

decimal point



Return to menu mode without

acceptance of data Return to submenu or function

without acceptance of data

Esc ][ +

Key Screen Description and setting

A Quick Setup Press and hold for 2.5 s,

then release key

2 x C Setup

3 x C1.1.1 Zero Calibration

Calibrate Zero?

Automatic

Please wait

Countdown from 40s

Calibrate zero

Passed

Zero Calibration

+XX.XXX% Display of measured zero

calibration in %

5 x Save Conﬁguration?

Yes

Display page

Key Screen Description and setting

A0.0.0 Quick Setup Press and hold for 2.5 s,

then release key

2 x C0.0.0 Setup

3 x C1.1.1 Zero Calibration

Calibrate Zero?

Automatic

Please wait

Countdown from 40s

Calibrate zero

Passed

Zero Calibration

+XX.XXX% Display of measured zero

calibration in %

5 x Save Conﬁguration?

Yes

Display page

03/2020 - 4008139501 - QS-OPTIMASS-3400-R01-fr

Contact

To view all KROHNE locations and contact

details visit:

www.krohne.com

Then “Select your country“ from the drop down

list at the top left of the page

Quick setup menu

Measuring mode Select Menu Select menu and/or submenu Select function & set data

Press for 2.5 s

A Quick Setup A1 Language

A2 Tag

A3 Reset A3.1 Reset Errors

A3.2 All Totalisers

A3.3 Totaliser 1

A3.4 Totaliser 2

A3.5 Totaliser 3

A4 Analogue Output A4.1 Measurement

A4.2 Units

A4.3 Range

A4.4 Low Flow Cutoﬀ

A4.5 Time Constant

A5 Digital Outputs A5.1 Measurement

A5.2 Pulse Value Unit

A5.3 Value p. Pulse

A5.4 Low Flow Cutoﬀ

A6 GDC IR Interface

A7 Flow Direction

A8 Zero Calibration

A9 Operation Mode

ER 1.0.x

Measuring mode Select Menu Select menu and/or submenu Select function & set data

Press for 2.5 s

A Quick Setup



A1.0.0 Language

A2 Reset A2.1.0 Reset Errors

A2.2.0 Stop all Simulations

A2.3.0 All Totalisers

A2.4.0 Totaliser 1

A2.5.0 Totaliser 2

A2.6.0 Totaliser 3

A3 Conﬁguration A3.1.0 Tag

A3.2.0 Measurement

A3.3.0 Range

A3.4.0 Alarm Code

A3.5.0 Low Flow Cutoﬀ

A3.6.0 Damping

A3.7.0 Terminals C Type

A3.8.0 Flow Direction

A4.0.0 Safety Mode

A5.0.0 SIL Veriﬁcation

A6.0.0 Unlock Device

A7.0.0 Calibrate Zero

A8.0.0 Operation Mode

ER 2.x.x

03/2020 - 4008139501 - QS-OPTIMASS-3400-R01-fr
