KROHNE OPTIFLUX 5000 Manuel utilisateur

Electromagnetic flowmeter in sandwich version

OPTIFLUX 5000

OPTIFLUX 5000OPTIFLUX 5000

OPTIFLUX 5000 Handbook

HandbookHandbook

Handbook

The documentation is only complete when used in combination with the relevant

documentation for the converter.

the prior written authorisation of KROHNE Messtechnik GmbH & Co. KG.

Subject to change without notice.

2 www.krohne.com 09/2009 - 4000686201-R01-SW-en

KROHNE Messtechnik GmbH & Co. KG - Ludwig-Krohne-Straße 5 - 47058 Duisburg

:IMPRINT ::::::::::::::::::::::::::::::::::

CONTENTS

www.krohne.com09/2009 - 4000686201-R01-SW-en

OPTIFLUX 5000

1 Safety instructions

1.1 Intended use ..................................................................................................................... 5

1.2 Safety instructions from the manufacturer ..................................................................... 5

1.2.1 Copyright and data protection ................................................................................................ 5

1.2.2 Disclaimer ............................................................................................................................... 5

1.2.3 Product liability and warranty ................................................................................................ 6

1.2.4 Information concerning the documentation........................................................................... 6

1.2.5 Warnings and symbols used................................................................................................... 7

1.3 Safety instructions for the operator................................................................................. 7

2 Device description 8

2.1 Scope of delivery............................................................................................................... 8

2.2 Nameplates ...................................................................................................................... 8

3 Installation 9

3.1 Notes on installation ........................................................................................................ 9

3.2 Storage ............................................................................................................................. 9

3.3 Transport .......................................................................................................................... 9

3.4 Installation conditions ....................................................................................................10

3.4.1 Inlet and outlet ...................................................................................................................... 10

3.4.2 Mounting position.................................................................................................................. 10

3.4.3 Flange deviation.................................................................................................................... 11

3.4.4 T-section ............................................................................................................................... 11

3.4.5 Vibration ................................................................................................................................ 11

3.4.6 Magnetic field........................................................................................................................ 12

3.4.7 Bends .................................................................................................................................... 12

3.4.8 Open discharge ..................................................................................................................... 13

3.4.9 Control valve ......................................................................................................................... 13

3.4.10 Air venting ........................................................................................................................... 13

3.4.11 Pump ................................................................................................................................... 14

3.5 Mounting ......................................................................................................................... 14

3.5.1 Torques and pressure........................................................................................................... 14

4 Electrical connections 16

4.1 Safety instructions.......................................................................................................... 16

4.2 Grounding ....................................................................................................................... 16

4.3 Virtual reference for IFC 300 (C, W and F version) ........................................................ 17

CONTENTS

4 www.krohne.com 09/2009 - 4000686201-R01-SW-en

OPTIFLUX 5000

5 Service 18

5.1 Spare parts availability...................................................................................................18

5.2 Availability of services .................................................................................................... 18

5.3 Returning the device to the manufacturer..................................................................... 18

5.3.1 General information.............................................................................................................. 18

5.3.2 Form (for copying) to accompany a returned device............................................................ 19

5.4 Disposal .......................................................................................................................... 19

6 Technical data 20

6.1 Measuring principle........................................................................................................20

6.2 Technical data................................................................................................................. 21

6.3 Dimensions and weights ................................................................................................ 26

SAFETY INSTRUCTIONS 1

OPTIFLUX 5000

www.krohne.com09/2009 - 4000686201-R01-SW-en

1.1 Intended use

The flow meter measures the volumetric flow rate of electrically conductive liquids, acids,

alkaline solutions, pastes and slurries, also with very high solid contents. It can be combined

with an IFC 100 or an IFC 300electromagnetic signal converter.

1.2 Safety instructions from the manufacturer

1.2.1 Copyright and data protection

The contents of this document have been created with great care. Nevertheless, we provide no

guarantee that the contents are correct, complete or up-to-date.

The contents and works in this document are subject to German copyright. Contributions from

third parties are identified as such. Reproduction, processing, dissemination and any type of use

beyond what is permitted under copyright requires written authorisation from the respective

author and/or the manufacturer.

The manufacturer tries always to observe the copyrights of others, and to draw on works created

in-house or works in the public domain.

The collection of personal data (such as names, street addresses or e-mail addresses) in the

manufacturer's documents is always on a voluntary basis whenever possible. Whenever

feasible, it is always possible to make use of the offerings and services without providing any

personal data.

We draw your attention to the fact that data transmission over the Internet (e.g. when

communicating by e-mail) may involve gaps in security. It is not possible to protect such data

completely against access by third parties.

We hereby expressly prohibit the use of the contact data published as part of our duty to publish

an imprint for the purpose of sending us any advertising or informational materials that we have

not expressly requested.

1.2.2 Disclaimer

The manufacturer will not be liable for any damage of any kind by using its product, including,

but not limited to direct, indirect, incidental, punitive and consequential damages.

This disclaimer does not apply in case the manufacturer has acted on purpose or with gross

negligence. In the event any applicable law does not allow such limitations on implied warranties

or the exclusion of limitation of certain damages, you may, if such law applies to you, not be

subject to some or all of the above disclaimer, exclusions or limitations.

Any product purchased from the manufacturer is warranted in accordance with the relevant

product documentation and our Terms and Conditions of Sale.

The manufacturer reserves the right to alter the content of its documents, including this

disclaimer in any way, at any time, for any reason, without prior notification, and will not be liable

in any way for possible consequences of such changes.

1SAFETY INSTRUCTIONS

OPTIFLUX 5000

www.krohne.com 09/2009 - 4000686201-R01-SW-en

1.2.3 Product liability and warranty

The operator shall bear responsibility for the suitability of the device for the specific purpose.

The manufacturer accepts no liability for the consequences of misuse by the operator. Improper

installation and operation of the devices (systems) will cause the warranty to be void. The

respective "Standard Terms and Conditions" which form the basis for the sales contract shall

also apply.

1.2.4 Information concerning the documentation

To prevent any injury to the user or damage to the device it is essential that you read the

information in this document and observe applicable national standards, safety requirements

and accident prevention regulations.

If this document is not in your native language and if you have any problems understanding the

text, we advise you to contact your local office for assistance. The manufacturer can not accept

responsibility for any damage or injury caused by misunderstanding of the information in this

document.

This document is provided to help you establish operating conditions, which will permit safe and

efficient use of this device. Special considerations and precautions are also described in the

document, which appear in the form of underneath icons.

SAFETY INSTRUCTIONS 1

OPTIFLUX 5000

www.krohne.com09/2009 - 4000686201-R01-SW-en

1.2.5 Warnings and symbols used

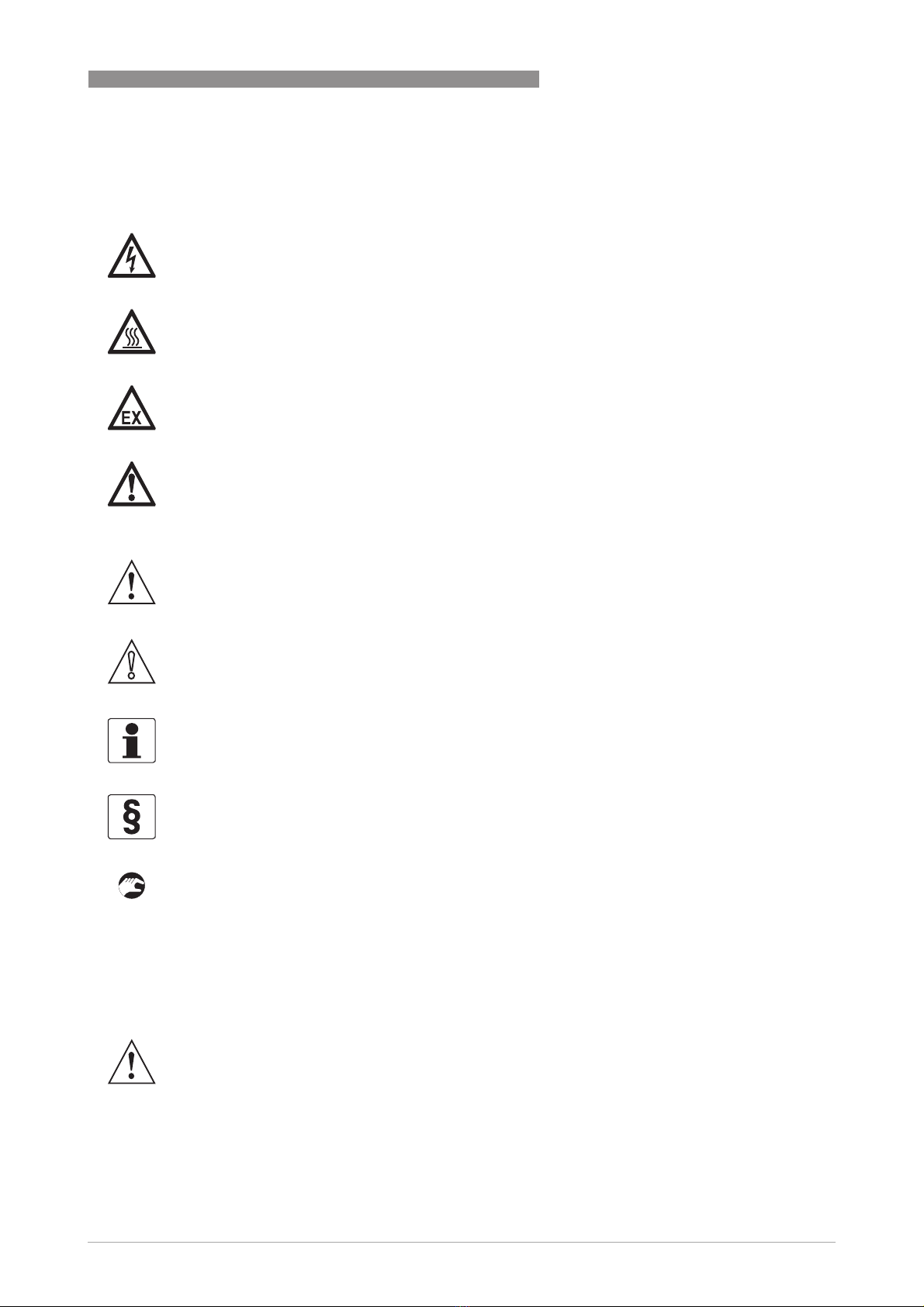

Safety warnings are indicated by the following symbols.

• HANDLING

HANDLINGHANDLING

HANDLING

This symbol designates all instructions for actions to be carried out by the operator in the

specified sequence.

iRESULT

RESULTRESULT

RESULT

This symbol refers to all important consequences of the previous actions.

1.3 Safety instructions for the operator

DANGER!

This information refers to the immediate danger when working with electricity.

DANGER!

This warning refers to the immediate danger of burns caused by heat or hot surfaces.

DANGER!

This warning refers to the immediate danger when using this device in a hazardous atmosphere.

DANGER!

These warnings must be observed without fail. Even partial disregard of this warning can lead to

serious health problems and even death. There is also the risk of seriously damaging the device

or parts of the operator's plant.

WARNING!

Disregarding this safety warning, even if only in part, poses the risk of serious health problems.

There is also the risk of damaging the device or parts of the operator's plant.

CAUTION!

Disregarding these instructions can result in damage to the device or to parts of the operator's

plant.

INFORMATION!

These instructions contain important information for the handling of the device.

LEGAL NOTICE!

This note contains information on statutory directives and standards.

WARNING!

In general, devices from the manufacturer may only be installed, commissioned, operated and

maintained by properly trained and authorized personnel.

This document is provided to help you establish operating conditions, which will permit safe and

efficient use of this device.

2DEVICE DESCRIPTION

OPTIFLUX 5000

www.krohne.com 09/2009 - 4000686201-R01-SW-en

2.1 Scope of delivery

2.2 Nameplates

1 Remote version

2 Compact version with IFC 300 signal converter

3 Compact version with IFC 100 (0°) signal converter

4 Compact version with IFC 100 (45°) signal converter

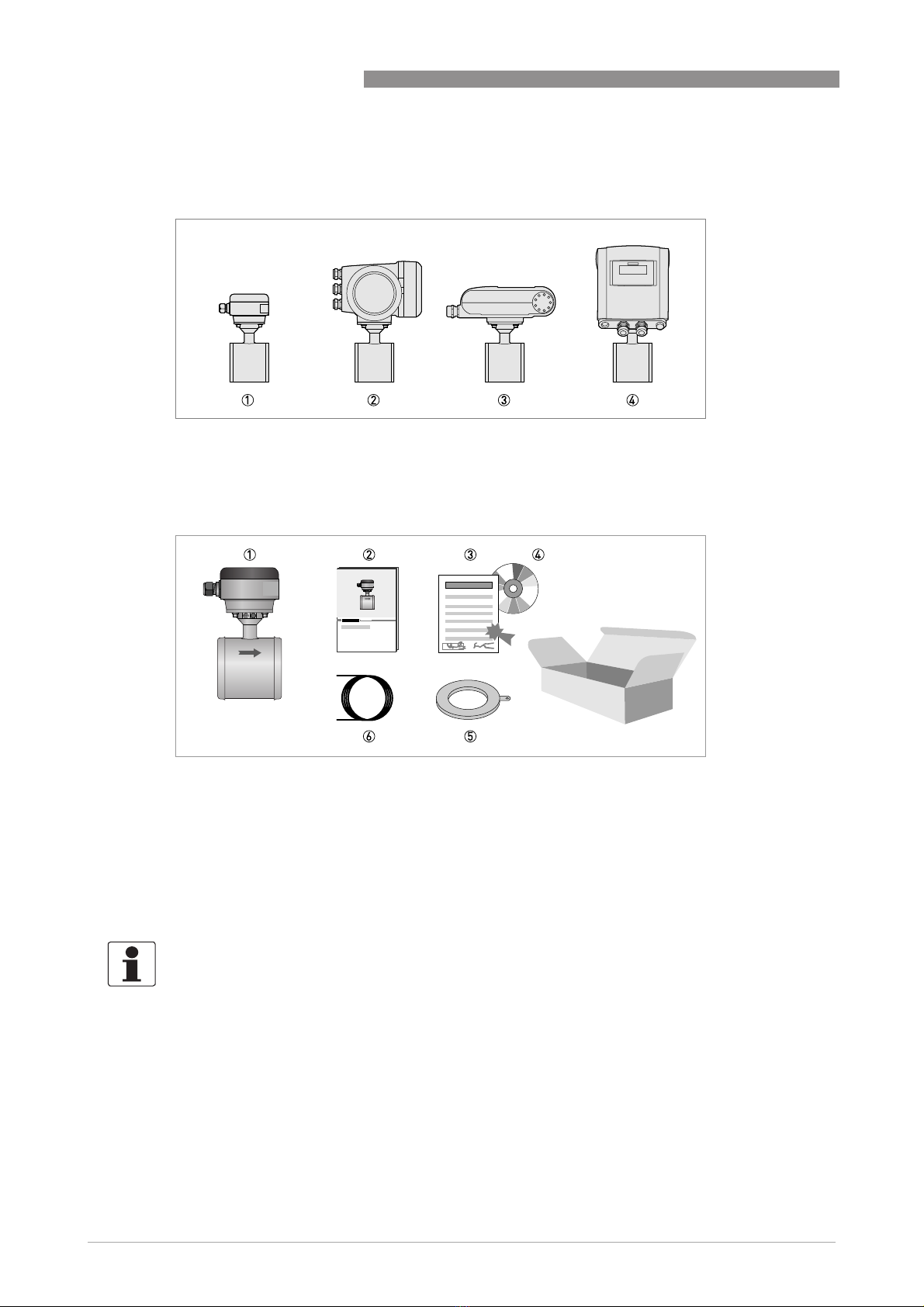

Figure 2-1: Scope of delivery

1 Ordered flowmeter

2 Quick Start

3 Factory calibration report

4 CD-ROM with product documentation

5 Grounding rings (optionally)

6 Cable (remote versions only)

INFORMATION!

Look at the device nameplate to ensure that the device is delivered according to your order.

Check for the correct supply voltage printed on the nameplate.

INSTALLATION 3

OPTIFLUX 5000

www.krohne.com09/2009 - 4000686201-R01-SW-en

3.1 Notes on installation

3.2 Storage

•Store the device in a dry and dust-free location.

•Avoid lasting direct exposure to the sun.

•Store the device in its original packing.

3.3 Transport

INFORMATION!

Inspect the cartons carefully for damage or signs of rough handling. Report damage to the

carrier and to the local office of the manufacturer.

INFORMATION!

Check the packing list to check if you received completely all that you ordered.

INFORMATION!

Look at the device nameplate to ensure that the device is delivered according to your order.

Check for the correct supply voltage printed on the nameplate.

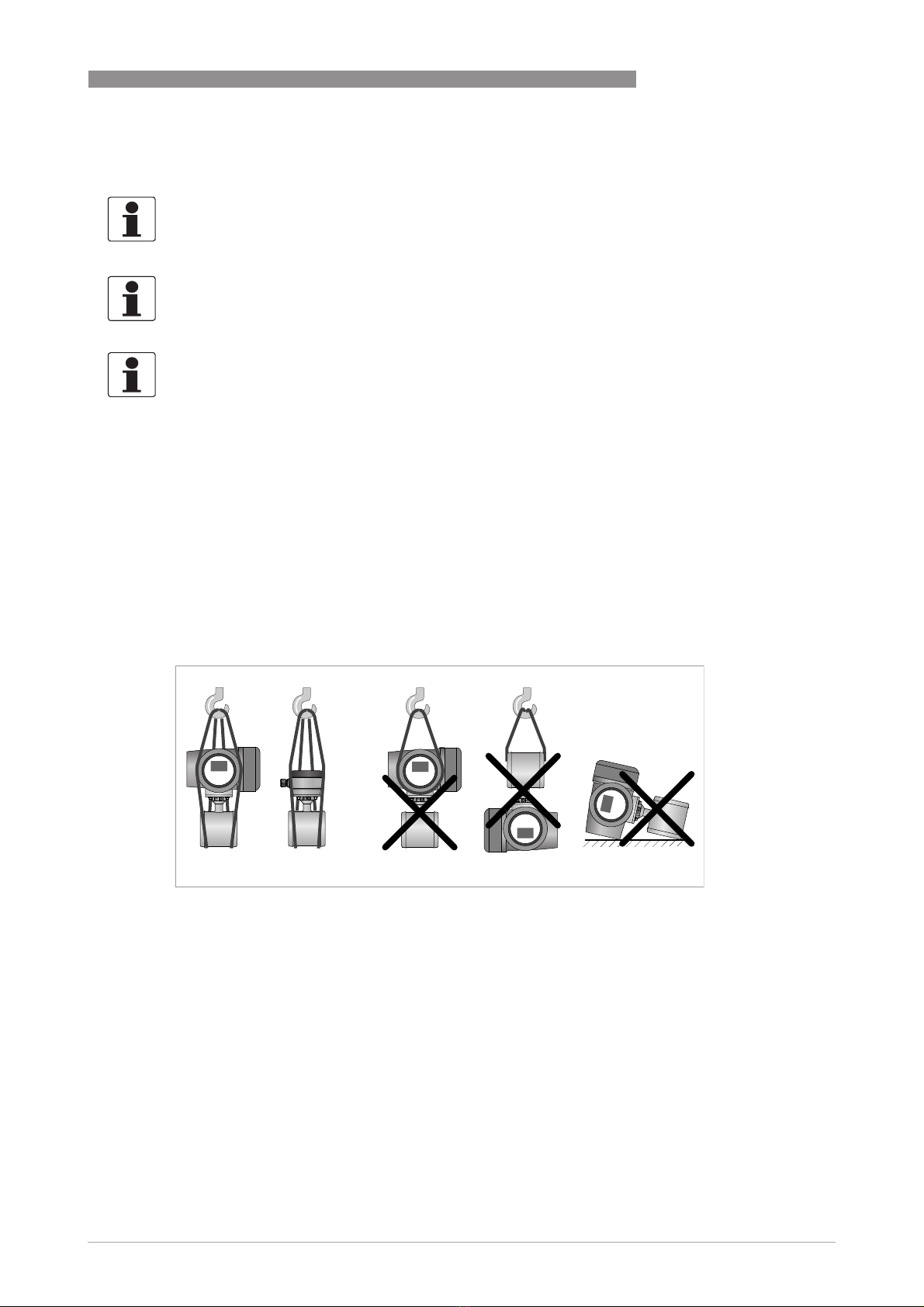

Figure 3-1: Transport

3INSTALLATION

OPTIFLUX 5000

www.krohne.com 09/2009 - 4000686201-R01-SW-en

3.4 Installation conditions

3.4.1 Inlet and outlet

3.4.2 Mounting position

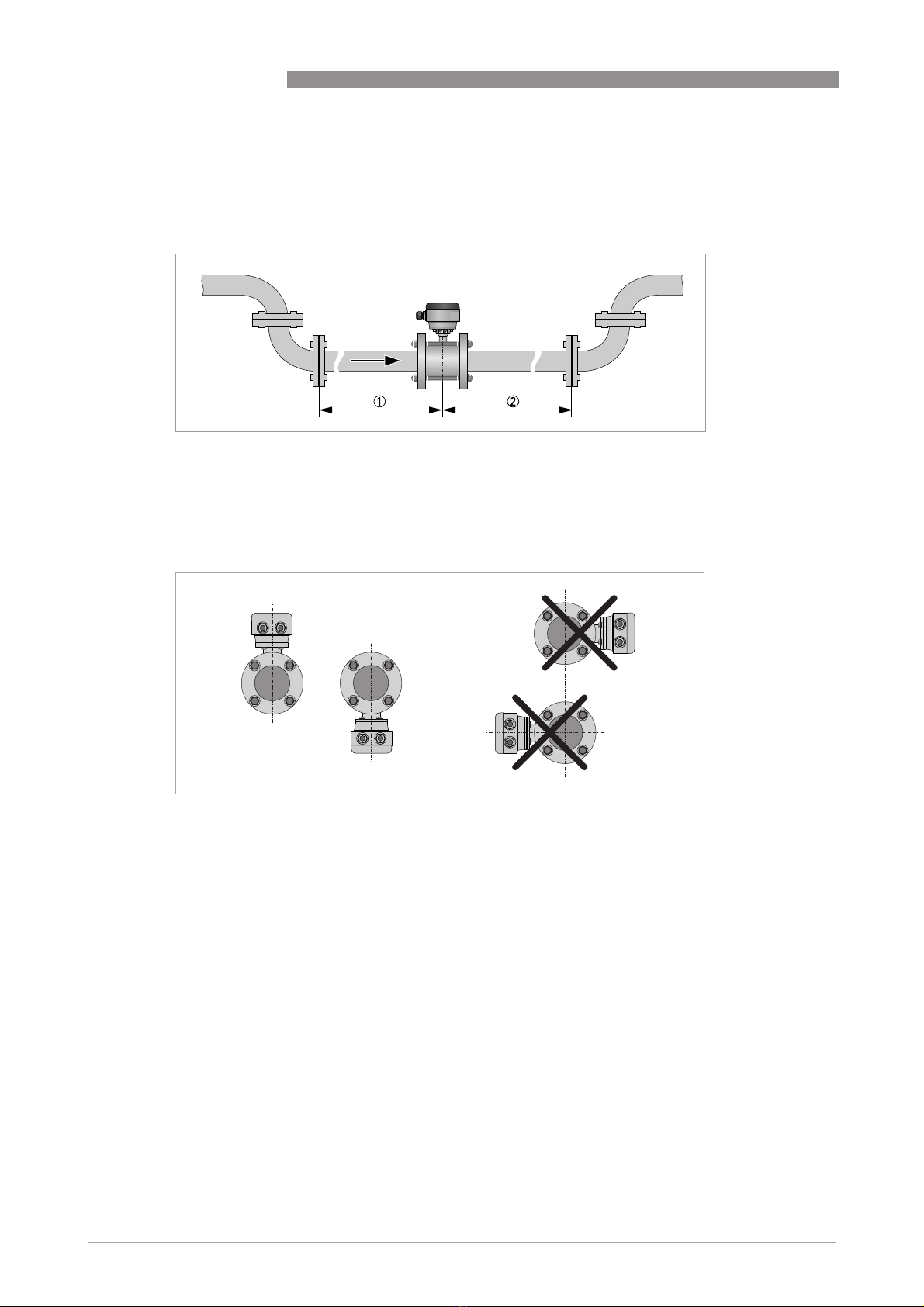

Figure 3-2: Recommended inlet and outlet

1 ≥5 DN

2 ≥2 DN

Figure 3-3: Mounting position

Autres manuels pour OPTIFLUX 5000

Table des matières

Autres manuels KROHNE Instrument de mesure

KROHNE

KROHNE OPTISENS OAM 1050 Mode d’emploi

KROHNE

KROHNE OPTISWITCH 3300 C Manuel utilisateur

KROHNE

KROHNE ifc 300 Schéma de câblage

KROHNE

KROHNE optiplex 1300 c Manuel utilisateur

KROHNE

KROHNE OPTIFLUX 5000 Manuel utilisateur

KROHNE

KROHNE DK32 Series Manuel utilisateur

KROHNE

KROHNE OPTISONIC 6300 Manuel utilisateur

KROHNE

KROHNE Optisonic 6300 P Manuel utilisateur

KROHNE

KROHNE OPTIBAR LC 1010 Schéma de câblage

KROHNE

KROHNE OPTISYS TSS 050 Series Manuel utilisateur

KROHNE

KROHNE GFM 700 K Manuel utilisateur

KROHNE

KROHNE OPTIBATCH 4011 C Manuel utilisateur

KROHNE

KROHNE FLEXMAG 4050 C Manuel utilisateur

KROHNE

KROHNE H250 M10 Schéma de câblage

KROHNE

KROHNE OPTISWIRL 4200 Series Schéma de câblage

KROHNE

KROHNE POWERFLUX 5000 Manuel utilisateur

KROHNE

KROHNE UFM 3030 K EEx Series Manuel utilisateur

KROHNE

KROHNE OPTIWAVE 5200 Schéma de câblage

KROHNE

KROHNE SU 600 Ex Manuel utilisateur

KROHNE

KROHNE OPTIMASS / 400 Schéma de câblage

KROHNE

KROHNE OPTISONIC 3400 Manuel utilisateur

KROHNE

KROHNE OPTISWIRL 5080 Schéma de câblage

KROHNE

KROHNE OPTISONIC 3400 F Manuel utilisateur

KROHNE

KROHNE UFM 3030 K EEx Series Comment utiliser

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
