Kramer Electronics, Ltd.

USER MANUAL

Model:

VP-505

3G HD-SDI to Video Scan Converter

Contents

1Introduction 1

2Getting Started 1

2.1 Quick Start 2

3Overview 3

4Defining the VP-505 3G HD-SDI to Video Scan Converter 4

5Connecting the VP-505 3G HD-SDI to Video Scan Converter 5

6Operating the VP-505 3G HD-SDI to Video Scan Converter 6

6.1 Using the Front Panel Buttons 6

6.2 Using the OSD 6

6.2.1 The Main Menu 7

6.2.2 The Display Submenu 7

6.2.3 The Color Submenu 8

7Technical Specifications 9

Figures

Figure 1: VP-505 3G HD-SDI to Video Scan Converter Front Panel 4

Figure 2: VP-505 3G HD-SDI to Video Scan Converter Rear Panel 4

Figure 3: Connecting the VP-505 3G HD-SDI to Video Scan Converter 5

Tables

Table 1: VP-505 3G HD-SDI to Video Scan Converter Front Panel Features 4

Table 2: VP-505 3G HD-SDI to Video Scan Converter Rear Panel Features 4

Table 3: The Main Menu Parameters and Functions 7

Table 4: The Display Submenu Parameters 7

Table 5: The Color Submenu Parameters 8

Table 6: Technical Specifications of the VP-505 3G HD-SDI to Video Scan Converter 9

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative and affordable solutions to the vast range of

problems that confront the video, audio, presentation and broadcasting professional

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better! Our 1,000-plus different models now appear in

11 groups1

Thank you for purchasing your Kramer MegaTOOLS®VP-505 3G HD-SDI to

Video Scan Converter which is ideal for:

that are clearly defined by function.

•Projection systems in conference rooms, boardrooms, hotels and churches

•Monitoring of SDI signals using cheap video displays

•Displaying down-scaled SDI in legacy systems

•Making video recordings of SDI content

The package includes the following items:

•VP-505 3G HD-SDI to Video Scan Converter

•Power adapter

•This user manual2

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high-performance, high-resolution cables3

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products

2 Download up-to-date Kramer user manuals from http://www.kramerelectronics.com

3 The complete list of Kramer cables is available at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

Overview

3 Overview

The Kramer VP-505 3G HD-SDI to Video Scan Converter is a high-quality scan

converter for down-scaling SDI, HD-SDI and 3G HD-SDI signals to PAL or

NTSC video.

The VP-505 also features:

•A maximum data rate of 3Gbps

•An SDI input

•An equalized and re-clocked loop output (up to 3G HD-SDI)

•Multi-standard operation: SDI (SMPTE 259M and SMPTE 344M), HD-SDI

(SMPTE 292M) and 3G HD-SDI (SMPTE 424M)

•Simultaneous high-quality composite video and s-Video (Y/C) outputs

•A unbalanced stereo audio output

•An OSD (On-screen Display) accessible via the front panel buttons for easy

setup and adjustment

•A built-in ProcAmp for convenient signal adjustment

•A non-volatile memory that retains the last settings used

•A freeze button

•An external 5V DC source, making it suitable for field operation

•Operation directly via the front panel push buttons and the OSD

To achieve the best performance:

•Use only good quality connection cables1

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Position your Kramer VP-505 away from moisture, excessive sunlight and

dust

Caution: No operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall

before installing

1 Available from Kramer Electronics at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the VP-505 3G HD-SDI to Video Scan Converter

4 Defining the VP-505 3G HD-SDI to Video Scan Converter

Figure 1 and Table 1 define the front panel of the VP-505.

Figure 1: VP-505 3G HD-SDI to Video Scan Converter Front Panel

Table 1: VP-505 3G HD-SDI to Video Scan Converter Front Panel Features

# Feature Function

1 ON LED Lights green when the unit is powered on

2 SDI LED Lights blue when an SDI signal is detected on the input

3 MENU Button Press to display the OSD (On-screen Display) menu.

When the OSD is not displayed, press together with the – button to set the output

resolution to NTSC

4 ENTER Button In the OSD, press to select the highlighted menu item.

When the OSD is not displayed, press together with the + button to set the output

resolution to PAL

5 – Button In the OSD, press to step up through the options or to decrement the parameter value

6 + / FREEZE Button In the OSD, press to step down through the options or to increment the parameter

value.

When the OSD is not displayed, press to freeze the display

Figure 2 and Table 2 define the rear panel of the VP-505.

Figure 2: VP-505 3G HD-SDI to Video Scan Converter Rear Panel

Table 2: VP-505 3G HD-SDI to Video Scan Converter Rear Panel Features

# Feature Function

1 SDI IN BNC Connector Connect to the SDI source

2 SDI OUT BNC Connector Connect to the SDI acceptor (loop). The signal is

re-clocked and equalized

Connecting the VP-505 3G HD-SDI to Video Scan Converter

# Feature Function

AUDIO OUT RCA

Connectors

LEFT Channel

Unbalanced Stereo

Audio

Connect to the left channel of the unbalanced stereo audio

acceptor

4 RIGHT Channel

Unbalanced Stereo

Audio

Connect to the right channel of the unbalanced stereo

audio acceptor

5 CV OUT BNC Connector Connect to the composite video acceptor

6 Y/C OUT 4-pin Connector Connect to the Y/C (s-Video) acceptor

7 5V DC Connect to the power adapter, center pin positive

5 Connecting the VP-505 3G HD-SDI to Video Scan Converter

Always switch off the power to each device before connecting them to

your VP-505. After connecting your VP-505, connect its power and then

switch on the power to each device.

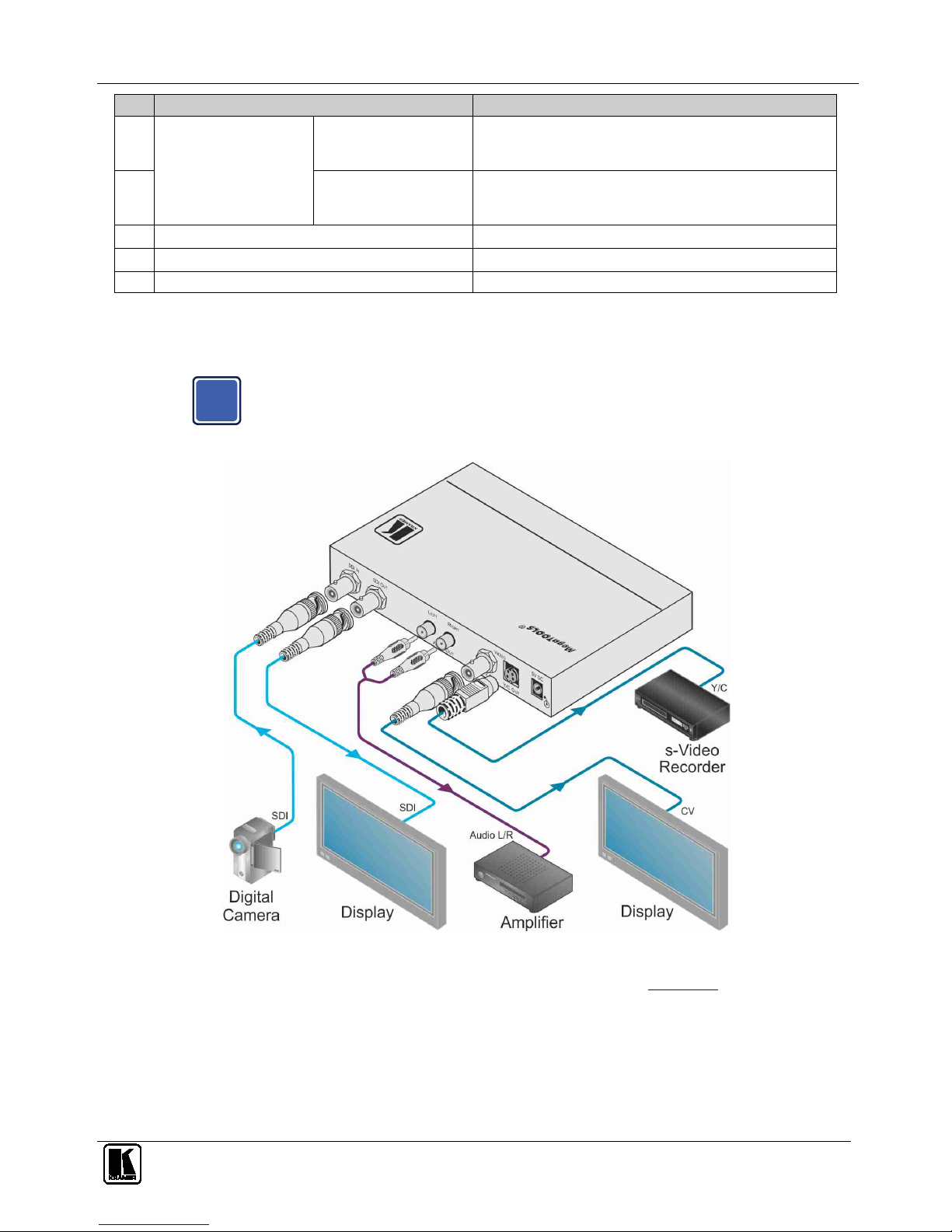

Figure 3: Connecting the VP-505 3G HD-SDI to Video Scan Converter

To connect the VP-505, as illustrated in the example in Figure 3:

1. Connect the SDI video source (for example, a digital camera) to the SDI IN

BNC connector.

2. Connect the SDI OUT BNC connector to the SDI acceptor (for example, an

SDI display).

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Operating the VP-505 3G HD-SDI to Video Scan Converter

3. Connect the LEFT and RIGHT AUDIO OUT RCA connectors to the audio

acceptor (for example, a stereo audio amplifier).

4. Connect the VIDEO CV OUT BNC connector to the composite video

acceptor (for example, a composite video display).

5. Connect the VIDEO Y/C OUT 4-pin connector to a Y/C (s-Video) acceptor

(for example, an s-Video recorder).

6. Connect the power adapter to the 5V DC power socket and to the mains

electricity (not shown in the illustration).

6 Operating the VP-505 3G HD-SDI to Video Scan Converter

The VP-505 is operated directly via the front panel buttons and via the OSD menu

(see Section 6.2

6.1 Using the Front Panel Buttons

During normal operation (without the OSD), the front panel buttons perform in the

following manner:

•MENU: Displays the OSD Main Menu (see Section 6.2

•FREEZE: Freezes the display. Press a second time to unfreeze the display

). Press a second

time to close the OSD

•MENU and –: Press together to set the output to NTSC

•ENTER and FREEZE: Press together to set the output to PAL

6.2 Using the OSD

The OSD is used to set a variety of parameters.

When using the OSD, the front panel buttons operate in the following manner:

•MENU: Opens the OSD main menu (see Table 3). Press a second time to

close the OSD

•ENTER: Selects the highlighted menu item or parameter

•– : Steps up through the menu list or decrements the parameter value

•+ : Steps down through the menu list or increments the parameter value

Note: After a period of 15 sec with no button activity, the OSD menu times-out

automatically.

Example of Using the OSD Menu

To set the green offset value of the display output (for example, to 42):

1. From normal operation, press MENU.

The OSD main menu appears on the screen.

2. Press the + or –button to highlight COLOR.

COLOR changes to green.

3. Press ENTER.

Operating the VP-505 3G HD-SDI to Video Scan Converter

The Display submenu is displayed.

4. Press the + or –button to highlight G OFFSET.

G OFFSET changes to green.

5. Press ENTER.

The G OFFSET parameter changes to red.

6. Press the + button to increase the value to 42.

7. Press ENTER to set the value.

G OFFSET is highlighted in green.

8. To exit to normal operation, press MENU or wait for the OSD to timeout.

6.2.1 The Main Menu

Table 3 defines the Main menu parameters and functions.

Table 3: The Main Menu Parameters and Functions

Parameter Function

DISPLAY Sets the output resolution, size and aspect ratio (see Table 4)

CONTRAST Sets the output contrast Value range: 0-255 Default: 105

BRIGHTNESS Sets the output

brightness

Value Range: 0-192 Default: 96

COLOR Sets the output color parameters (see Table 5)

SDI AUDIO Selects which embedded audio to output: Group 1, Group 2, Group 3, Group 4,

Auto 1, Off 2

Default: Auto

FACTORY RESET Resets all parameters to factory defaults

INFORMATION Displays current input resolution, output resolution and firmware revision

AUTO SYNC OFF When on, this de-activates the output after a few minutes if no input is present3

EXIT

Exits the Main menu

6.2.2 The Display Submenu

The Display submenu sets the display output resolution, size and aspect ratio.

Table 4 defines the display output parameters.

Table 4: The Display Submenu Parameters

Parameter

Parameters

Factory Default

OUTPUT PAL, NTSC

(PAL: 768x567i, NTSC: 720x480i)

NTSC

SIZE Sets the output size/aspect ratio: Full, Pan scan, Letter box, Under 2,

Under 1, Over scan

Full

EXIT Exits the Display menu

1 When set to Auto, the unit searches for the lowest group number which has audio and selects this audio group

2 Audio is not outputted

3 Useful, for example, when the output is connected to a projector, and the projector will automatically shut down when it has no input

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Operating the VP-505 3G HD-SDI to Video Scan Converter

6.2.3 The Color Submenu

The Color submenu sets the display output color parameters. Table 5 defines the

color output parameters.

Table 5: The Color Submenu Parameters

Parameter Function Value Range Factory Default

R Sets the output red value 0-255 128

G Sets the output green value 0-255 128

B Sets the output blue value 0-255 128

R OFFSET Sets the output red signal level offset 0-63 32

G OFFSET Sets the output green signal level offset 0-63 32

B OFFSET Sets the output blue signal level offset 0-63 32

EXIT Exits the Color submenu

Autres manuels pour VP-505

Table des matières

Autres manuels Kramer Convertisseur de média

Kramer

Kramer VM-2DP Manuel utilisateur

Kramer

Kramer FC-332 Manuel utilisateur

Kramer

Kramer VP-440H2 Manuel utilisateur

Kramer

Kramer DigiTOOLS 6505 Manuel utilisateur

Kramer

Kramer VM-2HxI Manuel utilisateur

Kramer

Kramer VP-470 Manuel utilisateur

Kramer

Kramer KDS-EN7 Manuel utilisateur

Kramer

Kramer FC-400 Manuel utilisateur

Kramer

Kramer DigiTOOLS 6410N Manuel utilisateur

Kramer

Kramer VA-680D Manuel utilisateur

Kramer

Kramer VM-28H Manuel utilisateur

Kramer

Kramer FC-1DGH Manuel utilisateur

Kramer

Kramer VP-791 Manuel utilisateur

Kramer

Kramer DigiTOOLS VM-2HDMI Manuel utilisateur

Kramer

Kramer FC-331A Manuel utilisateur

Kramer

Kramer VM-1110xl Manuel utilisateur

Kramer

Kramer VP-2K Manuel utilisateur

Kramer

Kramer KDS-17DEC Manuel utilisateur

Kramer

Kramer VM-24H Manuel utilisateur

Kramer

Kramer DigiTOOLS 7408 Manuel utilisateur

Kramer

Kramer VM-4HDCPxl Manuel utilisateur

Kramer

Kramer PT-1SPDIF Manuel utilisateur

Kramer

Kramer FC-31xl Manuel utilisateur

Kramer

Kramer VM-2DH Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
