Kramer VM-4UX Manuel utilisateur

4UX

1:4 4K 12G SDI DA

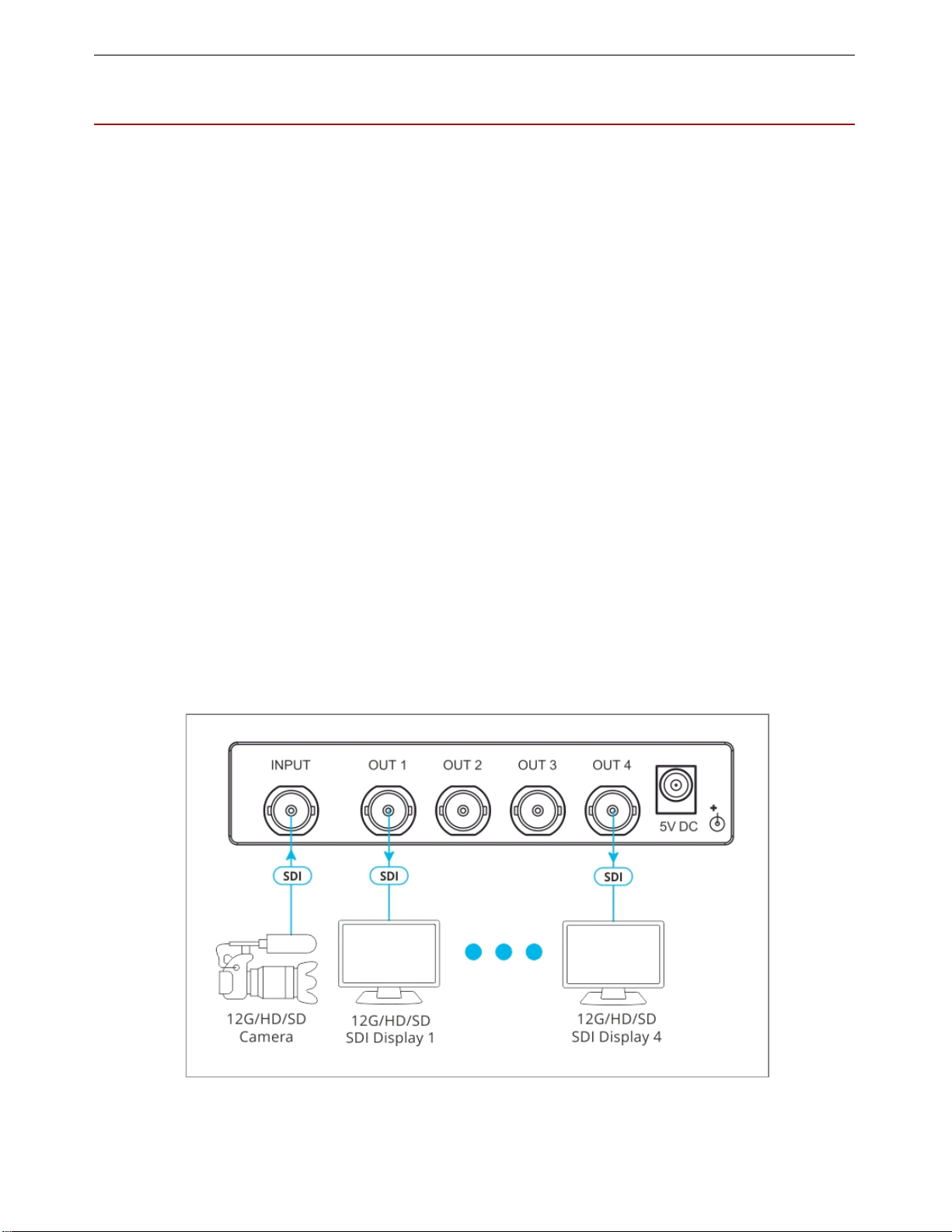

The VM

−4UX is a compact and high

performance 1:4 4K distributor for standard

broadcast−grade SDI signals of up to 12G

transmitted data rate. It auto−adapts to the

data rate of one SDI input signal, equalizes

and re−clocks the signal to improve

transmitted signal reach, and distributes the

signal to four identical SDI outputs.

Reliable Wire Connectivity

Coaxial broadcast−grade cables are reliably connected via lockable BNC connectors,

preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals

distribution deployments.

Extended-reach Input Extension

Input signal equalization and output signals reclocking to gain extended−reach

signal extension. Using Kramer high−quality coaxial SDI cables, supports extension of up to 300m (984ft) for SD

signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (262ft) for 12G 4K signals.

Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary

while using non−Kramer coaxial cables.

Transmitted Data Rate

Auto

−adapting from 270Mbps to 12Gbps data rates.

Compliance

Complies with SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI),

−2081 (6G−SDI) and ST−2082 (12G−SDI) standards.

Max. Resolution

4K@60Hz (4:2:2) 30bpp.

SDI Signal Transmission

SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI compliant signals, supporting pass−through

of standard embedded audio channels with ancillary ID and metadata information.

LED Indicators

Status indicators for transmitted SDI data rate of input and output connected signals, and power

indicator, for ease of maintenance and troubleshooting.

Easy Installation

Compact DigiTOOLS™ fan−less enclosure for small footprint spaces and over−ceiling mounting,

or side−

−side rack mounting.

FEATURES

4UX

TECHNICAL SPECIFICATIONS

INPUTS:

1 SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G

HD−SDI), ST−2081 (6G−SDI) and ST−2082 (12G−SDI) compliant serial video,

75ΩonaBNCconnector.

OUTPUTS:

4 equalized and reclocked SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M

(ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI) and ST 2082 (12G−SDI),

outputs75ΩonBNCconnectors.

CABLE EQUALIZATION REACH:

12Gbps: Up to 80m (260ft), 3Gbps and 6Gbps: Up to 100m (330ft), 1.5Gbps:

Up to 200m (660ft), SD: Up to 300m (980ft), Note: The above specs apply when

using Kramer cables.

VIDEO:

Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps to 12Gbps data rate.

MAXIMUM OUTPUT LEVEL:

800mVpp/75Ω.

COUPLING:

AC.

STANDARDS COMPLIANCE:

SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI),

−2081 (6G−SDI), ST−2082 (12G−SDI).

POWER CONSUMPTION:

5V DC, 250mA.

POWER SOURCE:

5.2V/4A.

ENCLOSURE:

Tools size, Aluminum type.

COOLING:

Convection ventilation.

OPERATING TEMPERATURE:

0° to +40°C (32° to 104°F).

STORAGE TEMPERATURE:

−40° to +70°C (−40° to 158°F).

HUMIDITY:

10% to 90%, RHL non−condensing

PRODUCT DIMENSIONS:

12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

PRODUCT WEIGHT:

0.2kg (0.4lbs) approx.

SHIPPING DIMENSIONS:

23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H

SHIPPING WEIGHT:

0.7kg (1.5lbs) approx.

INCLUDED ACCESSORIES:

Powersupply,mountingbracket,2maleBNC75Ωterminators.

OPTIONS:

RK−3T 19” rack adapter.
