Kramer FC-31xl Manuel utilisateur

Kramer Electronics, Ltd.

USER MANUAL







Model:

FC-31xl

UXGA to DVI Converter

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

Your FC-31xl UXGA to DVI Converter 4

4.1

DIP-switch Settings 5

Connecting the FC-31xl UXGA to DVI Converter 8

Technical Specifications 9

Figures

Figure 1: FC-31xl UXGA to DVI Converter 4

Figure 2: DIP-switch Definitions 5

Figure 3: Connecting the FC-31xl UXGA to DVI Converter 8

Tables

Table 1: FC-31xl Resolutions 3

Table 2: FC-31xl UXGA to DVI Converter Features 4

Table 3: DIP-sSwitch Definitions 5

Table 4: (Vs) Vertical Positioning DIP-switch Settings 5

Table 5: (Hs) Horizontal Positioning DIP-switch Settings 6

Table 6: SHARPNESS DIP-switch Settings 7

Table 7: Technical Specifications of the FC-31xl UXGA to DVI Converter 9

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

1,000-plus different models now appear in 11 groups

that are clearly defined

by function.

Congratulations on purchasing your Kramer MultiTOOLS®: FC-31xl UXGA

to DVI Converter, which is ideal for:

•Home theater, presentation and multimedia applications

•Rental and staging

The package includes the following items:

•FC-31xl UXGA to DVI Converter

•Power adapter (12V DC Input)

•This user manual

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high performance high resolution cables

2.1 Quick Start

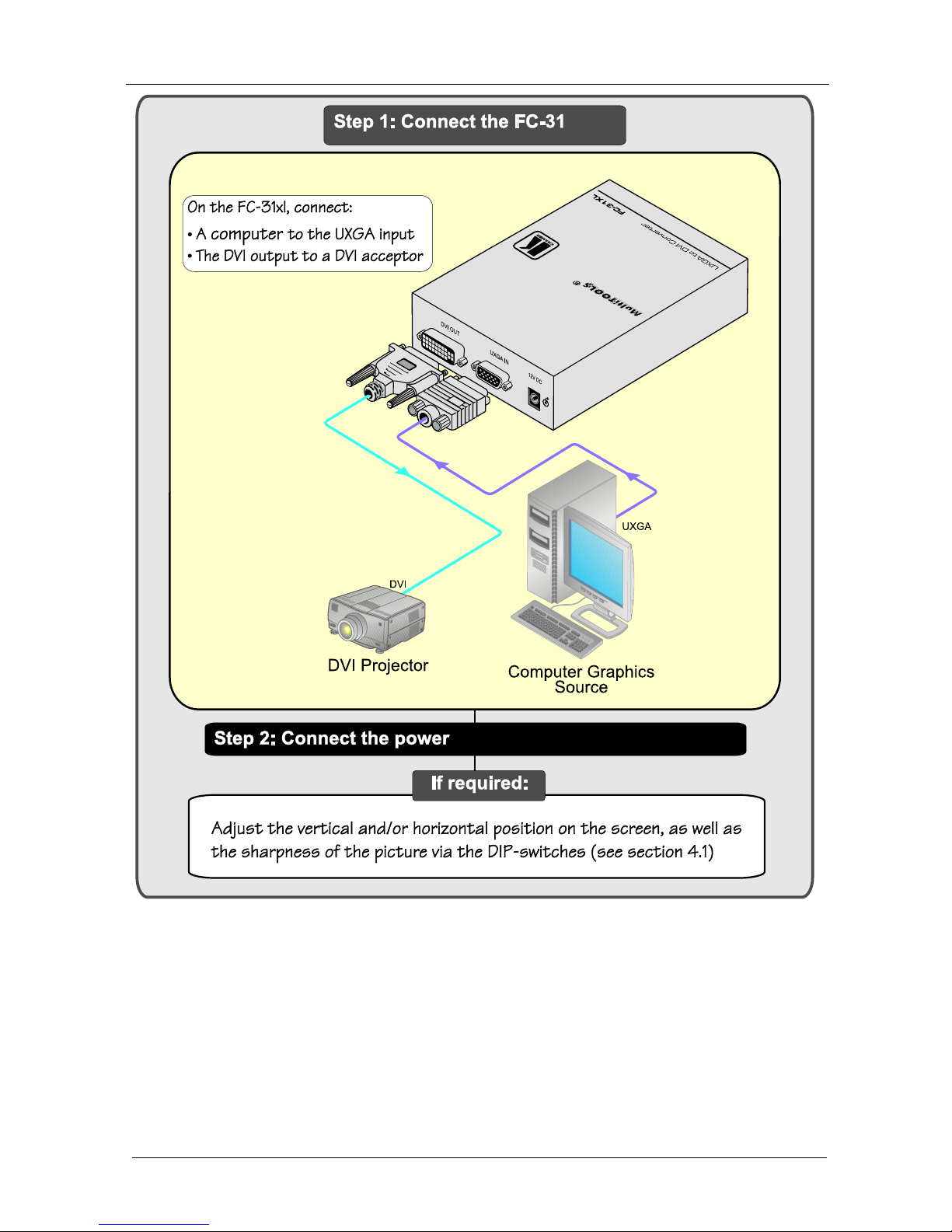

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:

Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories

and Rack Adapters; GROUP 11: Sierra Products

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The Kramer MultiTOOLS® FC-31xl UXGA to DVI Converter is a high

quality converter for converting an analog computer graphics signal on a

15-pin HD connector to a digital DVI-D signal.

Table 1 lists the resolutions supported FC-31xl supports the following

resolutions:

Table 1: FC-31xl Resolutions

Resolution

Frequency [Hz]

Resolution

Frequency [Hz]

x480

60, 72, 75, 85

x1024

60, 75, 85

x400

70, 85

x768



x600

56, 60, 72, 75, 85

x1050

60 (RB), 75

848x480 60

x900



x768

60, 72, 75, 85

x1050



x864



x1200



x768

60 (RB

), 75, 85

x1050



x800



x1080



x960

60, 85

x1200

 (RB)

In particular, the FC-31xl:

•Includes DIP-switches that let you adjust the horizontal position, the

vertical position, and/or the sharpness of the image

•Is 12V DC fed

Achieving the best performance means:

•Connecting only good quality connection cables, thus avoiding

interference, deterioration in signal quality due to poor matching, and

elevated noise levels (often associated with low quality cables)

•Avoiding interference from neighboring electrical appliances and positioning

your FC-31xl away from moisture, excessive sunlight and dust

Caution – No operator-serviceable parts inside unit.

Warning – Use only the Kramer Electronics input power

wall adapter that is provided with this unit

Warning – Disconnect power and unplug unit from wall

before installing or removing device or servicing unit.

1 Reduced blanking

2 For example: model number AD2512C, part number 2535-000251

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your FC-31xl UXGA to DVI Converter

4 Your FC-31xl UXGA to DVI Converter

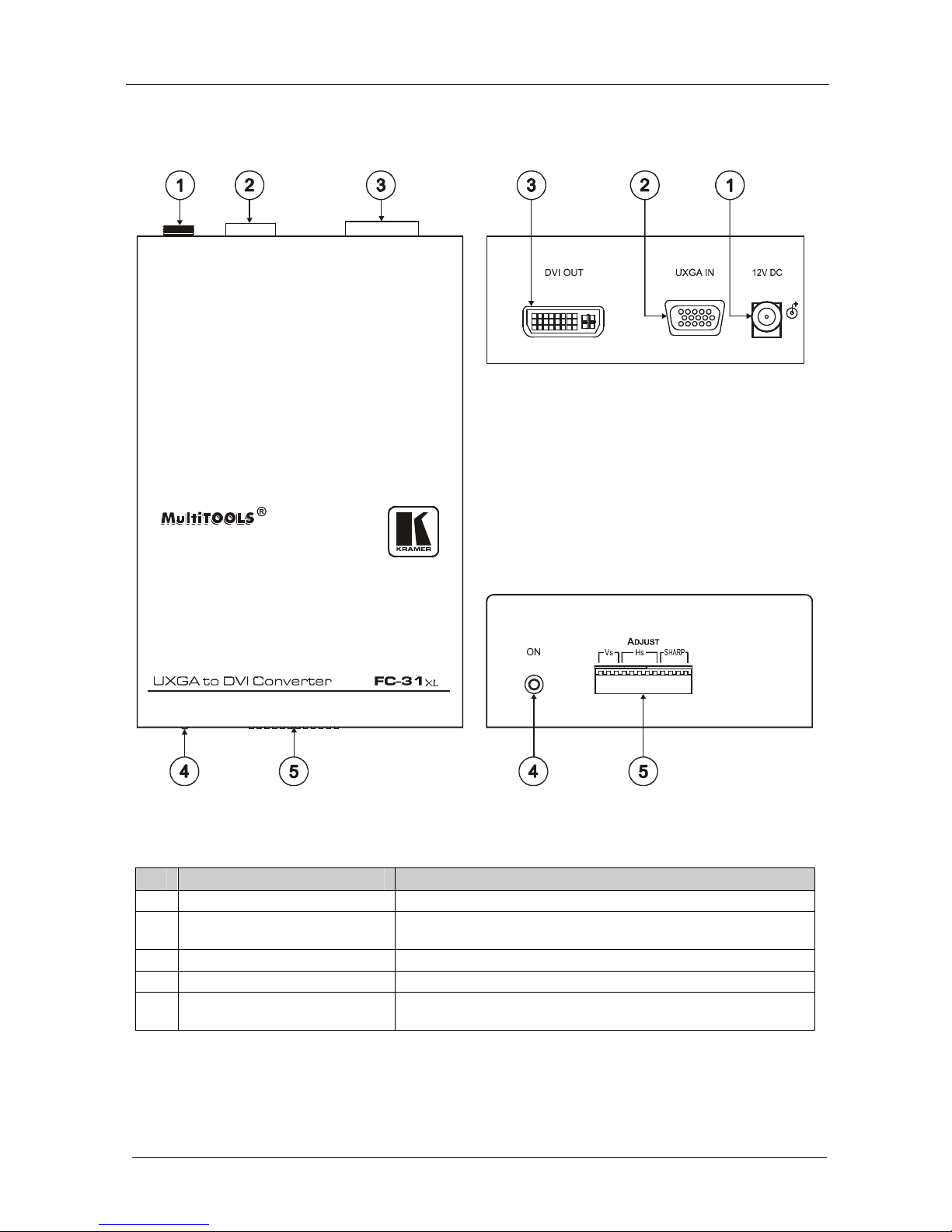

Figure 1 and Table 2 define the FC-31xl:

Figure 1: FC-31xl UXGA to DVI Converter

Table 2: FC-31xl UXGA to DVI Converter Features

# Feature Function

1 12V DC +12V DC connector for powering the unit

2 UXGA IN 15-pin HD

Connector

Connects to the computer graphics source

3 DVI OUT Connector Connects to the DVI acceptor

4 ON LED Illuminates when receiving power

5 ADJUST DIP-switches Set to adjust the vertical and/or horizontal position on the

screen, and/or the sharpness of the picture (see section 4.1)

Your FC-31xl UXGA to DVI Converter

4.1 DIP-switch Settings

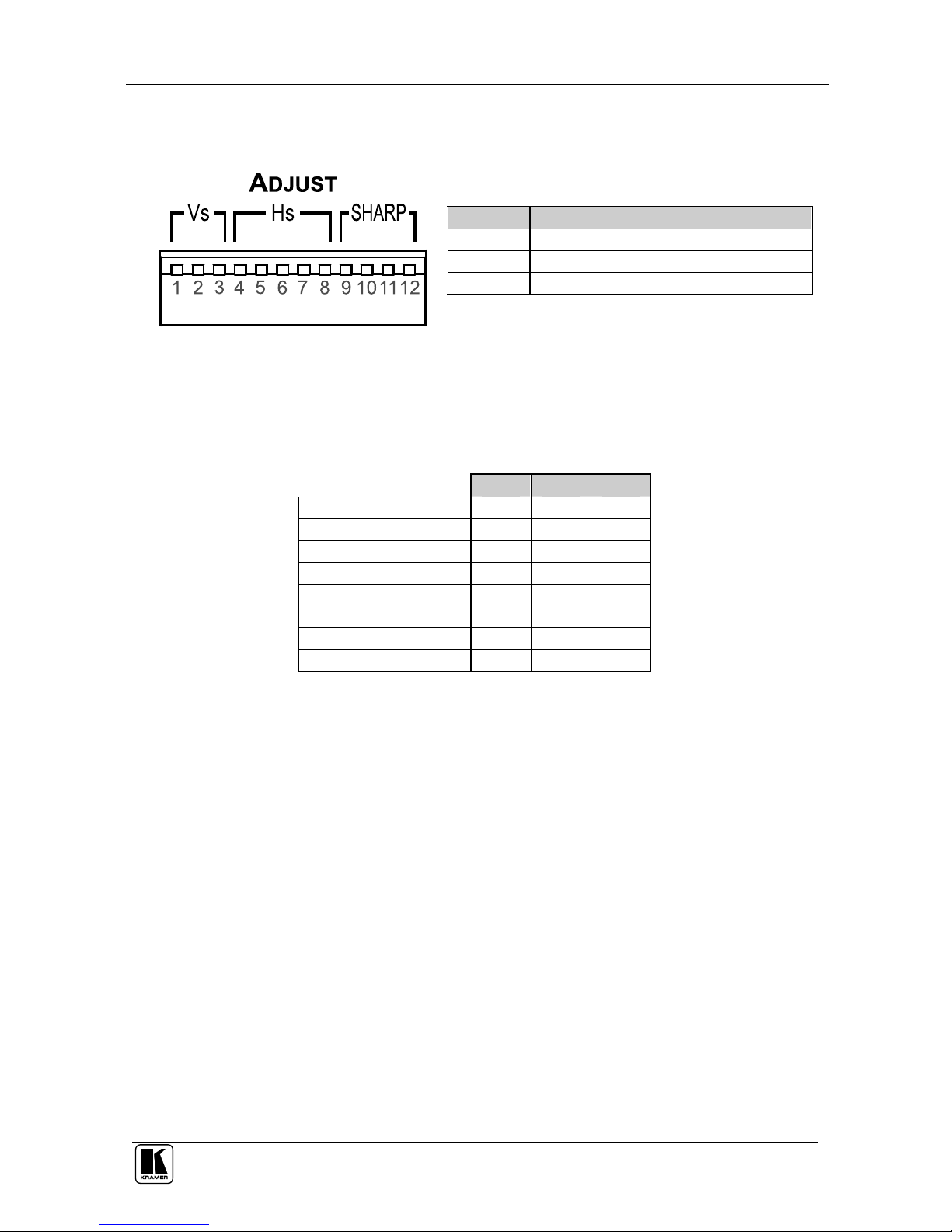

Figure 2 and Table 3 define the DIP-switches:

Table 3: DIP-sSwitch Definitions

DIPs Set to adjust the:

1 to 3 (Vs) Vertical position on the screen

4 to 8 (Hs) Horizontal position on the screen

9 to 12 (SHARP) Sharpness of the picture

Figure 2: DIP-switch Definitions

To adjust the vertical position of the image, set the DIP-switches as required,

according to Table 4:

Table 4: (Vs) Vertical Positioning DIP-switch Settings

In this state: DIP 1 DIP 2 DIP 3

Shift Down (4 steps) OFF OFF OFF

Shift Down (3 steps) ON OFF OFF

Shift Down (2 steps) OFF ON OFF

Shift Down (1 step) ON ON OFF

No shift OFF OFF ON

Shift Up (1 step) ON OFF ON

Shift Up (2 steps) OFF ON ON

Shift Up (3 steps) ON ON ON

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your FC-31xl UXGA to DVI Converter

To adjust the horizontal position of the image, set the DIP-switches as

required, according to Table 5:

Table 5: (Hs) Horizontal Positioning DIP-switch Settings

In this

state: DIP 4

DIP 5

DIP 6

DIP 7

DIP8 In this

state: DIP 4

DIP 5

DIP 6

DIP 7

DIP 8

Shift Left

(16 steps)

OFF OFF OFF OFF OFF No Shift OFF OFF OFF OFF ON

Shift Left

(15 steps)

ON OFF OFF OFF OFF Shift Right

(1 step)

ON OFF OFF OFF ON

Shift Left

(14 steps)

OFF ON OFF OFF OFF Shift Right

(2 steps)

OFF ON OFF OFF ON

Shift Left

(13 steps)

ON ON OFF OFF OFF Shift Right

(3 steps)

ON ON OFF OFF ON

Shift Left

(12 steps)

OFF OFF ON OFF OFF Shift Right

(4 steps)

OFF OFF ON OFF ON

Shift Left

(11 steps)

ON OFF ON OFF OFF Shift Right

(5 steps)

ON OFF ON OFF ON

Shift Left

(10 steps)

OFF ON ON OFF OFF Shift Right

(6 steps)

OFF ON ON OFF ON

Shift Left

(9 steps)

ON ON ON OFF OFF Shift Right

(7 steps)

ON ON ON OFF ON

Shift Left

(8 steps)

OFF OFF OFF ON OFF Shift Right

(8 steps)

OFF OFF OFF ON ON

Shift Left

(7 steps)

ON OFF OFF ON OFF Shift Right

(9 steps)

ON OFF OFF ON ON

Shift Left

(6 steps)

OFF ON OFF ON OFF Shift Right

(10 steps)

OFF ON OFF ON ON

Shift Left

(5 steps)

ON ON OFF ON OFF Shift Right

(11 steps)

ON ON OFF ON ON

Shift Left

(4 steps)

OFF OFF ON ON OFF Shift Right

(12 steps)

OFF OFF ON ON ON

Shift Left

(3 steps)

ON OFF ON ON OFF Shift Right

(13 steps)

ON OFF ON ON ON

Shift Left

(2 steps)

OFF ON ON ON OFF Shift Right

(14 steps)

OFF ON ON ON ON

Shift Left

(1 step)

ON ON ON ON OFF Shift Right

(15 steps)

ON ON ON ON ON

Your FC-31xl UXGA to DVI Converter

The SHARPNESS DIP-switch setting controls the phase of the sampling

clock, as defined in Table 6:

Table 6: SHARPNESS DIP-switch Settings

DIP 9 DIP 11 DIP 10 DIP 12

OFF OFF OFF OFF

ON OFF OFF OFF

OFF ON OFF OFF

ON ON OFF OFF

OFF OFF ON OFF

ON OFF ON OFF

OFF ON ON OFF

ON ON ON OFF

OFF OFF OFF ON

ON OFF OFF ON

OFF ON OFF ON

ON ON OFF ON

OFF OFF ON ON

ON OFF ON ON

OFF ON ON ON

ON ON ON ON

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting the FC-31xl UXGA to DVI Converter

5 Connecting the FC-31xl UXGA to DVI Converter

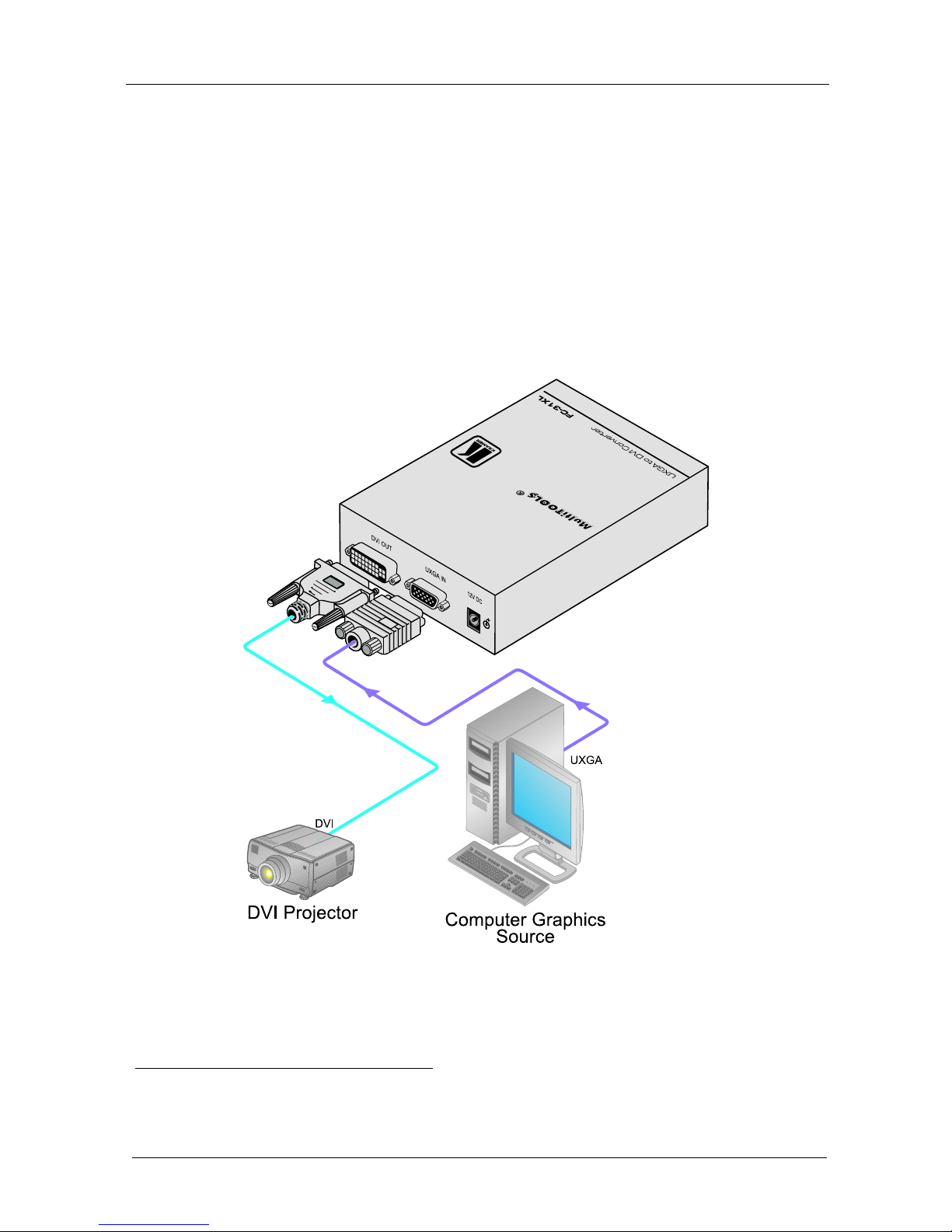

To connect your FC-31xl UXGA to DVI Converter, as the example in Figure 3

illustrates, do the following

1. Connect a computer graphics source (for example, a computer) to the

UXGA IN connector.

2. Connect the DVI OUT connector to a DVI projector.

3. Connect the 12V DC power adapter (wall transformer) to the 12V DC

socket and connect the transformer to the mains electricity (not shown in

Figure 3).

Figure 3: Connecting the FC-31xl UXGA to DVI Converter

1 Switch OFF the power on each device before connecting it to your FC-31xl. After powering up your FC-31xl, switch on the

power on each device
