Kramer VP-435 Manuel utilisateur

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VP-435

Component / UXGA HDMI

Scaler

P/N: 2900-000262 Rev 13

VP-435 – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the VP-435 Component / UXGA HDMI Scaler 4

4Connecting the VP-435 6

4.1 Connecting the Remote Terminal Block 7

5Operating the VP-435 9

5.1 Using the Front Panel Buttons 9

5.2 Using the CONTROL Buttons 9

5.3 Using the IR Remote Control Transmitter 12

6Technical Specifications 13

Figures

Figure 1: VP-435 Component / UXGA HDMI Scaler 5

Figure 2: Connecting the VP-435 Component / UXGA HDMI Scaler 7

Figure 3: Connecting the Contact Closure Remote Control PINs 8

Figure 4: Infrared Remote Control Transmitter 12

VP-435 - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer VP-435 Component / UXGA HDMI

Scaler, which is ideal for the following typical applications:

Projection systems in conference rooms, boardrooms, hotels and churches

Home theater up-scaling

VP-435 - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check

if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer VP-435 away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

VP-435 - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

VP-435 - Overview

3 Overview

The Kramer VP-435 is a high-quality component video/UXGA to HDMI scaler.

It accepts one of three inputs: either component video (Y, Pb, Pr; Y, Cb, Cr and

YUV; compatible with both SD and HD component) on RCA connectors, computer

graphics on a 15-pin HD connector, or an HDMI signal, selected via a front panel

selector button or via the remote contact closure switch. It scales the video, embeds

the audio, and outputs the signal to the HDMI output.

The VP-435 Component / UXGA HDMI Scaler:

Is HDTV compatible and the resolution can be scaled up to 480p, 576p,

720p, 1080i or 1080p via a front panel selector button

Other resolutions can be selected via the OSD menu.

Has analog audio inputs for the COMP, UXGA and HDMI inputs

Automatically detects and selects the audio source for the HDMI input.

Default selection is HDMI –if this is not present, then the machine uses the

audio from the analog input

Comes with an On-Screen Display (OSD) for easy setup and adjustment,

accessible via the IR remote control and via the front-panel buttons

Has a non-volatile memory that retains the last settings used

Is housed in a desktop sized enclosure and is 12V DC fed

Control your VP-435:

Directly, via the front panel push buttons

Remotely, from the infrared remote control transmitter

Remotely, from the REMOTE contact closure switch

3.1 Defining the VP-435 Component / UXGA HDMI Scaler

This section defines the VP-435.

VP-435 - Overview

Figure 1: VP-435 Component / UXGA HDMI Scaler

Feature

Function

IR Receiver

Receives signals from the remote control transmitter

INPUT Selector Button

Press to select the UXGA input, the COMP input, or the

HDMI input

UXGA, COMP, HDMI INPUT

LEDs

Each LED lights when its input is selected

Selector Button

Press to select the resolution: 480p, 576p, 720p, 1080i or

1080p

480p, 576p, 720p, 1080i or

1080p RES LEDs

Each LED lights when its resolution is selected

MENU Button

Displays the OSD menu (see Section 5.2)

ENTER Button

Press to accept changes and change the SETUP

parameters (see Section 5.2)

- Button

Press to move down the menu list

+ Button

Press to move up the menu list values

HDMI OUT Connector

Connects to the HDMI acceptor

HDMI IN 3.5mm Mini Jack

Connector

Connects to the analog unbalanced stereo audio signal

The audio source is automatically detected and selected.

The default selection is the audio signal embedded in the

HDMI signal. If this is not present, then the machine uses

the audio from the analog input

HDMI IN Connector

Connects to the HDMI source

UXGA IN 3.5mm Mini Jack

Connector

Connects to the analog unbalanced stereo audio signal

source

UXGA IN 15-pin HD Connector

Connects to the UXGA source

COMP IN Pr, Pb, Y RCA

Connectors

Connects to the component video source

For component video, connect all three connectors: Y,

Cb, Cr (also known as YUV)

COMP IN R, L RCA Connectors

Connect to the left and right analog unbalanced stereo

audio source (of the COMP source)

REMOTE Terminal Block

Connects to a contact closure switch (see Section 4.1)

12V DC Connector

+12V DC connector for powering the unit

VP-435 - Connecting the VP-435

4 Connecting the VP-435

Always switch off the power to each device before connecting it to your

VP-435. After connecting your VP-435, connect its power and then

switch on the power to each device.

To connect your VP-435, as illustrated in the example in Figure 2, do the following:

You do not have to connect all the inputs, connect only those that are required.

1. Connect a component video source (for example, a DVD player) to the

COMP In Y, Pb, Pr, RCA connectors, and to the COMP In L and R audio

RCA connectors.

2. Connect a computer graphics source to the UXGA In 15-pin HD connector,

and to the UXGA In audio 3.5mm mini jack connector.

3. Connect an HDMI source (for example, a DVD player) to the HDMI In

connector, and to the HDMI In analog audio 3.5mm mini jack connector.

Alternatively, you can connect the DVI connector on the DVD player to the HDMI

connector on the VP-435 via a DVI-HDMI adapter.

4. Connect the HDMI Out connector to an HDMI acceptor (for example, a

plasma display).

5. Connect the 12V DC power adapter to the power socket and connect the

adapter to the mains electricity (not shown in Figure 2).

VP-435 - Connecting the VP-435

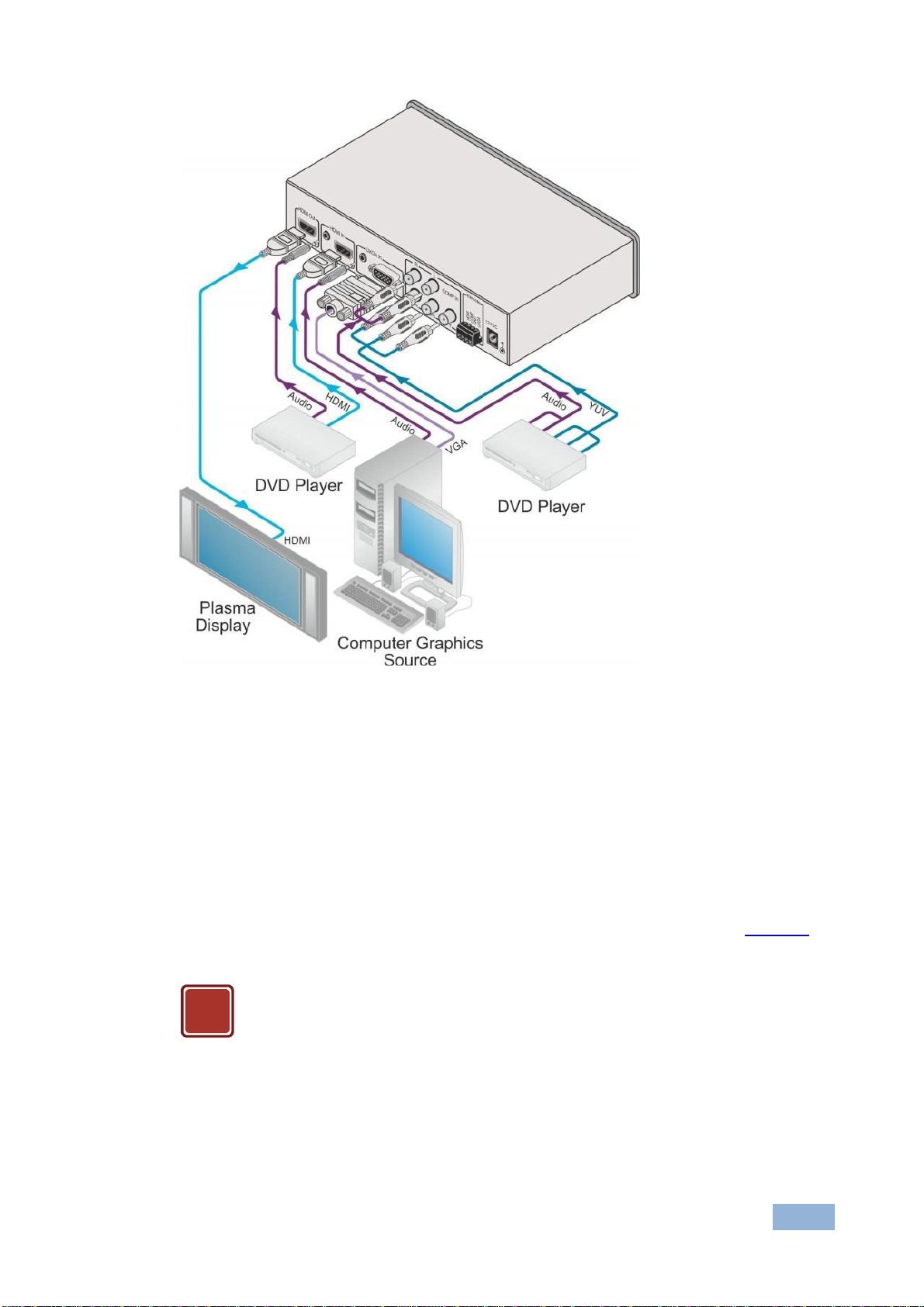

Figure 2: Connecting the VP-435 Component / UXGA HDMI Scaler

4.1 Connecting the Remote Terminal Block

The contact closure remote control pins operate in a similar way to the Input

selector button. Using the contact closure remote control (also known as push-to-

make momentary contact) you can select the HDMI, the COMP or the UXGA

input. To do so, momentarily connect the required input (HDMI, COMP or UXGA)

pin on the REMOTE terminal block connector to the GND (Ground) pin, as Figure 3

illustrates.

DO NOT Connect more than one PIN to the GND PIN at the same

time.
