Kramer K-180Mini Manuel utilisateur
www.kramerAV.com
info@kramerel.com
User Guide
MODEL:
K-180Mini
USB Panoramic Camera
P/N:
2900- 301532QS
Rev:
1
SAFETY WARNING
Disconnect the unit from the power supply before opening and servicing
For the latest information on our products and a list of Kramer distributors, visit our
Web site where updates to these installation instructions may be found.
We welcome your questions, comments, andfeedback.
2
K-180Mini USB Panoramic Camera
K-180Mini USB Panoramic Camera
Congratulations on purchasing your Kramer K-180Mini USB Panoramic Camera. K-180Mini provides a 180° field of
view with full-picture immersive technology that provides wall-to wall coverage, delivering high quality images in 4K
UHD.
K-180Mini can be operated via the K-Studio App (www.kramerav.com/downloads/K-180Mini) or simply via the top
tap button.

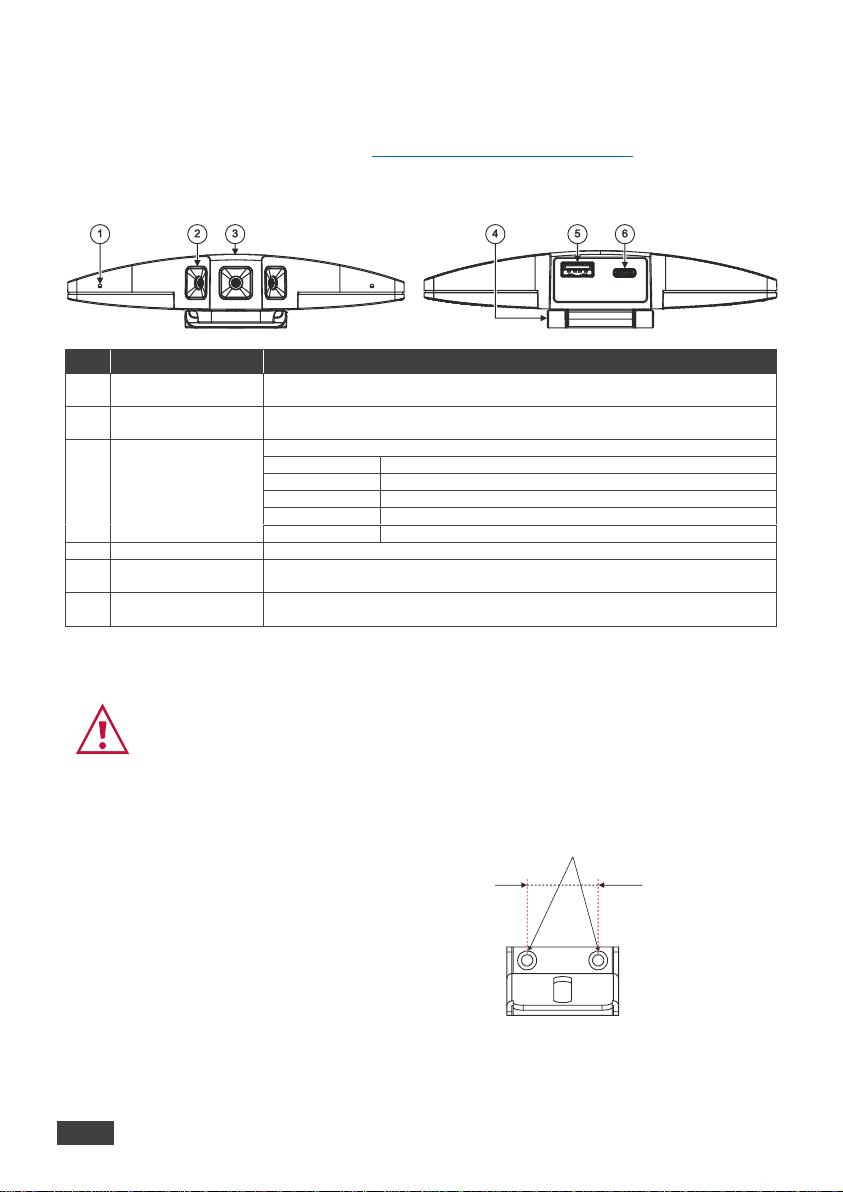

Get to know your K-180Mini
#
Feature
Function
1
Microphone
2-array microphone for audio communication, recording or conferencing, with a
pick-up distance of up to 4m.
2
Camera
Three 12-MP cameras for producing high resolution panoramic video for
conferencing.
3
Top Touch Button
Press to select any of the following operation modes.
Panoramic View
180° view of the meeting room.
Grid View
Screen is split to several sections.
Normal View
Zoomed panoramic view.
Split View
Normal view on top and panoramic view below.
Composite View
Panoramic view on top and on 3 sections below.
4
Fixed Bracket
Place over the screen edge.
5
HOST USB 2.0
Type A Port
Optionally, connect to an additional USB device.
6
DEVICE USB-C 2.0
Port
Connect to a computer (for example to capture the video).
Mounting K-180Mini
Install K-180Mini using one of the following methods by attaching the fixed bracket to the screen edge or attach to
the wall using the wall bracket (to attach to the screen edge, unfold the fixed bracket then fit in on the screen)
•Ensure that the environment (e.g., maximum ambient temperature, humidity & air flow) is compatible for the
device.
•Avoid exposing the product to direct sunlight or any other heat source.
•Keep away from children product includes small accessories and components.
•Avoid uneven mechanical loading.
•Do not insert any sharp objects into the product.
•Avoid dropping or hitting the product to avoid damaging the product.
•For maintenance, call tech support.
To attach K-180Mini onto a wall:
1. Find the correct location on the wall.
2. In the desired location, drill 2 holes 28mm apart (using a
6mm drill-bit).
3. Insert the 2 rubber expansion-plugs into the holes.
Installation Instructions
3
4. Attach the wall bracket to the wall, using the two bracket
screws.
5. Slide the fixed bracket to the wall bracket and fasten
using the thumb screw.
USB Host Options
The USB 2.0 host connection allows connecting any
additional USB device, or a Bluetooth dongle (for
example, of a speakerphone or mouse) allowing a
single USB connection to the computer.
Always switch OFF the power on each device before
connecting it to your K-180Mini.
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/K-
180Mini. Using third-party cables may cause damage!
Connecting the Power
K-180Mini is powered via USB-C.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
•There are no operator serviceable parts inside the unit.
Warning:
•Disconnect the power and unplug the unit from the wall before installing.
•Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.
•To ensure continuous risk protection, replace fuses only according to the rating specified on the product label which
located on the bottom of the unit.
Operating K-180Mini for the First Time
You can operate K-180Mini manually via the top configuration button on the camera, or via your PC, using the
K-Studio app (see www.kramerav.com/downloads/K-180Mini).
We recommend using K-Studio either for executive offices where a computer with K-Studio installed is
handy, or in specific cases where a computer is set in the meeting room and dedicated speaker tracking is
necessary or if a whiteboard in the room needs to be displayed separately.
To operate K-180Mini:
1. Connect the device via USB to the control system or computer.
The device can also be recognized as a storage drive. A link to downloading the K-Studio software is then
available.
2. Download the K-Studio and install it, or close the window and use K-180Mini manual configurations via the
Tap button only.
3. Open your video conferenceing solution (for example, Microsoft Teams).
4. Click Settings>Devices, and then select the camera type:
▪K-180Mini enables manually controlling the camera when connected directly to USB.
▪K-Studio Camera (only if installed) enables advanced camera configurations.
K-180Mini is ready for operation.
4
K-180Mini USB Panoramic Camera
Use K-180Mini tap button to select one of the five available modes:
Composite View The screen displays a panoramic view.
Normal View The screen shows a zoomed
panoramic view.
Grid View Displays 4 areas to view.
Panoramic View shows a 180° view of the
meeting room.
Split View shows the normal view on top and a
panoramic view below.
Technical Specifications
Ports
1 USB 2.0 type A
On a USB connector
1 USB-C 2.0
On a USB-C connector
Video
Output Formats
MJPG; H.264; YUY2
Resolutions
YUY2 (30fps): 640x480, 640x360, 480x270, 352x288, 320x240
MJPG (30fps): 3840x2160(24fps), 3840x1376, 3840x962, 2560x1440,
1920x1080, 1280x720, 1024x576, 960x544, 640x480, 640x360
H264 (30fps): 1280x720, 1024x576, 960x544, 640x480, 640x360
Focus
Method
Fixed
Distance
1.5 meters
Camera
Max. Field of View (FOV)
180
Depth of Field (DOF)
0.5 to 5 meters
Aperture
2.2
Minimum Illumination
10Lux
Microphone
Quantity
2
Pickup Distance
Up to 4 meters
Controls
Top Button
Selectable layouts
App
Layout configuration via PC
Power
Consumption
5V DC, 1.5A max.
Environmental
Conditions
Operating Temperature
0° to +40°C (32° to 104°F)
Storage Temperature
-20° to +60°C (-4° to 140°F)
Humidity
10% to 90%, RHL non-condensing
Altitude
Below 5000 meters
Regulatory
Compliance
Safety
CE, FCC
Environmental
RoHs, WEEE
Enclosure
Type
Aluminum
General
Net Dimensions (W, D, H)
14.7cm x 7.4cm x 3.5cm (5.8" x 2.9" x 1.4")
Shipping Dimensions (W, D, H)
17.6cm x 17.6cm x 4.6cm (6.9" x 6.9" x 1.8")
Net Weight
0.24kg (0.53lbs) approx.
Shipping Weight
0.59kg (1.3lbs) approx.
Accessories
Included
1 USB-C cable, wall bracket, screws set
Specifications are subject to change without notice at www.kramerav.com
