Kramer 104R Manuel utilisateur

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

104R

RF Distribution Amplifier

P/N: 2900-001010 Rev 3

104R – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the 104R RF Distribution Amplifier 4

4Connecting the 104R 5

5Technical Specifications 7

Figures

Figure 1: 104R RF Distribution Amplifier 4

Figure 2: Connecting the 104R RF Distribution Amplifier 6

104R - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer 104R RF Distribution Amplifier, which

is ideal for the following typical applications:

CATV and MATV systems

Modulation applications (for example, hotel systems)

Retail stores, schools, medical facilities

Home theater systems

104R - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer 104R away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

104R - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

104R - Overview

3 Overview

The 104R is a high−performance distribution amplifier for RF signals. It takes one

RF (CATV/MATV) signal and distributes it to four identical outputs.

In addition, the 104R features:

A single RF input such as a typical CATV/MATV signal and distributes it to

four identical outputs

Extra wide bandwidth of up to 800 MHz, ensuring that the unit remains

transparent in the most critical applications

Matches the inputs and outputs to 75Ω impedance

Comes with convenient screw-on “F” type connectors

3.1 Defining the 104R RF Distribution Amplifier

This section defines the 104R.

Figure 1: 104R RF Distribution Amplifier

Feature

Function

OUT 1 “F” type connector

Connects to the RF source 1

OUT 2 “F” type connector

Connects to the RF source 2

INPUT “F” type connector

Connects to the RF acceptor

OUT 3 “F” type connector

Connects to the RF source 3

OUT 4 “F” type connector

Connects to the RF source 4

ON LED

Illuminates when receiving power

12V DC

+12V DC connector for powering the unit

104R - Connecting the 104R

4 Connecting the 104R

Always switch off the power to each device before connecting it to your

104R. After connecting your 104R, connect its power and then switch

on the power to each device.

To connect the 104R as illustrated in the example in Figure 2:

1. Connect the TV source (for example, a satellite receiver) to the “F” type

INPUT connector.

2. Connect one or more of up to 4 of the following “F” type OUT connectors to

the respective TV acceptors:

You do not have to connect all the outputs.

OUT 1 to TV acceptor 1 (for example, a TV)

OUT 2 to TV acceptor 2 (for example, a TV)

OUT 3 to TV acceptor 3 (for example, a recorder)

OUT 4 to TV acceptor 4 (for example, a TV)

3. Connect the 12V DC power adapter to the power socket and connect the

adapter to the mains electricity.

4. Switch on the TV source and the TV acceptors.

The RF INPUT signal automatically distributes to the TV acceptors.

104R - Connecting the 104R

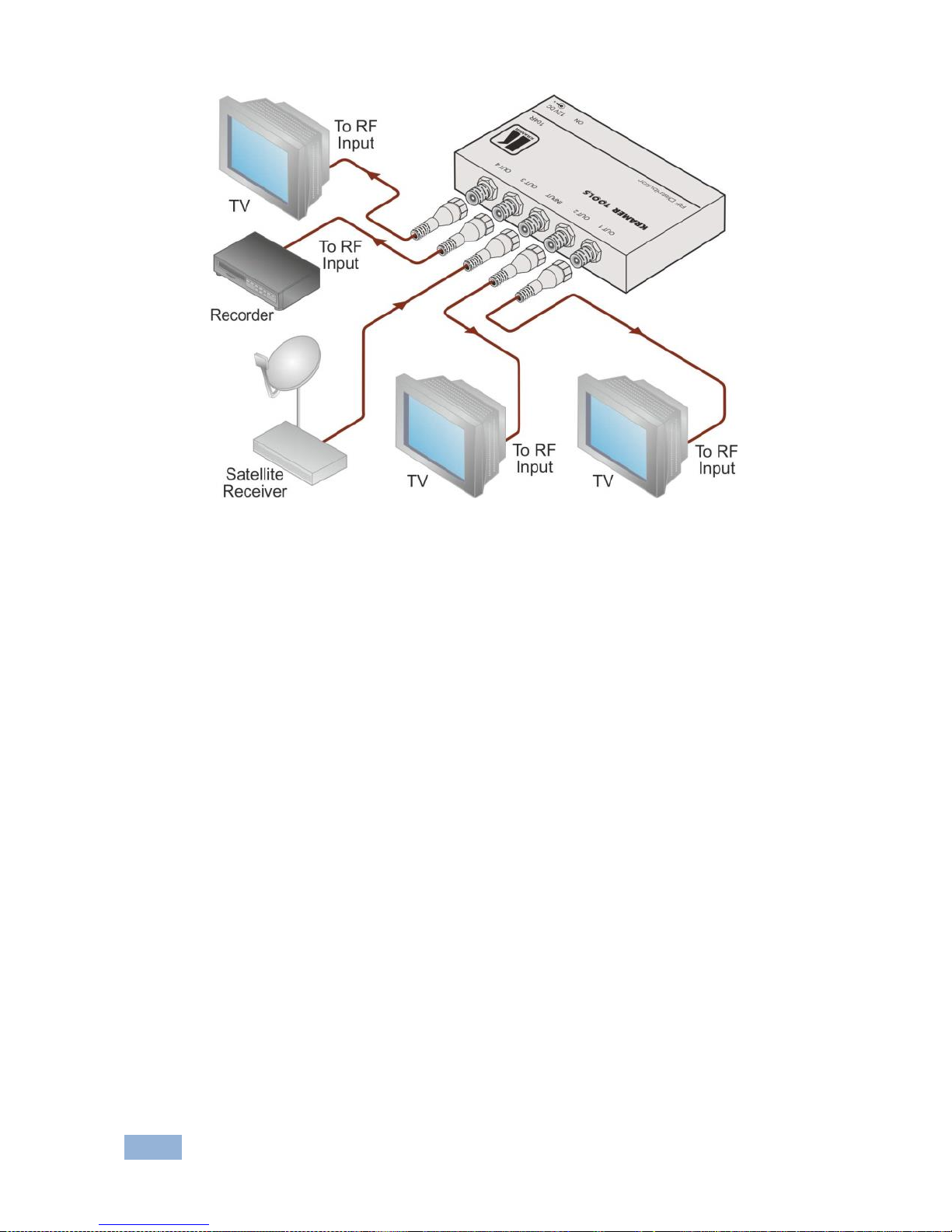

Figure 2: Connecting the 104R RF Distribution Amplifier

104R - Technical Specifications

5 Technical Specifications

INPUT:

1 RF, 0.5Vpp/75Ω (max.) on an “F” type connector

OUTPUTS:

4 RF, 0.5Vpp/75Ω (max.) on “F” type connectors

BANDWIDTH:

40MHz to 3000MHz (+/−3dB)

COUPLING:

RF GAIN:

+6dB typical across band

NOISE FIGURE:

3.5dB

POWER CONSUMPTION:

12V DC, 80mA

OPERATING TEMPERATURE:

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE:

-40° to +70°C (-40° to 158°F)

HUMIDITY:

10% to 90%, RHL non-condensing

DIMENSIONS:

12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H.

WEIGHT:

0.32kg (0.71lbs) approx.

ACCESSORIES:

Power supply, mounting bracket

OPTIONS:

RK−3T 19" rack adapter

Specifications are subject to change without notice at http://www.kramerelectronics.com
