Kospel PPE2 Manuel utilisateur

KOSPEL S.A. KOSZALIN ul. Olchowa 1

SERVICE

MANUAL

PPE2

11.06.2015

Service manual PPE2

Contens

1. Exterior view of water heater PPE2. 3

Pic1. Water heater PPE2. 3

2. Construction of water heater PPE2. 4

Pic.2. Interior view. 4

2.1. Assembly of ow sensor and air sensor. 5

Pic.2a. Air sensor and ow sensor. 5

2.2. Assembly of temperature sensors. 6

Pic.2b. Temperature sensors 6

3. Parameters and construction of heating box. 7

Pic.3. Heating box. 7

Tab.1. Parameters of heating box. 7

4. Description of MSP-80 board. 8

Pic.4. MSP-80 board. 8

Tab.2. Table of power conguration for heating boxes 15/24/27 kW. 8

4.1. Description of MSP-81 board. 9

Pic.4.1. MSP-81 board. 9

Tab.2.1. Conguration of dipswitches P and F. 9

5. Electric connection of heating box. 10

Pic.5. Electric connections of heating box. 10

6. Dismantling of power board. 11

Pic.6. Dismantling of power board. 11

7. Wiring diagram. 12

Pic.7. Wiring diagram. 12

8. Control panel PPE2. 13

Pic. 8. Control panel PPE2. 13

8.1. Temperature adjustment. 13

8.2. Conguration and parameters view. 14

8.3. Maximum temperature. 14

Tab.3. Detailed description of MSP and PW boards 14

9. Spare parts list. 15

Tab.4. Parts list. 15

10. Technical specications. 16

Tab.5. Technical specications 16

1. Exterior view of water heater PPE2.

Pic.1. Water heater PPE2.

01349

01347

01348

01168

Part number in table of parts

Service code

Service manual PPE2

2. Construction of water heater PPE2.

Pic.2. Interior view.

01346

Tab.1le p5

00007

01347

01285

00145

01344

01350

01345

01280

01281

Pic.2a. Flow sensor and air sensor.

2.1. Assembly of ow sensor and air sensor.

00337

01284

01283

T15able p.

00255

Check valveAir sensor

Correct assembly of

the flow sensor

WC-3 probe

Service manual PPE2

2.2. Assembly of temperature sensors.

Pic.2b. Temperature sensors.

00337

00253

01283

00245

00255

01283

01282

Outlet temp. sensor Inlet temp. sensor

3. Parameters and construction of heating box.

Pic.3. Heating box

Heating power

[kW]

Power of heating box

[W]

2500

4000

4500

Rated voltage

[V]

400

Rated current

[A]

6,3

10,0

11,3

Heating element resistance

[Ω]

64,00

40,00

35,56

Tab.1. Parameters of heating box

00627

Ta b .15le p

01301

01299

01300

01302

01298

Service manual PPE2

4. Description of MSP-80 board.

Pic.4. MSP-80 Board.

Tab.2. Table of power conguration for heating boxes 15/24/27 kW.

Heating box 15kW Heating box 24kW Heating box 27kW

123456

Switch no. 5- ON - switch position that activates the

air control at the heating box.

Switch no. 6- in „ON” position blocks access

to the unit’s setting (this realtes to PPE2 and PPVE

only). In this case, the LED display shows the desired

temperature value (which has been adjusted before

the unit start-up), the heating icon and other possible

working characteristics

1 - NAST2 - Control panel PPE2 connection point

2 - NAST1 - non-use socket

3 - Tin - inlet temp sensor connection point

4 - Conguration of heating box power

5 - Tout - Outlet temp. sensor connection point

6 - Q- Flow sensor connection point

7 - PROG - Service socket

8 - TEST - tester connection point

9 - NA - master signal IN

10 - BLOK - master signal OUT

11 - ZM -Power board connection point

12 - JP2- air detection jumper

13 - Air sensor, ground and power supply

connection point

3 4 5 6

Control Panel PPE2

service code 01347

Display

Control knob

Control Panel PPE2

service code 01347

Display

Control knob

Tin

Tout

4.1. Description of MSP-81 board.

Rys.4.1. Płytka MSP-81.

1 - NAST2 - Control panel PPE2 connection point

2 - NAST1 - non-use socket

3 - Conguration of heating box power

4 - Tin - inlet temp sensor connection point

5 - Tout - Outlet temp. sensor connection point

6 - Q- Flow sensor connection point

7 - PROG - Service socket

8 - TEST - tester connection point

9 - NA - master signal IN

10 - BLOK - master signal OUT

11 - ZM - Power board connection point

12 - JP2- JP2- air detection jumper

13 - Air sensor, ground and power supply

connection point

Tab.2.1. Conguration of switches P and F.

Heating box 15kW Heating box 24kW Heating box 27kW

123456

Switches settings F.

123456

1 - do not change! keep factory settings intact OFF,

2 - do not change! keep factory settings intact OFF

3 - ON - activates the air control at the heating box,

4 - ON - blocks access to the heater’s settings

Switches settings P - Table of power conguration for heating boxes 15/24/27 kW.

OFF

Service manual PPE2

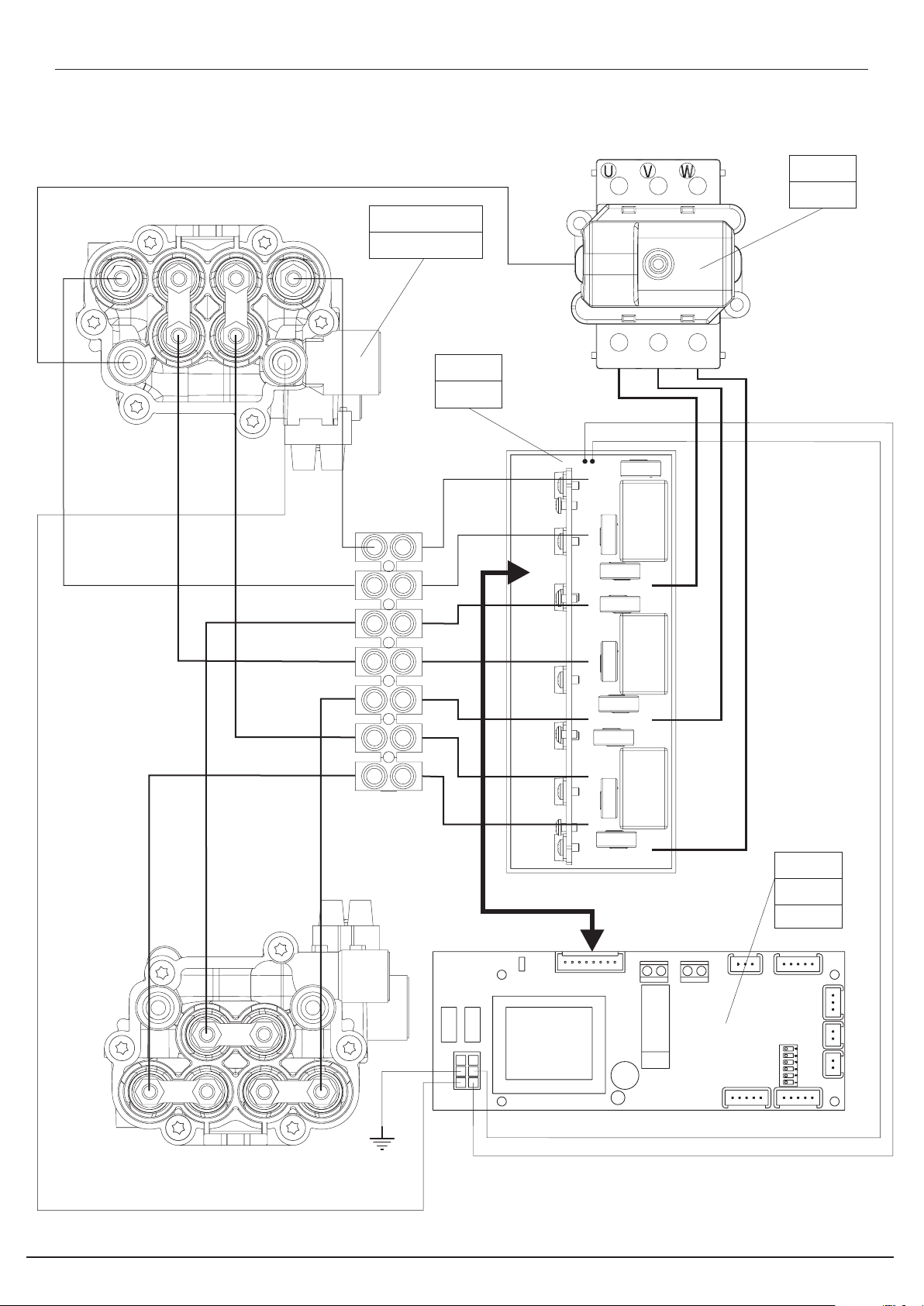

5. Electric connection of heating box.

Pic.5. Electric connection of heating box.

Tab.15le p

01345

01281

Top view

Bottom view

01280

01396

400V AC
