KonNad C2000-A2-SDX6000-CX1 Manuel utilisateur

Last updated: 2019-12-13

C2000-A2-SDX6000-CX1

User Manual

RS485 ← 6AC

AC 90-275V

Remote I/O Module — AC Digital Input Module

SinoCon Co., Ltd.

Catalog

1. Hardware Description

1.1. Specifications

1.2. Apprearance

1.3. Indicators

1.4. Port Description

1.5. Product Dimensions

1.6. Installation Method

2. Package Contents

3. Warranty Policy

C2000-A2-SDX6000-CX1 User Manual

2 / 11

SinoCon Co., Ltd. www.sinoconsys.com

Trademarks

The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this

manual belong to their respective manufacturers.

Disclaimer

This document only provides information about KonNaD products. No license to any intellectual property rights is

granted by this document, including any intellectual property licenses, expressed or implied, or by any means.

SinoCon assumes no responsibility other than the liability stated by SinoCon in the terms and conditions of sale of

its products and SinoCon makes no warranties regarding the sale or use of KonNaD products, including the

suitability for the specific use of the products, and marketability, and SinoCon doesn't guarantee that it won't

infringe any patent, copyright or other intellectual property rights, etc.

Information in this document is subject to change without notice and does not represent a commitment on the

part of SinoCon.

SinoCon Co., Ltd.

Address: 16th Floor, Tower A, Zhongyin Building, Caitian Road, Futian District, Shenzhen, China

Web: www.sinoconsys.com

Tel: +86 0755-88865168

C2000-A2-SDX6000-CX1 User Manual

3 / 11

SinoCon Co., Ltd. www.sinoconsys.com

C2000-A2-SDX6000-CX1 User Manual

4 / 11

SinoCon Co., Ltd. www.sinoconsys.com

1. Hardware Description

1.1. Specifications

Classification Parameter Specification

AC Input AC Channels 6

Connector Terminal block

AC Type Wet contact

Channel-to-Channel Isolation 1500Vrms

Acquisition Frequency 1kHz

Logic Logic 0: ≤ 75VAC, Logic 1: 90~275VAC

Upstream Serial Port Serial Standrad RS485

No. of Ports 1

Connector Terminal block

Serial Protocol Modbus RTU

Power Power Connector Terminal block

Input Voltage 9~27VDC

Current 30mA @ 12VDC

Power ≤ 0.3W

Physical Characteristics Dimensions 75*105*30mm

Installation Din-rail or wall

Environmental Limits Operating Temperature -40℃ ~ 85℃

Storage Temperature -60℃ ~ 125℃

Ambient Relative Humidity 5% ~ 95% RH, non-condensing

C2000-A2-SDX6000-CX1 User Manual

5 / 11

SinoCon Co., Ltd. www.sinoconsys.com

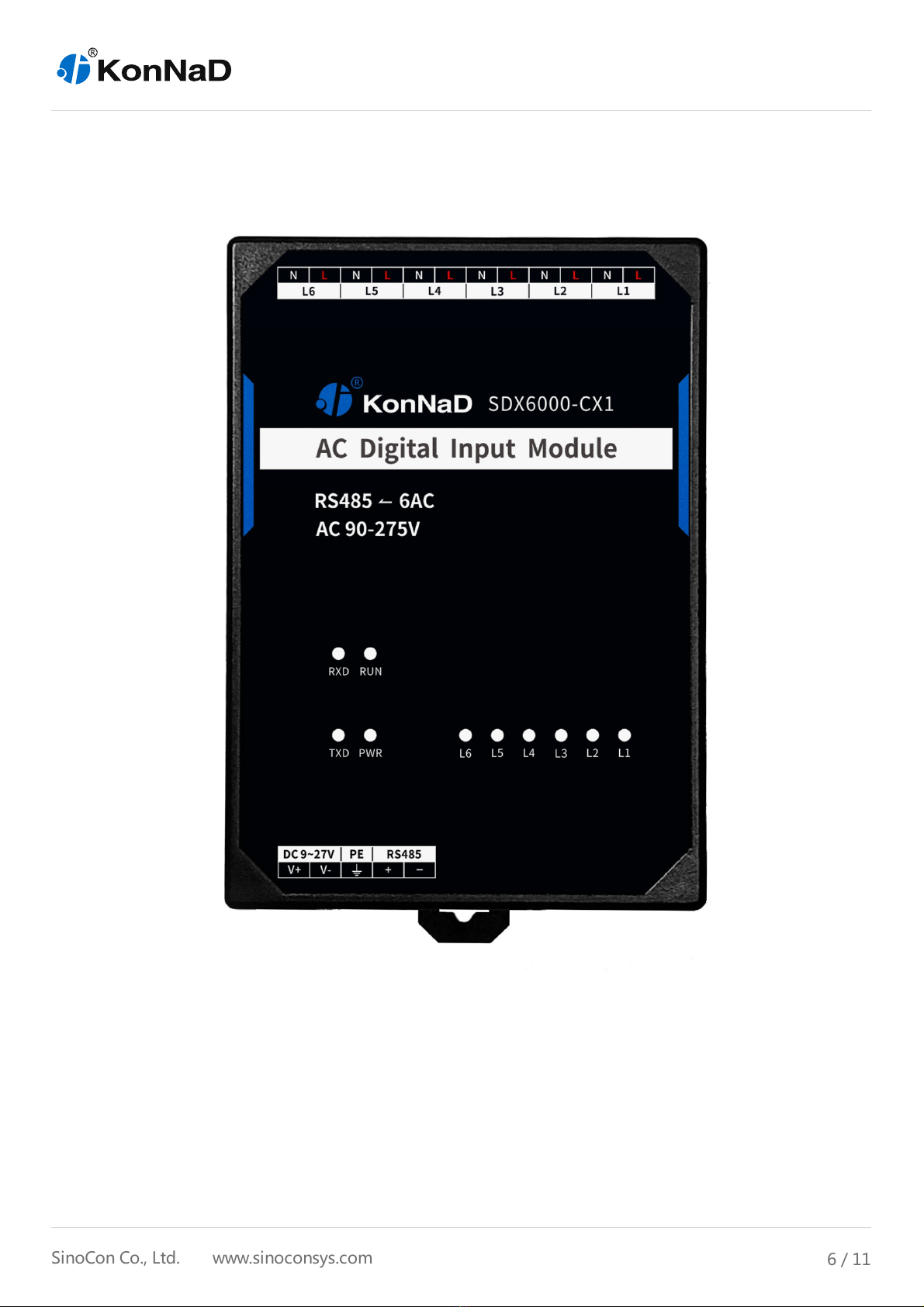

1.2. Apprearance

C2000-A2-SDX6000-CX1 User Manual

6 / 11

SinoCon Co., Ltd. www.sinoconsys.com

1.3. Indicators

Classification Indicator Description Meaning

AC Input Lx AC input

indicators

Steady on：Input voltage more than the threshold voltage

(90VAC)

Off：Input voltage less than the threshold voltage

(90VAC)

Downstream

Serial Port

RXD RS485 data

receive

indicator

Steady on：RS485 line fault, please check if the positive

and negative poles of 485 line are reversed

Flashing：RS485 receiving data

Off：RS485 no receiving data

TXD RS485 data

transmit

indicator

Flashing：RS485 transmitting data

Off：RS485 no transmitting data

Power PWR Power indicator Steady on：Normal power supply

Off：No power or abnormal power supply, please check if

the voltage range is 9~27VDC

RUN RUN Running

indicator

Steady on：Device exception

Flashing：Flashes every 1 second when the device is ready

Off：Device exception

C2000-A2-SDX6000-CX1 User Manual

7 / 11

SinoCon Co., Ltd. www.sinoconsys.com

1.4. Port Description

Classification Port Description Recommended

wiring

AC Input L、N AC live wire, AC neutral wire -

Upstream Serial

Port

+、- RS485+, RS485- (upstream) RVSP 2*0.5

Power Input V+、

V-

Power supply input positive, power supply input

negative

RVV 2*1.0

PE Used for reliable grounding of the device, surge

protection

RVV 2*0.5

C2000-A2-SDX6000-CX1 User Manual

8 / 11

SinoCon Co., Ltd. www.sinoconsys.com

1.5. Product Dimensions

unit: mm（inch）

1.6. Installation Method

C2000-A2-SDX6000-CX1 User Manual

9 / 11

SinoCon Co., Ltd. www.sinoconsys.com

2. Package Contents

No. Contents

1 Device (contain mounting kit) * 1

2 Terminal block * 1 set

3 Installation guide card * 1

C2000-A2-SDX6000-CX1 User Manual

10 / 11

SinoCon Co., Ltd. www.sinoconsys.com
