Konig CMP-USBNETBOX4 Manuel utilisateur

CMP-USBNETBOX4

MANUAL (p. 2)

4port USB network server

ANLEITUNG (s. 17)

4-Port USB-Netzwerkserver

MODE D’EMPLOI (p. 32)

Serveur réseau 4-ports USB GEBRUIKSAANWIJZING (p. 47)

4-Poorts USB netwerkserver

MANUALE (p. 62)

Server di rete a 4 porte USB MANUAL DE USO (p. 77)

Servidor de red de 4 puertos USB

HASZNÁLATI ÚTMUTATÓ (o. 92.)

4 portos USB hálózati kiszolgáló KÄYTTÖOHJE (s. 107)

4-porttinen USB-verkkopalvelin

BRUKSANVISNING (s. 122)

4-portars USB-nätverksserver NÁVOD K POUŽITÍ (s. 137)

Síťový USB server se 4 porty

MANUAL DE UTILIZARE (p. 152)

Server de reţea cu 4 porturi USB ΕΓΧΕΙΡΙ∆ΙΟ XPHΣHΣ(σελ. 167)

∆ιακομιστής δικτύου USB με 4 θύρες

BRUGERVEJLEDNING (p. 182)

4-port USB netværksserver VEILEDNING (p. 197)

4-ports USB nettverksserver

ENGLISH

4port USB network server

Printer Setup on Windows®XP/VISTA

EST provides a straightforward and easy-to-use utility that helps you set up USB printers connected to EST’s

LPR printer server as network printers through the Network Printer Wizard. This utility reduces the dozens of

steps required in setting up a network printer via Windows®built-in printer setup program to a few

point-and-clicks with the mouse. Users no longer need to deal with the confusing IP setting, queue name

entering and port configuration.

Network Printer Wizard Installation

To start the installation, please double click on the installer:

Wait for the installer to run:

Select the installation language and click OK:

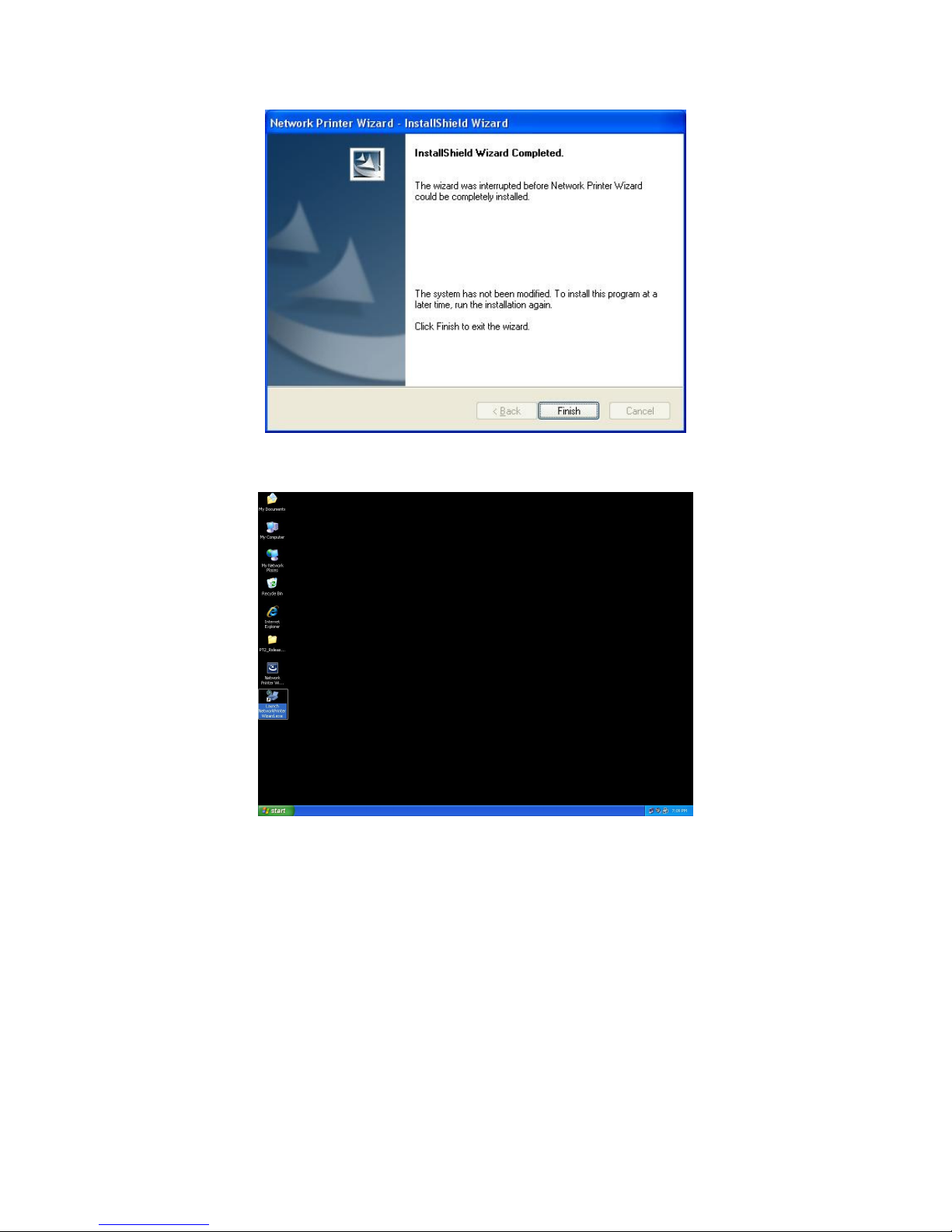

Click on Finish to exit the installer once the installation is completed:

The installer creates a shortcut on the Desktop for you:

Printer Set up

• Now we can start setting up your printer. Please click the Launch NetworkPrinterWizard icon created on

the desktop.

• Please click Next to continue when you see this welcome dialog box.

• Please select the printer you would like to setup from this list and then click Next. The number of printers

you see on this list depends on the number of printers that are connected to your network. If you only

have one printer on the network, you will see only one printer on this list.

If you don’t see any printers, please make sure your printers and EST LPR Printer Server are

correctly powered on and connected to the network.

• On the next dialog box, please select the driver from the list, if it is there, click the Next button and go to

step 7. Otherwise, read on.

If you can’t find the target printer’s driver on the list, please insert the disk containing the printer’s driver,

click on the Have Disk… button then go to step 5.

• You must browse to the folder that contains the driver for your printer and click OPEN to use it:

• Then, select the driver from the list again and click the Next button. If you did not select the correct driver,

this is the chance for you to verify. Please click Have Disk again to re-select.

• Once you have selected the correct driver from the list, please click the Finish button. The wizard might

take a minute to setup the network printer for you.

• After the printer has been setup correctly, you can see it under Control Panel > Printers:

• Now you can print any document using the printer you just setup:

If you have more than one printer set up, please make sure you have selected the correct printer to print.

NOTE:

Remember, this setup is a one-time procedure. You do not have to run this process every time you

want to print. However, of course, if you remove the Network Printer Wizard program, your printer

setup will no longer work.

Remove the Printer Setting

To remove the printer setup, please go to the Control Panel > Printers dialog box and remove the printer

entry.

Simply Delete this icon by pressing the Del key on your keyboard. Then, it will be removed from the list of

usable printers when you print a document.

Remove the Program

• To remove the Network Printer Wizard program, please go to the Control Panel > Add or Remove

Programs (Programs and Features on Windows®VISTA)

Windows®XP

Windows®VISTA

• Then select it to remove the program

• Then follow the instructions of the installer to complete the removal process:

PLEASE NOTE:

Once you remove this program, you will no longer be able to print using the printers you setup with

Network Printer Wizard.
