Konica Minolta Magicolor 2200 DeskLaser Manuel utilisateur

English

magicolor 2200

DeskLaser

Installation Guide

1800621-001E

English

Thank You

Thank you for purchasing a magicolor 2200 DeskLaser. You have made an excellent choice. Your

magicolor 2200 DeskLaser is specially designed for optimal performance in Windows and TCP/IP

networking environments.

Trademarks

The following are registered trademarks of MINOLTA-QMS, Inc.: QMS, the MINOLTA-QMS logo, and

magicolor.

Minolta is a trademark of Minolta Co., Ltd. Other product names mentioned in this guide may also be

trademarks or registered trademarks of their respective owners.

Proprietary Statement

Rights Reserved. This software may not be reproduced, modified, displayed, transferred, or copied in any

form or in any manner or on any media, in whole or in part, without the express written permission of

MINOLTA-QMS, Inc.

Rights Reserved. This document may not be copied, in whole or part, nor transferred to any other media or

language, without written permission of MINOLTA-QMS, Inc.

Manual Notice

MINOLTA-QMS, Inc. reserves the right to make changes to this manual and to the equipment described

herein without notice. Considerable effort has been made to ensure that this manual is free of inaccuracies

and omissions. However, MINOLTA-QMS, Inc. makes no warranty of any kind including, but not limited to,

any implied warranties of merchantability and fitness for a particular purpose with regard to this manual.

MINOLTA-QMS, Inc. assumes no responsibility for, or liability for, errors contained in this manual or for

incidental, special, or consequential damages arising out of the furnishing of this manual, or the use of this

manual in operating the equipment, or in connection with the performance of the equipment when so

operated.

Registering the Printer

Mail—Fill out and send in the registration card enclosed in your shipment.

Internet—Go to www.onlineregister.com/minolta-qms/ and follow the instructions given there.

CD-ROM—Follow the instructions on the CD-ROM.



English

Getting Acquainted with Your Printer .......................................................................................1

Features 1

Front/Right Side View 1

Front Internal View 1

Left Side/Rear Side View 2

Documentation Set ........................................................................................................................2

Setting up Your Printer ................................................................................................................3

Shipment Contents 3

Unpacking the Printer 3

Installing the Waste Toner Pack 5

Installing the Fuser Oil Roller 6

Removing the Tape from the Transfer Roller 7

Loading Media 8

Loading the Multipurpose Tray 10

Installing Accessories 11

Plugging in/Turning on the Printer ...........................................................................................12

About the Control Panel .............................................................................................................12

Control Panel Indicators 13

Control Panel Keys 13

Configuration Menu Overview .................................................................................................14

Language 14

Sample Page 15

Engine 15

Network 16

Service 19

Connecting the Printer ...............................................................................................................19

Installing Printer Drivers and Software ...................................................................................20

Plug and Play Printer Driver Installation 20

Manually Installing the Printer Driver/Monitor 20

Selecting the Crown Port 21

Troubleshooting ..........................................................................................................................21

Accessories and Consumables ....................................................................................................23

Accessories 23

Consumables 23

Contents

Contentsii

English

Regulatory Compliance ..............................................................................................................24

FCC Compliance Statement 25

Canadian Users Notice 25

Laser Safety 25

International Notices 26

Warranty Considerations ...........................................................................................................26

Consumables and Your Warranty 26

Manufacturer’s Declaration of Conformity—Europe 220 Volt..............................................27

Manufacturer’s Declaration of Conformity—Latin America 110 Volt .................................28

Manufacturer’s Declaration of Conformity—Latin America 220 Volt .................................29



Getting Acquainted with Your Printer 1

English

Getting Acquainted with Your Printer

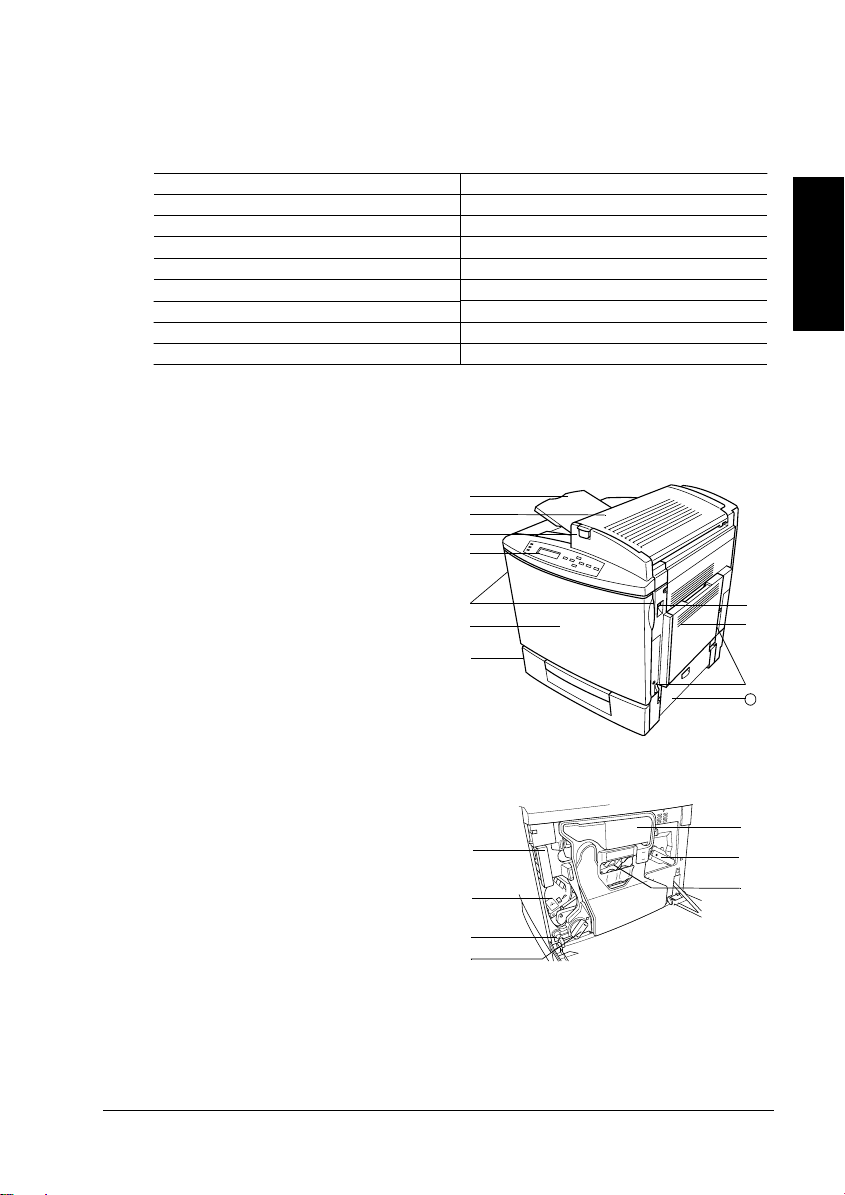

Features

The following drawings illustrate the parts of your printer referred to throughout this guide, so

please take some time to become familiar with them.

Front/Right Side View

Front Internal View

Print Speed 5/20* pages per minute

SDRAM 32 MB

Resolution 1200 x 600 dpi

500-sheet Letter/A4/Legal (Upper Media Tray) Standard

Multipurpose Tray Standard

Lower Feeder Unit Optional

Duplex Unit Optional

5-bin Mailbox Optional

64 MB Memory Expansion Optional

*5 = color; 20 = monochrome black

1—Output tray

2—Top cover

3—Top cover latch

4—Control panel and message window

5—Front cover latch (one on each side)

6—Front cover

7—Upper media tray (tray also known as

a cassette)

8—Right-side cover latch

9—Multipurpose tray (closed)

10—Pull-out carrying bars (one on each side)

11—Upper feed path cover





















1—Toner ejection lever

2—Toner slot

3—Toner carousel release button

4—Toner rotation knob

5—Waste toner pack

6—Transfer belt unit right release lever

7—OPC drum cartridge













Documentation Set2

English

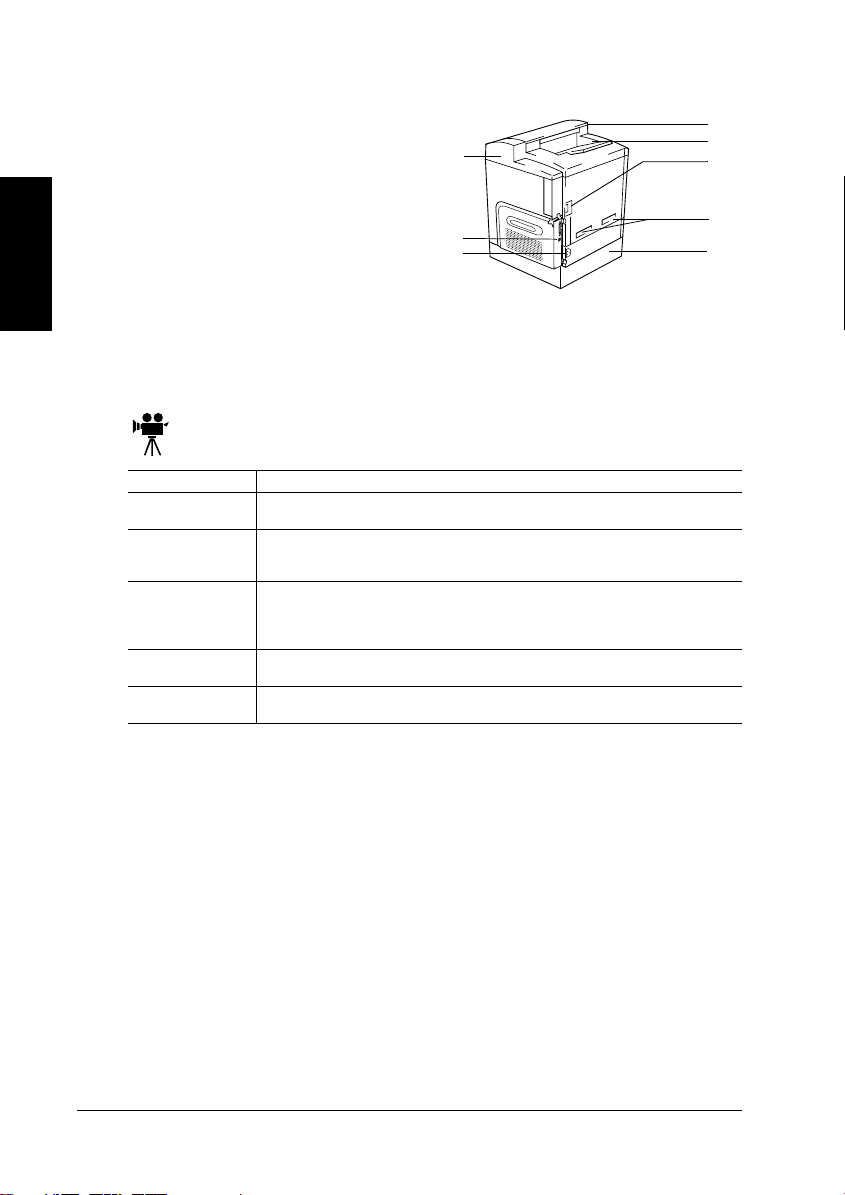

Left Side/Rear Side View

Documentation Set

Your magicolor 2200 comes with one CD-ROM. All the documentation is on this CD-ROM unless

otherwise noted below. It is provided in Adobe Acrobat PDF format.

You may discover movie camera icons in the manuals. If you’re using the Acrobat PDF

version of this guide, click the icon to play a QuickTime video clip of the procedure

described in the text.

Quick Setup Guide Use this sheet when unpacking the printer.

Service & Support

Guide This lists global sources of service and support for your printer. Further information

about MINOLTA-QMS printers is available through the Internet.

Installation Guide You’re looking at this document right now. This assists in setting up the printer, install-

ing a printer driver, and connecting to a network. It also briefly describes the control

panel and configuration menu.

User’s Guide The

User’s Guide

guides you through the day-to-day operation of your printer, includ-

ing information on printing files, refilling print media, and replacing toner. It also

includes information on handling, cleaning, and maintaining your printer; improving

print quality; and troubleshooting printer problems.

Maintenance Guide This guide is a handy item to keep at the printer for quick reference information

regarding operation and care of the printer.

Registration Card Registration and warranty information is included.

1—Ventilation grille

2—Interface

3—AC power connector

4—Top cover

5—Output tray

6—Main power switch

7—Hand grips for moving printer

8—Media tray (left side)













Setting up Your Printer 3

English

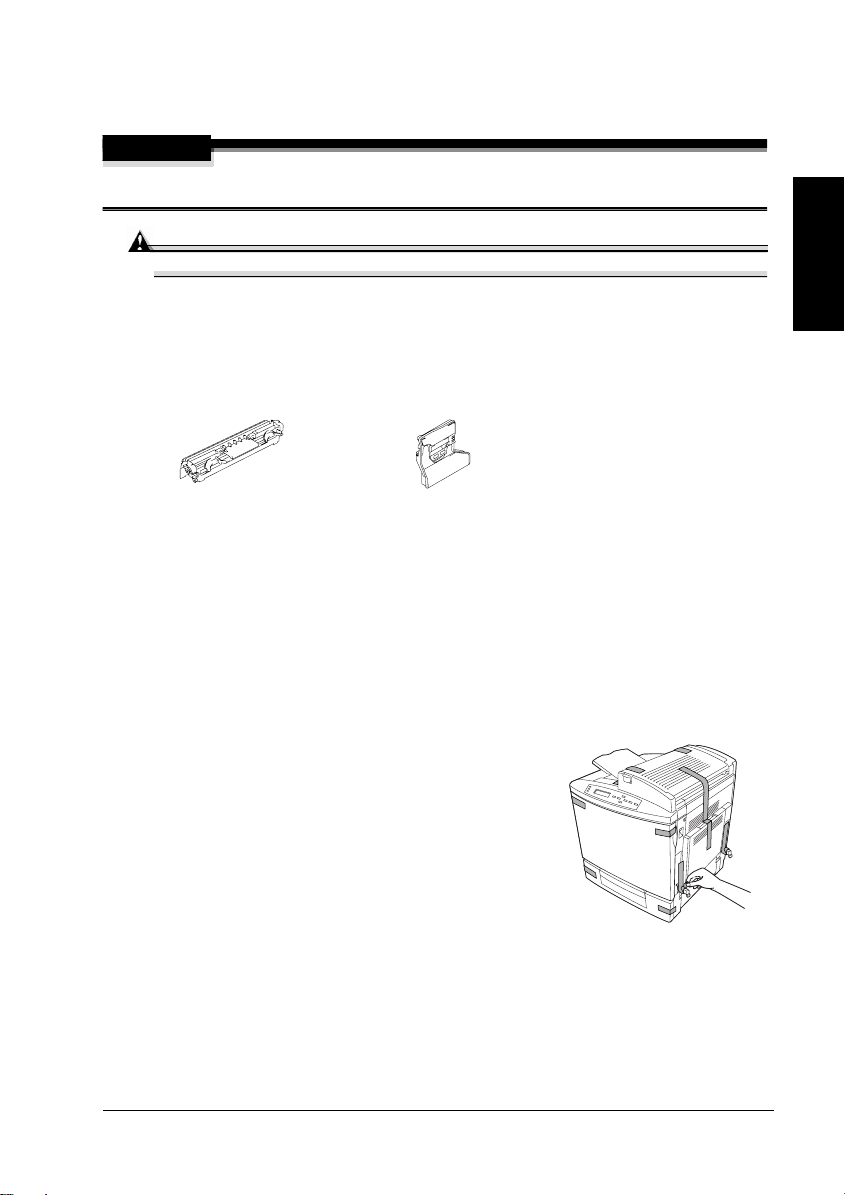

Setting up Your Printer

WARNING!

The printer weighs 87.1 lbs (39.5 kg) without consumables. To avoid injury, at least two people must

lift and move the printer.

Attention

Do not plug in the printer’s power cord before completing all installation steps.

Shipment Contents

Printer with a 500-sheet letter/A4/legal media tray

Consumables kit

Fuser oil roller Waste toner pack

Power cord

Documentation (see “Documentation Set” on page 2)

Utilities and Documentation CD-ROM

 Interface cables aren’t included in the shipment. If you need cables, contact your local

vendor or computer store.

Unpacking the Printer

 Save the packing materials in case you ever have to relocate your printer or for future

storage.

1Remove the protective plastic cover.

2Remove the tape from the outside of the printer.

3Take the tape off of the pull-out carrying bars 

and slide

them outward from the printer.



Setting up Your Printer4

English

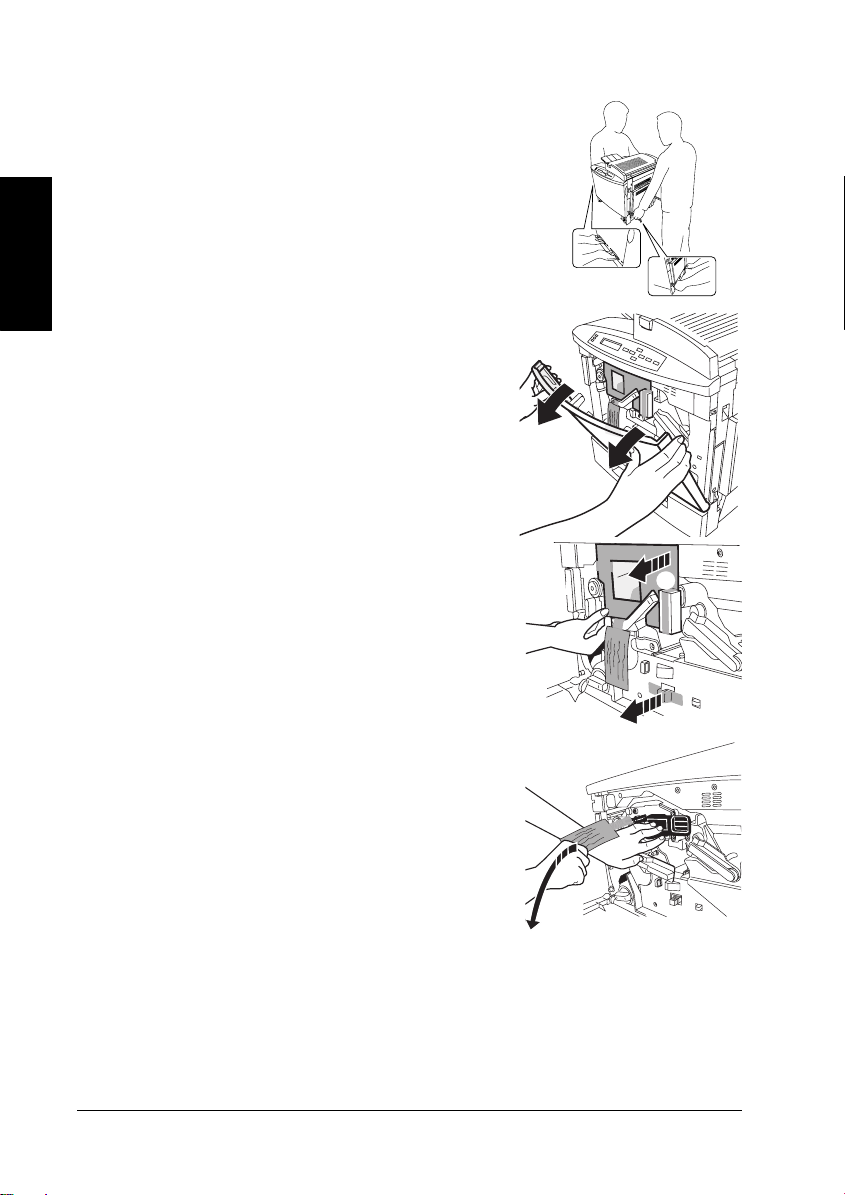

4With another person’s help, lift the printer from the carton,

and place it in its intended location. A third person’s assis-

tance may be required if the printer is lifted above waist

level.

When lifting and carrying the printer, use the hand grips

and the pull-out carrying bars .

5Open the front cover.

Use both hands to avoid putting uneven strain on the

front cover hinges.

6Remove the cardboard/foam spacers and

the tape from the laser lens cover.

 The transfer belt left release lever will move to the 4

o’clock position when you remove the spacers.

7Pressing on the transfer belt unit front handle with one

hand, take the yellow tag attached to the transfer belt

unit fixture with your other hand, and pull the fixture

straight toward you.

This fixture protects the transfer belt during initial

transportation.

 Dispose of the fixture according to your local

regulations.









Setting up Your Printer 5

English

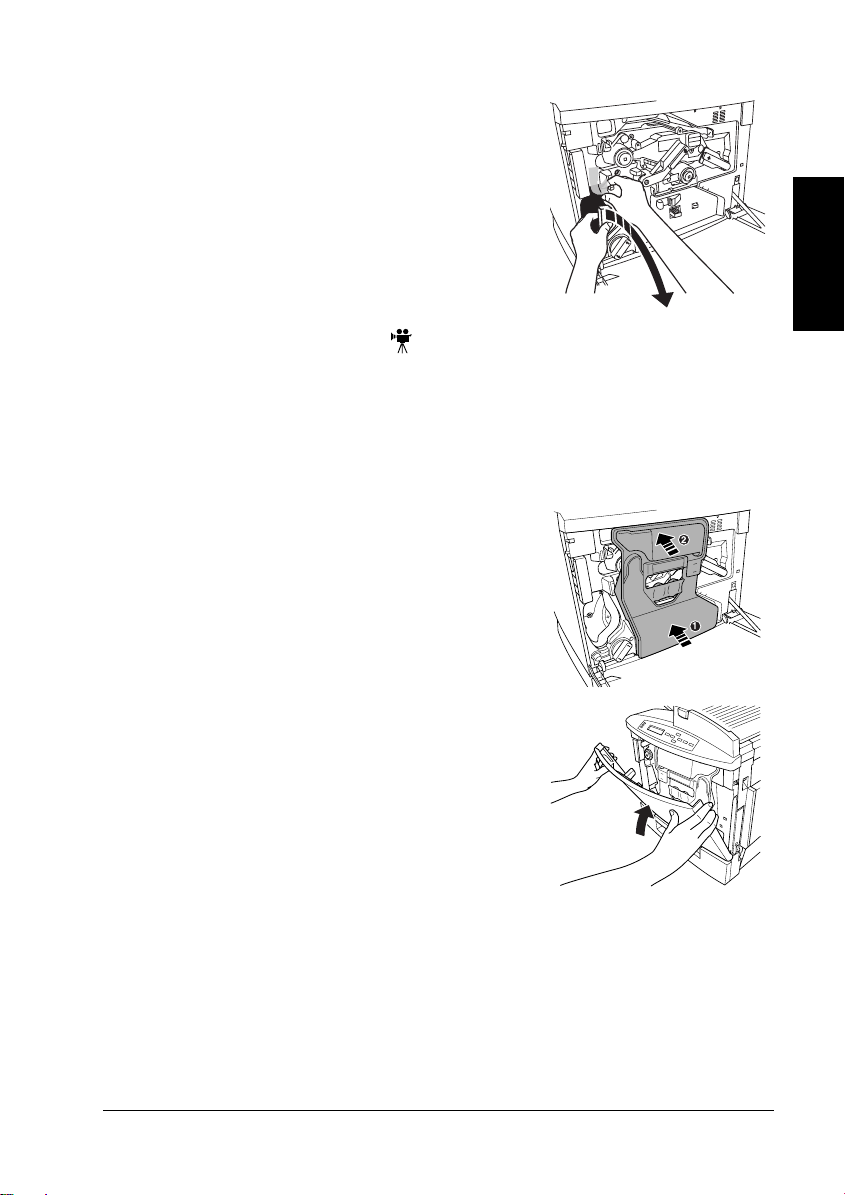

8Remove the tape holding the toner cartridge carousel in

place.

9Remove the piece of foam attached to the front of the

toner cartridge carousel.

Installing the Waste Toner Pack

The waste toner pack collects the excess toner remaining on the OPC drum cartridge.

1Remove the waste toner pack from its plastic shipping bag.

2Make sure the transfer belt unit left release lever is still set to its correct (2 o’clock)

position.

 If the transfer belt unit left release lever is at its top (12 o’clock) position or the laser lens

cover is not firmly seated, the waste toner pack cannot be installed.

3Press the bottom of the waste toner pack into the printer

first, then the top, until it is firmly seated.

4Close the front cover.

Use both hands to avoid putting uneven strain on the

cover hinges.

Setting up Your Printer6

English

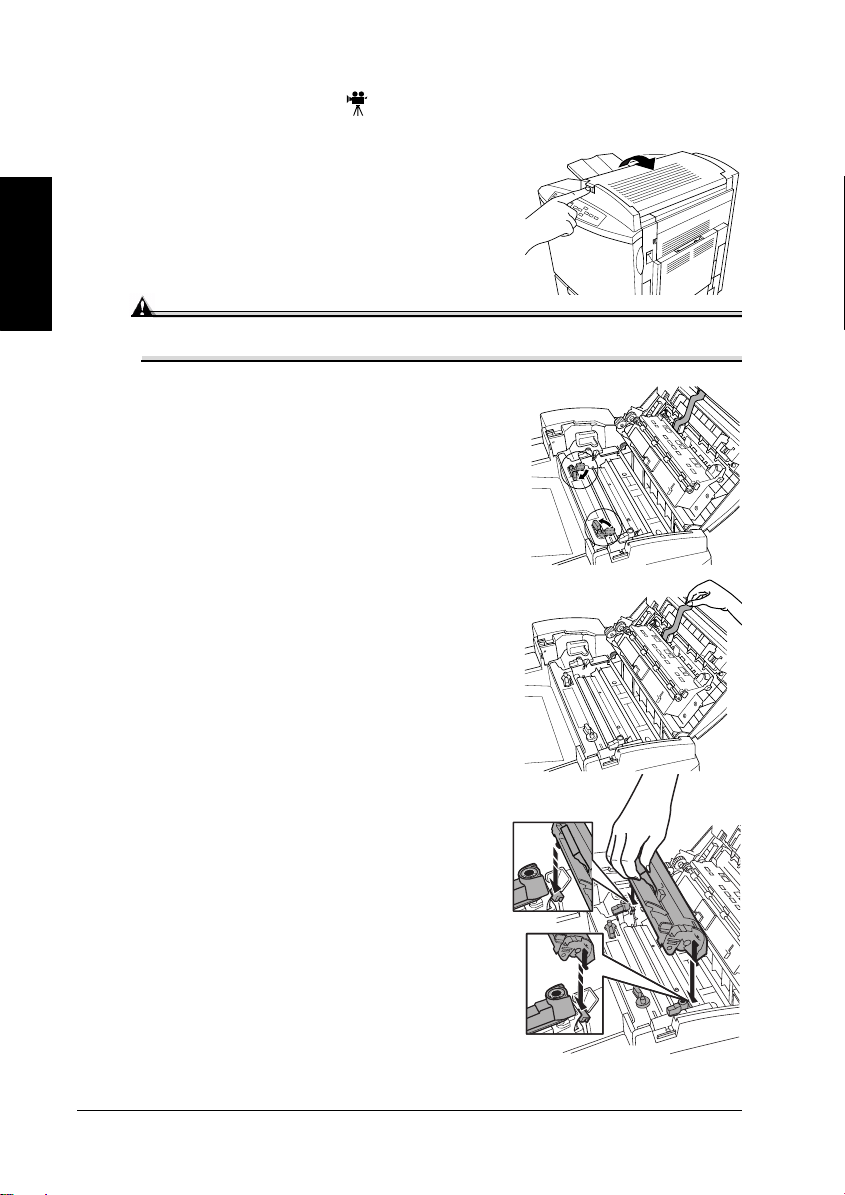

Installing the Fuser Oil Roller

1Push the top cover latch and open the top of the

printer .

2Remove the fuser oil roller from its box.

Attention

Lift and hold the fuser oil roller only by the handle. Do not allow the roller surface to

contact the table or get dirty. This could lower image quality.

3Rotate the two small levers to the unlocked position.

4Remove the tape from the media exit area.

5Insert the fuser oil roller guides into the guide rails,

then carefully lower the roller.




