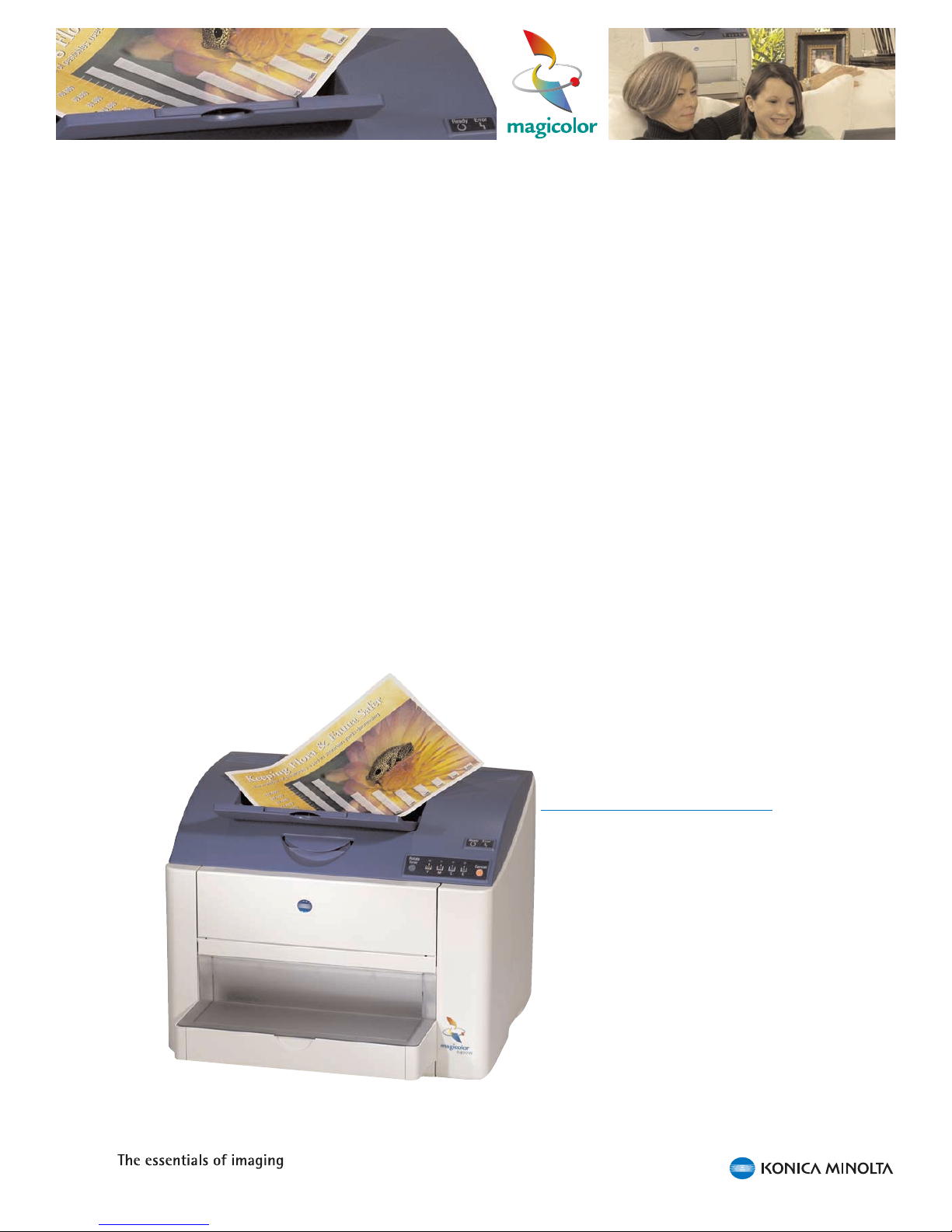

Konica Minolta Magicolor 2400W Guide de démarrage rapide

Technical Guide

KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered trademarks of KONICA MINOLTA

HOLDINGS, INC. magicolor is a trademark or registered trademark of KONICA MINOLTA PRINTING SOLUTIONS

U.S.A., INC. All other trademarks or registered trademarks are the property of their respective owners.

January 2005

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Specs at a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Duty Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Print Speeds by Page Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

First-Page-Out Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Weights and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Operating Environment Conditions . . . . . . . . . . . . . . . . . . . . . . . . 4

Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Printer Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Resolution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Compatibility and Minimum System Requirements . . . . . . . . . . . . 7

Media Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Standard Media Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Print Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Imageable Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Supported Media Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Advanced Document Processing. . . . . . . . . . . . . . . . . . . . . . . . . 10

Media Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Consumables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Toner Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Drum Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Consumable Yields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

In-box Consumables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Replacement Consumables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Consumables Monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Contents

Printer Management . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Convenient Printer Management Tools . . . . . . . . . . . . . . . . . . . . 15

Printer Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Status Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Electronic User Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Printer Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Cancel Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Rotate Toner Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Color Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Professional Color Tools for Both Novices and Professionals . . . . 20

Automatic ICC-Based Color Matching . . . . . . . . . . . . . . . . . . . . . 20

ICC Device Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Enhanced Automatic Image Density Control (eAIDC). . . . . . . . . . 21

Introduction

The magicolor®2400W is a personal color laser printer for home or

office. At 20 monochrome pages per minute and 5 full-color pages per

minute, it’s fast, durable, and budget-friendly, making it a perfect

replacement for your old inkjet printer. And it prints clear, crisp, durable

pages at up to 2400 x 600 dpi resolution!

KONICA MINOLTA designed the magicolor 2400W to be ready for

printing right out of the box. The CD-ROM that ships with the printer

includes all drivers, utilities, and documentation necessary for installing

and operating the printer in any home or small business. It’s extremely

easy to use, and it functions seamlessly with computers running

Windows®XP, 2000, Me, and 98SE.

Maintaining the magicolor 2400W is also simple and straightforward.

The toner cartridge and drum cartridge are separately replaceable for

more economical use, and the printer comes with a one-year exchange

warranty.

This Technical Guide is intended for use by KONICA MINOLTA sales

personnel and reseller partners. It includes complete information

about the magicolor 2400W and provides data that can help you

explain the features of the printer to customers. For the most

complete and up-to-date information on the printer, be sure

to check our password-protected Reseller Partner

Program web site at

printer.konicaminolta.com/reseller

Specs at a Glance

An overview of the magicolor 2400W’s features.

Print Method Electrophotographic color laser

Processor Naltec N4-Chip

Print Speed Up to 20 monochrome ppm (letter/A4)

Up to 5 color ppm (letter/A4)

Resolution Up to 2400 x 600 dpi

Duty Cycle Up to 35,000 letter/A4 prints/month

Memory 32 MB on the controller board

Standard Interface USB 2.0 (High-Speed)

Media Sizes Up to legal (8.5"x14"/216x356 mm)

Media Input 200-sheet multipurpose tray

Media Output 200-sheet face-down tray

Print Media Types Plain/recycled paper, glossy stock,

thick stock, OHP transparencies,

postcards, laser-quality labels,

envelopes

Software Utilities Printer drivers for Windows XP, 2000,

Me, 98SE; Status Display

Color Control Enhanced Automatic Image Density

Control (eAIDC) built-in calibration,

Automatic ICC-based color matching

Compatibility Windows XP, 2000, Me, 98SE

Warranty One-year exchange

Engine

Excellent print quality and durability are hallmarks

of the magicolor 2400W print engine.

Type

The magicolor 2400W is based on the KONICA MINOLTA NC-L7001L

laser printer engine. The engine features selectable resolutions of

600 x 600, 1200 x 600, and 2400 x 600 dpi.

Duty Cycle

35,000 prints (letter/A4 size) per month maximum.

Print Speeds by Page Size

Page Size* Monochrome (Black) Full Color

Letter 20 ppm 5 ppm

Legal 10 ppm 2.5 ppm

A4 20 ppm 5 ppm

A5 19 ppm 5 ppm

B5 20 ppm 5 ppm

* Normal paper

First-Page-Out Times*

Page Size** Monochrome (Black) Full Color

Letter 12 seconds 21 seconds

Legal 13 seconds 31 seconds

A4 12 seconds 21 seconds

A5 12 seconds 21 seconds

B5 12 seconds 21 seconds

* From an idle, ready state

** Normal paper

The magicolor 2400W produces high-quality

prints like the one above at full speed in

600 x 600 dpi, 1200 x 600 dpi, and

2400 x 600 dpi resolutions.

Weights and Dimensions

Packaging

Width Depth Height

23.3" (591 mm) 19.5" (496 mm) 20.6" (522 mm)

Printer (with multipurpose tray extended)

Width Depth Height

16.9" (430 mm) 19.8" (502 mm) 13.4" (341 mm)

Weight

Shipping 54 lbs (24 kg)

Printer with consumables 44 lbs (20 kg)

Printer without consumables 39.6 lbs (18 kg)

Operating Environment Conditions

Power supply 110–127 V, 50–60 Hz

Power consumption 1,100 W maximum

600 W or less (monochrome printing)

450 W or less (color printing)

250 W or less (standby)

28 W or less (Energy Saver)

Temperature (operating)

50°–95° F (10 –35° C)

Humidity (operating) 15–85% RH

Noise 53 dB or less (printing)

39 dB or less (standby)

Use the Status Display to change the time interval

before the printer goes into Energy Saver mode.

Choices range from Off to 60 minutes.

Clearance dimensions (front view)

Clearance dimensions (side view)

Controller

The magicolor 2400W uses the power of the

Windows operating system to deliver great

performance for less cost.

Type

The magicolor 2400W uses an easy-to-access controller with 32 MB

SDRAM on board.

Processor

The magicolor 2400W supports the Graphical Display Interface (GDI)

for Windows and uses the power of the host computer’s Pentium-class

CPU for processing documents prior to printing. The printer’s controller

features a Naltec N4-Chip ASIC for imaging the document.

Connectivity

A USB 1.1/2.0 (High-Speed) compliant interface is integrated into the

magicolor 2400W’s controller. It provides a 4-pin Series B connector

and runs at 480 Mbps. This “Plug and Play” interface supports Windows

XP, 2000, Me, and 98SE operating systems.

In addition, an optional SEH IC103-USBPOCKET Print Server external

wireless adapter allows you to connect the printer to a 10/100BaseTX

Ethernet network via the USB port.

Printer Memory

The magicolor 2400W includes 32 MB of RAM on the controller.

This memory is sufficient for printing all supported page sizes at all

supported resolutions. There is no need to install additional memory in

the printer. However, increasing the memory of the host computer may

improve transmission speed and overall printer performance.

The magicolor 2400W features a USB

1.1/2.0 (High-Speed) compliant interface

integrated into the controller.
