Konica Minolta Bizhub C200 Manuel utilisateur

Version 6.0

Colour V1.2

Scanning Guide for Colour Machines

This guide covers the following machines:

• C250/C252/C300/C351/C352/C450

- Emperon and Fiery Controllers IC-402 & IC-406

• C200/C203/C253/C353/C451/C550/C650

- Emperon and Fiery Controller IC-409

• C350 - Embedded Controller and the Fiery IC-401

• Bizhub C10

Created by Hotline Support

Konica Minolta Hotline Support (UK)

CONTENTS

Scanning Tips & Tricks Page 3

Phase 3 onward Machines - With the Emperon Controller

C250/C252/C300/C351/C352/C450

Scan to HDD Page 4

Scan to E-mail Page 6

Scan to FTP Page 8

Scan to SMB Page 9

Phase 3 onward Machines – C450/C351/C300/C352

With the Fiery Controllers IC-402 V2.01 & IC406 V1.01

Scan to HDD Page 10

Scan to E-mail Page 12

Scan to FTP Page 14

Scan to SMB (same as Emperon) Page 15

C203/C253/C353/C451/C550/C650 with Emperon Controller

Scan to HDD Page 16

Scan to E-mail Page 18

Scan to FTP Page 20

Scan to SMB Page 21

C253/C353/C451/C550/C650 with the Fiery IC-409

Configuration 1 Page 22

Configuration 2 Page 24

Bizhub C10

Scan to E-mail Page 25

C350 with the Embedded Controller

Scan to HDD Page 27

Scan to E-mail Page 29

Scan to FTP Page 31

C350 with the Fiery IC-401

Scan to HDD Page 33

Scan to E-mail Page 35

Scan to FTP Page 37

C200 lite

Scan to Email Page 38

Created by Hotline Support

Konica Minolta Hotline Support (UK)

Scanning – Tips & Tricks

FTP

- PageScope Cabinet and the FTP Utility will not run on Windows 2003 , Vista or Server

2008, use the IIS service within these Operating Systems-

PageScope Cabinet needs to be open before scanning, or the FTP Service placed in the

Startup folder of the PC. (see the Konica Minolta FTP & SMB Setup Guide for Windows)

SMB

*- On Windows 2003 Domain Controller Server, you may find that you need to change

the Domain Security Setting

Security Options\Microsoft Network Security\Digitally Sign Communications=(Always)

should be changed to “Disable”

The Server must then be rebooted for the modified policy to take effect

* This should only be changed by the I.T dept of the customer

- Scanning to 1st folder ensure all permissions are set for everyone, scanning to nested

folders no other permissions are required – directory set on copier= eg:

“1stfoldername\scan\*\*” etc - Scanning to a mapped drive – make sure you place a /

before the share name of the folder within that mapped drive. Folder names etc are case

sensitive.

E-mail

- If you are connecting to an Exchange Server, Relay must be enabled for the Konica

Minolta device on the server itself.

- Alternatively a new account needs to be created on the SMTP server, and

‘SMTP Authentication’ needs to be enabled under the ‘E-mail Transmission’

settings on the MFP.

(Please note that ‘SMTP Authentication’ is not available on all machines)

- In order for ANY Fiery print controller to scan to e-mail, an e-mail account needs to be

set up on the e-mail server as if the machine were a new employee.

- Remember to make sure Binary Division is disabled under the E-mail SMTP Settings.

HDD

- If using the PageScope Box Operator or the HDD TWAIN Driver to retrieve scans,

please make sure you are using the correct version for the version of firmware the

machine is running on.

Version 3.1.0.2 Box Operator should be backwardly compatible with all versions of

firmware, but will not be compatible with newer versions.

- Older versions of Box Operator will not connect to newer versions of firmware and need

to be upgraded at the same time as the firmware.

The latest version of Box Operator can be downloaded from our website:

www.konicaminolta.eu

Created by Hotline Support

Konica Minolta Hotline Support (UK)

Konica Minolta

C250/C252/C300/C351/C352/C450 with Emperon Controller

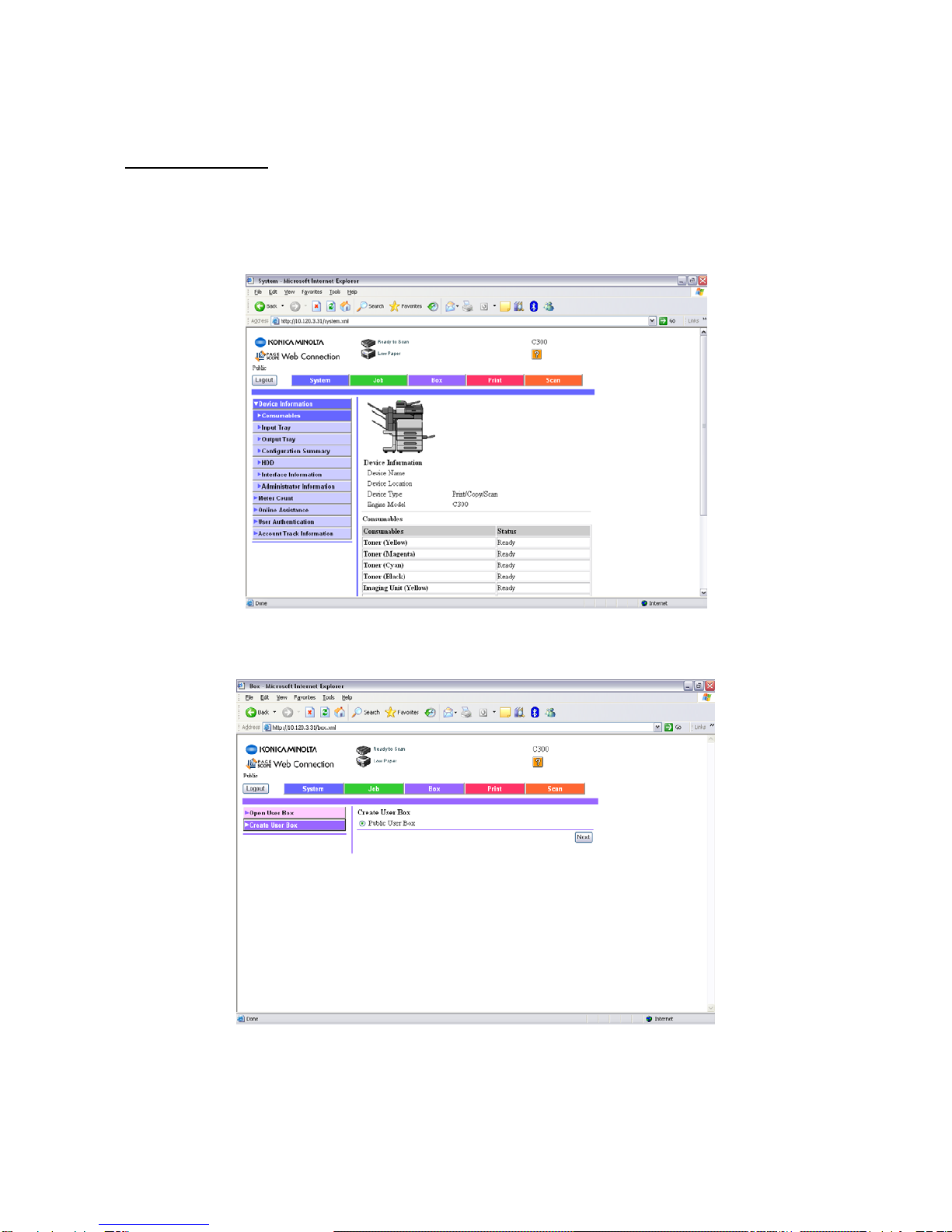

SCAN TO HDD

1) Using Internet Explorer, type the IP address of the Konica Minolta machine into

the address bar and press Go

2) Click on ‘Box’ at the top of the screen

3) Click on ‘Create User Box’

Created by Hotline Support

Konica Minolta Hotline Support (UK)

4) Click Next

5) Type in your User Box Number, Name and Password.

6) Click Apply

7) A message saying ‘Completed’ will be displayed. Click OK.

CREATING A ONE TOUCH BUTTON

1) Click on SCAN at the top of the screen

2) Click on New Registration

3) Choose the type of button you wish to create. I.E. User Box

4) Click Next

5) Fill out the details for your box. The Name is the name of the button that will

appear on the machine. The User Box No. must relate to the User Box you

created previously. The Index is the index the button will appear under on the

machine.

Created by Hotline Support

Konica Minolta Hotline Support (UK)

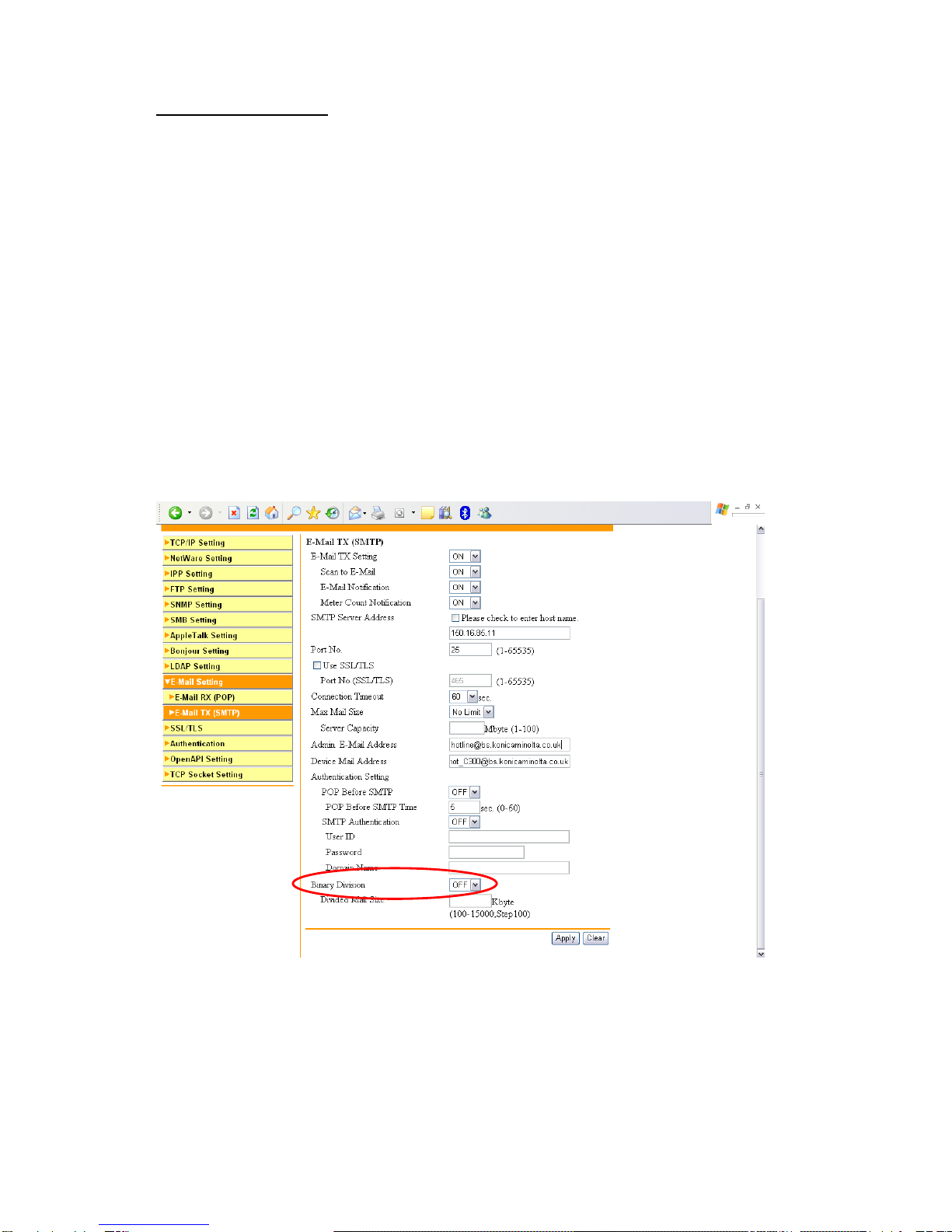

SCAN TO E-MAIL

1) Using Internet Explorer, type the IP address of the Konica Minolta machine into

the address bar and press Go

2) Click on Logout to logout of Public Mode. You will need to confirm you want to

logout.

3) Login to the Admin Mode by typing in the admin code of 12345678

4) Click on the orange Network tab

5) Click on E-mail Setting down the left hand side of the page

6) Click on E-mail TX (SMTP)

7) Ensure that ‘E-mail TX Setting’ and ‘Scan to E-mail’ are turned ‘ON’

8) Enter in the IP address or Host Name of the E-mail server

9) Enter an ‘Admin. Email Address’ & ‘Device Mail Address’. Neither of these

addresses need to be real.

10) If required, turn on ‘SMTP Authentication’ and enter a user name and

password of a user set up on the e-mail server. It is recommended that if you

need to use this setting, that a new e-mail account for the Konica Minolta device

is created on the e-mail server.

11) Binary division by default is turned off. If enabled, the machine will send

separate scanned images. For example, if you scan in a 10 page document, you

may end up receiving 10 separate e-mails or you may received a .dat file.

12) Click Apply and then OK

13) Log out of Administrator mode and confirm that you wish to log out

Created by Hotline Support

Konica Minolta Hotline Support (UK)

CREATING A ONE TOUCH BUTTON

1) Following on from the instructions on page 6, log back in as a Public User

2) Click on SCAN at the top of the screen

3) Click on New Registration

4) Choose the type of button you wish to create. I.E. E-mail

5) Click Next

6) Enter in the Name of the button you wish to appear on the machine, the Index

in which it is to appear under, and the E-mail Address you require your e-mails

sending to.

7) Click Apply and it should display the following screen. Click OK

Created by Hotline Support

Konica Minolta Hotline Support (UK)

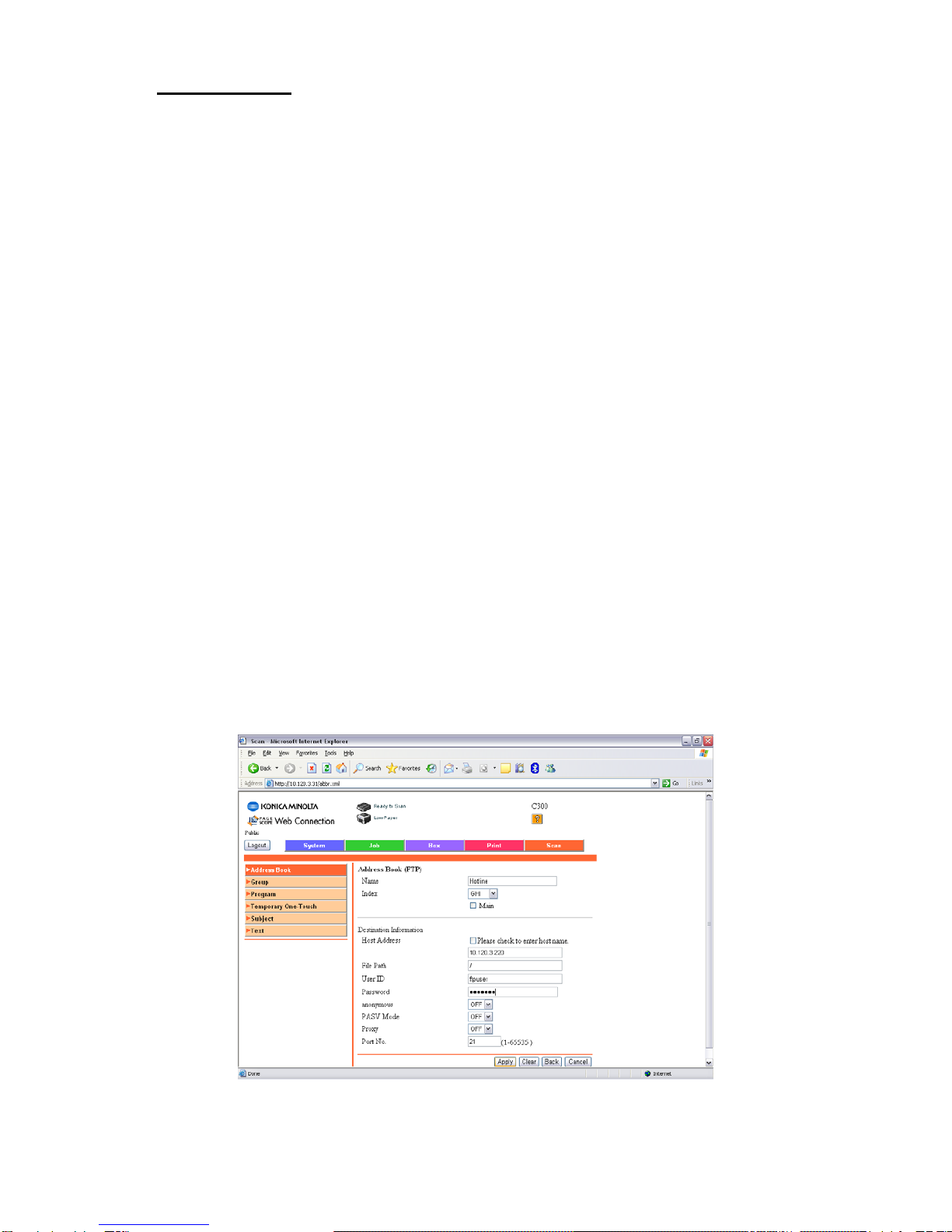

SCAN TO FTP

For information on configuring either PageScope Cabinet or IIS, please refer to

the Konica Minolta FTP & SMB Setup Guide for Windows.

PageScope Cabinet - Page 4

IIS – XP - Page 5

IIS – Vista - Page 6

IIS – Server 2008 - Page 12

1) Using Internet Explorer, type the IP address of the Konica Minolta machine into

the address bar and press Go

2) Click on the ‘Scan’ tab at the top of the screen

3) Click on ‘New Registration’ and then choose ‘FTP’ from the list

4) Enter a ‘Name’ for your one touch button. (This is the name of the button that

will appear on the machine).

* Specify the ‘Index’ under which your one touch button is to appear on

the machine

* Enter the IP address or Host Name of the PC running the FTP service

* If in PageScope Cabinet/IIS you have set the FTP Root Folder to the

actual folder on the PC where you wish the scans to be placed (“PC Root

Folder”), the ‘File Path’ on the machine only needs to have a / (forward

slash) typed into the box. The / means “root folder”. If however you

wants the scans to be placed in a folder which is inside the “PC Root

Folder”, lets say called Hotline you would need to put /Hotline

* Enter a user name or password that is either configured within

PageScope Cabinet, or if you are using IIS, that of a user on the PC

5) Click Apply and OK.

Created by Hotline Support

Konica Minolta Hotline Support (UK)

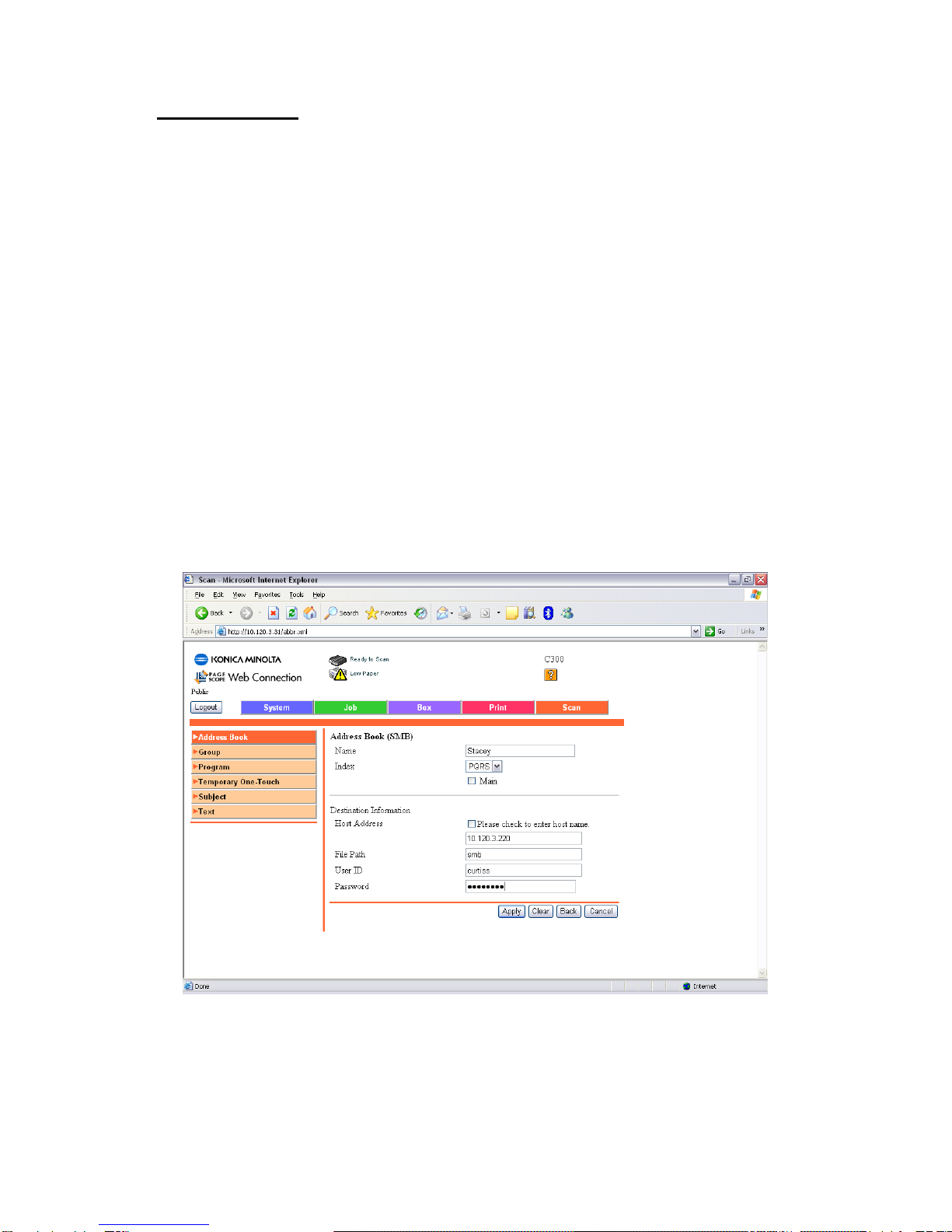

SCAN TO SMB

1) Create and configure shared folder on your C drive as on pages 20-26 of the

Konica Minolta FTP & SMB Setup Guide for Windows.

2) Using Internet Explorer, type the IP address of the Konica Minolta machine into

the address bar and press Go

3) Click on the SCAN tab at the top

4) Click on New Registration and choose SMB

5) Enter in the Name of the button to appear on the machine and select the

Index in which it is to appear under.

6) Type in the IP Address of the computer as the ‘Host Address’. You can also

use the Computer Name found under the Properties of My Computer by putting a

tick in the box ‘Please check to enter host name’. This must be typed in using

upper case.

7) Type in the SHARE NAME of the folder you created in step 1

8) Type in the User Name and Password the customer uses when they log into

their computer first thing in the morning. If this does not work, a new user must

be set up on the PC just for SMB scanning.

9) Click Apply and then OK

Created by Hotline Support

Konica Minolta Hotline Support (UK)

Konica Minolta – C300/C351/C352/C450 With the Fiery Controllers

(IC-402 & IC-406)

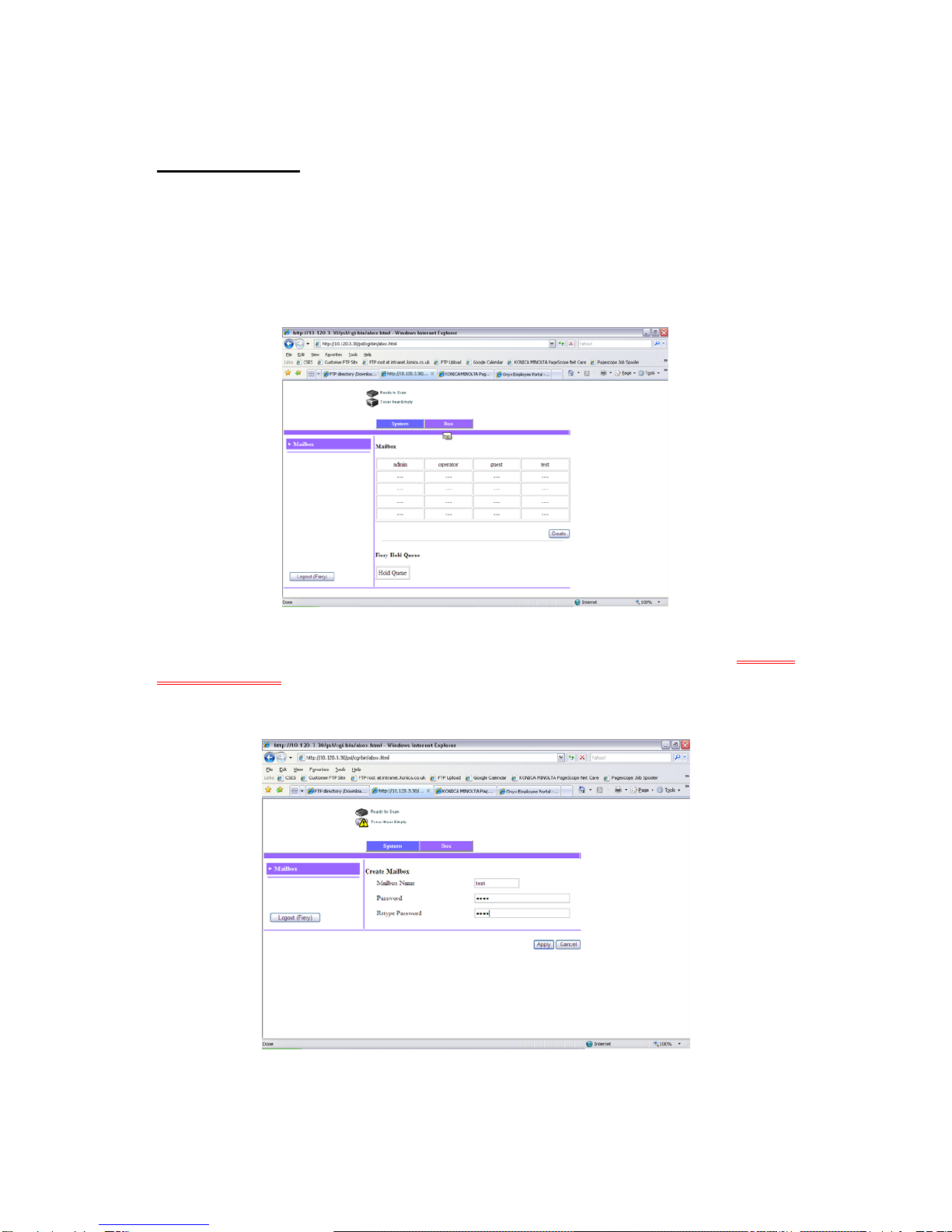

SCAN TO HDD

1) Using Internet Explorer, type the IP address of the Konica Minolta machine into

the address bar and press Go

2) Click on Login (Fiery) and type in the Administrator password for the Fiery

which is: Fiery.1

3) Click on the ‘Box’ tab at the top of the screen and click ‘Create’

4) Type in the Mailbox Name and password you require for your box. This is

case sensitive. This is the information you will need to type into either Web

Scan or Fiery Remote Scan 5 to retrieve the scanned images. Click Apply

5) Logout of the Fiery Screen
