KT-70E / KT-90E / KT-70SE User Manual 24 April 2018

Page 1 of 59

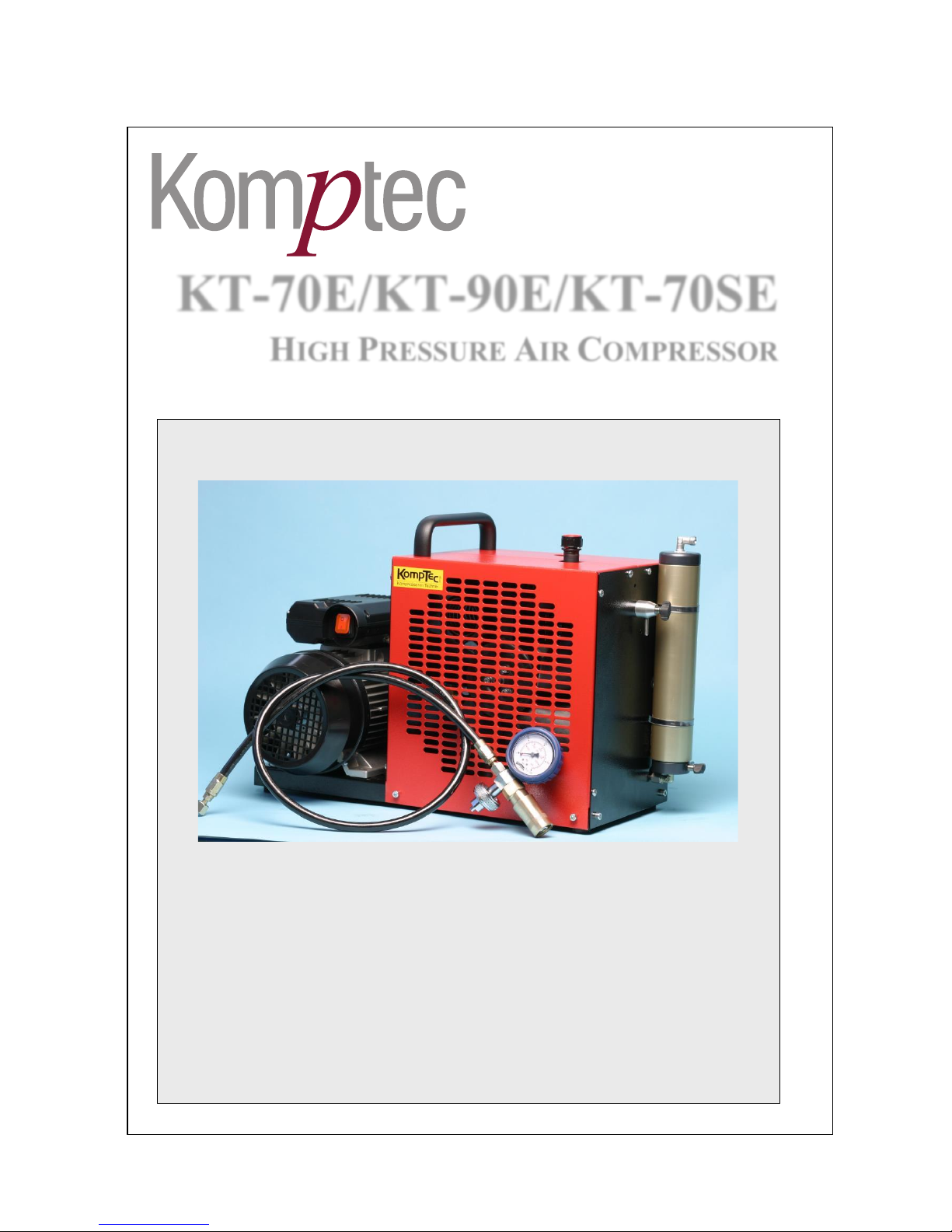

KT-70E/KT-90E/KT-70SE

HIGH PRESSURE AIR COMPRESSOR

User Manual

(60Hz Version)

KT-70E /KT-90E /KT-70SE

KT-70E / KT-90E / KT-70SE User Manual Page 2 of 59 24 April 2018

Index

1. Introduction ...........................................................................................................................5

1.1. Quick Start Guide...............................................................................................................5

1.2. Foreword ............................................................................................................................7

1.3. Documentation ...................................................................................................................7

1.4. Warranty.............................................................................................................................8

1.5. Disclaimer ..........................................................................................................................8

1.6. Required Operator Training ................................................................................................9

1.7. Information for the User .....................................................................................................9

1.8. Obligations and notes for you as an operator.......................................................................9

1.9. Customer service ..............................................................................................................10

1.10. Serial Number ...............................................................................................................10

1.11. Instructional and training aids........................................................................................10

1.11.1. Instruction by the operator ........................................................................................10

1.11.2. Examples of training topics.......................................................................................11

1.12. Symbols Used................................................................................................................11

2. Product Description .............................................................................................................13

2.1. Intended Use.....................................................................................................................13

2.2. Construction .....................................................................................................................14

2.3. Optional Equipment..........................................................................................................14

2.3.1. Automatic shut-off. ...................................................................................................15

2.3.2. Hour counter.............................................................................................................15

2.3.3. Minimum Pressure Valve..........................................................................................15

2.3.4. Automatic Condensate Drain.....................................................................................15

2.4. Functional Description......................................................................................................16

2.5. Pneumatic Air Flow..........................................................................................................17

2.5.1. Intermediate Stage Condensate Collector and Drain. .................................................17

2.5.2. Final Condensate Collector, Drain and Filter.............................................................17

3. General safety......................................................................................................................18

3.1. Obligation of diligence .....................................................................................................18

3.2. Basic safety measures .......................................................................................................18

3.2.1. Principle; Intended Use .............................................................................................18

3.2.2. Responsibility ...........................................................................................................18

3.2.3. Personnel selection and qualification; fundamental obligations .................................19

3.2.4. Safety instructions for certain operating phases.........................................................19

KT-70E / KT-90E / KT-70SE User Manual Page 3 of 59 24 April 2018

3.2.5. Notes on special types of hazard................................................................................21

4. EG-Konformitätserklärung...................................................................................................23

5. Technical Specifications ......................................................................................................24

5.1. Compressor System ..........................................................................................................24

5.2. Compressor Block ............................................................................................................24

5.3. compressor oil ..................................................................................................................24

5.4. Connections......................................................................................................................24

5.5. Pneumatic Flow Diagram – Base Configuration................................................................26

6. Transport and Installation.....................................................................................................27

6.1. Transport ..........................................................................................................................27

6.1.1. Transport to the Site..................................................................................................27

6.2. Installation.......................................................................................................................27

6.2.1. Conditions for Set-up................................................................................................27

6.3. Placement .........................................................................................................................28

7. Start-up................................................................................................................................29

7.1. Power ...............................................................................................................................29

7.2. Checks before initial Start-up............................................................................................29

8. Operation.............................................................................................................................30

8.1. Description of the controls................................................................................................30

8.1.1. Compressor...............................................................................................................30

8.1.2. Filling Hose ..............................................................................................................31

8.2. Adjusting and Setting........................................................................................................32

8.2.1. Operation..................................................................................................................32

8.2.1.1. Starting the Motor.................................................................................................32

8.2.1.2. pressure buildup ...................................................................................................33

8.2.1.3. To Fill the pressure cylinder. ................................................................................33

8.2.1.4. Condensate Drain .................................................................................................34

8.2.1.5. Turning off ...........................................................................................................34

8.2.1.6. Complete the Filling process.................................................................................35

8.3. Filter.................................................................................................................................35

8.3.1. Breathing Air Filter .......................................................................................................35

8.3.2. Non-Breathing Air Filter ...............................................................................................35

8.4. Extended Storage..............................................................................................................36

8.4.1. Waste Disposal .........................................................................................................36

9. Troubleshooting...................................................................................................................37

9.1. Tabular overview of possible malfunctions and suggestions to help eliminate the fault. ....37

9.1.1. List of Faults.............................................................................................................37

KT-70E / KT-90E / KT-70SE User Manual Page 4 of 59 24 April 2018

10. Maintenance ........................................................................................................................39

10.1. Consumable Parts..........................................................................................................39

10.2. Maintenance Plan ..........................................................................................................40

10.3. Filter changing log. Please top off the crankcase oil each time the air filter is changed..42

10.4. Maintenance Work ........................................................................................................43

10.4.1. Checking the Oil Level .............................................................................................43

10.4.2. Filter Change. Please top off the crankcase oil each time the air filter is changed....44

10.4.3. Oil Change ...............................................................................................................45

10.4.4. Final pressure gauge check .......................................................................................46

10.4.5. Check final pressure safety valve..............................................................................46

10.4.6. Other Maintenance Notes..........................................................................................46

11. Break-out Drawings .............................................................................................................47

Figure A. Exploded View .............................................................................................................47

Figure B. Crankshaft with Piston Rods .........................................................................................48

Figure C. First Stage Cylinder ......................................................................................................49

Figure D. Second Stage Cylinder..................................................................................................50

Figure E. Third Stage Cylinder .....................................................................................................51

Figure F. Oil filler tube and housing pressure equalization............................................................52

Figure G. Filter Housing...............................................................................................................53

Figure H. Casing...........................................................................................................................54

KT-70E / KT-90E / KT-70SE User Manual Page 5 of 59 24 April 2018

1. Introduction

1.1. Quick Start Guide

Note this manual is for the US type configuration with 115V or 230V 60Hz supplies. For

230V 50Hz units, please refer to the appropriate manual.

SAFETY NOTICE!

• Read the User Manual before using the compressor

• Disconnect the power and depressurize the filter housing before removing the housing

• The compressor should not be run continuously for more than 45 minutes after which it needs

15 minutes rest.

Prior to operation

• Verify the plug meets local codes, and that the electrical outlet is able to supply the required

current at the required voltage.

• Place the compressor on a flat stable surface or solid surface. Keep a safe distance from wall.

A pitch of up to 20°from Horizontal is permissible.

• Check the oil level is at the mid point of the dipstick or higher, and if necessary top off the

oil.

• For the first time it is operated, run the compressor for 5 minutes with the condensate drains

open.

• Connect the pressure vessel.

• Close the output fill valve if present, or the valve on the pressure vessel.

Running the compressor

• Turn on Compressor.

• Residual high pressure within the compressor may prevent the motor (either gas or electric)

from turning over. If so, open condensate drain valves or output fill valve and vent some of

the residual pressure.

• For the first time it is operated or after an extended period of non-operation, run the compres-

sor for 5 minutes with the condensate drains or output open.

• Insure both condensate screws are closed

• Once output pressure rises to1500 psi (100 bar), slowly open the fill valve.

• Drain the condensate every 15 to 25 minutes while operating by opening the final and inter-

mediate drain screws briefly until the accumulated condensate is released.

• Supervise compressor during filling.

Finish filling

• Turn off the compressor

• Close the filling valve

• Slowly open the bleed screws on the filling hose (if so configured) until the pressure within

the fill hose is released, then the pressure vessel can be removed.

• Open final Condensate screw slowly, capture condensate and dispose of accordingly. Repeat

for intermediate Condensate Drain.

• If the compressor will be out of use for an extended period, run the compressor with both

condensate fill valves open for a minimum of 1 minute.

KT-70E / KT-90E / KT-70SE User Manual Page 6 of 59 24 April 2018

Maintenance

• Filter cartridges should be changed on the interval described in 8.3, or once per year.

• Top off the crankcase oil each time the filter is changed.

• Once a year or every 500 operating hours change the crankcase oil.

• Check the oil level before each use.

ATTENTION in case of malfunction, depressurize compressor and remove power

KT-70E / KT-90E / KT-70SE User Manual Page 7 of 59 24 April 2018

1.2. Foreword

Dear Customer,

Thank you for choosing the KT-70E / KT-90E / KT-70SE

This manual is an aid to successful and safe operation of the compressor.

These materials are only for information purposes. Changes may be made

without prior notice. Please refer to the manual for compliance to regulations,

for accident prevention and environmental protection.

Keep this manual available where the compressor is in use. Any person who

is authorized to work on the compressor must have read the operating instruc-

tions.

The compressor has been built according to state of the art and recognized

safety regulations. Nevertheless, it can be hazardous.

Read this manual before using the compressor is in operation. It helps you:

• Prevent risks to the operator,

• Become familiar with the compressor,

• To avoid interference due to improper operation,

• To increase the life of the compressor,

• To avoid repair costs and downtime,

• To effectively use the compressor.

1.3. Documentation

To avoid operating errors and to ensure trouble-free operation of the com-

pressor, the user guide the operator must always be accessible.

All documents are protected within the meaning of the copyright law.

Violations are an offense and liable to compensation. All rights to exercise

intellectual property rights We reserve the right.

KT-70E / KT-90E / KT-70SE User Manual Page 8 of 59 24 April 2018

1.4. Warranty

We warranty to the original owner of the KT-70E / KT-90E purchased from Komptec as

new will be free from manufacturing defects in materials and workmanship under normal

use within a period of (1) one year from date of purchase for an end user, or (90) ninety

days for a commercial user, provided it is operated and maintained according to instruc-

tions and the user manual. Contact Komptec for the warranty policy inside the European

Union..

Our obligation under this warranty is limited, at our election expressly to the replacement

or repair of such parts from the manufacturer, or at a service center designated by us, who

have been found by the audit to be defective.

DISCLAIMERS:

This warranty does not cover damage due to negligence or improper use, including faulty

repairs by others and failure to implement reasonable and necessary maintenance. We

are not liable for any special, indirect, incidental or consequential damages of any kind,

including wage and transport costs in connection with the repair or replacement of defec-

tive parts.

NO WARRANTY, ORAL OR WRITTEN, EXPRESED OR IMPLIED, OTHER THAN

THE ABOVE WARRANTY IS MADE WITH REGARD TO THIS KOMPTEC PROD-

UCT. KOMTEC DISCLAIMS ANY IMPLIED WARRANTY OF MERCHATABIL-

ITY OR FITNESS FOR A PARTICUALR USE OR PURPOSE, AND ALL OTHER

WARRANTIES. IN NO EVENT SHALL KOMPTEC BE LIABLE FOR ANY INCI-

DENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES OR FOR ANY

COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE

AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY

PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF

PROFITS.

1.5. Disclaimer

Based upon the Law on Technical Equipment (Product Safety Act) of 6 January 2004 (I,

p. 2, over p. 219), as amended on 8 November 2011 (I, p. 2178, calc. 2012 I, p 131)) the

following applies:

• Operation of the KT-70E / KT-90E / KT-70SE requires expertise and training,

and is limited to applications defined by Komptec in this user manual.

• In the event of improper maintenance (servicing) or of ignoring the operating in-

structions, the owner assumes full responsibility for the functioning of the appli-

ance.

• For safety reasons, the device should be maintained and tested by an authorized

agent annually.

KT-70E / KT-90E / KT-70SE User Manual Page 9 of 59 24 April 2018

• The device must be serviced by experts. During maintenance (service) only orig-

inal spare parts may be used. The maintenance must be recorded.

• In the event of damage caused by not complying with the above listed points,

Komptec GmbH is not liable. The warranty and liability claims or general terms

and conditions of Komptec GmbH are not changed by the guidelines listed above.

1.6. Required Operator Training

This manual must be read carefully:

• all compressor operators’ / maintenance personnel must read this entire manual with

due care and attention and observe the instructions/information contained herein.

• the operator must possess the required training for operation of the compressor and

read the manual.

1.7. Information for the User

The instruction manual must be read and used as follows:

• read this manual carefully, treat it as an essential part of the compressor;

• the instruction manual must be kept where it can readily be consulted by compressor

operators and maintenance staff

• keep the manual for the working life of the compressor

• make sure updates are incorporated in the manual

• make sure the manual is given to other users or subsequent owners in the event of

resale

• keep the manual in good condition and ensure its contents remain undamaged

• do not remove, tear or re-write any part of the manual for any reason

• keep the manual protected from dampness and heat

• if the manual is lost or partially damaged and its contents cannot be read, please re-

quest a copy from the manufacturer.

1.8. Obligations and notes for you as an operator

The instruction manual is an integral part of the compressor. The operator shall ensure

that this manual is always available on the compressor and that the operator assumes the

guidelines note.

In order to protect personnel against health hazard or other safety hazards, the operator is

obliged to inform his/her self on the safe and proper operation, maintenance and the

proper operation of the compressor.

The operator must arrange for the execution of a test run with testing of all safety equip-

ment in order to satisfy itself of the operational safety of the compressor and to be able to

properly and safely operating on the ability of the staff, the operation after completing the

installation and before using the compressor.

KT-70E / KT-90E / KT-70SE User Manual Page 10 of 59 24 April 2018

The compressor has been built according to the prior art and the recognized safety regu-

lations. As an operator, you are obliged to adapt the compressor to the applicable current

safety regulations.

It should be born in mind that the User Manual can never replace proper experience; some

maintenance jobs are particularly difficult and in this regard the manual only offers gen-

eral guidelines on the most important tasks, which must be carried out by personnel with

proper training (e.g. acquired during training courses run by the manufacturer).

1.9. Customer service

For technical information about Komptec’s products and their systematic application,

please contact customer service.

Should you have any questions about our products, please call our customer service de-

partment.

1.10. Serial Number

Please include the serial number from the nameplate on any inquiries. Specifying this

data ensures that you receive the correct information or the required spare parts.

1.11. Instructional and training aids.

1.11.1. Instruction by the operator

Any failure to comply with the safety instructions in this manual or on

the compressor can result in injury or death.

Read the KOMPTEC Instruction Manual. All compressor operators’ / mainte-

nance personnel must read this entire manual with due care and attention and

observe the instructions/ information contained herein.- the operator must

possess the required training for operation of the compressor and that he/she

has read the manual.

In addition to the operating instructions, applicable statutory and other regu-

lations for accident prevention and environmental protection and basic health

and safety requirements must be observed.

Such requirements may also include the handling of hazardous substances,

which affect provision / wearing of personal protective equipment.

Consider:

Operation of this compressor poses danger to life and limb when operated by

untrained personnel, or when operated when improperly mounted, maintained

or used.

The training of the operating personnel must be repeated every year!

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Komptec Compresseur d'air

Komptec

Komptec KT-90A Manuel utilisateur

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
