Kolpin Outdoors FRONT-CONNECT PLOW MOUNT KIT Manuel utilisateur
© 2021 Kolpin Outdoors Inc. REV 00

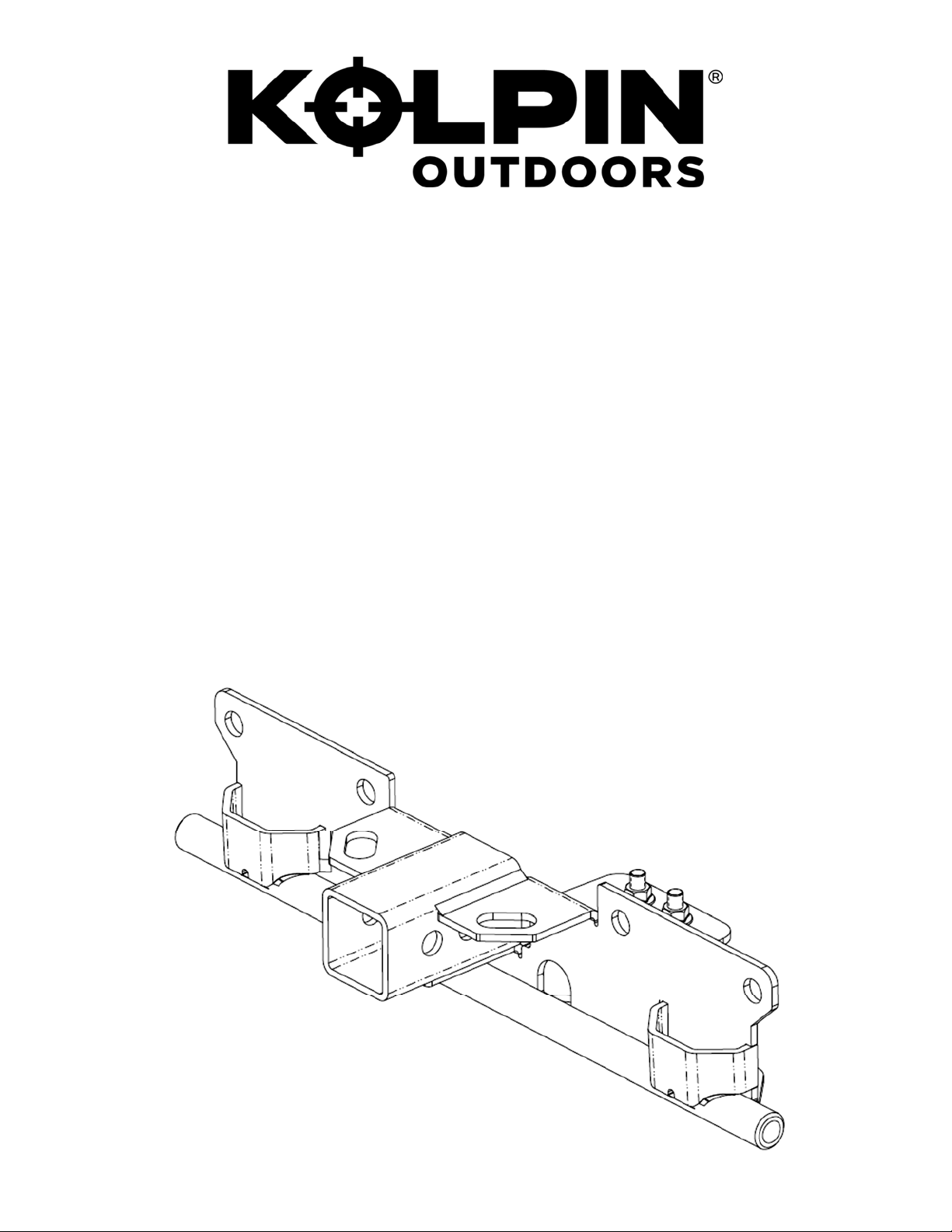

FRONT-CONNECT PLOW
MOUNT KIT
FOR ARCTIC CAT TEXTRON PROWLER PRO
P/N 35-8000
ASSEMBLY / INSTALLATION MANUAL
Application
FRONT-CONNECT PLOW P SH FRAME NO. 35-0070
Before you begin, please read these instructions and check to be sure all parts and tools are accounted for.
The following instructions contain details required to install and service the contents of this kit.
2
© 2021 Kolpin Outdoors Inc. REV 00
INTRO
Thank you for purchasing Kolpin engineered products. With proper installation, usage, care, and maintenance, your Kolpin product will
last for years to come.
BEFORE YOU BEGIN
• Your Kolpin accessory is exclusively designed for your vehicle.
• Read and understand the entire installation manual, including all installation instructions, operating instructions, safety warnings
and guidelines before installing or operating your accessory. Failure to comply may result in damage to the product and / or
vehicle, and can lead to hazards up to and including death.
• Verify all parts and tools are accounted for. If parts are missing, do not return to the store. Call us for help,
Toll Free 1-8 -956- 5 46
• Follow all steps correctly and in the sequence described.
• Keep these instructions for future reference or for informational requests.
• To facilitate installation, make sure that your vehicle is clean and free of debris.
• All directions referring to right and left are from the rider perspective when sitting on the machine.
ASSEMBLY TIME
Approximately 24 minutes
SAFETY INFORMATION
Please read and understand all Cautions, Notices, and Warnings in this manual before you begin. In order to protect you and your
ATV / TV, certain parts of the plow system and / or hardware are designed to fail when the equipment is over-stressed.
Follow these guidelines to ensure satisfactory operation:
• Read this manual and your ATV / TV operators manual before use.
• Periodically check for wear and tightness of all fasteners. Replace or re-torque fasteners as necessary.
• Before first use, set plow in the furthest right or left angled position to check for interference with the vehicle.
• Operate with extreme caution on slopes and rough terrain. Be familiar with the area before you plow.
• Be aware of immovable objects that could be hidden in the area you are plowing.
• To avoid damage when pushing snow into a pile, reverse direction before raising the plow blade.
• Do not ram the plow blade into piles of snow.
• For best results, set the suspension preload of your ATV / TV to the stiffest setting.
• To reduce steering effort and increase mobility, set the air pressure of your tires to the maximum pressure specification.
• The plow skids are adjustable. General skid setting is even with the plow wear bar bottom edge, higher settings reduce the
chance of rocks and gravel from being collected.
• To increase traction during plow operation, operators can try: Securing weight to the ATV / TV for additional tire downforce,
reducing tire air pressure, or installing tire chains.
3
© 2021 Kolpin Outdoors Inc. REV 00
REQUIRED SOLD SEPARATELY
Only parts for installation of the Plow Mounting Bracket Kit are included. For complete snow plow system
installation, additional items are required such as a plow push frame, plow blade, winch, and winch
mount. See www.Kolpin.com for products to complete your plow system.
TOOLS REQUIRED
• Safety Glasses
• Socket Set, Metric
• Socket Set, Torx bit
• Torque Wrench
• Wrench Set, Metric
WARNING
TO AVOID SERIOUS INJURY OR DEATH:
1. DO NOT EXCEED 5 MPH (8 KMH) WITH BLADE INSTALLED
2. OPERATE WITH EXTREME CAUTION ON SLOPES, STEEP GRADES, AND ROUGH TERRAIN
3. ALLOW NO RIDERS ON BLADE OR ATV WHILE MOVING OR STATIONARY
4. KEEP BYSTANDERS AWAY FROM THE BLADE OR ATV WHILE MOVING OR STATIONARY
5. WHEN PUSHING HEAVY MATERIAL, DIRECTION CONTROL MAY BECOME DIFFICULT
6. BEFORE ADJUSTING BLADE: STOP ATV ENGINE; SET AND LOCK BRAKES; RAISE AND LOCK BLADE
7. LOWER BLADE TO DOWN POSITION WHEN BLADE AND ATV ARE NOT IN USE
8. READ BLADE INSTRUCTION SHEETS AND ATV OWNER’S MANUAL
! !
4
© 2021 Kolpin Outdoors Inc. REV 00
KIT CONTENTS
1
3
2
Item Qty Part Description Part Number
11Prowler Mounting Bracket -
22Hex Flange Bolt, Zinc Plated, M10-1.5 x 25mm LG -
32Hex Flange Locknut, Zinc Plated, M10-1.5 -
41Instruction Guide (not shown) -
5
© 2021 Kolpin Outdoors Inc. REV 00
INSTALLATION
INSTRUCTIONS
VEHICLE PREPARATION
GENERAL
1. Park vehicle on a flat surface.
2. Shift vehicle into park.
3. Turn key to OFF position and remove key.
ACCESSORY INSTALLATION
4. If equipped, remove the tow hooks from
front bumper and save for re-install later.
Remove the plastic front lower grille located
under the tow hooks/ front bumper. For the
plastic grille removal, there will be two
screws on the bottom and one screw on
each side. This will provide access to the
front vehicle frame to align plow mount to.
(See illustrations 1-1 and 1-2). Note, if your
vehicle has the plastic front lower grille,
this part will not be re-installed with plow
mount. Save for re-install when plow
mount is removed for off-season.
5. Newer models will have a different style
bumper without front tow hooks. Remove
the four OEM lower M8 x 60mm LG
mounting bolts, spacer tube and locknuts.
Save for re-install later. This will provide
access to the front vehicle frame to align
plow mount for installation. (See illustrations
1-2, 1-6 and 1-7).
6. Position the plow mounting bracket (item
#1) to the front bumper and align the upper
mounting holes with the tow hook / bumper
holes. From the bottom side, use the two
M10 bolts (item #2) and insert through the
lower mounting holes through the vehicle
skid plate and fasten on top skid plate, in
front of gearcase, with M10 locknuts (item
#3) as shown. (See illustrations 1-3, 1-4 and
1-5). Note, do not tighten hardware at
this time.
Ill. 1-1
Ill. 1-2
Ill. 1-3
Remove the plastic lower
grille by removing the four
screws and tow hooks / bolts
Remove the plastic lower
grille by removing the four
screws and tow hooks / bolts
1
6
© 2021 Kolpin Outdoors Inc. REV 00
ACCESSORY INSTALLATION
(continued)
7. Re-install the OEM tow hooks / OEM long M8
x 60mm bolts with spacers through the mount
plate upper holes and fasten using the OEM
locknuts on the backside of frame. (See illus-
trations 1-6 and 1-7).
8. Tighten hardware to specifications.
RECEIVER OPERATION
Ill. 1-4
Ill. 1-5
Ill. 1-6
10MM FASTENER TORQUE:
34 ft. lbs. (46 Nm)
1
2
3
OEM TOW HOOK / LONG 8MM
FASTENER TORQUE:
17 ft. lbs. (23 Nm)
WARNING
!
Do not exceed maximum capacities.
Exceeding maximum capacities may result
in receiver failure, resulting in death,
serious personal injury, or serious damage
to vehicle or property.
Maximum Tongue Weight: 100 lbs (45 Kg)
Maximum Tow Weight: 1200 lbs (540 Kg)
Ill. 1-72
OE Tow hooks
install in same
location as the long
bolts with spacers
OE Tow hooks
install in same
location as the
long bolts with
spacers
7
© 2021 Kolpin Outdoors Inc. REV 00
Two Year Limited Warranty
For the period of two (2) years from the purchase date, Kolpin will replace for the original purchaser,
free of charge, any part or parts found upon examination by Kolpin to be defective in material,
workmanship, or both.
All transportation costs incurred submitting product to Kolpin for warranty consideration must be
borne by the purchaser. If Kolpin determines that the product must be returned to the factory for
credit, please call 1-877-956-5746 for a Return Merchandise Authorization (RMA) number and
shipping instructions.
This warranty does not apply to parts that have been damaged by accident, alteration, abuse,
improper maintenance, normal wear, or other causes beyond the manufacturer’s control. In order to
protect you and your ATV, certain parts of the plow system and/or hardware are designed to fail
when the equipment is over-stressed. Parts that are lost due to loosening and improper
maintenance are not covered under warranty. This warranty does not cover removal or reinstallation
labor fees of the plow system and related components.
Peripheral products such as engines, electric motors, and actuators may carry an original
manufacturer’s warranty. Most hardware is general in nature and is easily obtained locally. Be sure
to replace with minimum metric class 8.8 specification.
Kolpin Outdoors, Inc.
Telephone: ( 63)-4 8-5800
Toll Free: (8 )-956-5 46
Fax Number: (800)-245-569
www.kolpin.com
Email: [email protected]
WARRANTY
