Kohler 2273W Manuel utilisateur

P3999005

Bateau, Crucible and Timpani

Vessels

Installation and User Guide

MODEL NUMBERS

2273W 2271D 2277D

Important :- Please quote the above model number(s) when ordering spares.

IMPORTANT!

Installer: This manual is the property of the customer and must

be retained with the product for maintenance and operational

purposes.

P3999

CONTENTS

DESCRIPTION ......................................................................... 3

SAFETY : WARNINGS ............................................................. 3

DIMENSIONS ........................................................................... 4

SPECIFICATION ...................................................................... 7

Plumbing Connections ..................................................... 7

INSTALLATION ......................................................................... 7

Before You Begin ............................................................. 7

Install the Vessel - All ....................................................... 8

Install the Vessel - Timpani .............................................. 9

Install the Vessel - Bateau ............................................... 11

Install the Vessel - Crucible .............................................. 12

Install the Plumbing ......................................................... 13

USER MAINTENANCE ............................................................ 13

Cleaning ........................................................................... 13

SPARE PARTS ......................................................................... 15

CUSTOMER SERVICE ............................................................ 16

Guarantee of Quality ........................................................ 16

Commercial / Business Use ............................................. 16

Not Covered by this Guarantee ........................................ 16

To Contact Us .................................................................. 16

P3999

DESCRIPTION

The Bateau and crucible Vessels are vitreous china washbasins and the

Timpani Vessel is a stainless steel washbasin.

SAFETY : WARNINGS

Kohler products are precision-engineered and should give continued

superior and safe performance, provided:

1. They are installed, commissioned, operated and maintained in

accordance with the recommendations given in this Manual.

2. Periodic attention is given, as necessary, to maintain the product in

good functional order. Recommended guidelines are given in the

MAINTENANCE section.

Carefully inspect the new fixture for any signs of damage.

When installing Kohler Products, manufacturers guidelines for power tool

safety should be followed.

P3999

DIMENSIONS

P3999010

464mm

152mm

138mm

365mm

171mm

203mm

BATEAU

P3999

P3999020

420mm

210mm

178mm

159mm

321mm

267mm

298mm

CRUCIBLE

P3999

TIMPANI

127mm

P3999

SPECIFICATION

Plumbing Connections

Hot (H) and Cold (C) inlets must be connected to the correct inlet supplies.

INSTALLATION

Before You Begin

1. Turn off the water supply.

2. The plumbing installation must comply with Water Supply

Regulations/Bye-laws (Scotland), Building Regulations or any

particular regulations and practices, specified by the local water

company or water undertakers. The installation should be carried out

by a plumber or contractor who is registered with, or is a member

of an association such as:

Institute of Plumbing (IOP), throughout the UK.

National Association of Plumbing, Heating and Mechanical Services

Contractors (NAPH & MSC), England and Wales.

Scottish and Northern Ireland Plumbing Employers’ Federation

(SNIPEF), Scotland and Northern Ireland.

3. Before installation carefully inspect the new fixture for any signs of

damage.

P3999

Install the Vessel - All

P3999040

Outside Edge

of Vessel

Cut-out

Line

Backsplash

Note! The tap spout should be at least 205mm long for adequate

clearance into the vessel.

1. Use the installation template to mark the outline for cutting.

2. Position the template on the counter.

3. Use a pencil to trace the outline on the counter.

4. Using a suitable power tool, cut out the opening for the vessel.

5. Temporarily position the vessel into the counter cutout and check for

fit.

6. Remove the vessel from the counter cutout and carefully set aside.

7. Install the taps in accordance with the manufacturer’s instructions.

P3999

Install the Vessel - Timpani

P3999050

Silicone

Sealant

Bolt

Mounting

Ring

Wing

Nut

1. Apply silicone sealant around the counter cutout hole.

2. Carefully position the vessel into place over the counter cutout.

3. Position the vessel so the “Kohler” logo is clearly visible at the back.

4. Position the mounting ring holes over the vessel bolts.

5. Securely hand tighten the wing nuts to ensure the vessel is level, but

do not overtighten.

P3999

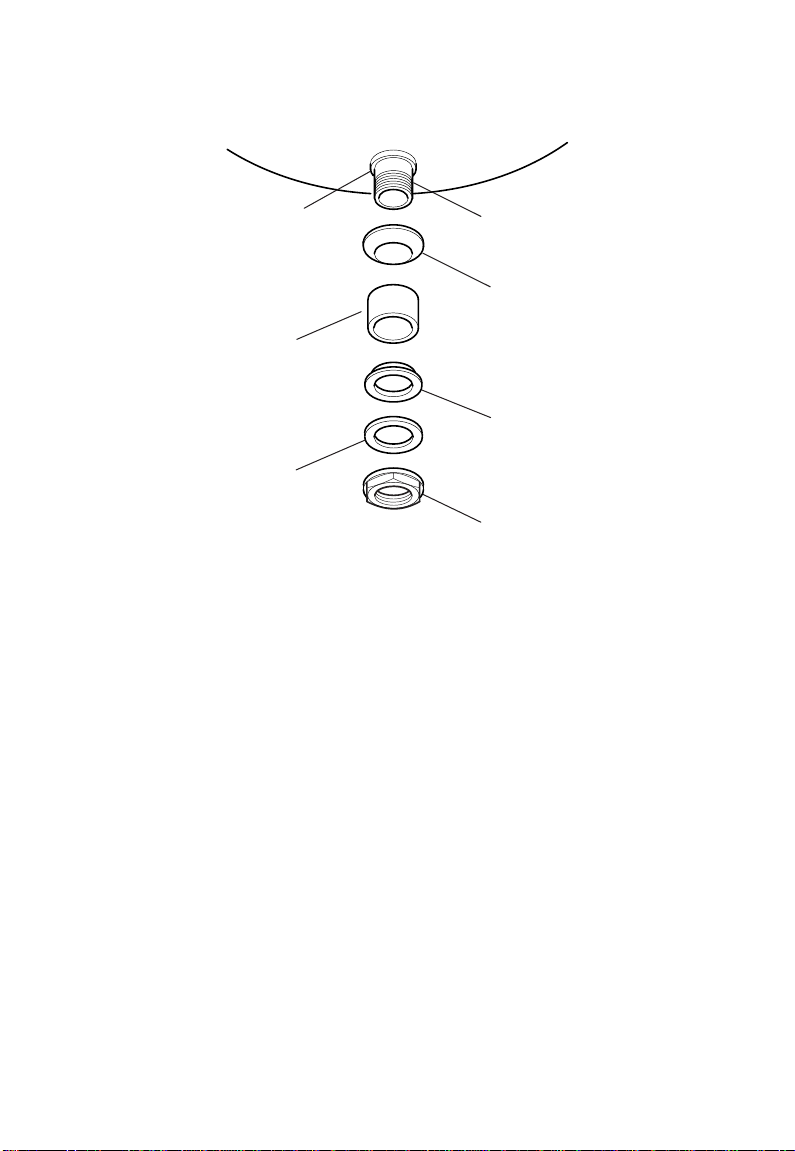

P3999060

Gasket

Drain

Flange

Tube

Tapered

Gasket

Flat

Washer

Nut

Apply

Sealant

6. Install the drain in accordance with the manufacturer’s instructions.

7. Clean the vessel and surround with a suitable non-abrasive cleaner.
