Kogan KARVMWDNRCA Manuel utilisateur
REAR VIEW MIRROR WITH
DASH AND REVERSE CAMERA
KARVMWDNRCA
1. Display Power Switch 2. Lock button
3. Camera Power Switch 4. Record
5. Shortcuts 6. CAR DVR
7. Settings 8. Playback
9. SD Card Format 10. LCD Touch Screen
11. Lens 12. Reset
13. USB Power + Data Port 14. Camera Interface
15. SD Card Slot 16. Speaker
OVERVIEW
Basic Operation
Press the power button for 2 seconds to start up and press the power button again to shut
down.
Video Recording
Press the recording button to start recording. The recording icon will appear on the top-left
corner.
Photo Capture
Press the camera button to capture a single image.
OPERATION
Note:
When the battery is low, the camera will prompt “low battery” and shut down
automatically.

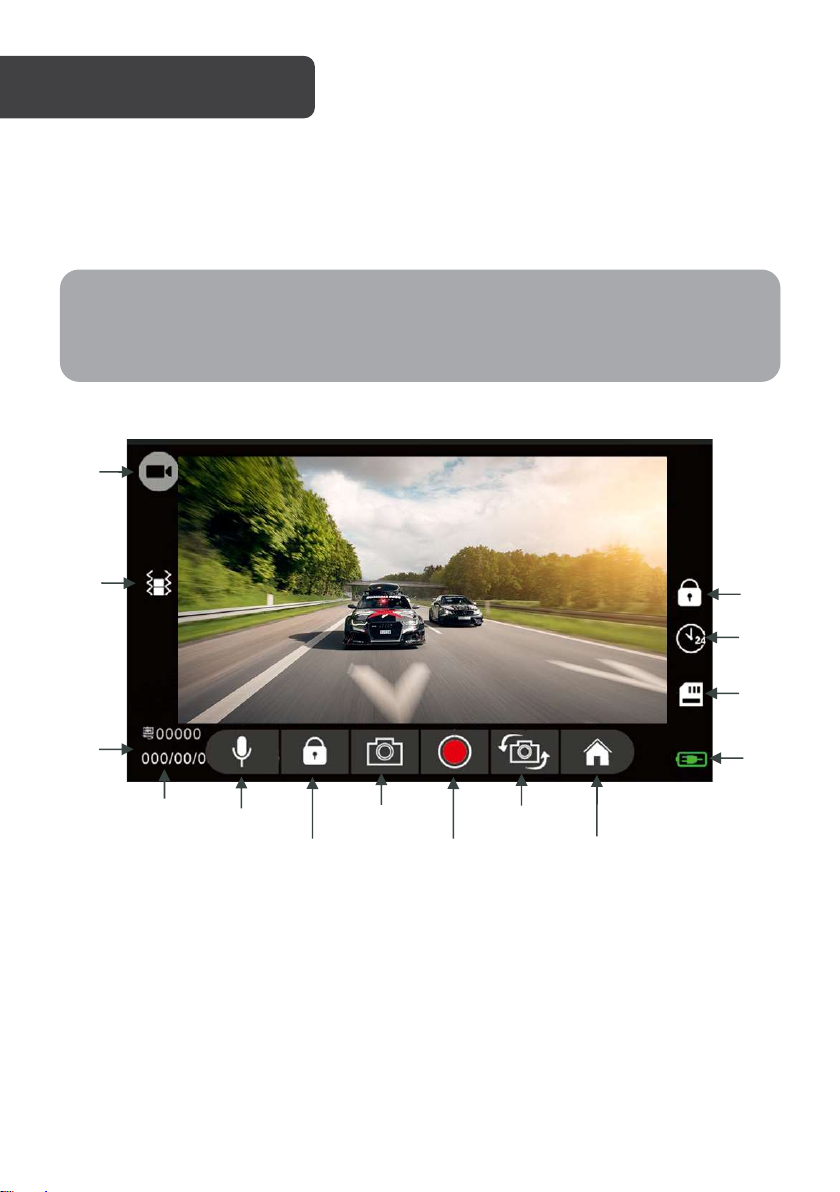

Recording
Icon
G-sensor
License
Plate
Number
Date/Time
Power
Status
SD
Card
Parking
Monitor
Recording
Lock
Audio
Recording
Recording
Lock
Capture Video
Recording
Front/Rear
Camera Menu
Main Menu (Full-Screen Touch)
Function Placement
Playback
Playback Mode
Short press the home icon to enter the menu and select playback. Use the arrow icons to
select a file to replay and press the play icon to begin playback. Press the home icon again
to return to the main menu.
USB Connection
USB Connection
Connect the USB cable to a computer and press the power button. Select “Mass storage”
to open the camera’s storage and view and save files on your PC.
Next
Fast forward
Previous
Rewind
Play/Pause
Mass storage PC camera
Recorder
Reversing Camera
Firstly, the car charger must be connected to the recording unit and the red power line of
the rear camera must be internally wired to the reversing light indicator – this should be
carried out by a qualified mechanic.
When the reverse gear is engaged, the display will show the feed from the rear camera and
switch off when the car is no longer in reverse.
Parking Monitoring
With the stop monitoring function enabled, if a vibration is detected while the camera is off
(sensitivity can be set), the recorder will turn on and record automatically for 20 seconds,
before switching off.
Charging the Battery
Power adapter
USB power supply
Car charger
The charging time is approximately 180 minutes. The charging indicator LED will illuminate
while charging and turn off automatically when charging is completed.
File format AVI
Video resolution Maximum 1080p
Video format M-JPEG
Frequency 50Hz/60Hz
Power interface 5V1A
Battery Built-in
SPECIFICATIONS
1. Cannot record
Ensure there is free space and the SD card is not locked.
2. Recording automatically stops
This may be due to the high bandwidth requirements of HD video. Use a high-
speed SD card compatible with SDHC.
3. “File error” message upon playback
Recorded data is corrupt. Reformat the SD card.
4. Footage is blurry
Ensure lens is clean.
5. Sky, water, etc. are very dark in captured footage
Scenes with large contrast will affect the camera’s automatic exposure function.
Modify the “EV” value.
6. Colours are incorrect on cloudy days or indoor lighting
Ensure “White Balance” is set to automatic.
7. Distortion with horizontal stripes on recorded footage
Change from 60Hz to 50Hz or vice versa.
8. Camera crashes
Short press reset button to restart.
TROUBLESHOOTING
Need more information?
This is a Quick Start Guide, and we hope that this
has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
