Kodak Imagelink 500 Manuel de service
User's Reference A-61409
Part No. 693626
April 1994
BUSINESS IMAGING SYSTEMS
KODAK
IMAGELINK
™
Scanner 500
A-61409 April 1994 EB-1
EQUIPMENT BASICS
OPERATOR INTERFACE:
Status Display The Status Display indicates the Image Addresses, current
Application Modes, and Error messages. Use the following
illustration and descriptions to become familiar with the
Status Display output.
Scanner Status
(Enabled/Disabled) Mode Number
(or Name)
Fixed Field
Fixed Field
Deliminator
(backslash)
Field B Field AField C Delimiter
(period)
Delimiter
(period)
A-61409 April 1994
EB-2
OPERATOR INTERFACE:
Operation Keys/Indicators Key/Indicator Function
Image Buffer Status Front: Green indicates that the
LEDs buffer is available for
scanning; red indicates
that the buffer is not
available and that the
feeder is off (for simplex
and duplex-defined
application modes).
Rear: Same as Front LED (for
duplex-defined
application modes only).
Contrast Thumb Used to adjust the display
Wheel contrast between the characters
and the background in the Status
Display.
Numeric Keys (0 - 9) Used with the Enter key to enter
numeric data sucha as an Image
Address or Function Code.
Decimal Key Used to insert a field separator in
an Image Address. Also used to
designate the front and/or rear
document printer vertical start
print position.
F (Function Key) Used with numeric data and the
Enter key to enter a Function
Code.
C (Clear/Cancel Key) Used to clear Error Messages
indicated in the Status Display.
Also used to cancel a function
without changing the preset
values.
Next Allows operator to enter the next
document Image Address.
Plus Key Used when inputting a new value
for the Image Address.
When pressed, it allows a field to
remain unchanged.
A-61409 April 1994 EB-3
Key/Indicator Function
Enter Used to enter numeric data for a
Function Code or an Image
Address change.
Back (Backspace) Used to move the cursor back
one space during numeric data
input; the last data input is
erased.
Cal Used to start the calibration
function.
End Used at the end of a batch or job
to stop the feeder and transport
system and to alert the host
computer that the batch or job
has ended. When pressed,
documents in the transport
system will be scanned and
stacked facedown in the Exit
Hopper before the transport
system is disabled.
Jog Used to momentarily turn on (jog)
the transport system.
Level 3 Used to identify the next
document fed into the scanneras
a Level 3 document.
Level 2 Used to identify the next
document fed into the scanneras
a Level 2 document.
Level 1 Used to identify the next
document fed into the scanneras
a Level 1 document.
OPERATOR INTERFACE:
Operation Keys/Indicators
A-61409 April 1994
EB-4
Key/Indicator Function
Run Used to turn on the feeder and
transport sytem.
Stop Used to stop the feeder and
transport system. Documents in
the transport system when the
Stop key is pressed will be
scanned and placed in the Exit
Hopper before the transport
system stops.
Confirmation Tone/ The confirmation tone/alarm
Alarm sounds under the following
(located under the conditions:
Control Panel) • Run key is pressed
(one long tone)
• Stop or End key is pressed
(many short tones followed by
one long tone)
• Feeder Clutch (dis)engages
(one short tone)
• Incorrect key input
(three long tones)
• Document skew is greater
than (>) the allowed skew
parameter, or a document is
shorter or longer than the
specified length parameters
(one short tone)
• Footswitch is pressed
(one short tone)
OPERATOR INTERFACE:
Operation Keys/Indicators
A-61409 April 1994 EB-5
OPERATIONS CHECKLIST Setup:
√Turn on power switch.
√Calibrate the machine.
√Adjust the feed/separator rollers.
√Adjust the feed shelf.
√Adjust the feeder side guides.
√Adjust the exit hopper side guides.
√Adjust the exit hopper end stop.
√Install the proper exit hopper deflector.
√Prepare documents to feed into transport.
Running a Job:
√Enable the machine from the host system.
√Select an application mode.
√Input any temporary/override operating values.
√Enter or verify the starting Image Address.
√Enter or verify the starting document image level.
√Press the Run key.
√Feed documents.
√Press the Stop key.
√Execute Scanner End-of-Job.
√Remove documents from the exit hopper.
√Turn off power switch.
A-61409 April 1994
EB-6
MAINTENANCE CHECKLIST Daily maintenance:
√Clean the imaging guides.
Weekly maintenance:
√Clean the feed and separator rollers.
√Clean the cabinet.
√Vacuum inside the machine.
Monthly maintenance:
√Check the air filter; replace if necessary.
As needed:
√Clean the accessories.
√Change the lamps.
A-61409 April 1994 EB-7
CLEARING THE
DOCUMENT PATH There are four (4) areas in the transport system
where documents may become lodged:
AFeeder Area
BHorizontal Transport Plate, Lower Belt
Module, and Lower Turn Roller Areas
C Vertical Transport Plate and Imaging Guide
Areas
DDocument Exit and Upper Turn Roller Areas
•Check each transport area, in turn (Area A through
Area D), for documents lodged in the document
path.
You only have to remove the jammed
document(s). The jog feature places the rest of the
documents in the exit hopper.
NOTE: Make certain that all operator accessible
areas (designated by green labels) are
firmly closed and all baffle plates are locked
into place.
•Press and hold down the JOG key to clear any
remaining documents.
•Collect the documents located in the transport
system. Put them back into their original order,
if necessary.
•Reset the Image Address, Level, etc., if necessary.
•Refeed the documents.
If an error code appears in the Status Display,
check each transport area again to make certain
that all documents have been cleared.

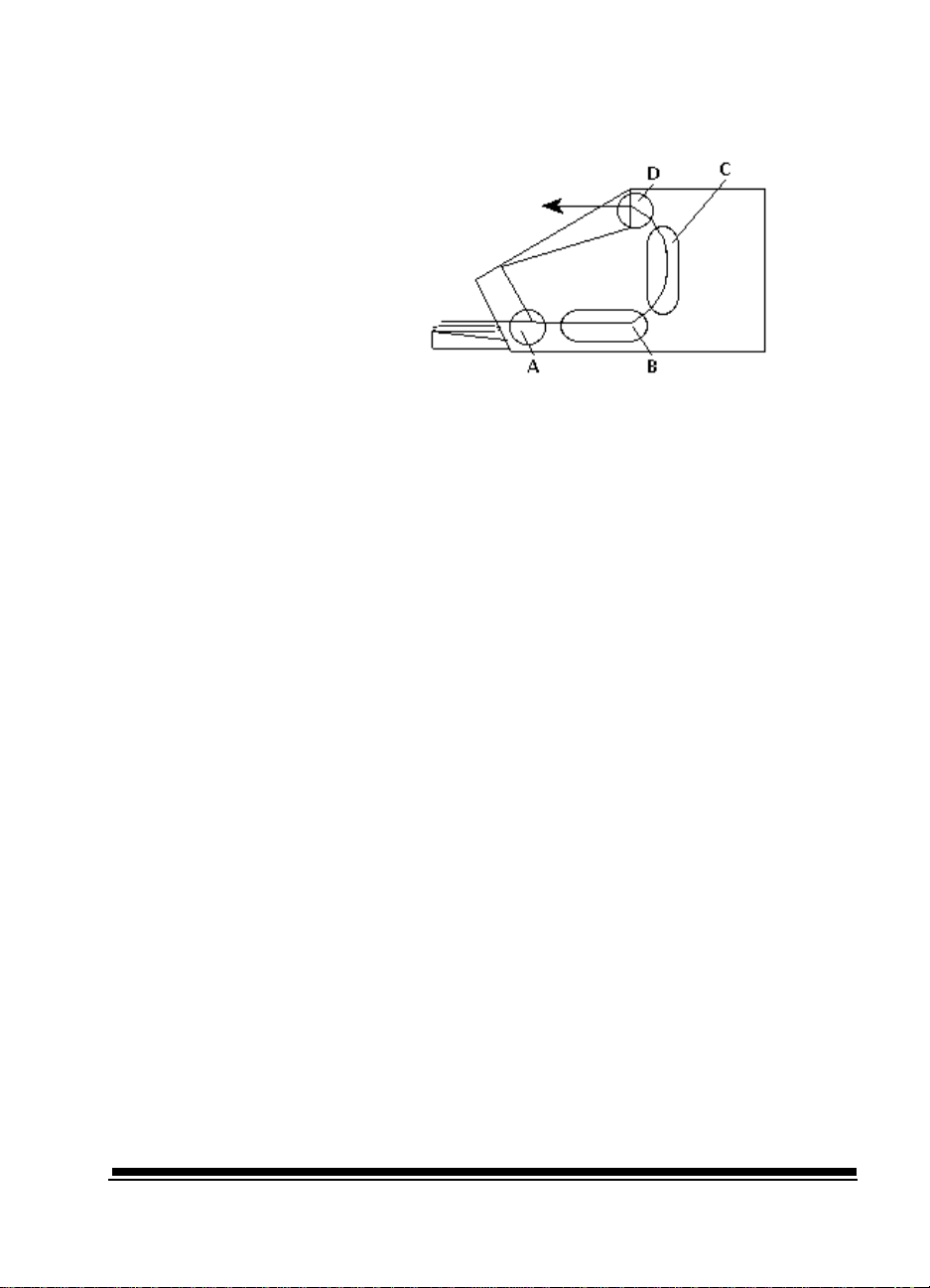

Document path
A-61409 April 1994 FC-1
FUNCTION CODES
Using Function Codes There are a variety of functions available which may be used
to temporarily change operating conditions and values, and
to obtain system and accessory status information.
To execute a Function Code:
• Press the F key.
• Press the numeric keys which correspond to the desired
Function Code.
• Press the Enter key.
Additional input may be necessary:
If the function is used to enable/disable an option (turn an
option on or off):
• Press the number one (1) key to turn the option ON;
or
Press the number zero (0) key to turn the option OFF.
• Press the Enter key.
If the function requires numeric input:
• Press the numeric key(s) required.
• Press the Enter key.
To cancel a function (before pressing the Enter key) or clear
the Status Display after executing a Function Code, press
the C (Clear/Cancel) key.
A-61409 April 1994
FC-2
Function Code Summary Application Modes
Select Application Mode.............................................. F01
Restore Application Mode........................................... F02
Index/Image Address
Level 0......................................................................... F07
Last Image Address .................................................... F08
Status
Accessory Status ........................................................ F05
Transport SystemOperation Time............................... F17
Date and Time............................................................. F23
Counters
Count Only .................................................................. F04
Total Document Counter ............................................. F09
Level 0 Counter........................................................... F10
Level 1 Counter........................................................... F11
Level 2 Counter........................................................... F12
Level 3 Counter........................................................... F13
Reset Level Counters.................................................. F14
Setup
Display Language ....................................................... F19
Measurement System ................................................. F20
Set Time...................................................................... F21
Set Date ...................................................................... F22
Controls
Length Monitor ............................................................ F70
Omit Length Monitor on Next Document Only ............ F71
Skew Monitor .............................................................. F72
Host
Latched Flag ............................................................... F73
Momentary Flag .......................................................... F74
