COVER: DCS 760 DIGITAL CAMERA QUICK SET UP GUIDE; FRONT

TRIM SIZE: 6.0” (W) x 4.0 (H)”

M. DE MEYER, CD&U-DEPT. 851

01.05.01

FONTS USED IN THIS ARTWORK:

UNIVERS 55 REGULAR, UNIVERS 65 BOLD,

ITC GARAMOND LIGHT CONDENSED ITALIC

COLORS USED IN THIS ARTWORK:

PROCESS, SPOT COLOR KODAK YELLOW

QuickSetup

fortheDCS760DigitalCamera

DCS 760 Digital Camera

YOUR

CAMERA

AF Area Mode button

Exposure Mode button

Exposure Compensation

button

Camera Strap eyelet

Shutter Release button

Sub-Command dial

Depth-of-field Preview

button

Mirror Lockup lever

Vertical Shutter release

Camera Front Camera Sides

YOUR

CAMERA

YOUR

CAMERA

Multi-meter finder

Drive mode/Self-timer

selector

Sync terminal

Self-timer LED

Camera Strap eyelet

Lens Release button

Focus Mode selector

IR filter

Product label

IEEE 1394 port

AC Adapter

connection

Vertical Shutter

release

Vertical Shutter

release lock

IEEE 1394 port

AC Adapter

connection

Vertical Shutter

release

Vertical Shutter

release lock

IEEE 1394 port

AC Adapter

connection

Vertical Shutter

release

Vertical Shutter

release lock

Battery/PC Card

door

Battery/PC Card

door latch

D760flip Page 1 Friday, January 5, 2001 10:11 AM

Eyepiece Shutter lever

Finder Release button

Alert LED

Image LCD

OK button

Cancel button

Menu button

Tag/Record button

Back Status LCD panel

ISO button

Auto Exposure/Flash Exposure

bracketing button

ShutterSpeed/Aperture/FocusArea

Lock button

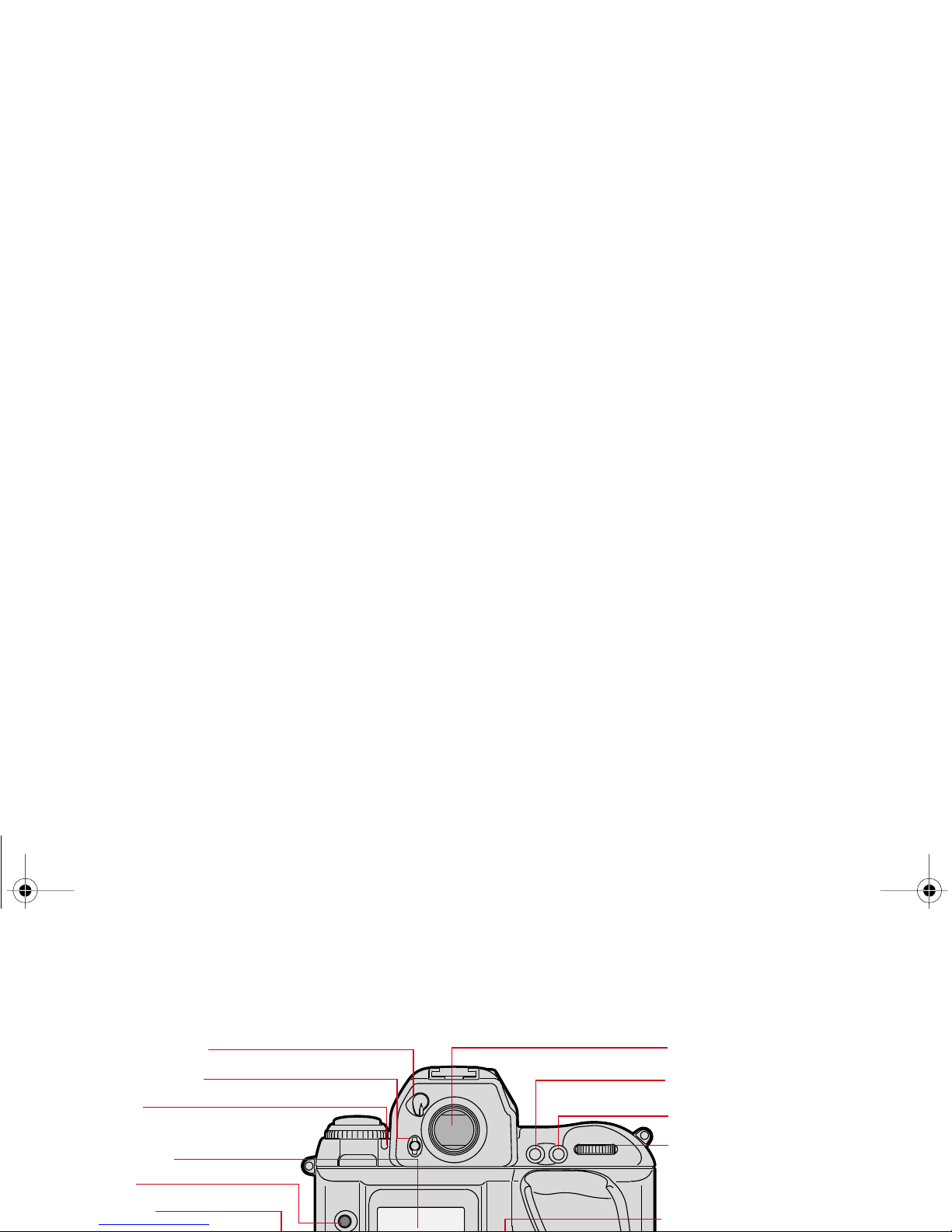

Camera Back

L CSMBKT

ISO

TAG/

CANCEL

RECORD

Viewfinder eyepiece

Auto Exposure/Autofocus Lock

button

AF Start button

Main-Command dial

Microphone

Navigate switch

Flash Sync Mode button

Custom Setting Menu button

Remote Release Accessory port

Vertical AF Start button

D760flip Page 2 Friday, January 5, 2001 10:11 AM

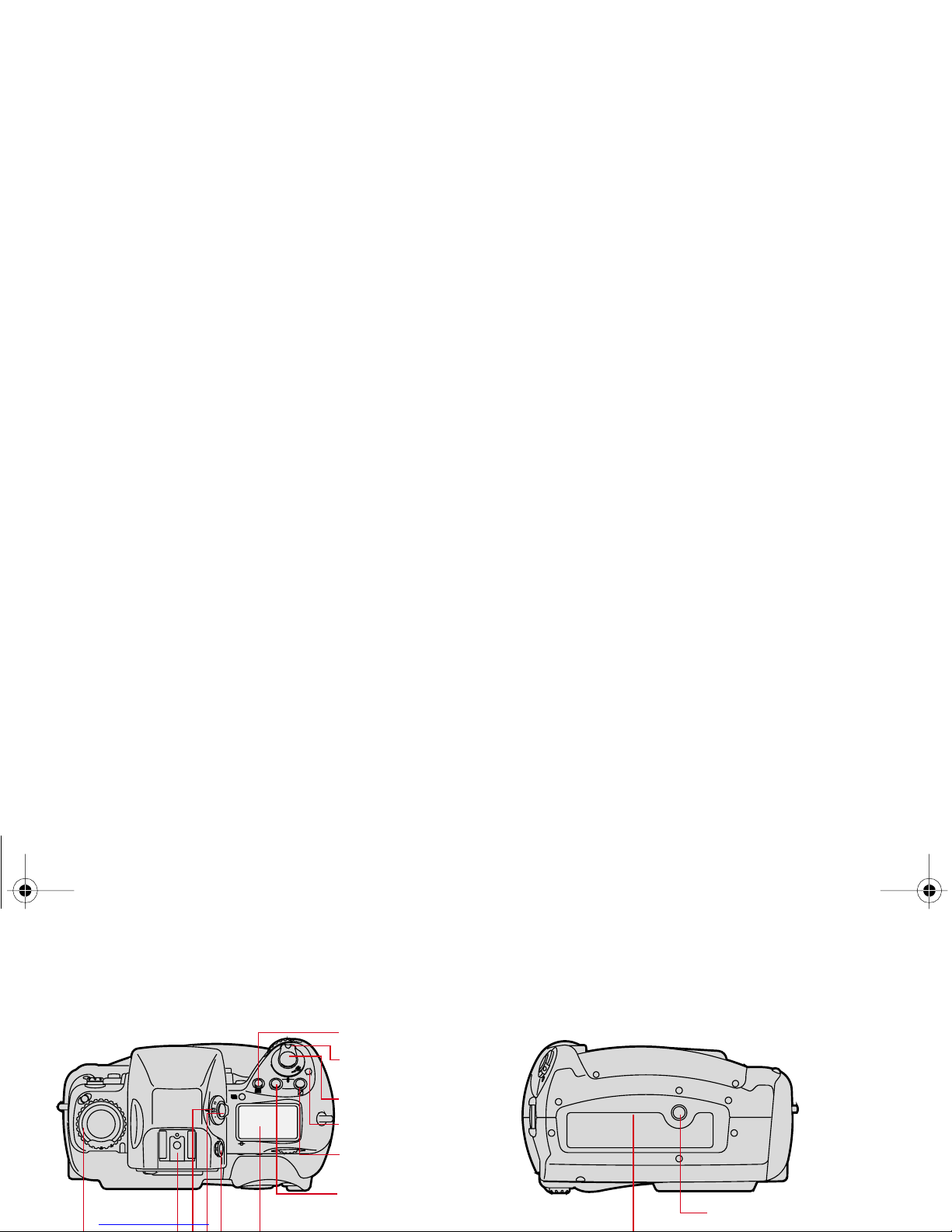

Camera Top

MODE

Camera Bottom

AF Area Mode button

Power/LCD Panel

Illumination switch

Shutter Release button

Power Switch Lock

release

Exposure

Compensation button

Exposure Mode

(MODE) button

Top Status LCD panel

Diopter Adjustment

knob

Metering System

selector lock release

Metering System

selector

Accessory shoe

Drive Mode/Self

Timer selector

Tripod mount

Data plate label

Battery/PC Card door

Battery

Serial port

Video Out port

Card Busy LED

PC Card

Eject button

VIDEO

SERIAL

D760flip Page 3 Friday, January 5, 2001 10:11 AM

LOCK

BKT

Top Status LCD Panel

Shutter speed lock

Shutter speed

Auto Exposure/Flash Exposure

bracketing

Exposure mode

Flexible program

Exposure compensation

Exposure compensation value

Aperture lock

Aperture

Focus area lock

Focus area/AF area mode

D760flip Page 4 Friday, January 5, 2001 10:11 AM

ISO/Bracketing information/

Custom Setting

ISO Setting mode

Bracketing bar graphs

Auto Exposure/Flash

Exposure Bracketing

White Balance

Frame number

Frames remaining on PC Card

REAR

SLOW

AUTO

ISO

BKT CUSTOM

Flash sync mode

Personal computer connection

Custom setting

Card present

Microphone

Battery level

Back Status LCD Panel

D760flip Page 5 Friday, January 5, 2001 10:11 AM

Viewfinder

9 10 11 12

13 14 15 16 17

1. Focus area indicators

2. Exposure level

3. Reference circle for Center-weighted metering

4. Focus brackets/Spot metering

5. Ready light

6. Focus indicators

7. Aperture direct readout

8. Focus area indicators

9. Shutter speed lock indicator

10. Aperture lock indicator

11. Exposure mode

12. Exposure compensation

13. Metering system

14. Shutter speed

15. Aperture

16. Electronic analog exposure display

17. Exposure compensation

D760flip Page 6 Friday, January 5, 2001 10:11 AM

Image LCD/Menu Bar

Folder icon

Menu icon

White Balance icon

Contrast icon

Video icon (appears if Video is enabled using Main Menu)

D760flip Page 7 Friday, January 5, 2001 10:11 AM

Turning the Image LCD On and Off

1Press the OK button to turn the Image LCD on.

2Press the Cancel button to turn the Image LCD

off. If the LCD is not in Image Display mode,

press the Cancel button more than once.

Displaying and Navigating the Menu Bar

1Turn the Image LCD on.

2Press the Menu button to turn the Menu bar on.

3Press the left or right side of the Four-way

switch to highlight the needed Menu bar icon.

4Press the Cancel button or Menu button to turn

the Menu bar off.

Making a Menu Selection

1Navigate the Menu bar until the Folder or

Menu icon is highlighted.

A dropdown menu appears, listing the available

options.

2Press the top or bottom of the Four-way switch

to highlight an option.

3Press the OK button to activate the option.

D760flip Page 8 Friday, January 5, 2001 10:11 AM

Using the Image LCD and Digital Buttons

Turn the Image LCD on: Press the OK button.

Select a highlighted menu option: Press the OK button.

Enable Region of Interest box (Zoom mode): Press the OK button.

Implement a zoom (Zoom mode): Press the OK button.

Delete an image (Delete mode): Press the OK button.

Toggle the Menu bar on/off: Press the Menu button.

Turn the Image LCD off: Press the Cancel button.

Dismiss a menu without implementing change: Press the Cancel button.

Disable Region of Interest box (Zoom mode): Press the Cancel button.

Navigate through images in all Display modes except

Zoom mode when Region of Interest box is on: Press the left or right side of the Four-way switch.

Navigate the Menu bar and display menus: Press the left or right side of the Four-way switch.

Navigate a dropdown menu: Press the top or bottom of the Four-way switch.

Change to a different display mode: Press the top or bottom of the Four-way switch.

Move the Region of Interest box (Zoom mode): Press any edge of the Four-way switch.

D760flip Page 9 Friday, January 5, 2001 10:11 AM
