Process ECN-2

Technical Data and

Crossover

Information

2KODAK VISION2 Color Negative Control Strips, Technical Data and Crossover Information

Note: While the data presented are typical of production coatings, they do not represent standards which must be met by Kodak.

Varying storage, exposure, and processing conditions will affect results. The company reserves the right to change and improve

characteristics at any time.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Processed Control Strip - 35mm . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Improvements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Control Strip Log Exposure Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ECN-2 Control Strip Exposed on KODAK VISION 200T Color

Negative Film 5274 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ECN-2 Control Strip Exposed on KODAK VISION2 200T Color

Negative Film 5217 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Effects of Mechanical and Chemical Variations . . . . . . . . . . . . . . . . . . . . . . . . . 7

Developer Mechanical Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Effects of Time and Temperature Variations . . . . . . . . . . . . . . . . . . 8

Developer Chemical Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Effects of pH and CD-3 Variations . . . . . . . . . . . . . . . . . . . . . . . . . 9

Effects of NaBr and AF-2000 Variations . . . . . . . . . . . . . . . . . . . . 10

Effects of Na2SO3and Under and Over Replenishment Variations. 11

Effects of Prebath Contamination . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Effects of CD-2 for CD-3 and Stop Bath Contamination . . . . . . . . 13

Effects of Bleach Contamination . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Effects of F-34a Fixer and Final Rinse Contamination . . . . . . . . . . 15

Effects of KI Contamination and Water Dilution . . . . . . . . . . . . . . 16

Effects of Bacterial Na2S and Na2CO3Contamination . . . . . . . . . . 17

Control-Strip Crossover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Control-Strip Crossover for Process ECN-2 . . . . . . . . . . . . . . . . . . 19

MORE INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

KODAK VISION2 Color Negative Control Strips, Technical Data and Crossover Information 3

KODAK VISION2 Color Negative Control Strips

Introduction

KODAK VISION2 Color Negative Control Strips (Figure 1)

are intended for the control of Process ECN-2 using the

procedures described in KODAK Publication No. H-24,

Manual for Processing KODAK Motion Picture Films,

Module 1, Process Control.

The first batch of KODAK VISION2 Color Negative

Control Strips is code 5011 for 35 mm, CAT 152 0469 and

code 5012 for 16 mm, CAT 152 0444.

Figure 1 Processed Control Strip - 35mm

F009_0146CC

Steps

9071

ECN-2

D-min

Important Improvements

KODAK VISION2 Color Negative Control Strips

incorporate several important improvements into the control

strips for Process ECN-2.

• A VISION2 emulsion is being used for process control.

The new format is exposed on KODAK VISION2 200T

Color Negative Film 5217, while the former ECN control

strip was exposed on KODAK VISION 200T Color

Negative Film 5274.

KODAK VISION2 Color Negative Control Strips,

Process ECN-2, are packaged in 100-foot rolls containing at

least 120 exposures and a processed reference strip. The

exposures on the roll are spaced at 9.5-inch intervals. Each

exposure has 21 gray-scale steps at 0.20 log H increments

(2/3 camera stop).

The reference strip accompanying each roll was exposed

along with all other control strips; it was then processed

under specified well-controlled conditions. An instruction

sheet enclosed with the package contains process deviation

(correction) factors, if they are required, to determine your

laboratory process aim numbers. A four-digit code number

appearing on the carton, can, control strips, reference strips,

and instruction sheet, identifies each production batch of

strips.

4KODAK VISION2 Color Negative Control Strips, Technical Data and Crossover Information

Control Strip Log Exposure Range

The graphs in Figure 2 and Figure 3 demonstrate the

differences between the former ECN control strip exposed

on KODAK VISION 200T Color Negative Film 5274, and

the new format exposed on KODAK VISION2 200T Color

Negative Film 5217.

Physically, the center-to-center step distance has been

maintained on the new control strips; no problems should be

encountered with existing automatic densitometers.

Once the transition to the new control strips is complete,

and the new control step reference values have been

determined, continue to use KODAK VISION2 Color

Negative Control Strips in the same manner as your previous

control strips.

Please contact your Kodak representative for additional

information on monitoring your process with control strips.

KODAK VISION2 Color Negative Control Strips, Technical Data and Crossover Information 5

Figure 2 ECN-2 Control Strip Exposed on KODAK VISION 200T Color Negative Film 5274

0.0

1.0

2.0

3.0

-4.0 -3.0 -2.0 -1.0 0.0 1.0 2.0

Densitometry:

Exposure:

Process: ECN-2

1/50 sec

Status M

LOG EXPOSURE (lux-seconds)

DENSITY

6KODAK VISION2 Color Negative Control Strips, Technical Data and Crossover Information

Figure 3 ECN-2 Control Strip Exposed on KODAK VISION2 200T Color Negative Film 5217

Exposure:1/50 sec

Process: ECN-2

Densitometry: Status M

0.0

1.0

2.0

3.0

-4.0 -3.0 -2.0 -1.0 0.0 1.0 2.0

LOG EXPOSURE (lux-seconds)

DENSITY

KODAK VISION2 Color Negative Control Strips, Technical Data and Crossover Information 7

Effects of Mechanical and Chemical

Variations

Figures 4 through 13 illustrate some of the major

photographic effects of mechanical and chemical variations

on KODAK VISION2 Color Negative Control Strips

exposed on 5217 Film compared to the former VISION

Control Strips exposed on 5274 Film. Each plot shows the

effect of a change in a process variable (horizontal axis), on

the dye density of the processed film (vertical axis). These

density plots are deviated against the standard level for each

variable (e.g. standard level for the variable is representedby

zero density).

The magnitude of the changes shown in these plots should

not be considered to be process control limits. Also, the data

presented are qualitative, not quantitative. The plots were

derived from experiments using small laboratory machines

in which all constituents were held constant except the

variable being studied. Hence, the figures should be used

only as trend charts and guides. If two or more process

variable are changed, the resulting photographic effect

illustrated may not be additive. Interactions can occur that

produce effects other than those predicted by addition. The

plots in this publication are representative only; they do not

contain all possiblesolution problems.Most ofthe important

photographic effects take place in the developer.

8KODAK VISION2 Color Negative Control Strips, Technical Data and Crossover Information

Developer Mechanical Factors

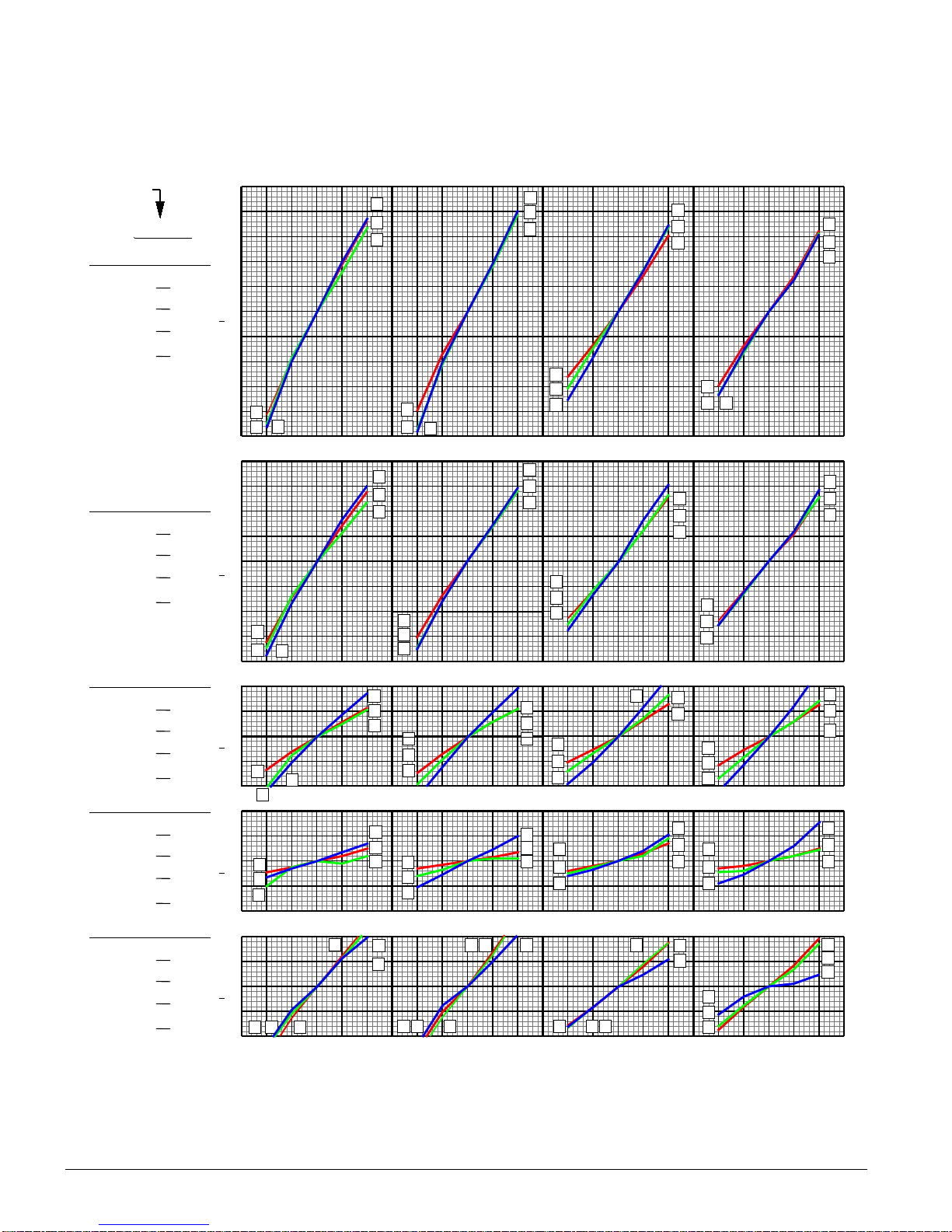

Figure 4 Effects of Time and Temperature Variations

—VISION2 Control Strips versus VISION Control Strips in Process ECN-2 Developer

HD-LD

D-min

0000

52745217

Temperature

110

108

102

104

106

110

108

104

106

102

340

300

320

Time

5217

.20

.10

.15

.25

.05

.15

.20

.25

.10

.20

.10

.15

.05

.10

.05

AIM

STRIP

CODE NO.

REFERENCE

VALUES

RED

B/W

BLUE

GREEN

B/W

BLUE

GREEN

RED

240

220

340

.15

.10

.20

.05

300

240

.10

.05

220

.05

.10

320

sec

RED

B/W

GREEN

BLUE

RED

GREEN

B/W

BLUE

5274

sec F

BLUE

B/W

GREEN

RED

.10

.05

.10

V2CSQ_V2CSP_2

BRB

RBG

GR B

B G

KODAK VISION2 Color Negative Control Strips, Technical Data and Crossover Information 9

Developer Chemical Factors

Figure 5 Effects of pH and CD-3 Variations

—VISION2 Control Strips versus VISION Control Strips in Process ECN-2 Developer

HD-LD

D-min

0000

52745217

CD-3

5.50

4.75

2.25

2.50

4.00

5.50

g/L

3.25

4.00

4.75

2.50

10.45

10.25

10.35

5217

.20

.10

.15

.25

.05

.10

.20

.15

.25

.15

.20

.05

.10

VALUES

REFERENCE

CODE NO.

AIM

STRIP

GREEN

BLUE

RED

B/W

GREEN

BLUE

RED

.10

.20

.15

.10

.05

.10

.05

10.15

10.05

10.45

10.25

10.15

10.05

10.35

.10

B/W

GREEN

RED

B/W

BLUE

B/W

GREEN

BLUE

RED

.05

5274

BLUE

B/W

GREEN

RED

.10

.05

.10

g/LpHpH

V2CSN_V2CSD_2

RGB

RB G

10 KODAK VISION2 Color Negative Control Strips, Technical Data and Crossover Information

Developer Chemical Factors

Figure 6 Effects of NaBr and AF-2000 Variations

—VISION2 Control Strips versus VISION Control Strips in Process ECN-2 Developer

0000

D-Min

HD-LD

52745217

AF-2000

7.50

3.75

5.00

6.25

2.50

7.50

3.75

5.00

6.25

2.50

1.6

1.0

1.2

1.4

0.8

1.6

1.0

1.2

1.4

0.8

NaBr

5217

.20

.15

.10

.25

.05

.10

.20

.15

.25

.15

.20

.05

.10

VALUES

CODE NO.

REFERENCE

STRIP

AIM

BLUE

GREEN

RED

B/W

RED

BLUE

GREEN

.10

.20

.15

.10

.05

.10

.05

g/L

.10

B/W

GREEN

RED

B/W

BLUE

B/W

BLUE

GREEN

RED

.05

5274

g/L ml/Lml/L

.10

.05

.10

BLUE

B/W

GREEN

RED

V2CSK_V2CSA_2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kodak Accessoires pour appareils photo

Kodak

Kodak Leaf Aptus-II Manuel utilisateur

Kodak

Kodak PHOTO GEAR Manuel utilisateur

Kodak

Kodak K640 Manuel utilisateur

Kodak

Kodak EasyShare printer dock Manuel utilisateur

Kodak

Kodak AE-31 Manuel d'instructions

Kodak

Kodak PROFESSIONAL PORTRA 160NC Manuel d'instructions

Kodak

Kodak EASTMAN 2366 Manuel d'instructions

Kodak

Kodak DS KSDMI4GBCSCAD Manuel utilisateur

Kodak

Kodak SLIDE N SCAN Manuel utilisateur

Kodak

Kodak ROCPGTRI9 Manuel utilisateur

Kodak

Kodak Vision Premier 2393 Manuel d'instructions

Kodak

Kodak EASTMAN PLUS-X 5231 Manuel d'instructions

Kodak

Kodak PROFESSIONAL P-255 Manuel d'instructions

Kodak

Kodak ROYAL GOLD 25 E-40 Manuel d'instructions

Kodak

Kodak 5219 Manuel d'instructions

Kodak

Kodak VERICOLOR E-24 Manuel d'instructions

Kodak

Kodak PHOTO GEAR TRIPOD + MONOPOD Manuel utilisateur

Kodak

Kodak TRI-X 400 Manuel d'instructions

Kodak

Kodak Premier Paper Manuel d'instructions

Kodak

Kodak 8mil Manuel d'instructions

Kodak

Kodak Industrex M100 Manuel utilisateur

Kodak

Kodak RING LIGHT MINI RM001 Manuel utilisateur

Kodak

Kodak ADVANTIX 100 Manuel d'instructions

Kodak

Kodak PHOTO GEAR TRIPOD WITH REMOTE Manuel utilisateur

Manuels Accessoires pour appareils photo populaires d'autres marques

Viltrox

Viltrox EF-NEX Instructions d'installation

Calumet

Calumet 7100 Series CK7114 Manuel utilisateur

Ropox

Ropox 4Single Series Manuel utilisateur

Cambo

Cambo Wide DS Digital Series Mode d'emploi

Samsung

Samsung SHG-120 Manuel utilisateur

Ryobi

Ryobi BPL-1820 Manuel d'utilisation

Aegis

Aegis ABL-36020P Manuel utilisateur

Pentax

Pentax Data Back Fc Manuel utilisateur

Fantasea

Fantasea EyeGrabber F Series Manuel utilisateur

Honeywell

Honeywell HDZ20HD Manuel utilisateur

EGO

EGO BA1400T Manuel utilisateur

Sima

Sima SRW-62 Manuel utilisateur

Shape

Shape A7SSMKIT Manuel utilisateur

Slide Kamera

Slide Kamera HST-2 Manuel utilisateur

Power works

Power works 2902613 Manuel utilisateur

SES

SES SE-2047-2 Manuel utilisateur

Olympus

Olympus PT-EP05L Manuel utilisateur

Starlite

Starlite OctoDome nxt Manuel utilisateur
