KOBE Brand Range Hood

Model No.

IS2430GSQB-1

IS2436GSQB-1

IS2442GSQB-1

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

IMPORTANT

READ THIS FIRST

READ BEFORE INSTALLATION

1. Carefullycheckallcontentsofpackages;

2. Thoroughlyinspecttheunitforanycosmeticdamagesor

defects;

3. Testtheunitbeforeinstallation;

4. Haveacertifiedcontractor/electriciandotheinstallation.

IF THERE IS ANY PROBLEM:

1. DONOTINSTALLTHEUNITANDKEEPALLORIGINAL

PACKAGINGMATERIAL.

2. Haveyouroriginalinvoiceasproofofpurchaseand

productserialnumberready.

3. Call1‐877‐BUY‐KOBE(289‐5623);ore‐mailto

[email protected]toreporttheproblem.

NO RETURN, NO REFUND, NO EXCHANGE IF:

1. PRODUCTHASBEENINSTALLED

2. KNOCK‐OUTHOLESHAVEBEENPUNCTURED

3. MISSINGORIGINALPACKAGINGMATERIALAND/OR

PARTS

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ......................................................................................1

COMPONENTS OF PACKAGE....................................................................................................3

INSTALLATION.............................................................................................................................4

OPERATING INSTRUCTIONS.....................................................................................................8

MAINTENANCE............................................................................................................................9

SPECIFICATIONS ......................................................................................................................10

MEASUREMENTS & DIAGRAMS..............................................................................................11

CIRCUIT DIAGRAM....................................................................................................................12

TROUBLE SHOOTING...............................................................................................................13

WARRANTY................................................................................................................................14

PRODUCT REGISTRATION.......................................................................................................16

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE - This warranty is void without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8. Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THEAREAAND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UPA BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.

• Use an extinguisher ONLY if:

a) You have a ClassA, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

- Extinguish any open flame.

- Do not try to turn on the lights or any type of appliance.

- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, installation by 2 persons is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which

must be recycled or disposed of according to Local, State, and Federal

Codes.

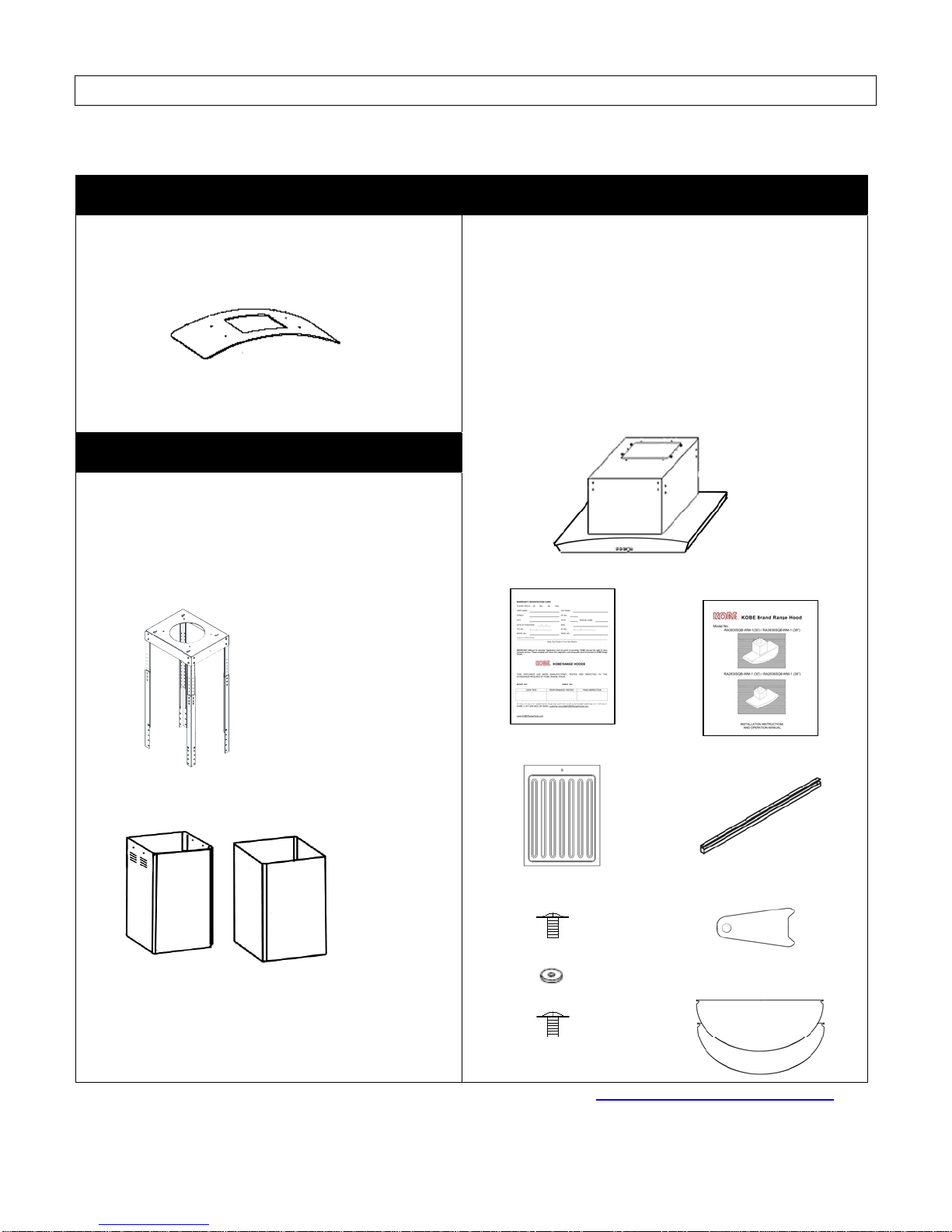

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Glass Canopy Box (Box 1 of 3)

Range Hood box (Box 2 of 3)

{A} Glass Canopy

{B} KOBE Range Hood

{C} Warranty Registration Card

{D} Instructions Manual (CD)

{E} Baffle Filter

{F} Oil Tunnel

{G} Screw Package

{H} Flapper – 2

{I} LED Applicator

Duct Cover Box (Box 3 of 3) {B}

{J} Telescopic Stack

{K} Adjustable Duct Cover

{J} {C} {D}

{K} {E} {F}

{G} {I}

{H}

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880.

4mm x 8mm (20PCS)

Washer (20PCS)

4mm x 8mm (2PCS)

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

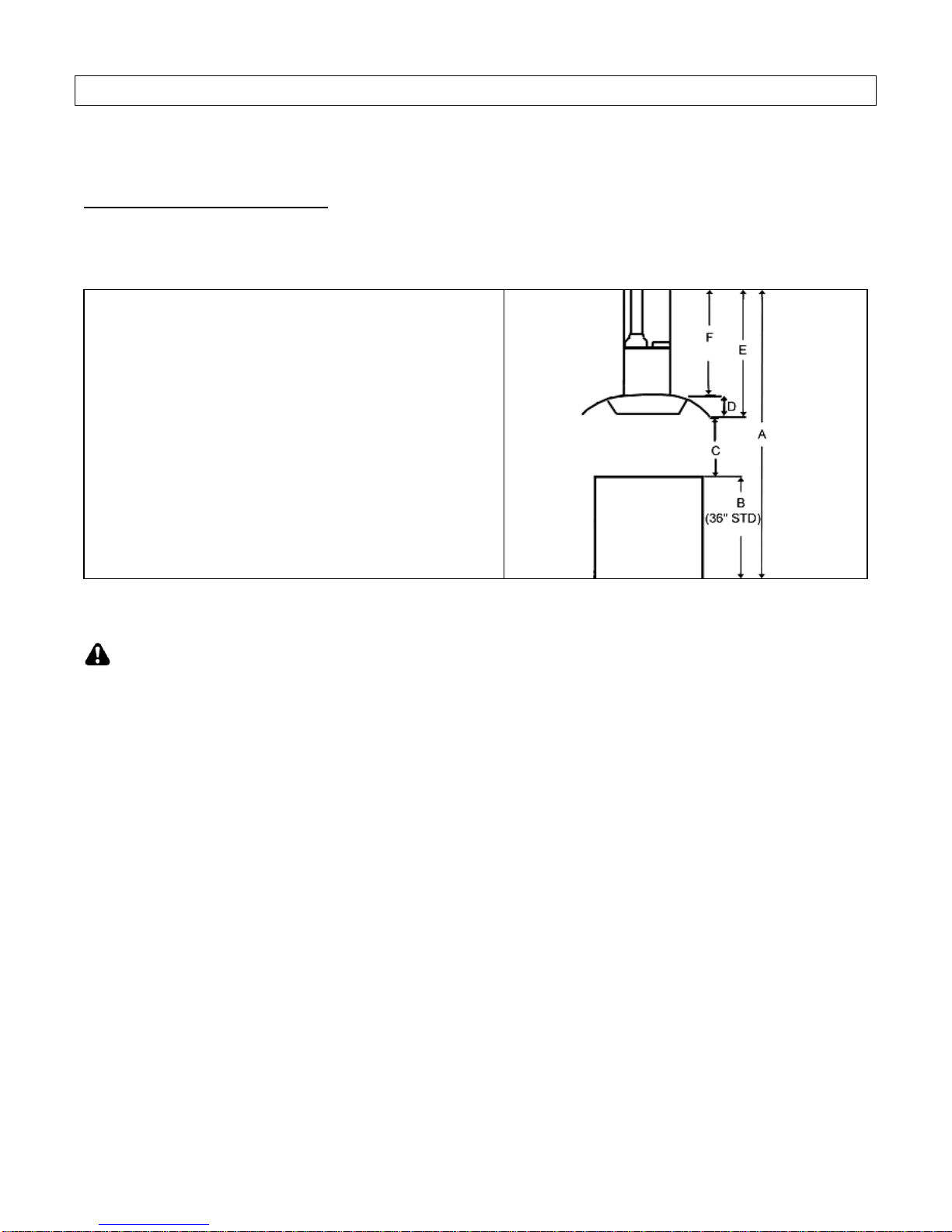

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 30” to 36”)

D = Height of Hood

E = Height of the Hood Installation

[A – (B+C)]

F = Height of Duct Cover

[E – D]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

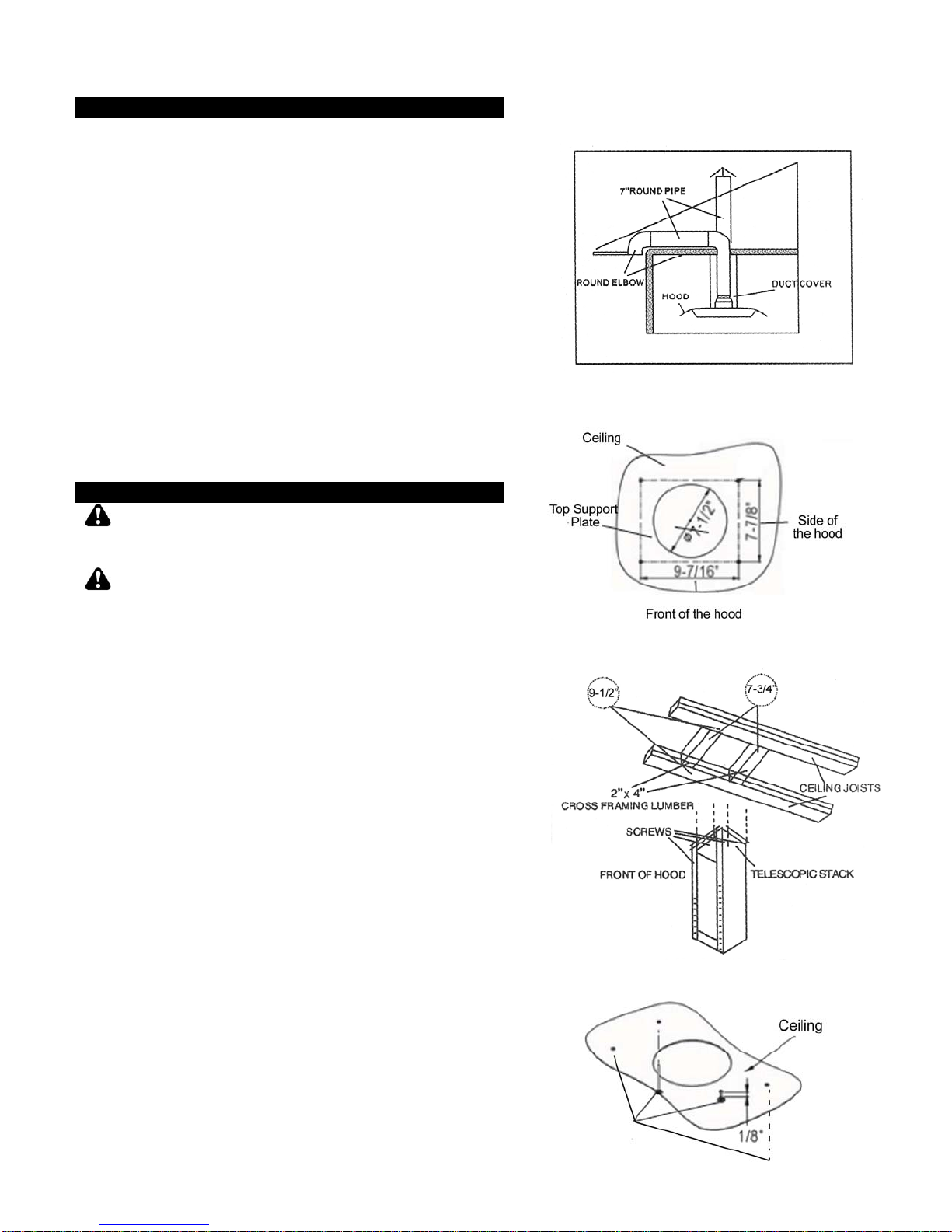

•Decide the location of the venting pipe from the

hood to the outside (Figure 1).

•A straight, short vent run will allow the hood to

perform more efficiently.

•Try to avoid as many transitions, elbows, and long

runs as possible. Transitions, elbows and/or long

runs may reduce the performance of the hood.

•Temporarily wire the hood to test for proper

operation before installing.

•Important: Peel protective film off the hood and

duct covers, if any.

- Use duct tape to seal the joints between pipe

sections.

Hood Installation

CAUTION: USE HAND TOOLS ONLY. DO NOT

OVER TIGHTEN SCREWS. IT MAY CAUSE DAMAGE TO

THE HOOD.

CAUTION: If moving the cooking range is

necessary to install the hood, turn off the power in

an electric range at the main electrical box. SHUT

OFF THE GAS BEFORE MOVING A GAS RANGE.

And use a protective covering to protect cooktop

and/or countertop from damage.

1. Mark centerlines of cook top or range on ceiling.

Use centerlines marked on ceiling to position the

range hood as shown in Figure 2.

1. Cut and remove ceiling drywall. Install 2” x 4” cross

framing lumber (not provided) between ceiling

joists.

2. The framing should be spaced 9-1/2” at the front

centerline and 7-3/4” on the sides. Refer to Figure

3. Finish the ceiling surface. Be sure to mark the

location of the ceiling joists and cross framing

lumber.

4. Cut a 7-1/2” duct opening and approximately a 1”

wire access hole. Secure four hood mounting

screws (not provided) into the ceiling joint and

cross framing lumber, leaving 1/8” away from the

cabinet as shown on Figure 4. Make sure screws

are driven into the ceiling at the middle of joists

and cross framing lumber for maximum support

and stability.

Figure 1

Figure 2

Figure 3

Figure 4

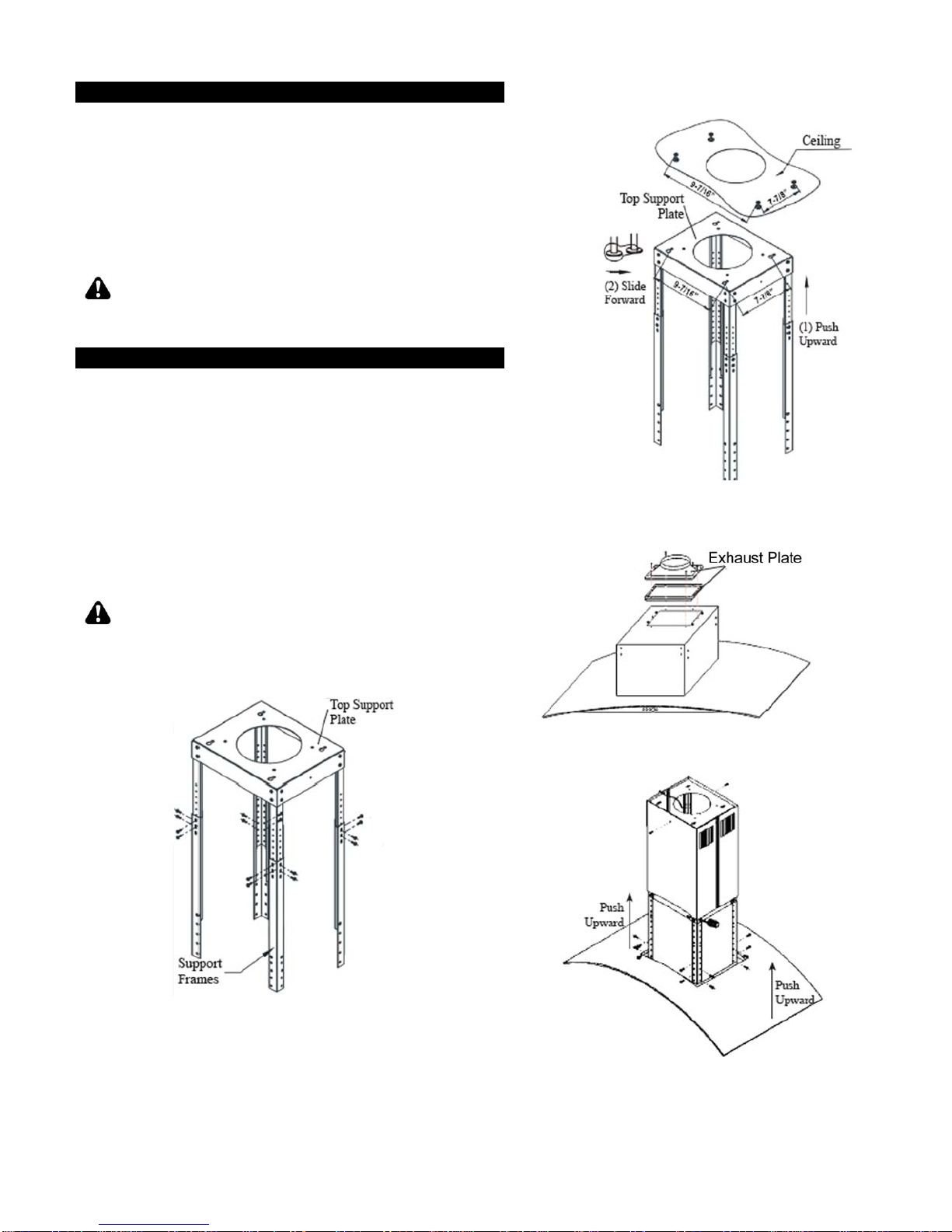

6. Adjust the telescopic stack with sixteen screws and

washer (pre-installed). Refer to Figure 5.

7. Align the telescopic stack to the mounting screws

on the ceiling and lock the telescopic stack in

place. Fasten the mounting screws as shown in

Figure 6.

8. Slide the duct covers up the telescopic stack, and

temporary hold the duct covers up.

CAUTION: MAKE SURE THE TELESCOPIC

STACK IS SECURE BEFORE RELEASING.

9. Remove the four screws and washers from top of

the hood body. Position and install the glass

canopy onto the hood body with the four screws

and washer.

10. Install the two flappers (provided) onto the exhaust.

Refer to Figure 7.

11. Align the hood with the telescopic stack and secure

the hood body onto the telescopic stack with

sixteen 4mm x 8mm screw (provided). Refer to

Figure 8.

CAUTION: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

Figure 5

Figure 6

Figure 7

Figure 8

Telescopic Stack Installation

Hood Installation

Wiring to Power Supply

THIS RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE BY

QUALIFIED ELECTRICIAN IN ACCORDANCE WITH

ALL APPLICABLE NATIONAL AND LOCAL

ELECTRICAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT POWER

FROM BEING SWITCHED ON ACCIDENTALLY.

12. Route house wiring into the ceiling as close to the

installation location as possible. Allow additional

length of wiring to drop down from the ceiling to the

electric box.

13. Connect the electrical wires according to color

(green to green, white to white, and black to black)

and cap with wire connectors. Green wire must be

grounded to reduce risk of electric shock.

Ductwork Installation

14. Use 8” round aluminum or steel pipe (not provided)

to connect the plastic

15. Slide the inner duct cover up and secure to the top

of the telescopic stack with two 4mm x 8mm screws

(provided).

16. Slide the outer duct cover downward so that it sits

properly on the hood.

Final Assembly

17. Install the Baffle Filters.

18. Turn power ON in control panel. Check all lights

and fan operation.

19. Make sure to leave this manual for the homeowner.

Duct Cover Installation

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels KOBE hotte de ventilation

KOBE

KOBE CHX9130SB Guide de dépannage

KOBE

KOBE CH0030SQB Guide de dépannage

KOBE

KOBE RAX21 SQB-X Series Guide de dépannage

KOBE

KOBE CH-30 Series Guide de dépannage

KOBE

KOBE CH2230SQ-1 Guide de dépannage

KOBE

KOBE CH7930SQ Guide de dépannage

KOBE

KOBE RA3830SQB-1 Guide de dépannage

KOBE

KOBE OVS-CHX8130SQB-40 Instructions d'installation et d'utilisation

KOBE

KOBE IN2636SQB-700-1 Guide de dépannage

KOBE

KOBE RA3830SQ Guide de dépannage

KOBE

KOBE CX1836GS Guide de dépannage

KOBE

KOBE CHX36 SQB-29 Series Guide de dépannage

KOBE

KOBE CH8036SQ Guide de dépannage

KOBE

KOBE IN28 SQB Series Guide de dépannage

KOBE

KOBE IN2730SF Guide de dépannage

KOBE

KOBE RAX28 SQB-2 Manuel d'utilisation et d'entretien

KOBE

KOBE RA9230SQB-1 Manuel d'utilisation et d'entretien

KOBE

KOBE CXX8130QF-GBK-1 Guide de dépannage

KOBE

KOBE RAX2830SQB-2 Guide de dépannage

KOBE

KOBE CH0130SQB (30") Manuel utilisateur

KOBE

KOBE RA02 SQB-1 Manuel d'utilisation et d'entretien

KOBE

KOBE OVS-CHX2030SQB-40 Guide de dépannage

KOBE

KOBE CH2230SQ Guide de dépannage

KOBE

KOBE RA2230SQB-1 Guide de dépannage

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
