KOBE CH0036SQB-1 Guide de dépannage

KOBE Brand Range Hood

CH-100 Series (18” Height)

Model No.:

CH0030SQB-1 (30”)

CH0036SQB-1 (36”)

CH0042SQB-1 (42”)

CH0048SQB-1 (48”)

RA-02 Series (18” Height)

Model No.:

RA0230SQB-1 (30”)

RA0236SQB-1 (36”)

RA0242SQB-1 (42”)

RA0248SQB-1 (48”)

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .................................................................................... 1

COMPONENTS OF PACKAGE.................................................................................................. 3

INSTALLATION.......................................................................................................................... 5

OPERATION INSTRUCTIONS..................................................................................................15

MAINTENANCE........................................................................................................................16

SPECIFICATIONS ....................................................................................................................17

MEASUREMENTS & DIAGRAMS.............................................................................................19

PARTS LIST ..............................................................................................................................22

CIRCUIT DIAGRAM..................................................................................................................28

TROUBLE SHOOTING .............................................................................................................29

DISCLAIMER............................................................................................................................30

WARRANTY .............................................................................................................................31

PRODUCT REGISTRATION.....................................................................................................33

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN ACCORDANCE WITH

NATIONAL AND LOCAL ELECTRICAL CODES.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8. Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which

must be recycled or disposed of according to Local, State, and Federal

Codes.

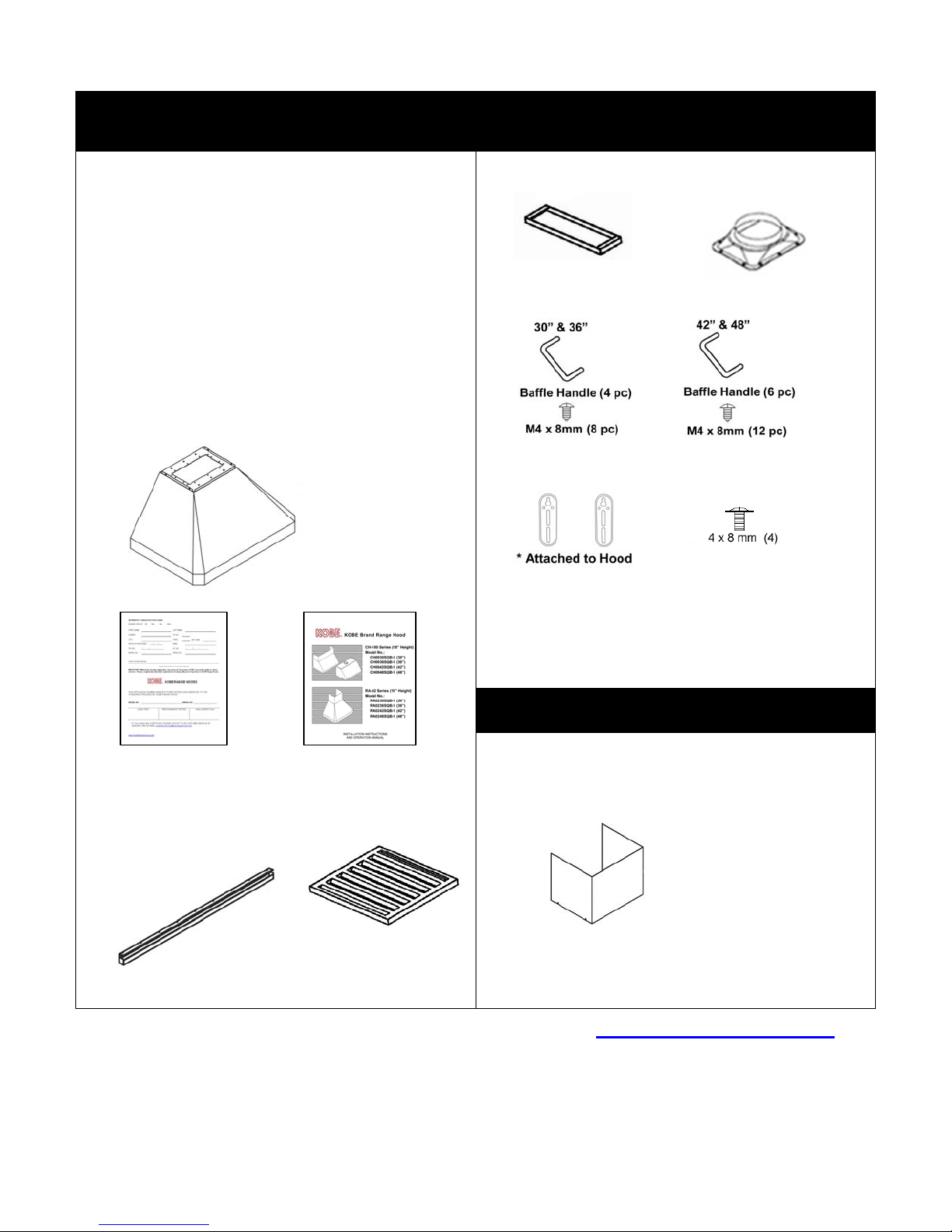

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

CH-100 Series

RANGE HOOD BOX

{A} KOBE Range Hood – 1

{B} Warranty Registration Card –1

{C} Instructions Manual – 1

{D} Oil Tunnel – 1

{E} Baffle Filter

-2 (30” & 36”)

-3 (42” & 48”)

{F} Spacer – 2

{G} 8” Round Exhaust Plate – 1

(42” & 48” only)

{H} Screws Package – 1

{I} Hood-Mounting Bracket – 2

{J} Screws Package – 1

{A}

{B} {C}

{D} {E}

{F} {G}

{H}

{I} {J}

Duct Cover

(Sold Separately)

Option Of:

Model No. CH0030DC-12 for 30'' hood

KOBE Duct Cover – 1

Screw Package for Duct Cover – 1

Model No. CH0036DC-12 for 36'' hood

KOBE Duct Cover – 1

Screw Package for Duct Cover – 1

Model No. CH0042DC-12 for 42'' hood

KOBE Duct Cover – 1

Screw Package for Duct Cover – 1

Model No. CH0048DC-12 for 48'' hood

KOBE Duct Cover – 1

Screw Package for Duct Cover – 1

RA-02 Series

RANGE HOOD BOX

(BOX 1 OF 2)

{A} KOBE Range Hood – 1

{B} Warranty Registration Card –1

{C} Instructions Manual – 1

{D} Oil Tunnel – 1

{E} Baffle Filter

-2 (30” & 36”)

-3 (42” & 48”)

{F} Spacer – 2

{G} 8” Round Exhaust Plate – 1

(42” & 48” only)

{H} Screws Package – 1

{I} Hood-Mounting Bracket – 1

{J} Screws Package – 1

{A}

{B} {C}

{D} {E}

{F} {G}

{H}

{I} {J}

BOX 2 OF 2

ITEM NO.: RA02DC

{K} Duct Cover

{K}

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880.

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

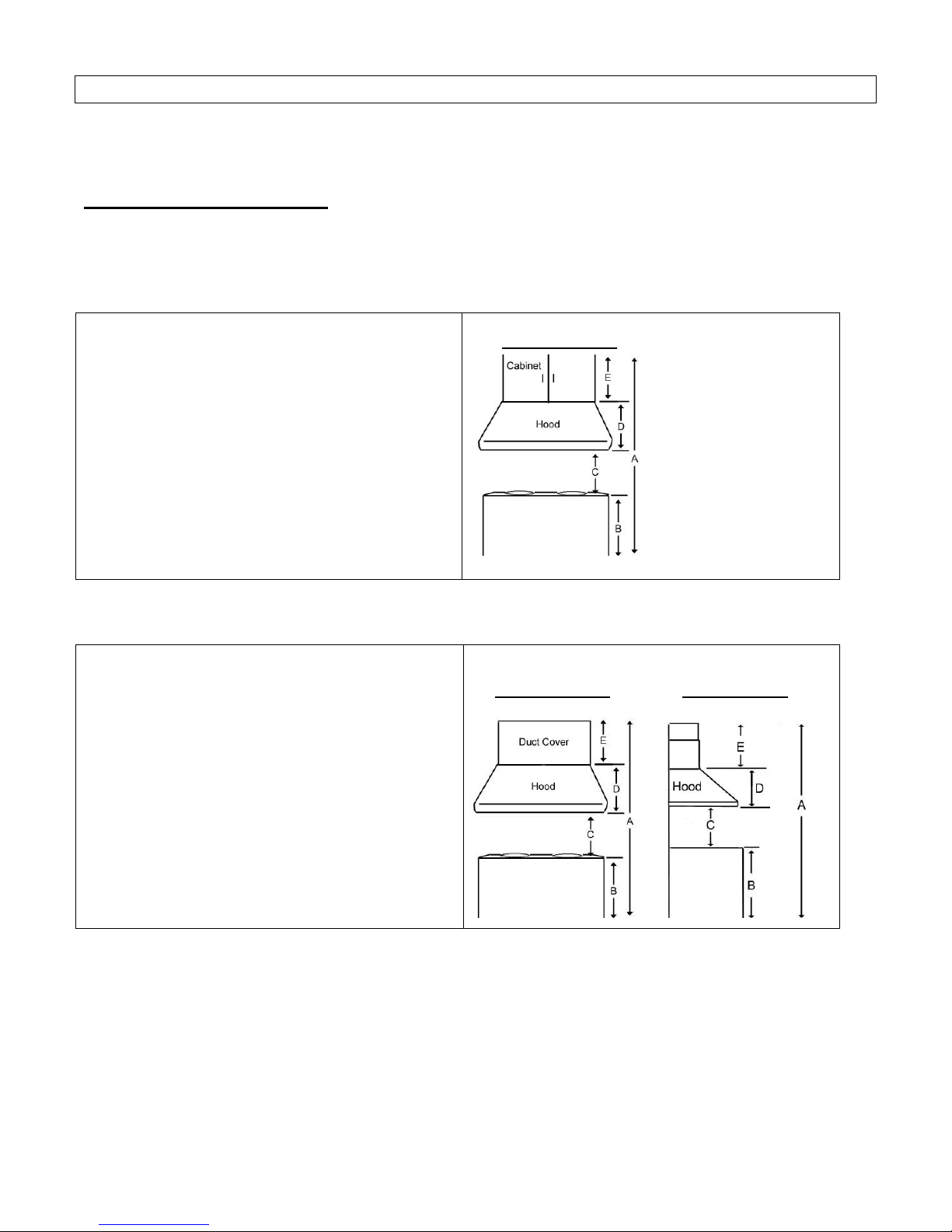

Calculation before Installation

Calculate the length of the installation, before installing the hood. (All calculation is measure in inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 30” to 36”)

D = Height of Hood

E = Height of the Cabinet

- FOR STAND ALONE -

TABLE 2

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 30” to 36”)

[(A – B] – (D + E)]

D = Height of Hood

E = Height of Duct Cover

CH-100 Series R

-02 Series

CH-100 Series

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS

NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

CH-100 SERIES – UNDER THE CABINET INSTALLATION ................................................................. 7

CH-100 SERIES – STAND ALONE INSTALLATION ............................................................................. 9

RA-02 SERIES - INSTALLATION ........................................................................................................ 12

CH-100 SERIES – UNDER THE CABINET INSTALLATION

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING

THE VENT OPENING.



Decide the location of the venting pipe from the

hood to the outside. Refer to Figure 1.



A straight, short venting run will allow the hood

to perform more efficiently.



Try to avoid as many transitions, elbows, and

long run as possible. This may reduce the

performance of the hood.



Temporarily wire the hood to test for proper

operation before installing.



Important: Peel protective film off the hood

(if any).



For installing under the cabinet with recessed

bottom, attach 4-inch wide wood filler strips (not

included) on each side. Refer to Figure 2.



Measure and create access opening for

electrical wires under the cabinet.

Hood Installation

CAUTION: If required to move the cooking

range to install the hood, turn off the power on

an electric range at the main electrical box.

SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE.

1. Puncture the knockout holes on the hood as

shown in Figure 3.

2. (This step only applies to 42” and 48”

models.) Attach exhaust plate on hood with

four (3/16” x 3/8”) screws (included). Shown

in Figure 4.

3. Using references on Table 1 and

measurements on page 19 center the hood in

place beneath the cabinet and flush with the

front of the cabinet.

4. Draw electrical wires through cabinet access

opening. Refer to Figure 6.

5. From the bottom of the hood, place screw (not

provided) into the exact center of each

knockout hole. Make sure all screws are in

place before tightening screws. CAUTION:

MAKE SURE THE HOOD IS SECURE

BEFORE RELEASING.

6. For safety purpose, pre-drilled mounting holes

are provided through the back of the hood. For

a more secure installation, use as many

mounting holes as needed to secure from the

inside of hood (screws not included).

Figure 1

Figure 2

Figure 3

Figure 4

Ductwork Installation

7. Use 6” round steel pipe for 30” and 36”

models or 8” round steel pipe for 42” and 48”

models (follow building codes in your area) to

connect the exhaust on the hood to the

ductwork above. Use duct tape to make all

joints secure and air tight. Refer to Figure 5.

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE

HOOD MUST BE PROPERLY GROUNDED.

MAKE SURE THIS IS DONE BY SPECIALIZED

ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL

ELECTRICAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE

PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED

ON ACCIDENTALLY.

8. Connect the electrical wires.

- Connect three wires (black, white and

green) to house wires and cap with wire

connectors. Connect according to color:

black to black, white to white, and green to

green as shown on Figure 6.

- If necessary to hide the electrical wire

connections, push wires back into the

wiring box. Access the wire connections

underneath the hood. To prevent any

damage, make sure wires do not slip

between motor or any moving parts.

Install Accessories

9. Attach Oil Tunnel. Refer to Figure 7.

10. Refer to Figure 8. Slide the baffle filter into

the hood. Push the baffle filter upward. 

Slide forward. Pull downward. Fit into

place.

11. Repeat until all baffle filters and spacers are

resting against oil tunnel. Refer to page 20.

12. Install heat lamps (not included), 120 Volts 175

Watts max. each.

Final Assembly

13. Turn power ON in control panel. Check all

lights and fan operation.

14. Make sure to leave this manual for the

homeowner.

Figure 5

Figure 6

Figure 7

Figure 8

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels KOBE hotte de ventilation

KOBE

KOBE CX1836GS Guide de dépannage

KOBE

KOBE IN2630SQB-650-5A Guide de dépannage

KOBE

KOBE CH-191 Guide de dépannage

KOBE

KOBE IS2236SQB-1 Guide de dépannage

KOBE

KOBE RA9230SQB Guide de dépannage

KOBE

KOBE SQB-650-5A Series Guide de dépannage

KOBE

KOBE INX29 SQBF-500-1 Series Manuel d'utilisation et d'entretien

KOBE

KOBE CHX20 Guide de dépannage

KOBE

KOBE INX2730SQB-700-1Brillia Series Guide de dépannage

KOBE

KOBE CHX3830SQBD-3 Guide de dépannage

KOBE

KOBE CH8136SQB Guide de dépannage

KOBE

KOBE RAX9530SQB-1 Guide de dépannage

KOBE

KOBE CH0130SQB Manuel utilisateur

KOBE

KOBE CH0330SQB Guide de dépannage

KOBE

KOBE CHX20 SQB-1 Manuel d'utilisation et d'entretien

KOBE

KOBE RA2830SB Guide de dépannage

KOBE

KOBE BRILLIA INX26 Series Guide de dépannage

KOBE

KOBE CH2230SQ Guide de dépannage

KOBE

KOBE CHX9130SB Guide de dépannage

KOBE

KOBE CH0330SQB Guide de dépannage

KOBE

KOBE CH0030SQB (30") Manuel utilisateur

KOBE

KOBE RA3830SQB-WM-1 Guide de dépannage

KOBE

KOBE CHX91 SQB-1 Manuel utilisateur

KOBE

KOBE CH0030SQB-1 Guide de dépannage

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
