CABINET PARTS

For Models: KBCO24RSBX01

(Black Cabinet)

8−09 Litho In U.S.A. (wam) (eeb) Part No. W10182899 Rev. B

BEVERAGE CENTER

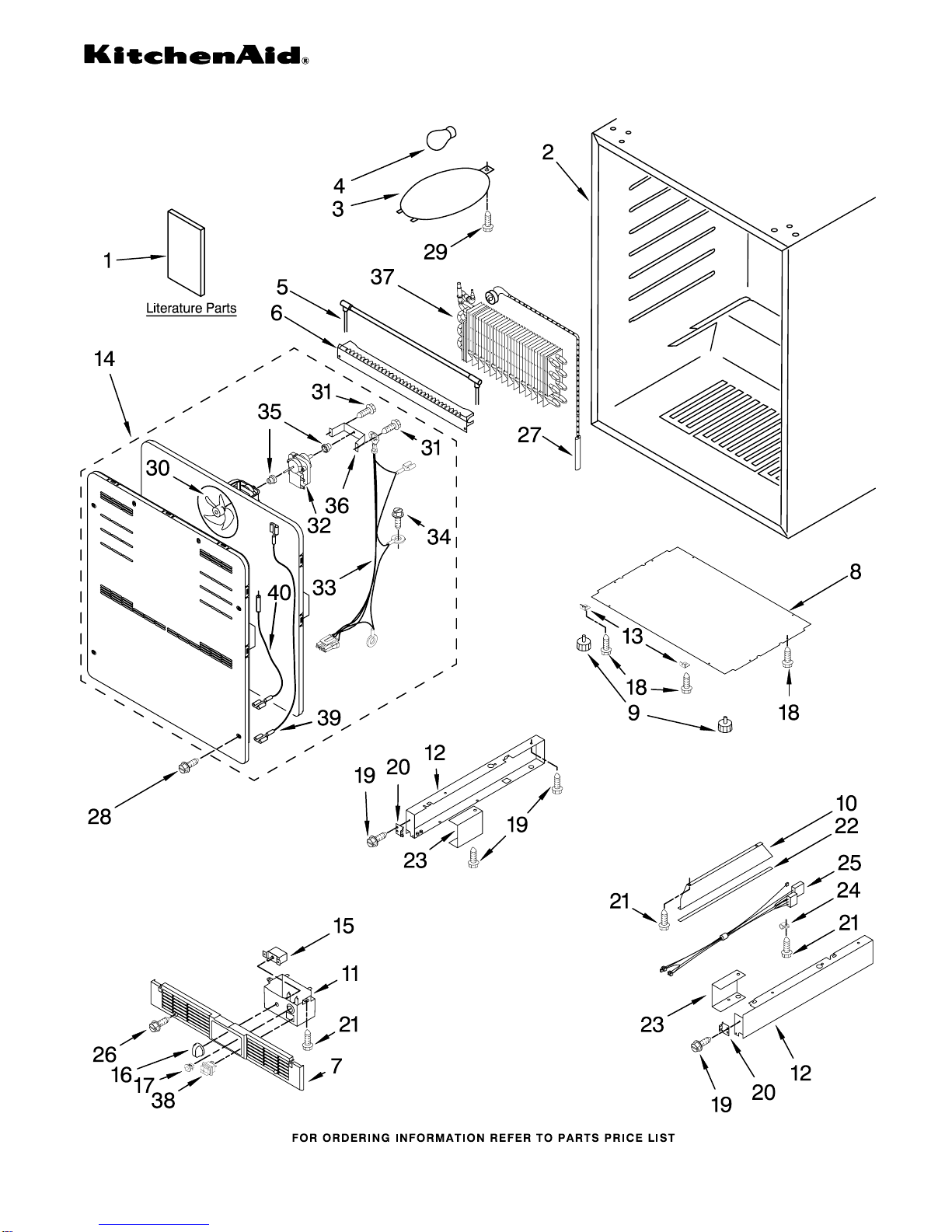

CABINET PARTS

For Models: KBCO24RSBX01

(Black Cabinet)

W10182899

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2300277 Use & Care Guide

4344901 Wiring Diagram

2 Cabinet (Not A

Service Part)

3 4344739 Lens, Light

4 4344740 Bulb, Light

5 4344746 Heater, Defrost

6 4344747 Heat Shield

7 4344761 Grille

8 4344762 Plate, Bottom

9 4344763 Foot, Leveling

10 4344764 Brace, Support

11 4344898 Control Box

12 Frame, Side

4344769 Left Side

4344770 Right Side

13 4344771 Bracket, Grille

14 4344841 Evaporator Fan

Assembly

15 4344860 Thermostat

16 4344768 Knob, Thermostat

17 4344767 Switch, Plunger

18 4344826 Screw

19 4344797 Screw

20 4344819 Clip, Grille

21 4344825 Screw

22 4344823 Seal

23 Frame, Support

4344821 Right

4344820 Left

24 4344824 Clip, Harness

25 4344857 Harness, Wire

26 4344827 Screw

27 4344792 Thermal Fuse

28 4344793 Screw

29 4344791 Screw

30 4344783 Fan Blade

31 4344878 Screw

32 4344865 Evaporator Fan

Motor

33 4344877 Harness, Wire

34 4344832 Screw, Ground

35 4344778 Grommet, Fan Motor

36 4344899 Bracket, Motor

37 Evaporator

(Not Serviced)

38 4344858 Switch, Light

39 4344917 Transformer Cable

40 4344918 Temperature Sensor

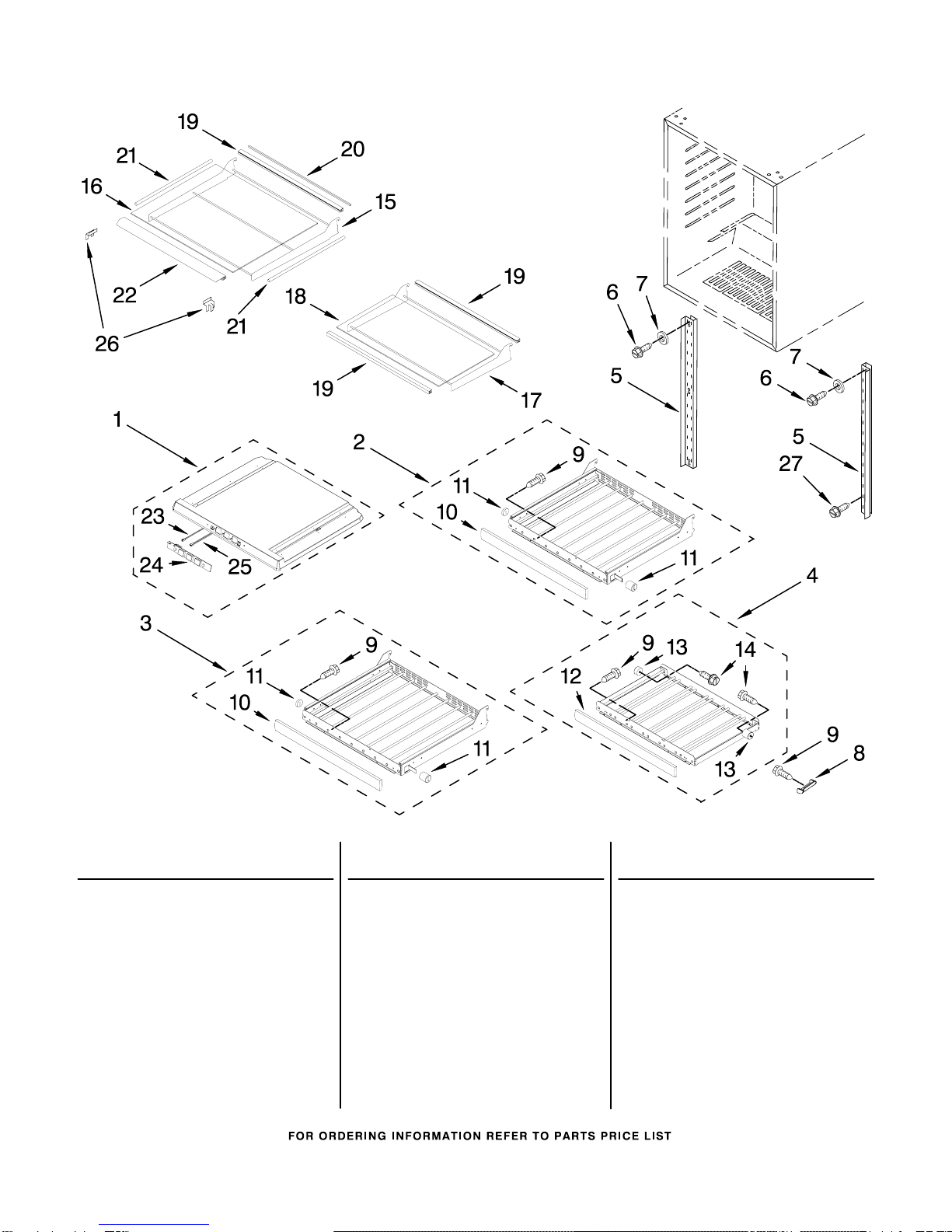

SHELF PARTS

For Models: KBCO24RSBX01

(Black Cabinet)

W10182899

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10288095

Temperature

Separator Kit

(Includes Temp.

Sensor, Item #40

Page #1)

2 4344844 Wine Rack, Top

3 4344845 Wine Rack, Middle

W10187313

Wine Rack, Lower

5 Ladder, Shelf

4344842 Left Side

4344843 Right Side

6 4344794 Screw

7 4344795 Washer

8 4344850 Stop, Lower Rack

9 4344851 Screw

10 4344882 Trim, Top And

Middle Racks

11 Support

4344866 Left

4344867 Right

W10163279

Trim, Lower Rack

13 Support, Bumper

4344885 Left

4344886 Right

14 Screw

4344915 Left

4344914 Right

15 4344870 Shelf, Large

16 4344871 Glass, Shelf

17 4344868 Shelf, Small

18 4344869 Glass, Shelf

19 4344872 Trim, Shelf

20 4344873 Seal, Rear

21 4344874 Seal, Side (2)

22 4344875 Seal, Front

23 4344895 Transformer Cable

24 4344896 PCB Display Board

25 4344897 Cable

26 4344905 Support, Shelf

(Large)

W10162986

Screw W/Washer

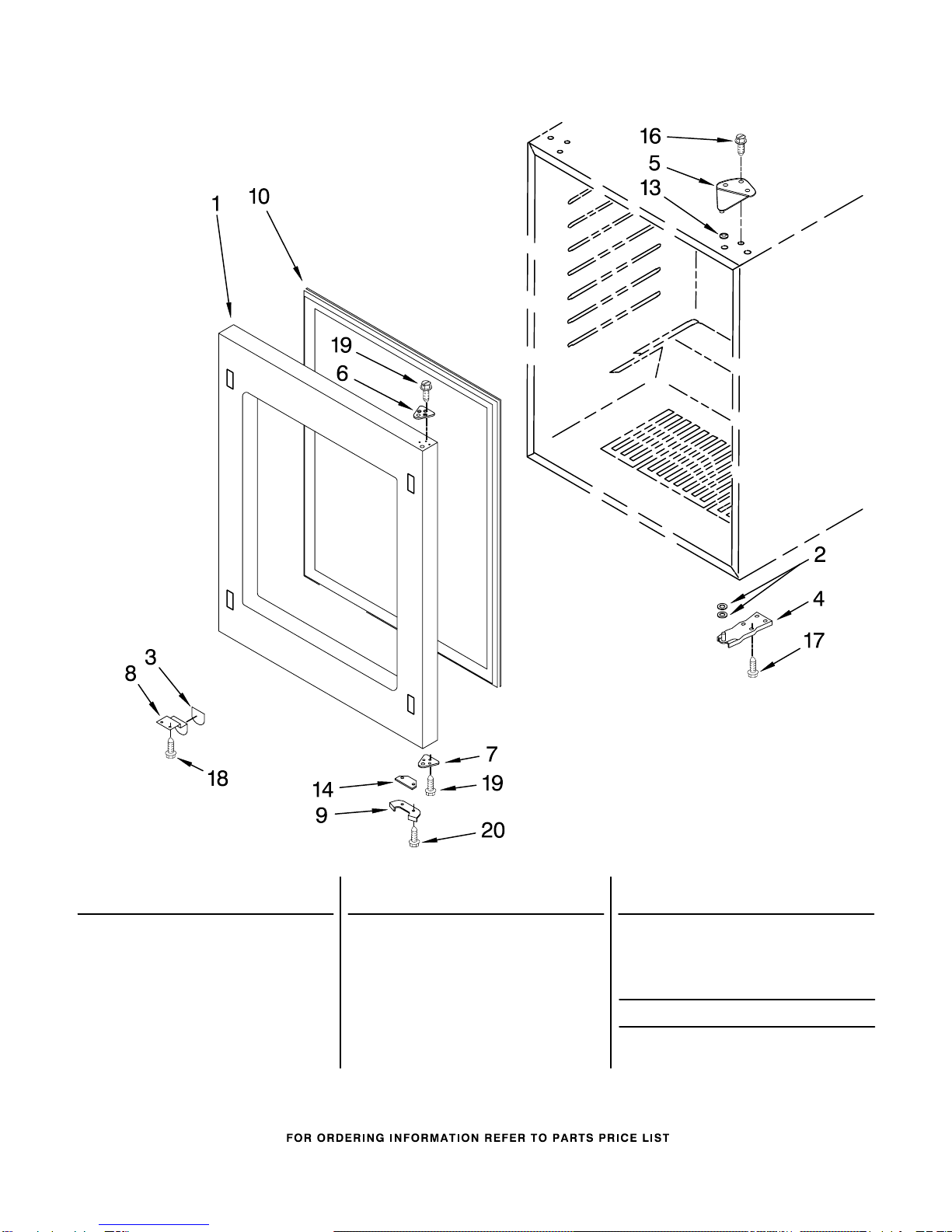

DOOR PARTS

For Models: KBCO24RSBX01

(Black Cabinet)

W10182899

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4344890 Door Assembly

(Includes Gasket)

W10162992

Washer/Bottom

W10163191

Gasket−Push Plate

4 4344753 Hinge, Bottom

5 4344754 Hinge, Top

6 4344804 Spacer, Top Hinge

7 4344798 Spacer,

Bottom Hinge

8 4344757 Actuator, Switch

9 4344802 Door Stop

10 4344852 Door Gasket

13 4344760 Washer

14 4344803 Spacer, Door

16 4344796 Screw

17 Screw, Lower Hinge

4344797 Quantity 3

4344906 Quantity 1

18 4344827 Screw

19 4344800 Screw

20 4344801 Screw

Following Parts Not Illustrated

4344818 Installation Kit,

Door Panel

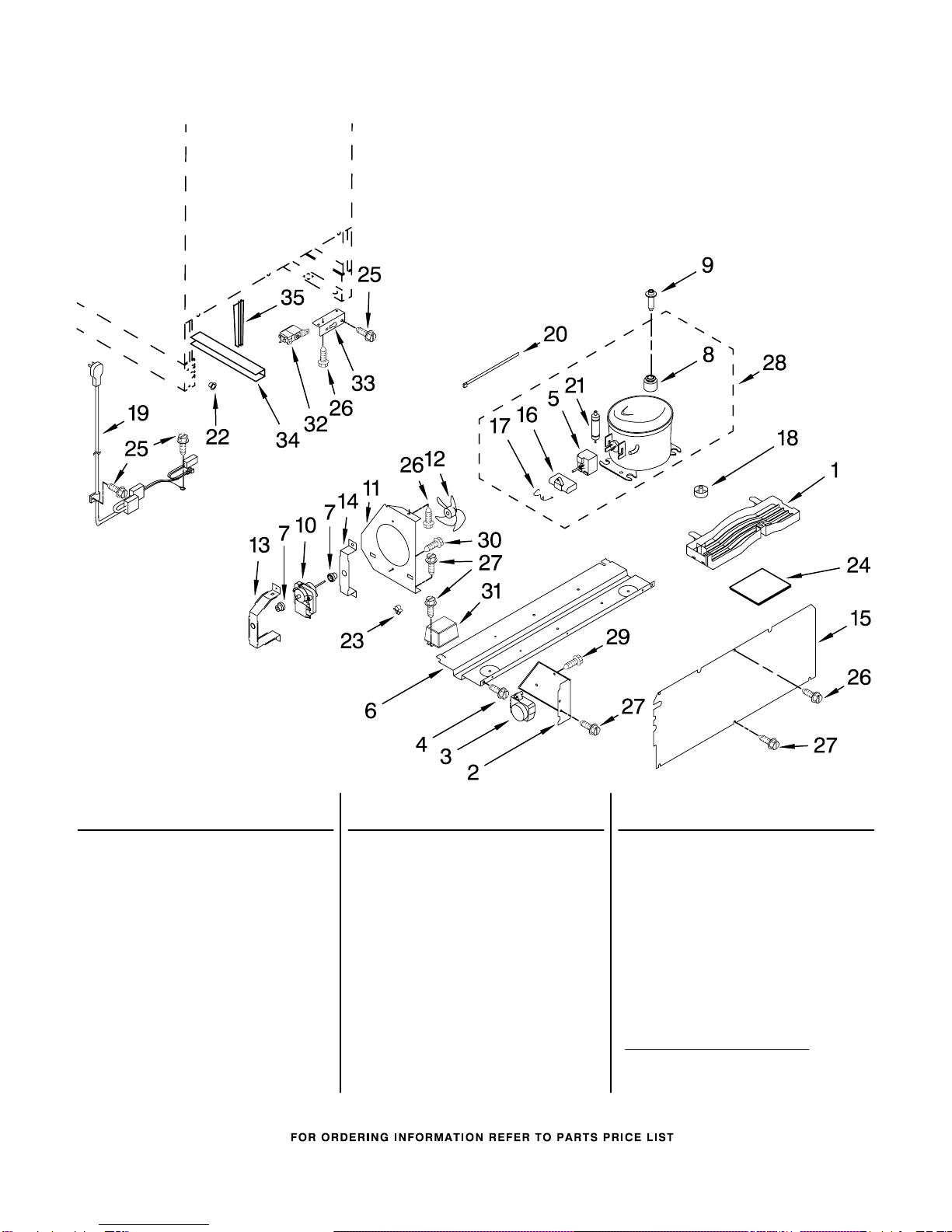

UNIT PARTS

For Models: KBCO24RSBX01

(Black Cabinet)

W10182899

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10163193

Drain Pan

2 4344773 Bracket,

Defrost Timer

3 4344774 Defrost Timer

4 4344797 Screw

5 4344776 Start Device

W10175971

Mounting Plate,

Compressor

7 4344778 Grommet, Fan Motor

8 4344779 Grommet,

Compressor

9 4344780 Bolt, Compressor

10 4344781 Fan Motor,

Condenser

11 4344782 Baffle, Air

12 4344783 Fan Blade

13 4344784 Bracket, Motor

14 4344785 Bracket, Motor

15 4344786 Cover, Rear

16 4344837 Capacitor

17 4344836 Clip

W10163276

Trap, Drain

19 4344861 Power Cord

20 4344829 Cable Tie

W10163273

Drier

22 4344838 Bushing

23 4344831 Clip, Bushing

W10163274

Mat, Rubber

25 4344826 Screw

26 4344825 Screw

27 4344832 Screw

28 4344775 Compressor

(Includes Items

5, 8, 16, 17 & 21)

29 4344834 Screw

30 4344833 Screw

31 4344862 Transformer

W10163278

Thermostat

33 4344864 Bracket,

Thermostat

34 4344907 Trim, Edge

35 4344908 Support, Drain

REFRIGERANT CHARGE

3.5 Ounces

(R−134A)
