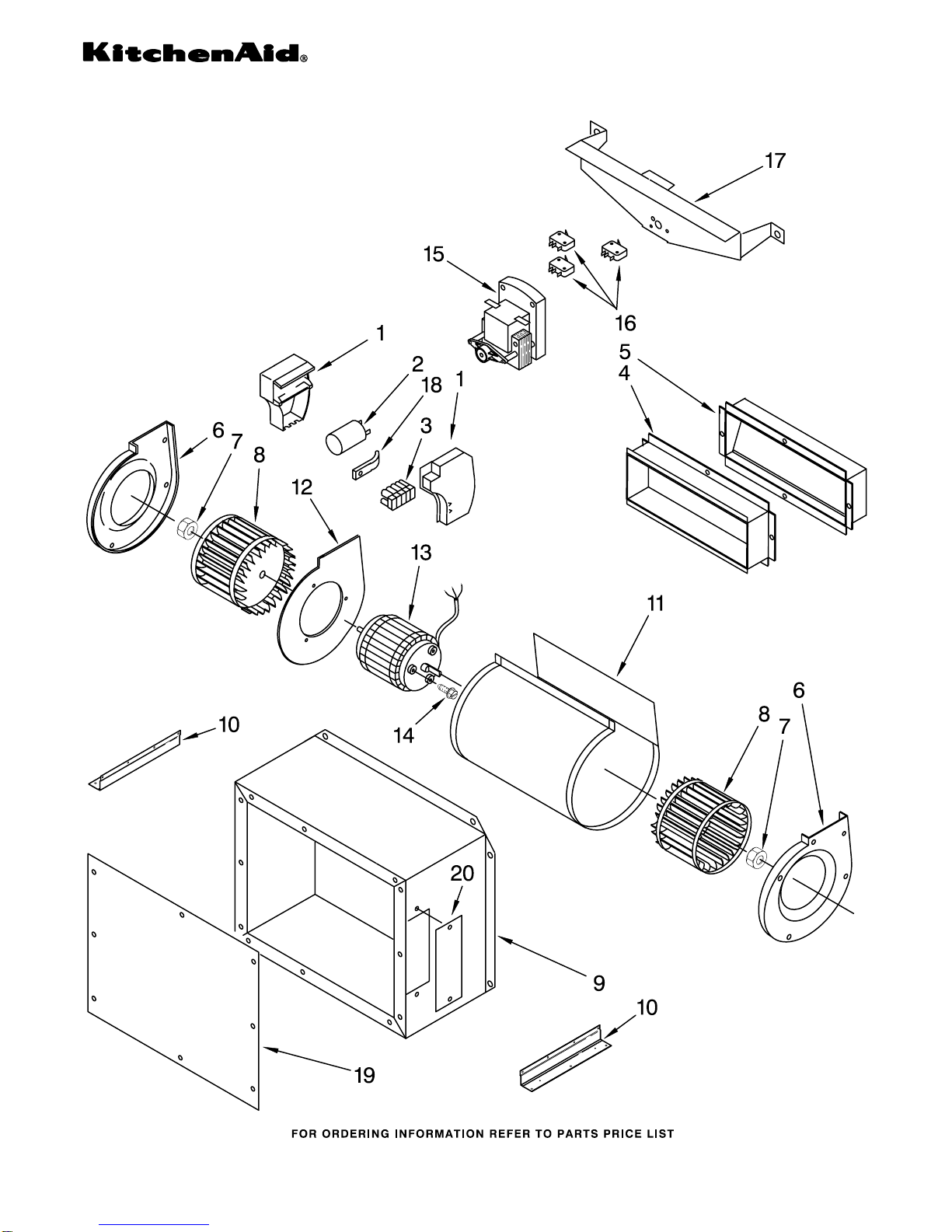

VENTILATION PARTS

For Models: KIRD801HSS0, KIRD861HSS0, KIRD821HSS0

(30" Unit) (36" Unit) (42" Unit)

8-99 Litho In U.S.A. (rmb) Part No. 4360379

30" AND 36"

RETRACTABLE DOWN DRAFT

VENT SYSTEM

VENTILATION PARTS

For Models: KIRD801HSS0, KIRD861HSS0, KIRD821HSS0

(30" Unit) (36" Unit) (42" Unit)

4360379

Illus. Part

No. No. DESCRIPTION

1 Cover, Capacitor

4360060 L.H.

4360056 R.H.

2 4360175 Capacitor

3 4360176 Terminal

4 4360177 Guide, Exhaust

5 4360178 Damper

6 Cover, Blower

4360179 R.H.

4360188 L.H.

7 4360180 Nut

8 Blower Wheel

4360181 R.H.

4360187 L.H.

9 4360182 Box, Blower

10 4360183 Support, Blower

11 4360184 Housing, Blower

12 4360185 Plate, Motor

13 4360212 Motor

14 4360114 Screw

15 4360154 Motor, Gear

16 4360362 Micro Switch (3)

17 4360155 Bracket,

Motor Gear

18 4360059 Bracket, Capacitor

19 4360189 Cover, Blower Box

20 4360190 Cover, Exhaust

Outlet

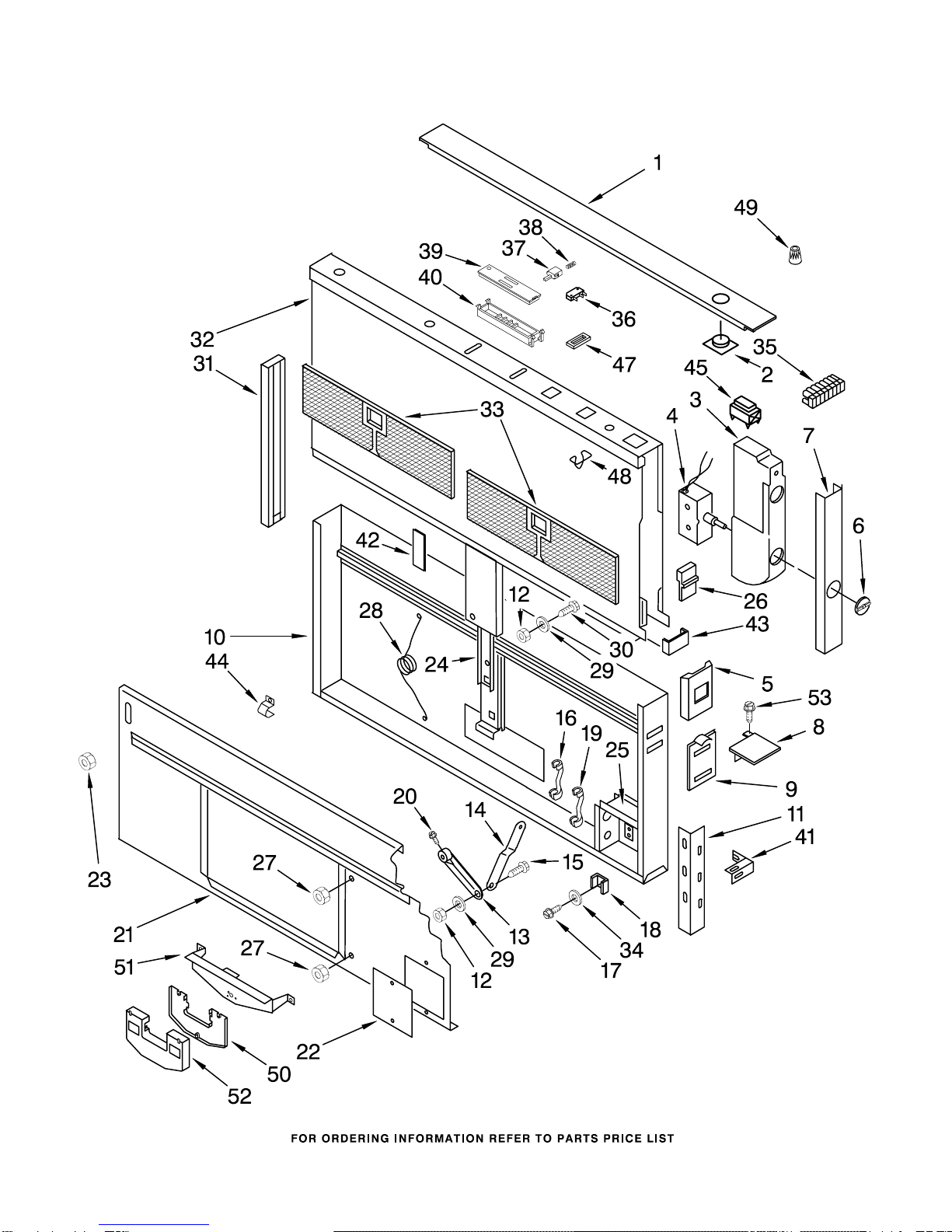

HOUSING AND CONTROL PARTS

For Models: KIRD801HSS0, KIRD861HSS0, KIRD821HSS0

(30" Unit) (36" Unit) (42" Unit)

4360379

HOUSING AND CONTROL PARTS

For Models: KIRD801HSS0, KIRD861HSS0, KIRD821HSS0

(30" Unit) (36" Unit) (42" Unit)

4360379

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Cover,

Controls (Top)

4360374 KIRD801

4360375 KIRD861

4360388 KIRD821

2 4360216 Button, Push

3 4360134 Housing, Switch

4 4360135 Switch, Fan

5 Bracket, Shield

4360136 Left Hand

4360387 Right Hand

6 4360137 Knob

7 4360138 Panel, Control

8 End Cap

4360381 Left Hand

4360382 Right Hand

9 4360140 Plate, Support

(Upper) (2)

10 Housing,

Non-Serviceable

11 Bracket, Support

4360141 Lower R.H.

4360170 Lower L.H.

12 4360142 Nut

13 4360143 Arm, Gear Motor

14 4360144 Arm, Cavity

15 4360145 Bolt

16 4360062 Strain Relief

17 4360006 Screw

18 4360146 Nut

19 4360147 Strain Relief

20 4360148 Screw

21 Cover, Housing

Non-Serviceable

22 4360149 Cover, Wiring Box

23 4360150 Nut

24 Guide, Housing

Non-Serviceable

25 4360152 Box, Wiring

26 4360153 Clamp

27 4360156 Nut

28 4360157 Spring

29 4360158 Washer

30 4360159 Bolt

31 4360160 Trim, R.H.

32 Cavity

Non-Serviceable

33 Filter, Grease

4360193 KIRD801

4360194 KIRD861, KIRD821

34 4360005 Washer

35 4360165 Terminal

36 4360361 Micro Switch (2)

37 4360166 Actuator,

Micro Switch (2)

38 4360167 Spring (2)

39 4360168 Cover, Switch (2)

40 4360169 Housing, Switch (2)

41 Support

4360171 L.H.

4360172 R.H.

42 4360173 Guide,

Housing (Back)

43 4360174 Spacer, Cavity (2)

44 4360044 Clamp, Cable

45 4360210 Switch

47 4360385 Connector (3)

48 4360272 Spring (3)

49 4360211 Nut, Wire

50 4360230 Cover, Box

51 4360155 Bracket, Motor

52 4360229 Box, Microswitch

53 4360386 Screw

Following Parts Not Illustrated

4360198 Installation Kit

814380 Kit , Motor Mount

LITERATURE PARTS

LIT4360363

Installation

Instructions/

Use And Care Guide

OPTIONAL PARTS NOT INCLUDED

8171304 Trim Kit-White

(KIRD801)

8171305 Trim Kit-Black

(KIRD801)

8171306 Trim Kit-Biscuit

(KIRD801)

8171310 Trim Kit-White

(KIRD861)

8171311 Trim Kit-Black

(KIRD861)

8171312 Trim Kit-Biscuit

(KIRD861)

8171316 Trim Kit-White

(KIRD821)

8171317 Trim Kit-Black

(KIRD821)

8171318 Trim Kit-Biscuit

(KIRD821)

FOLLOWING PARTS

NOT ILLUSTRATED

4360227 Cooktop Strip
