MOTOR AND DRIVE PARTS

For Models: KUCS03FTPA0, KUCS03FTSS0

(No−Panel) (Stainless)

11−07 Litho in U.S.A. (els) Part No. W10118275 Rev. C

TRASH COMPACTOR

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9871923 Tech Sheet

9872215 Guide, Use & Care

2 9870343 Motor, Drive

(Includes No. 13)

3 9871067 Screw,

4 776327 Plate, Drive

Mount

5 776338 Locknut

6 4149667 Gear, Drive

7 454512 Pin, Slotted

Spring

8 776035 Washer, Wave

9 297462 Washer, Thrust

10 777124 Gear, Driven

11 776036 Clip, Ring

12 780477 Chain, Drive

13 777971 Switch, Motor

Parts Not Illustrated and

Optional Parts (Not Included)

9870118 Undercounter

Conversion Kit

FRAME PARTS

For Models: KUCS03FTPA0, KUCS03FTSS0

(No−Panel) (Stainless)

W10118275

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Frame (Not A

Serviceable Part)

2 9870867 Shield, Slide

Track

3 9870976 Frame, Slide (R.H.)

9870975 Frame, Slide (L.H.)

4 4153788 Bearing, Roller

5 776356 Locknut

6 777458 Screw

7 9870167 Pan, Bottom

8 489478 Screw

9 4149659 Shield, Harness

10 777070 Screw

11 780434 Cover, Motor

12 608009 Plate, Motor

Cover

13 9872154 Insulation

14 4149377 Switch, Drawer

Safety

15 775668 Angle, Top

Support

16 777811 Switch, Top

Limit &

Directional

17 777849 Screw

18 777850 Plate, Nut

19 9872118 Wiring Harness &

Power Cord

20 776119 Bushing, Cord

21 777035 Clamp, Wire

22 776118 Grommet, Motor

Cover

23 775526 Leveler,

Front

24 9870585 Wheel,

Leveler

25 780034 Screw

26 9870444 Panel, Inner

27 777180 Spring,

Container

28 3400938 Nut

POWERSCREW AND RAM PARTS

For Models: KUCS03FTPA0, KUCS03FTSS0

(No−Panel) (Stainless)

W10118275

Illus. Part

No. No. DESCRIPTION

1 9870500 Screw, Power

Complete

Assembly

2 Screw, Power

(Available Only

As Complete

Assembly)

3 779121 Plate, Bearing

4 775482 Bearing, Needle

5 776941 Hub, Power

Screw

6 775481 Race, Thrust

7 777385 Sprocket,

Washer

8 4154842 Nut, Power

Screw

9 777332 Washer, Cone

10 9871067 Screw

11 9871251 Ram Assembly

12 9870163 Nut, Power

13 9870187 Stud

14 9870037 Stop, Ram

15 9870498 Bracket, Top Limit

Switch

16 489399 Screw

17 9870775 Cap, Stop

18 9870169 Slide, Ram

CONTAINER PARTS

For Models: KUCS03FTPA0, KUCS03FTSS0

(No−Panel) (Stainless)

W10118275

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4152204 Screw

2 9871976 Actuator Switch

3 9872232S Panel, Container

Front

4 9870996 Container

Assembly

W10021850

Nameplate

6 Pedal, Foot

9871989B Black

7 780263 Screw, Shoulder

8 776395 Guide, Rear Latch

9 9870066 Latch Assembly

10 2004333 Nut

11 9871125 Spring,

Safety Switch

12 9872206S Handle

13 3196175 Screw

14 489478 Screw

15 9871602 Container, Bearing

Roller

16 776356 Locknut,

17 Plate, Toe Guard

777328 Black

18 776654 Pin

19 775736 Spring, Latch

20 775735 Ring, ‘‘E’’

21 775665 Plate, Latch

22 4147703 Retainer, Bag

(Contains 4 Each)

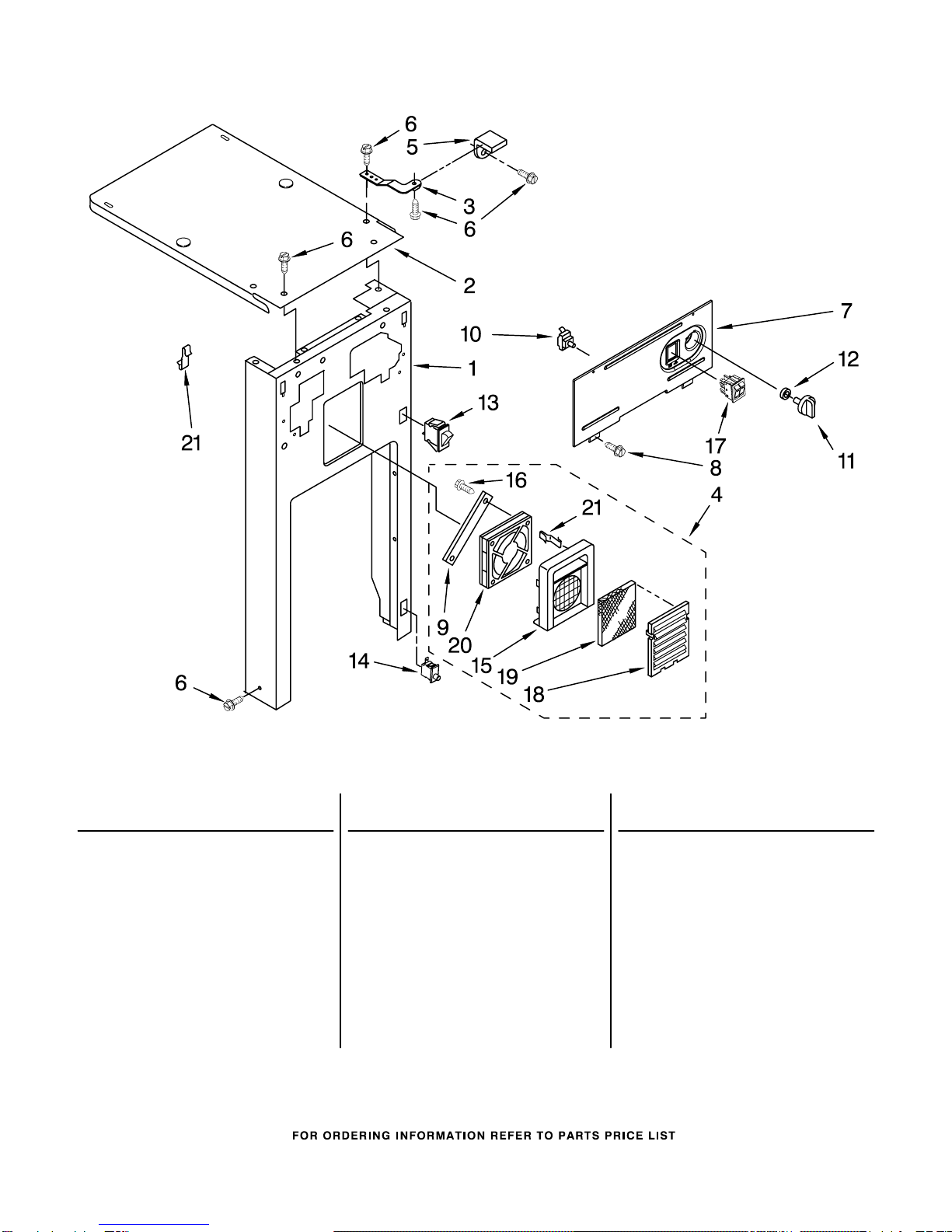

PANEL AND CONTROL PARTS

For Models: KUCS03FTPA0, KUCS03FTSS0

(No−Panel) (Stainless)

W10118275

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel, Front

Frame

9871977 Black

2 608572 Cover, Top

3 9871993 Bracket, Retainer

4 9871893 Fan Mount Assembly

5 780239 Bracket, Retainer

(Alternate)

6 489478 Screw

7 Escutcheon,

Control

9871906B Black

8 246131 Screw

9 4152703 Strap, Fan

10 9871971 Switch, Rotary

Start−Run

11 9871920 Knob, Rotary

Switch

12 777383 Nut, Rotary

Switch

13 9871829 Switch,

Drawer

14 9871984 Switch, Pushbutton

15 4151442 Compartment,

Air Freshener

16 780034 Screw

17 Switch Assembly

9871973 Black

18 Cover,

Air Freshener

9871099 Black

19 4151750 Filter,

Charcoal

20 9871051 Fan,

Filter

21 4151897 Clip,

Wire

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

The Accessory Parts Listed Below

May or May Not Be Included With

Your Compactor.

1 Panel, Container

Front/Handle

4396297 White/White

4396296 Black/Black

4396298 Biscuit/Biscuit

4396299 Cobalt Blue/SSt.

4396300 Empire Red/SSt.

9871805 Majestic Yellow

w/SSt. Handle

2 Bag, Trash

(15" Plastic)

4318921 15 Pack

4318922 60 Pack

94318921 12 Boxes of

15 Pack

(15" Paper)

675186 12 Pack

882652 48 Pack

3 777635 Deodorizer,

Solid Stick−Ups

(2−Pack)

4 Deodorizer Block

9872166LG

Lemongrove

9872166GA

Green Apple

9872166L Lavender

5 13030 Carrier, Bag

(Includes No. 6)

6 777108 Handle, Bag

Carrier

7 675351 Grease, 4 Oz.

(Use on Power

Screw & Ram

Pressure Pads

8 Wire, 25’ Roll

10875 Blue 16 Ga.

242820 Black 14 Ga.

242825 Red 14 Ga.

242826 White 14 Ga.

47261 Black 12 Ga.

299885 Red 12 Ga.

47263 White 12 Ga.

9 279368 Adhesive,

Insulation

(2oz Tube)

10 Paint,

Touch−Up 1/2 Oz.

72107 Almond

72017 White

72032 Black

4892899 Biscuit

8171571 Cobalt Blue

8171651 Hunter Green

8171652 Empire Red

8171653 Majestic Yellow

11 Paint,

Spray 13 Oz.

350956 Almond

285006 Black

4392901 Biscuit

350930 White

OPTIONAL PARTS

NOT ILLUSTRATED

Framed Trim Kits

9871382 White

9871383 Black

9871600 Biscuit

Previous Architect Series

Handle Kit

8564945 Stainless Steel

For Models: KUCS03FTPA0, KUCS03FTSS0

(No−Panel) (Stainless)

W10118275
