KitchenAid KFCK03ITWH0 Manuel utilisateur

MOTOR AND DRIVE PARTS

For Model: KFCK03ITWH0

(White)

1−07 Litho in U.S.A. (els) Part No. W10122455 Rev. A

TRASH COMPACTOR

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9871923 Sheet, Tech

9872216 Guide, Use & Care

9872109 Label, Warning

2 9870343 Motor, Drive

(Includes No. 13)

3 9871067 Screw,

1/4−20 x 3/4 (4)

4 776327 Plate, Drive

Mount

5 776338 Locknut, 10−32 (4)

6 4149667 Gear, Drive

7 454512 Pin, Slotted

Spring

8 776035 Washer, Wave

9 297462 Washer, Thrust

10 777124 Gear, Driven

11 776036 Clip, Ring

12 780477 Chain, Drive

13 777971 Switch, Motor

Parts Not Illustrated and

Optional Parts (Not Included)

9870118 Undercounter

Conversion Kit

FRAME PARTS

For Model: KFCK03ITWH0

(White)

W10122455

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Frame (Not A

Serviceable Part)

2 9870867 Shield, Slide

Track (2)

3 9870976 Frame, Slide (R.H.)

9870975 Frame, Slide (L.H.)

4 4153788 Bearing, Roller (2)

5 776356 Locknut,

3/8−24 (2)

6 777458 Screw,

6−32 x 3/8 (4)

7 3400938 Nut, 6−32 (4)

8 9870167 Pan, Bottom

9 489478 Screw, 8 x 1/2

10 775668 Angle, Top

Support

11 777070 Screw,

8−32 x 5/16

12 776780 Barrier, Glass

13 4149377 Switch, Drawer

Safety

14 777811 Switch, Top

Limit &

Directional

15 777849 Screw,

6−20 x 1" (2)

16 777850 Plate, Nut

17 9872116 Wiring Harness &

Power Cord

18 776119 Bushing, Cord

19 777035 Clamp, Wire

20 775526 Leveler,

Front (2)

21 9870585 Wheel,

Leveler (2)

22 780034 Screw,

10−24 x 3/8 (2)

23 9870444 Panel, Inner

24 777180 Spring,

Container

POWERSCREW AND RAM PARTS

For Model: KFCK03ITWH0

(White)

W10122455

Illus. Part

No. No. DESCRIPTION

1 9870500 Screw, Power

Complete

Assembly (2)

2 Screw, Power

(Available Only

As Complete

Assembly)

3 779121 Plate, Bearing (2)

4 775482 Bearing, Needle (2)

5 776941 Hub, Power

Screw (2)

6 775481 Race, Thrust (2)

7 777385 Sprocket,

Washer (2)

8 4154842 Nut, Power

Screw (2)

9 777332 Washer, Cone (2)

10 9871067 Screw,

1/4−20 x 3/4

11 9871251 Ram Assembly

12 9870163 Nut, Power

13 9870187 Stud

14 9870037 Stop, Ram

15 9870498 Bracket, Top Limit

Switch

16 489399 Screw, (2)

17 9870775 Cap, Stop

18 9870169 Slide, Ram (4)

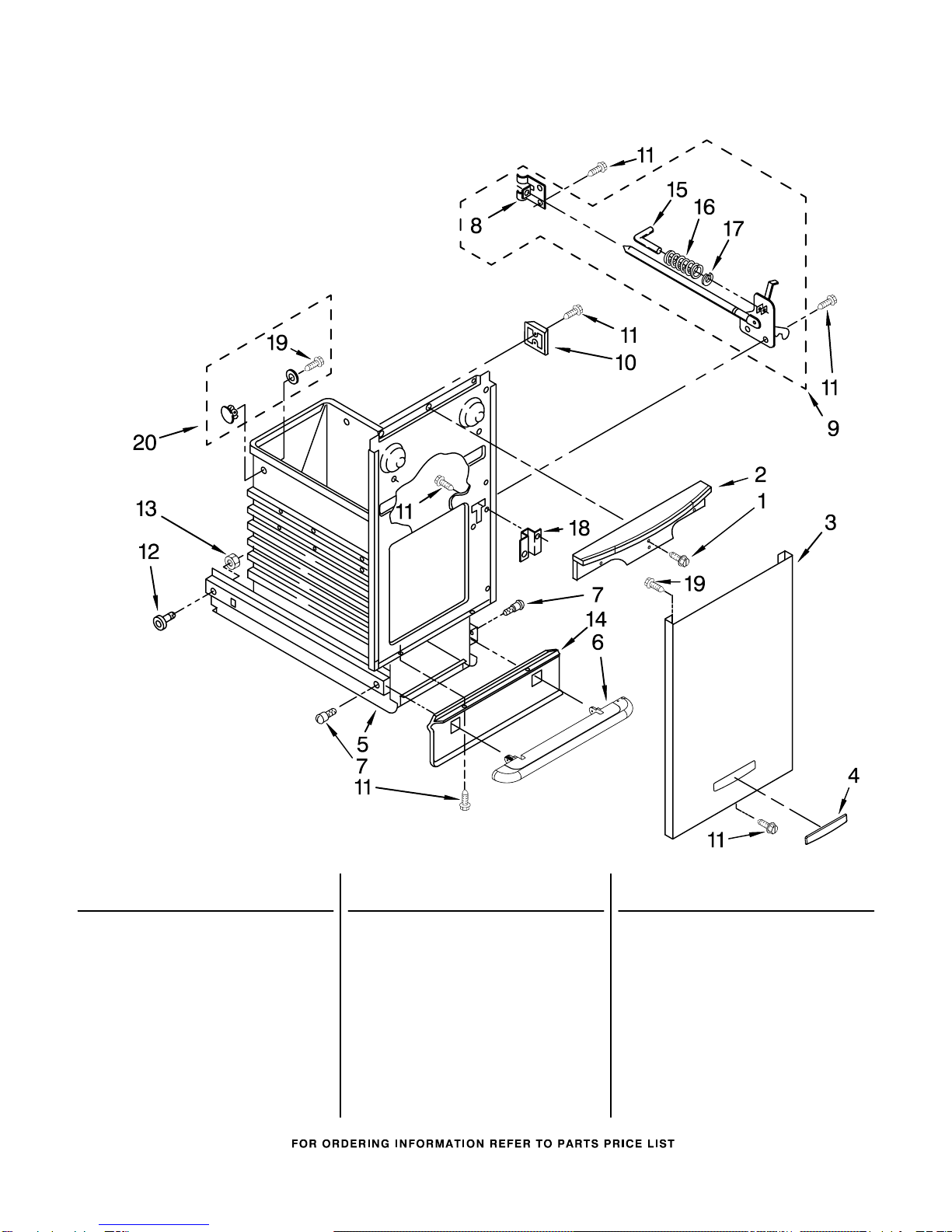

CONTAINER PARTS

For Model: KFCK03ITWH0

(White)

W10122455

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3400888 Screw (2)

2 Handle, Container

9871235 White

3 Panel, Container

9872238W White

W10021860

Nameplate

5 9870996 Container

Assembly

6 Pedal, Foot

9871989W White

7 780263 Screw, Shoulder

#8−32 x 3/8 (2)

8 776395 Guide, Rear Latch

9 9870066 Latch Assembly

10 9871125 Spring,

Safety Switch

11 489478 Screw, 8 x 1/2

12 9871602 Container, Bearing

Roller

13 776356 Locknut,

3/8−24 (2)

14 Plate, Toe Guard

9871030 White

15 776654 Pin

16 775736 Spring, Latch

17 775735 Ring, ‘‘E’’

18 775665 Plate, Latch

19 3196175 Screw

20 4147703 Retainer, Bag

(Contains 4 Each)

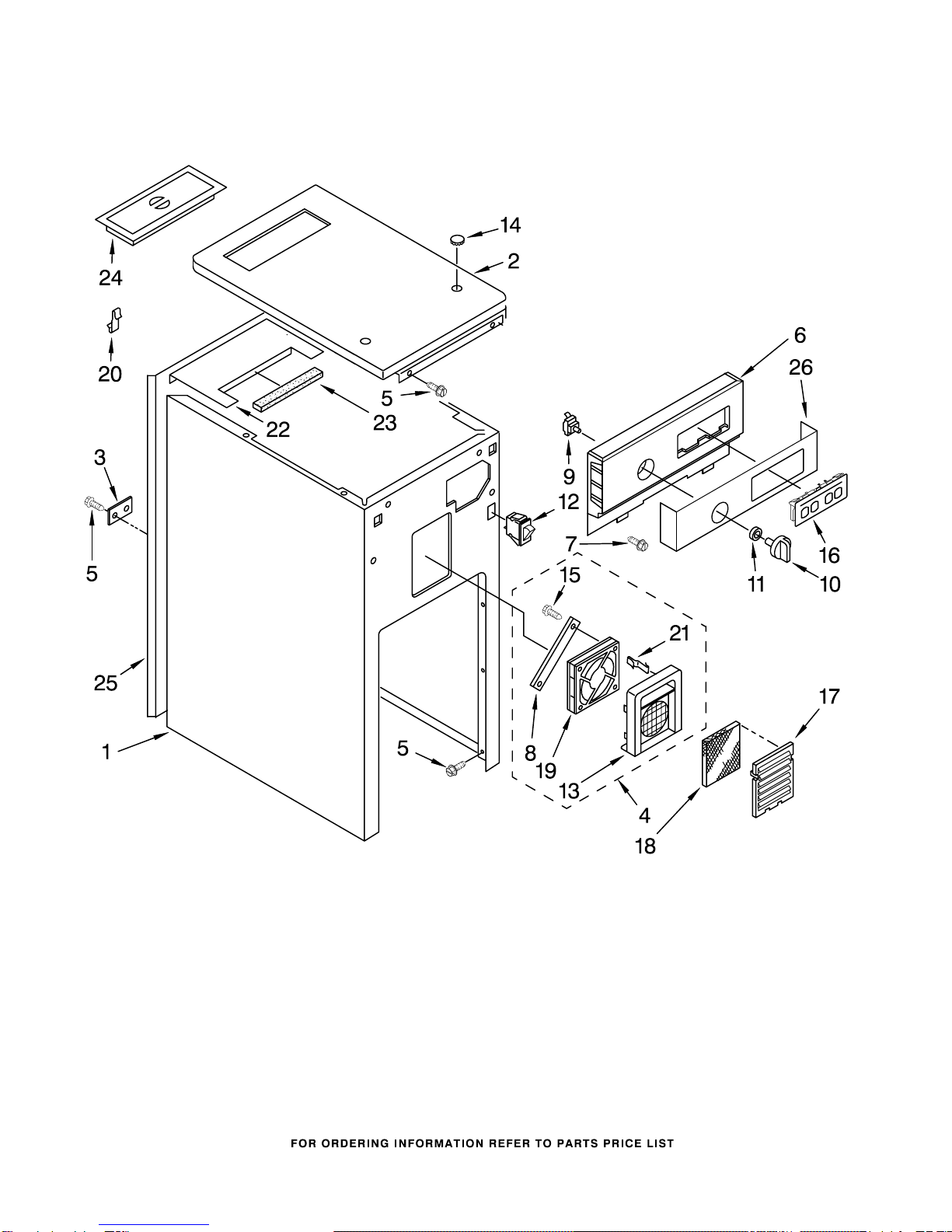

PANEL AND CONTROL PARTS

For Model: KFCK03ITWH0

(White)

W10122455

PANEL AND CONTROL PARTS

For Model: KFCK03ITWH0

(White)

W10122455

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Cabinet

9870913 White

2 Top, Cabinet

9871075 White

3 775676 Plate, Power Cord

4 9871893 Fan Mount Assembly

5 489478 Screw,

8 x 1/2AB (6)

6 Escutcheon,

Control

9871746 White

7 246131 Screw,

6−20 x 3/8 (2)

8 4152703 Strap, Fan

9 608824 Switch, Rotary

Start−Run

10 Knob, Rotary

Switch

9871799 White

11 777383 Nut, Rotary

Switch

12 4152058 Switch,

Drawer

13 4151442 Compartment,

Air Freshener

14 Plug, Hole

4151479 White

15 780034 Screw,

10−24 x 3/8

16 Switch Assembly

9872326W White

17 Cover,

Air Freshener

9870911 White

18 4151750 Filter,

Charcoal

19 9871051 Fan,

Filter

20 4151897 Clip,

Wire

21 4151897 S−Clip

22 780438 Plate, Bag

Storage

(Includes No. 23)

23 776780 Barrier, Glass

24 Lid, Bag

Storage

608739 White

25 9870863 Panel, Back

26 Insert,

Escutcheon

9872198W White

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

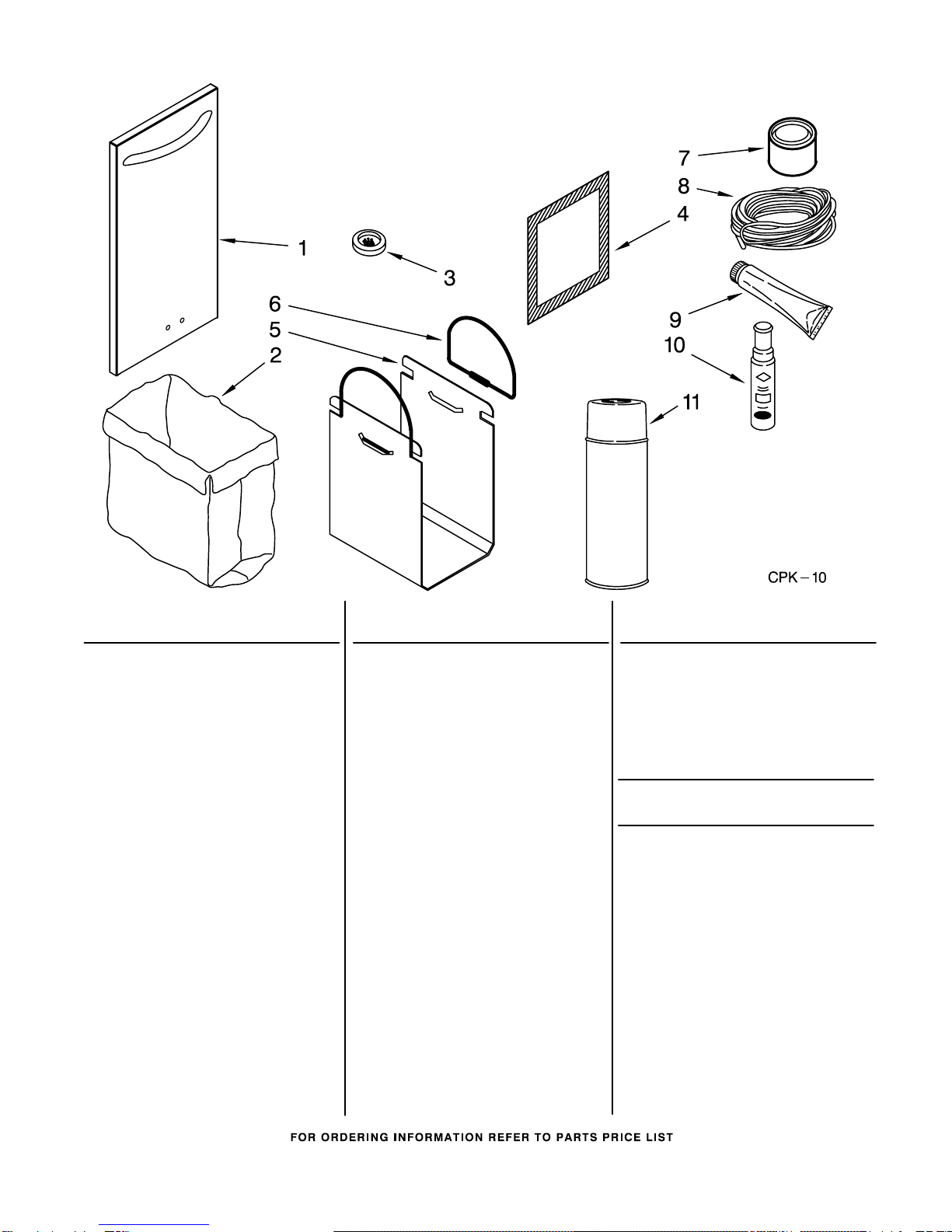

ACCESSORY PARTS

The Accessory Parts Listed Below

May or May Not Be Included With

Your Compactor.

1 Panel, Container

Front/Handle

4396297 White/White

4396296 Black/Black

4396298 Biscuit/Biscuit

4396299 Cobalt Blue/SSt.

4396300 Empire Red/SSt.

9871805 Majestic Yellow

w/SSt. Handle

2 Bag, Trash

(15" Plastic)

4318921 15 Pack

4318922 60 Pack

94318921 12 Boxes of

15 Pack

(15" Paper)

675186 12 Pack

882652 48 Pack

3 777635 Deodorizer,

Solid Stick−Ups

(2−Pack)

4 Deodorizer Block

9872166LG

Lemongrove

9872166GA

Green Apple

9872166L Lavender

5 13030 Carrier, Bag

(Includes No. 6)

6 777108 Handle, Bag

Carrier

7 675351 Grease, 4 Oz.

(Use on Power

Screw & Ram

Pressure Pads

8 Wire, 25’ Roll

10875 Blue 16 Ga.

242820 Black 14 Ga.

242825 Red 14 Ga.

242826 White 14 Ga.

47261 Black 12 Ga.

299885 Red 12 Ga.

47263 White 12 Ga.

9 279368 Adhesive,

Insulation

(2oz Tube)

10 Paint,

Touch−Up 1/2 Oz.

72107 Almond

72017 White

72032 Black

4892899 Biscuit

8171571 Cobalt Blue

8171651 Hunter Green

8171652 Empire Red

8171653 Majestic Yellow

11 Paint,

Spray 13 Oz.

350956 Almond

285006 Black

4392901 Biscuit

350930 White

OPTIONAL PARTS

NOT ILLUSTRATED

Framed Trim Kits

9871382 White

9871383 Black

9871600 Biscuit

Previous Architect Series

Handle Kit

8564945 Stainless Steel

For Model: KFCK03ITWH0

(White)

W10122455
